Rear Door Lock

Rear Door:

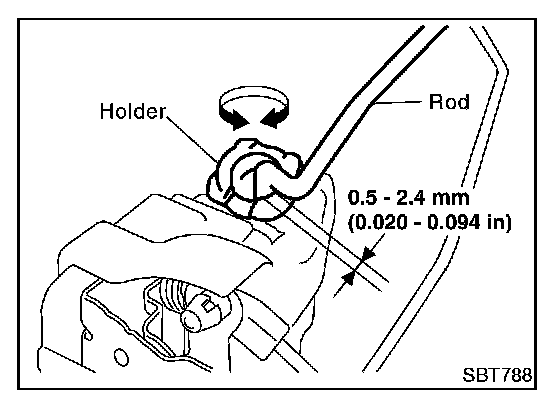

OUTSIDE HANDLE ROD ADJUSTMENT
Rotate rod holder so that rod-to-holder clearance is adjusted as shown in the figure.

CAUTION: Make sure that rod-to-holder clearance is not "0" mm (0 in), and that rod is not held pressed.
