Home >> Nissan-Datsun >> 2002 >> Maxima GXE V6-3.5L (VQ35) >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Component Tests and General Diagnostics >> Remote Keyless Entry System >> Power Supply and Ground Circuit Check

Power Supply and Ground Circuit Check

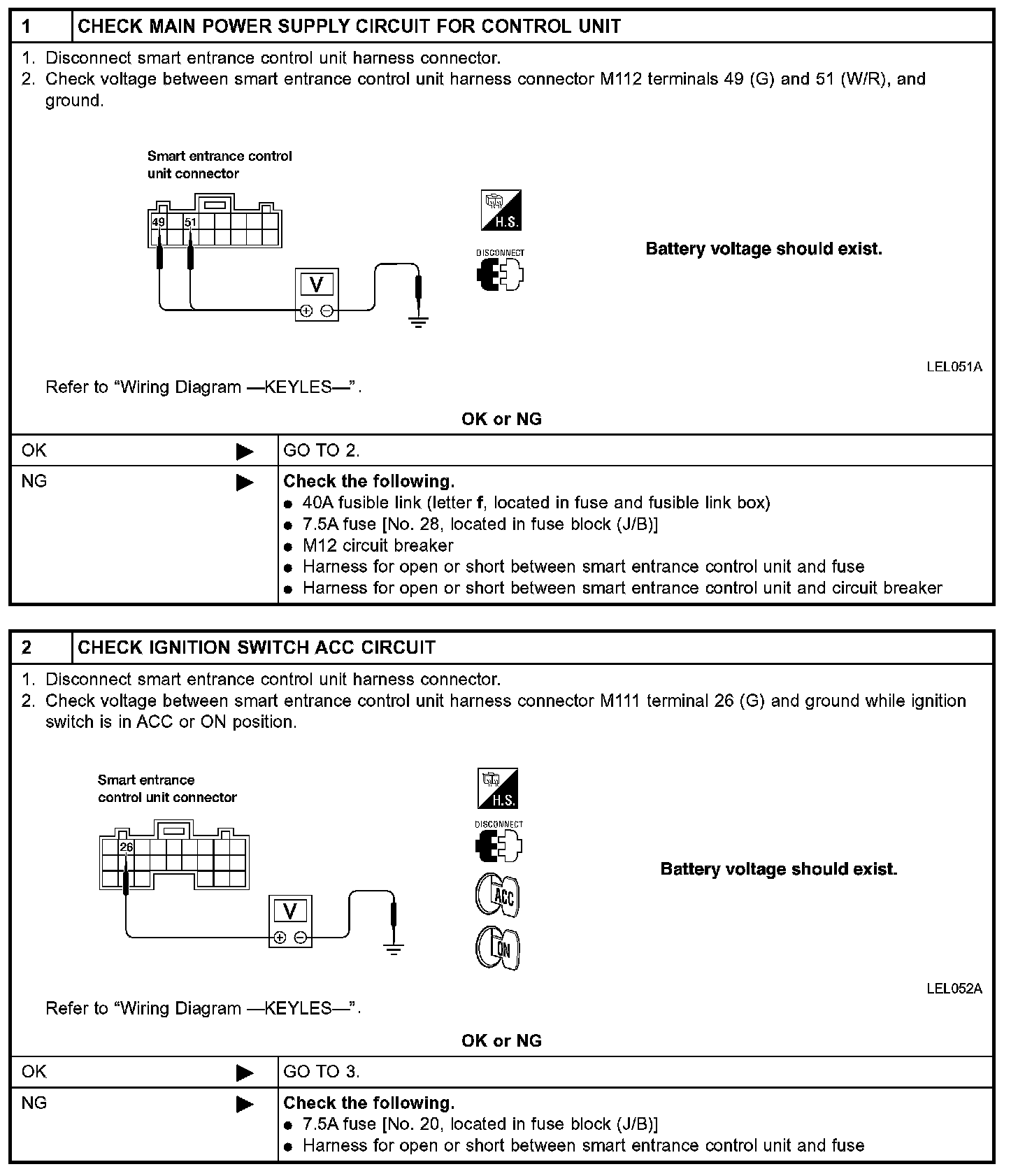

Step 1 - 2:

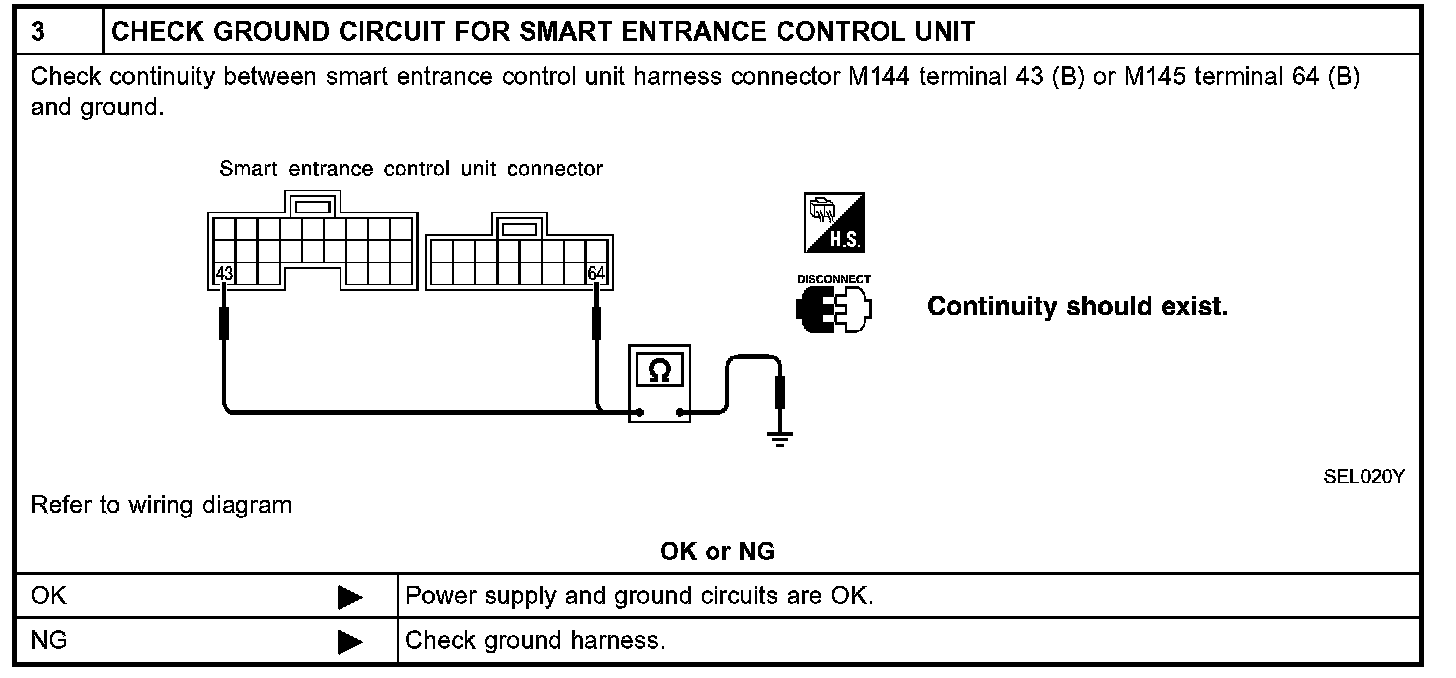

Step 3:

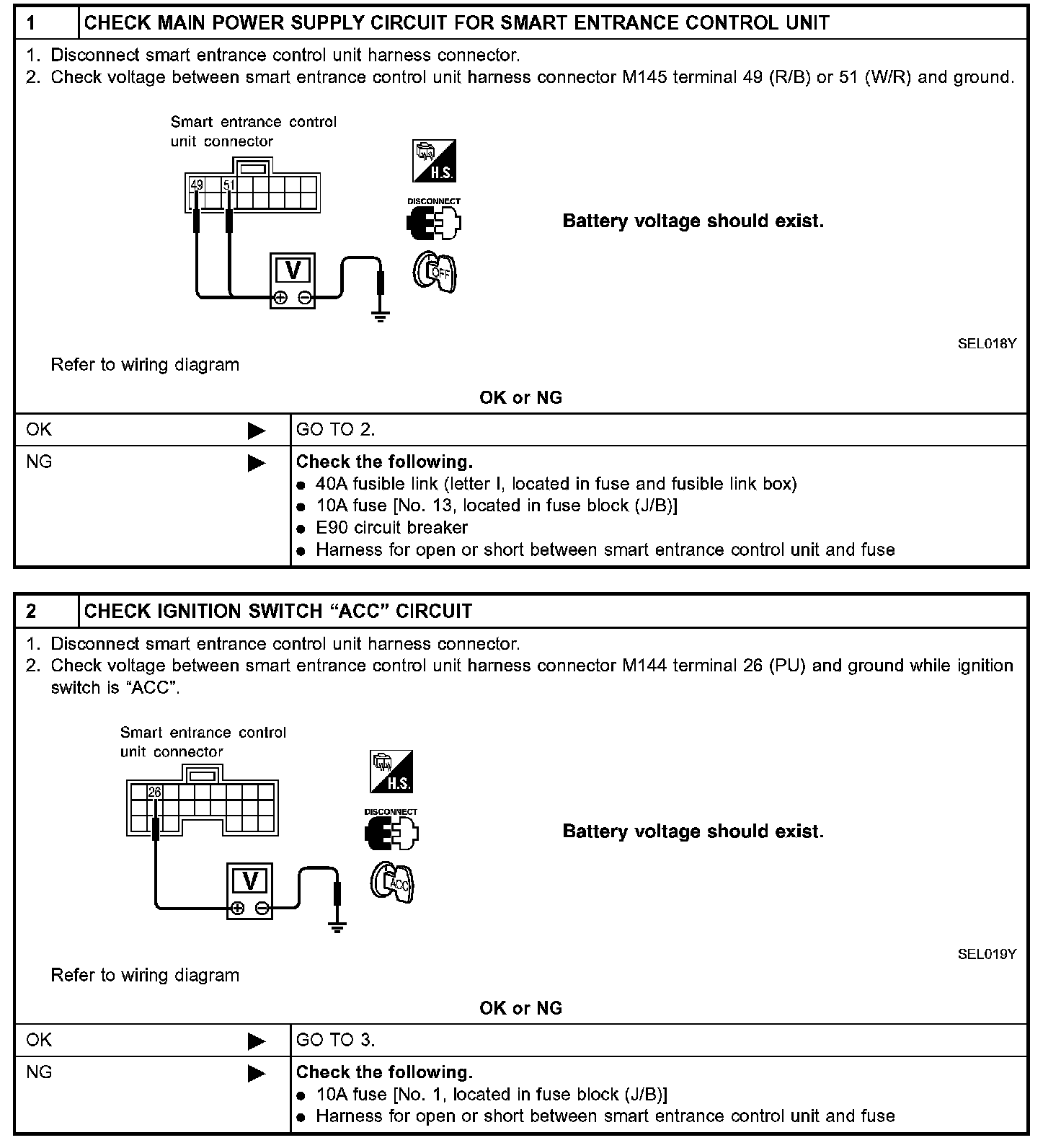

Step 1 - 2:

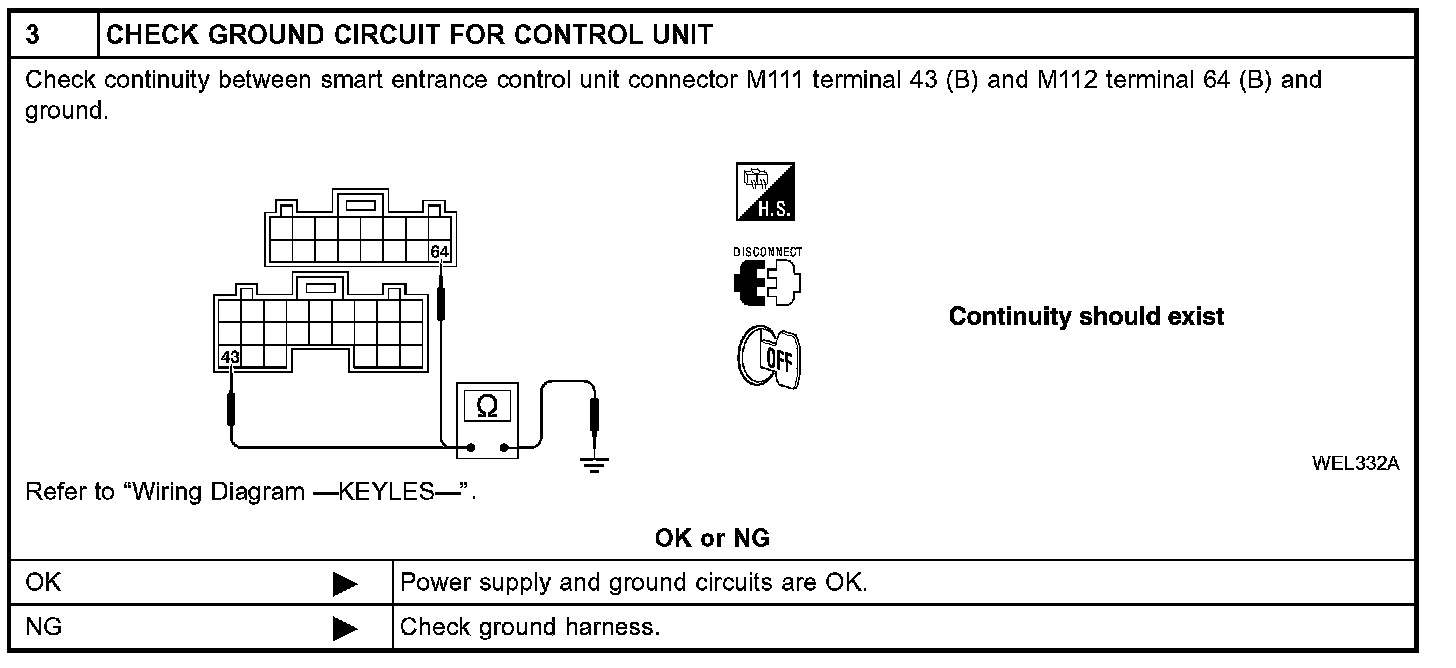

Step 3:
