Dashboard / Instrument Panel: Service and Repair

Part 1:

Part 2:

Part 3:

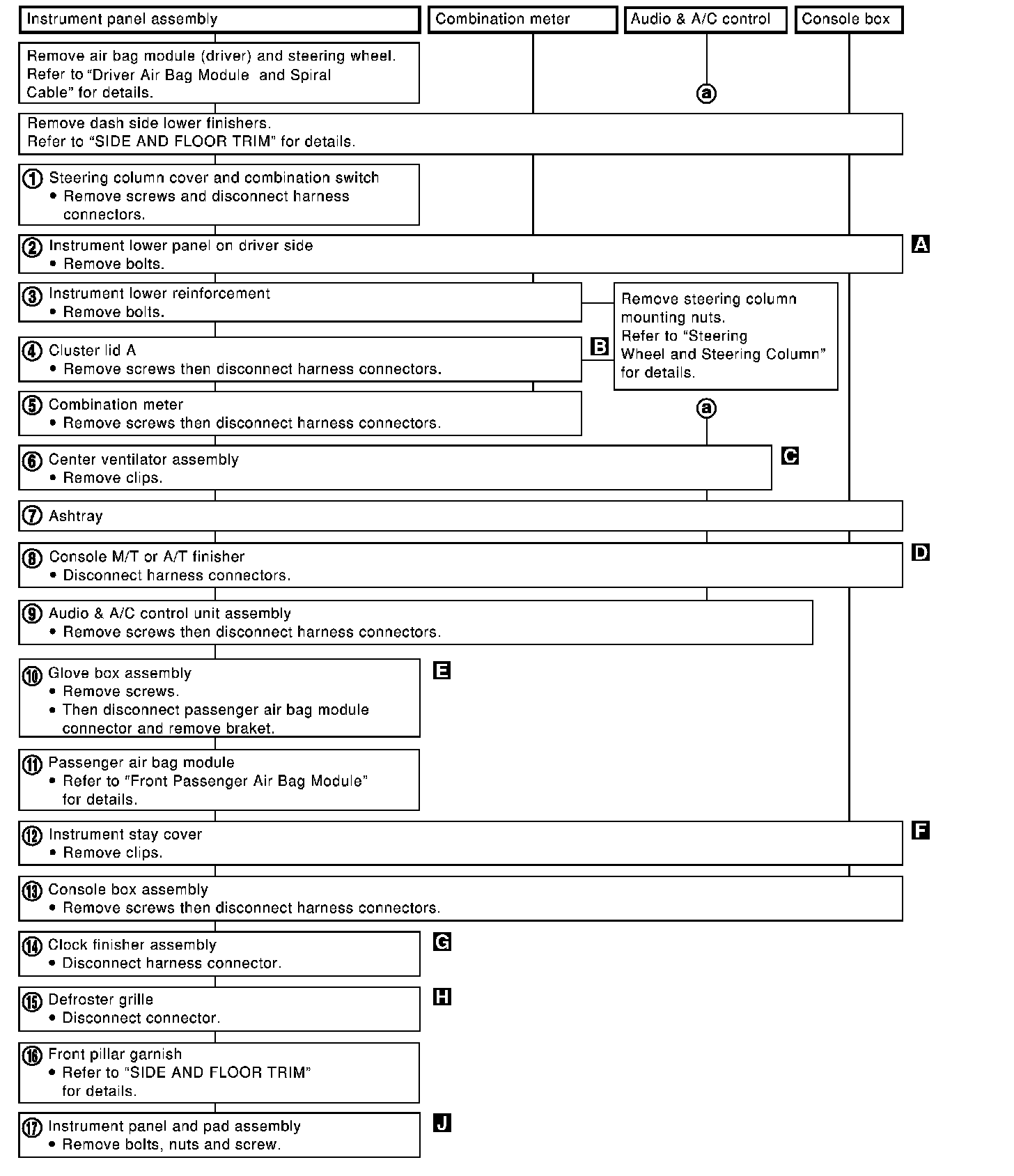

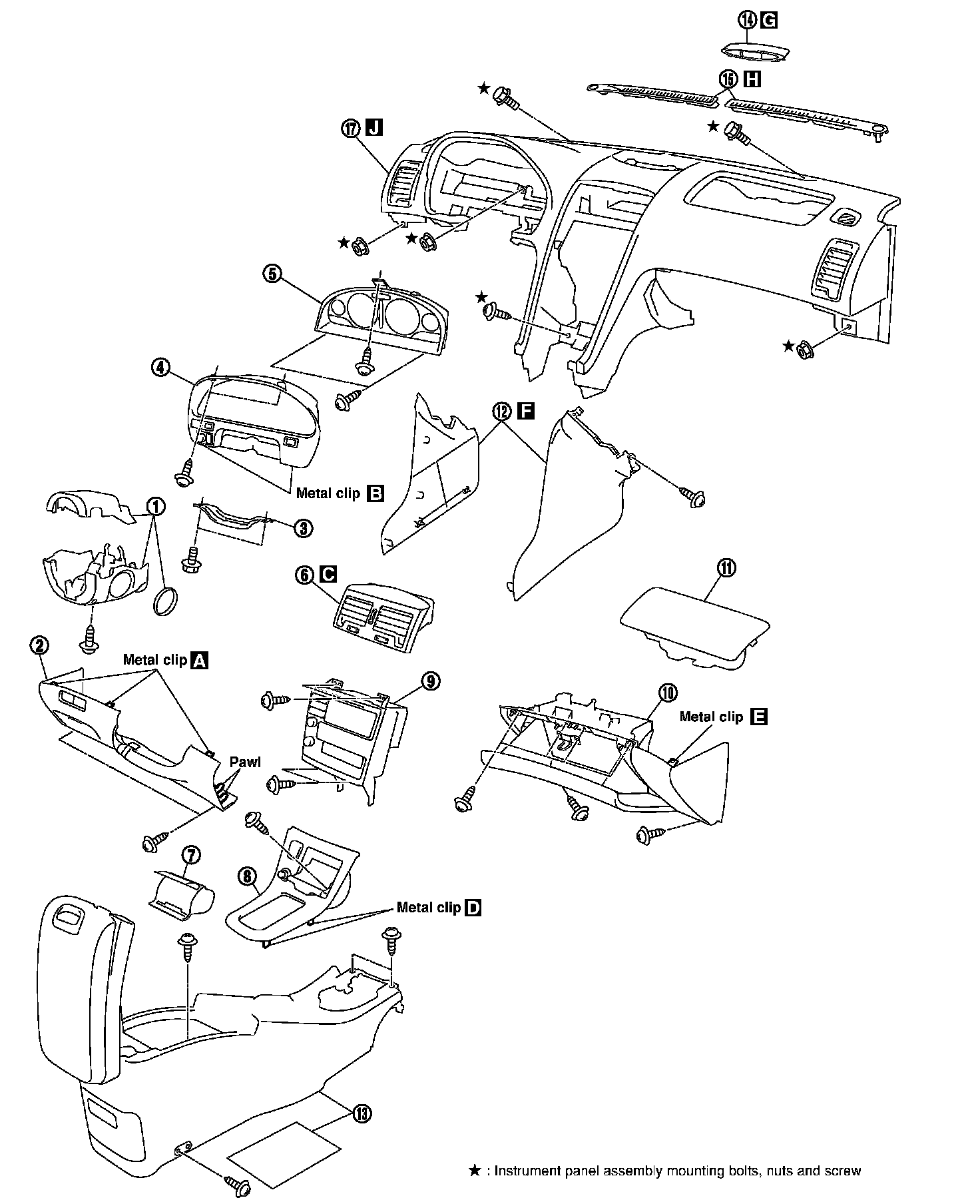

Removal and Installation

CAUTION: Disconnect ground terminal from battery in advance.
Disconnect air bag system line in advance.
Never tamper with or force air bag lid open, as this may adversely affect air bag performance.
Be careful not to scratch pad and other parts.
