Front Door Panel: Service and Repair

Part 1:

Part 2:

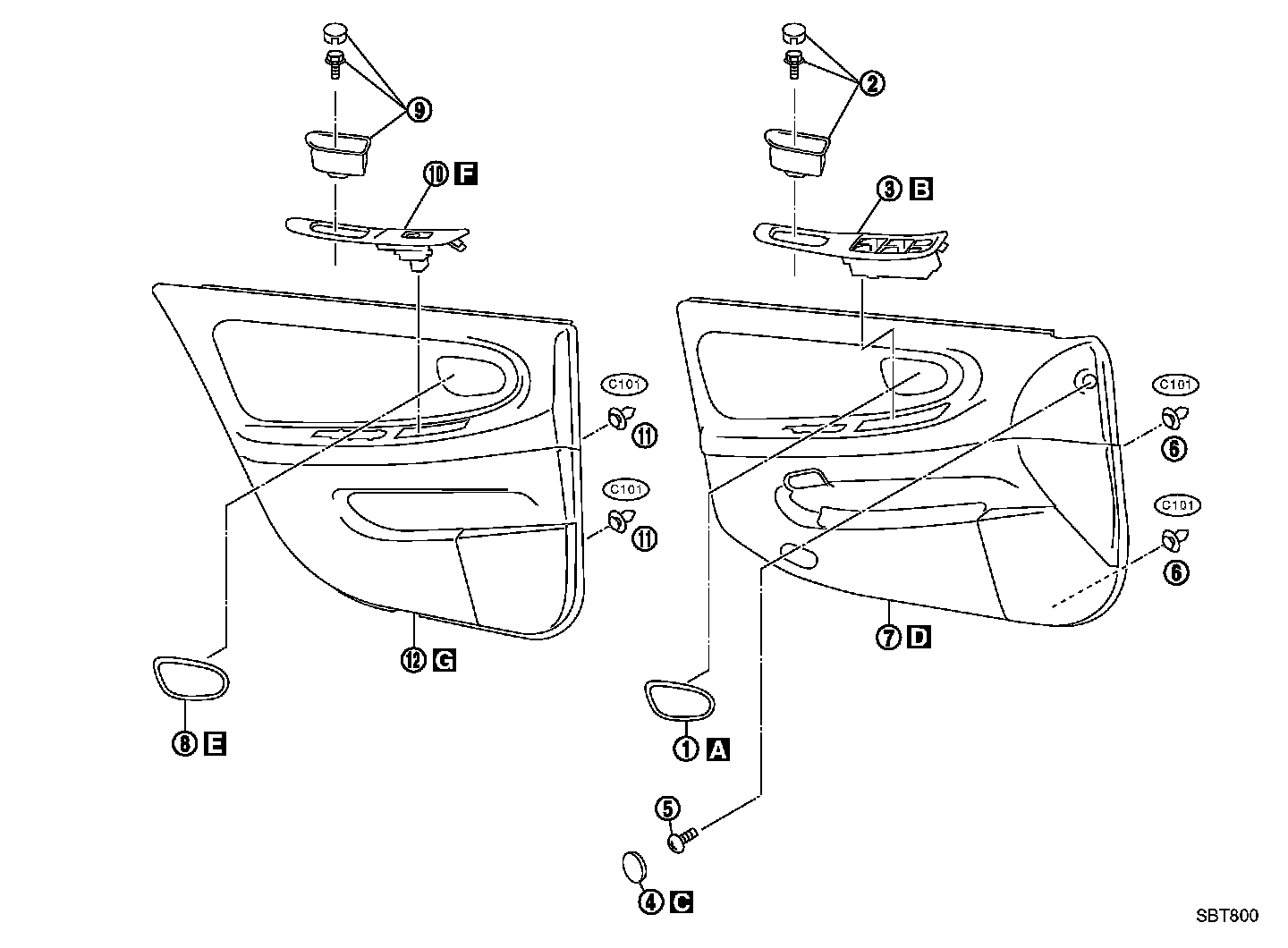

Removal and Installation

Front door finisher

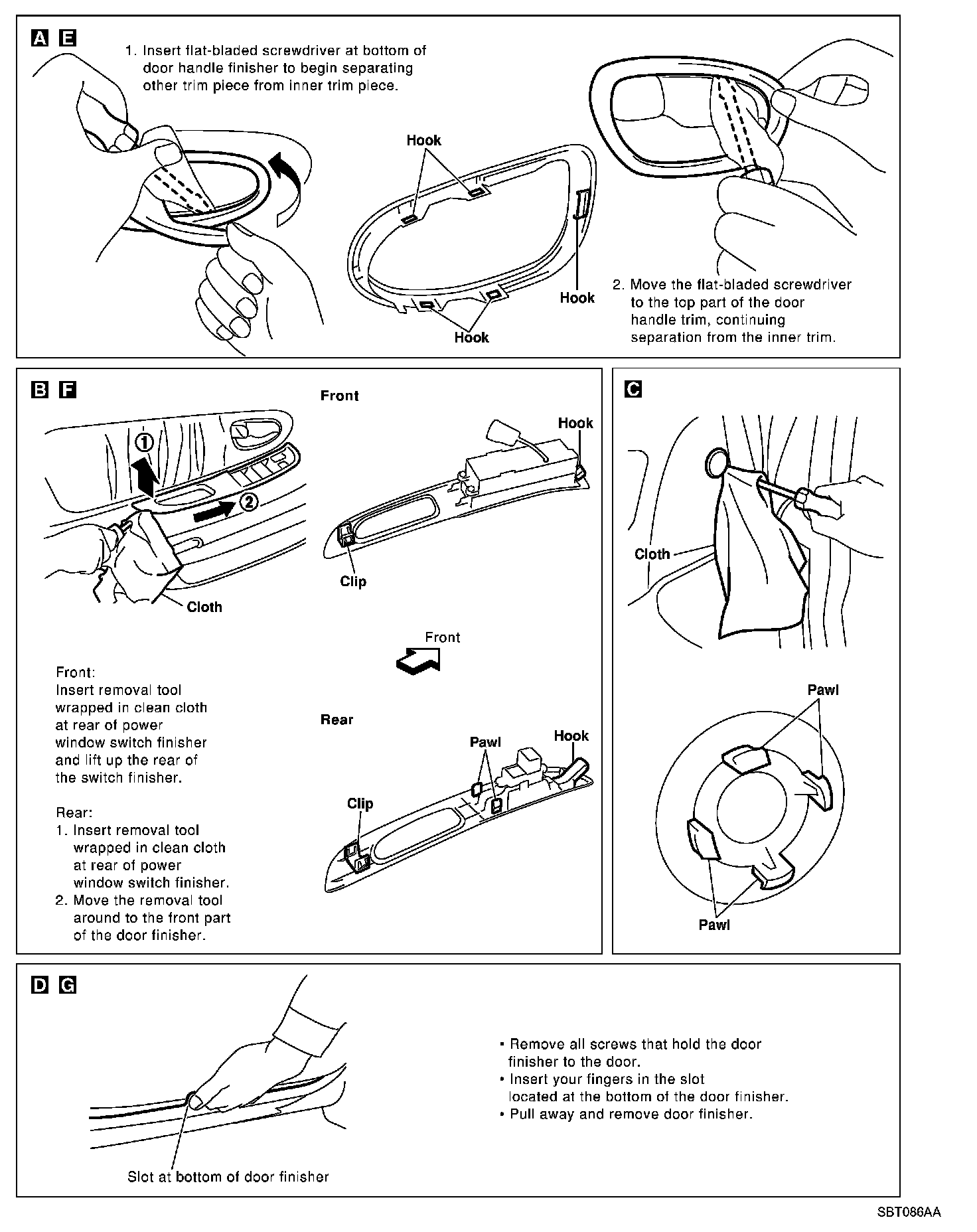

1. Remove inside handle escutcheon.[A]
2. Remove screw securing pull handle, and then remove pull handle.
3. Remove power window switch finisher, then disconnect the connectors.[B]
4. Remove mask.[C]
5. Remove screw securing front door finisher.
6. Remove clips securing front door finisher.
7. Lift out front door finisher. Disconnect harness connectors.[D]

Rear door finisher
8. Remove inside handle escutcheon.[E]
9. Remove screw securing pull handle, and then remove pull handle.
10. Remove power window switch finisher, then disconnect the connector.[F]
11. Remove clips securing rear door finisher.
12. Lift out rear door finisher.[G]
