Setting Mode

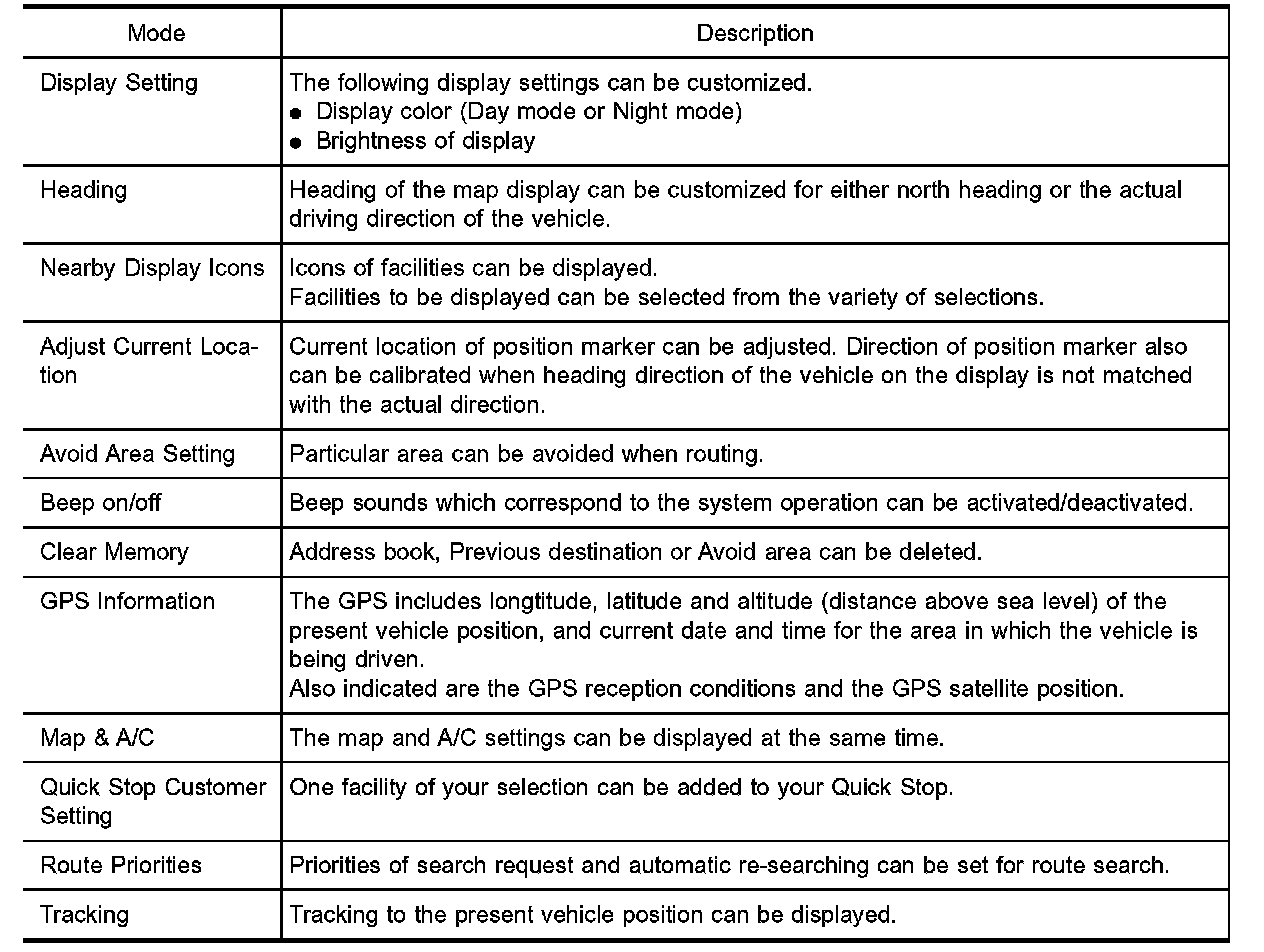

APPLICATION ITEMS
HOW TO PERFORM CONTROL PANEL MODE
1. Start the engine.

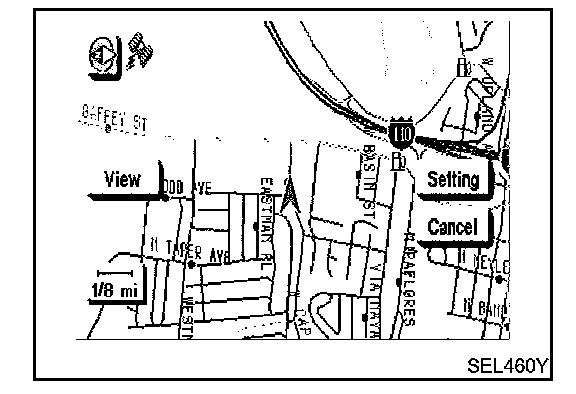

2. Push "MAP" switch.
- For further procedures, refer to each application item of the control panel mode.

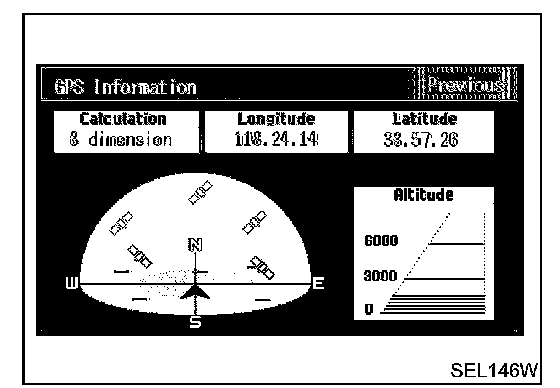

"GPS INFORMATION" SETTING
1. Start the engine.
2. Push "MAP" switch.

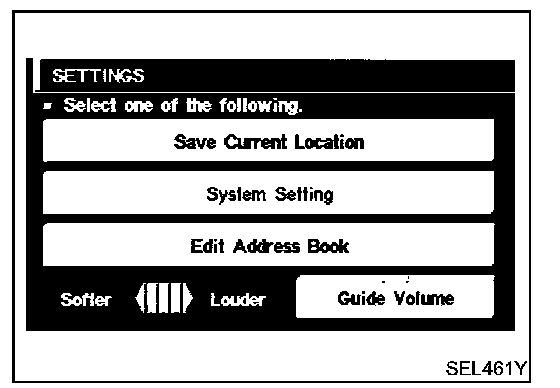

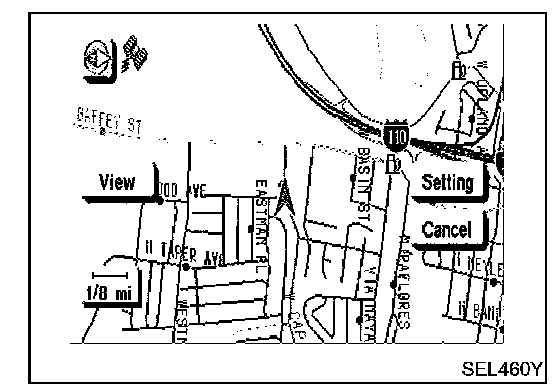

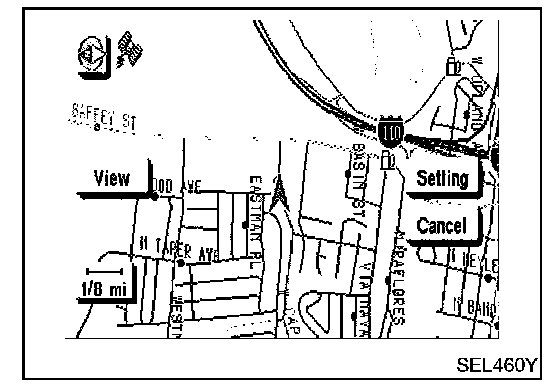

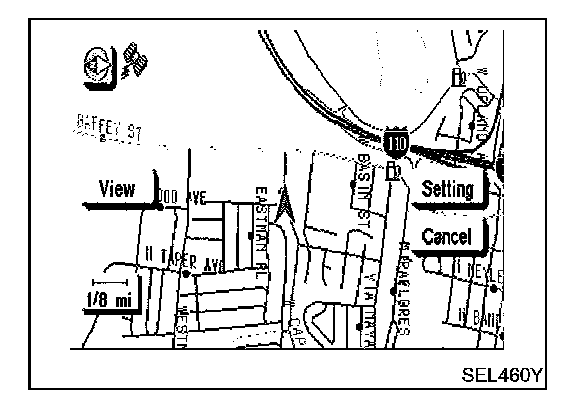

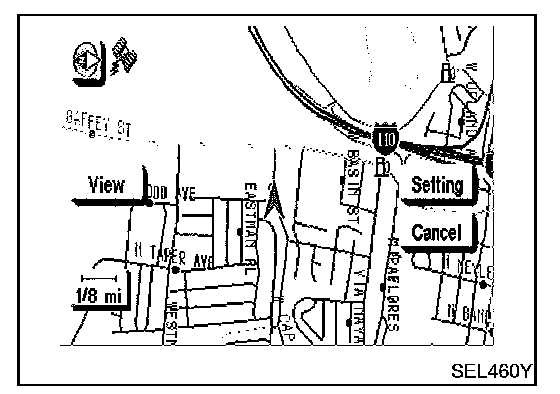

3. Touch "Setting".

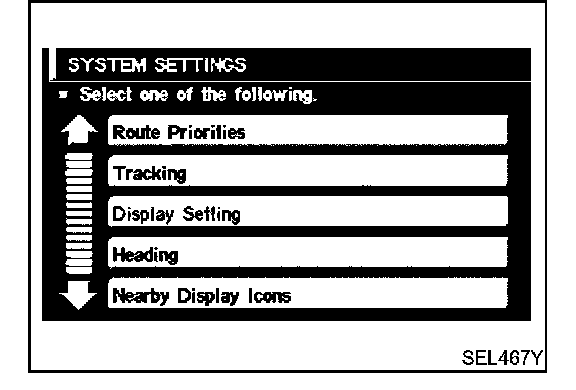

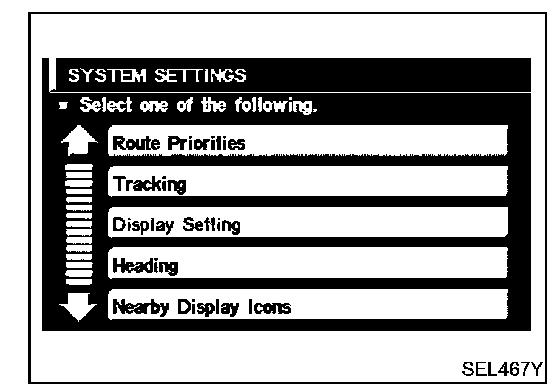

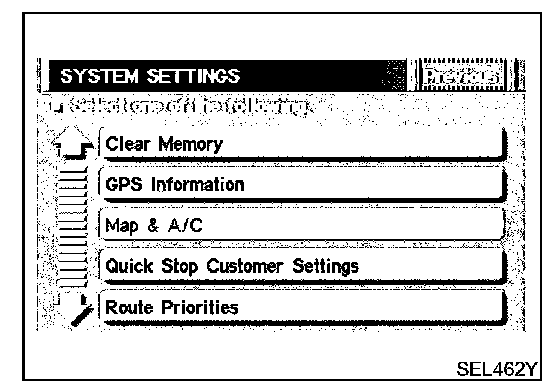

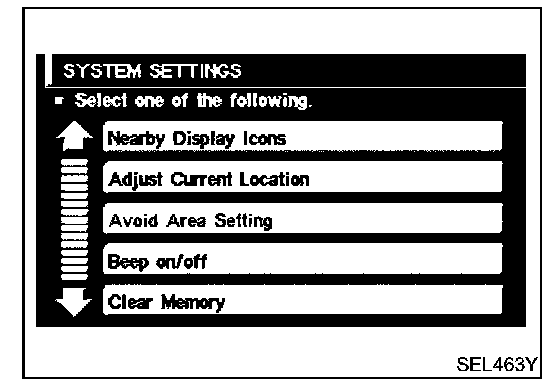

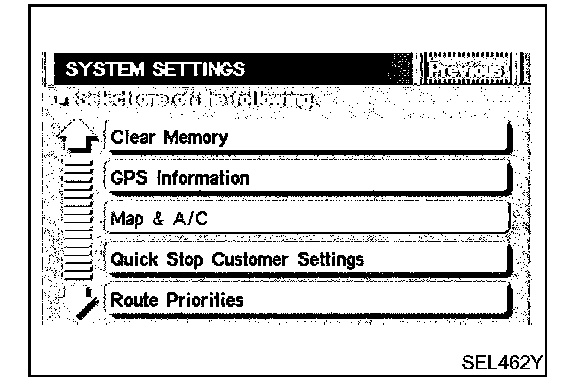

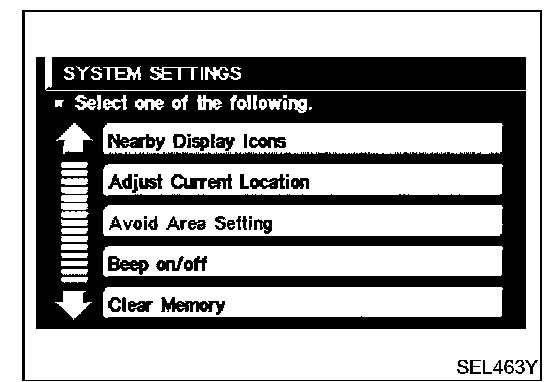

4. Touch "System Setting".

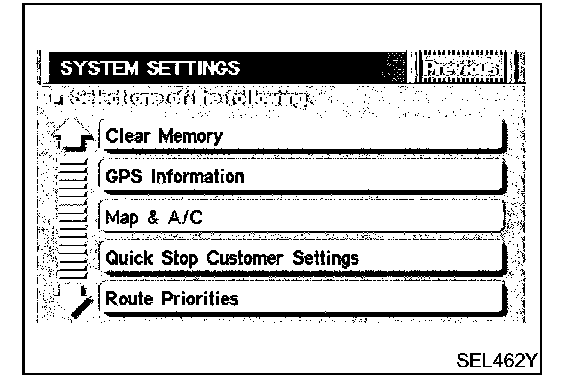

5. Touch "GPS Information".
6. Then GPS information will be displayed.
"ADJUST CURRENT LOCATION" SETTING
1. Start the engine.
2. Push "MAP" switch.

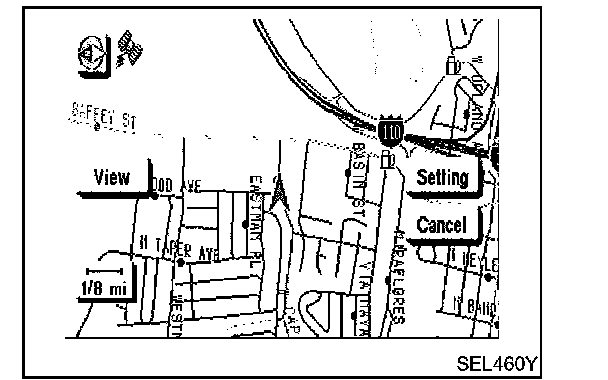

3. Touch "Setting".
4. Touch "System Setting".
5. Touch "Adjust Current Location".

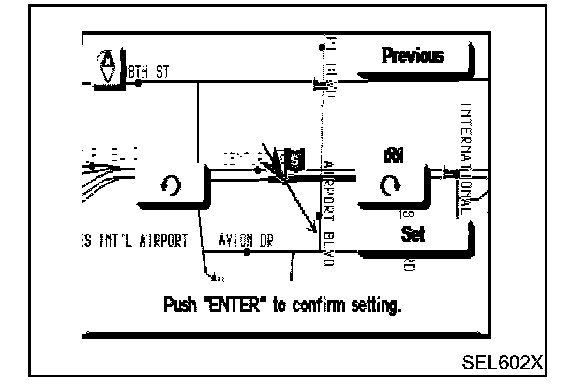

6. Touch "<-" or "->" to calibrate the heading direction. (Arrow marks will rotate corresponding to the calibration key.)
7. Touch "Set". Then the vehicle mark will be matched to the arrow mark.
8. Display will show "Heading direction has been calibrated" and then go back to the current location map.

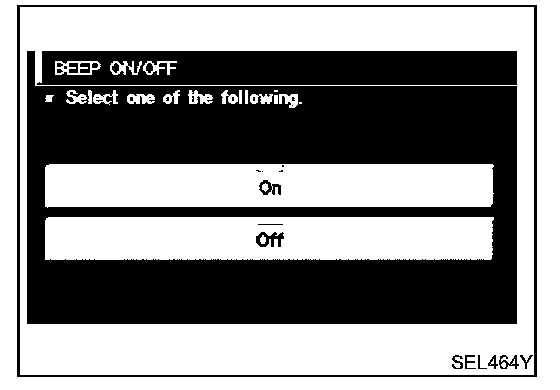

BEEP ON/OFF SETTING
1. Start the engine.
2. Push "MAP" switch.

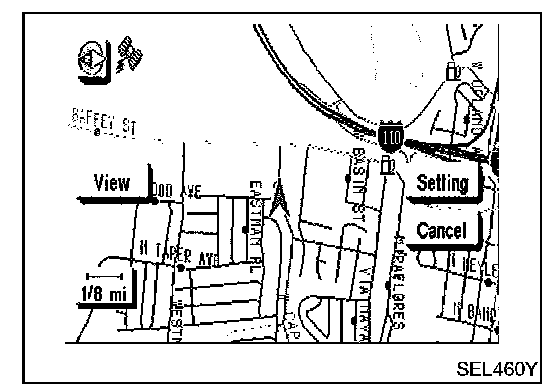

3. Touch "Setting".

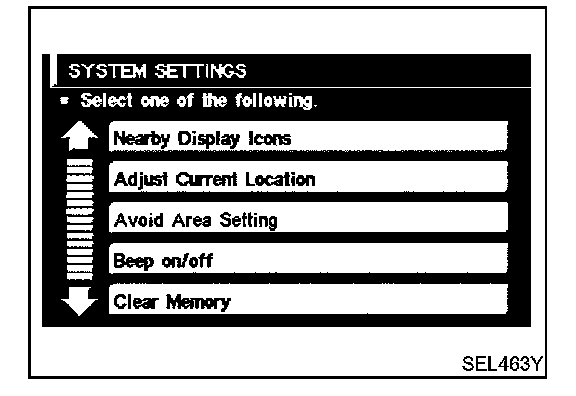

4. Touch "System Setting".
5. Touch "Beep on/off".
6. Touch "On" or "Off icon.
- If you want the beep sound, select "ON".
- If you do not want the beep sound, select "OFF".
7. Push "MAP" switch, then the display will go back to the current location map.
DISPLAY SETTING
Description
The following display setting can be changed in this mode.
- Dimmer operation (when lighting switch is turned on.)
- Display color (Day mode or Night mode)
- Brightness of display

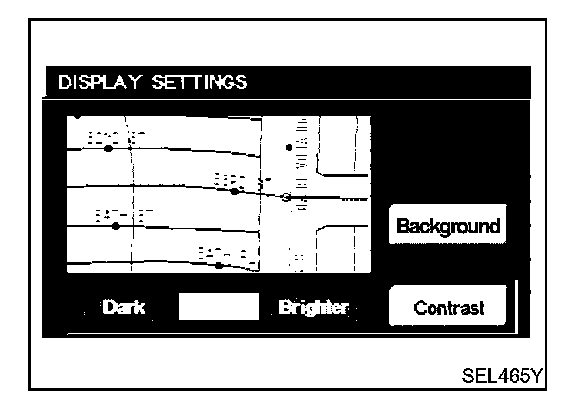

DISPLAY COLOR SETTING
1. Start the engine.
2. Push "MAP" switch.

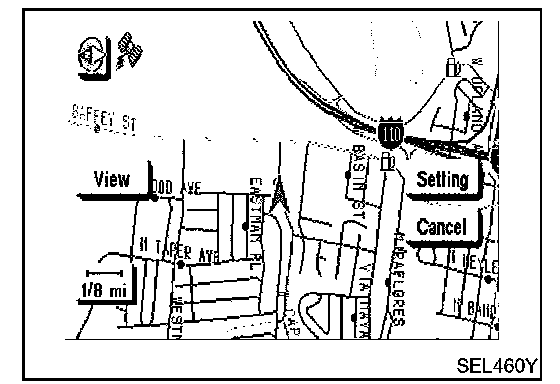

3. Touch "Setting".
4. Touch "System Setting".
5. Touch "Display Setting".
6. Touch "Background". Display color will change to Day mode/ Night mode.
7. Touch "Previous".
NOTE:
- Display color can be changed independently when lighting switch is turned on and off.
- The D/N button is used to change the display color the same way as the "Background" icon.
- Initial setting of the color is as follows:
When lighting switch is turned off: Day mode
When lighting switch is turned on: Night mode
Day mode: White background
Night mode: Black background

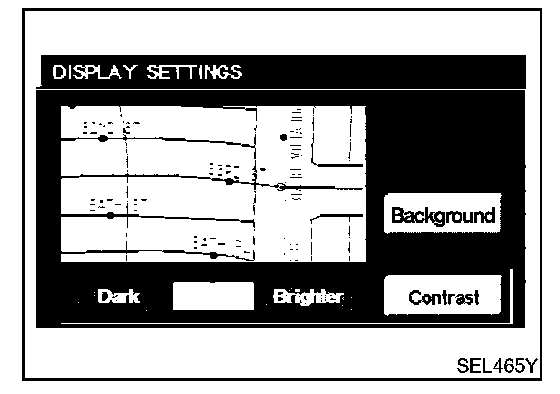

BRIGHTNESS SETTING
1. Start the engine.
2. Push "MAP" switch.
3. Touch "Setting".
4. Touch "System Setting".
5. Touch "Display Setting".
6. Touch "Brighter" or "Dark" to adjust the brightness of display.
7. Touch "Previous".
NOTE: Display brightness can be adjusted independently when lighting switch is turned on and off.

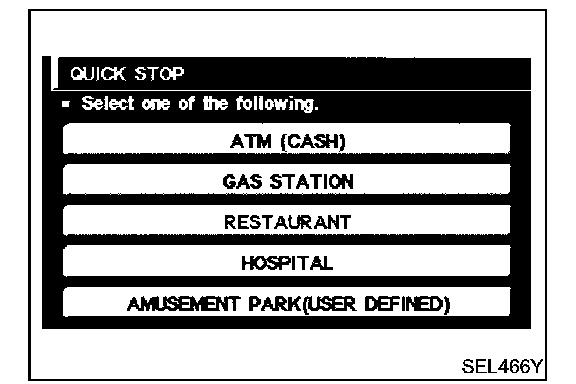

"QUICK STOP CUSTOMER SETTING" MODE
1. Start the engine.
2. Push the "MAP" switch.
3. Touch "Setting".
4. Touch "System Setting".
5. Touch "Quick Stop Customer Setting".
6. Select from the itemized list.

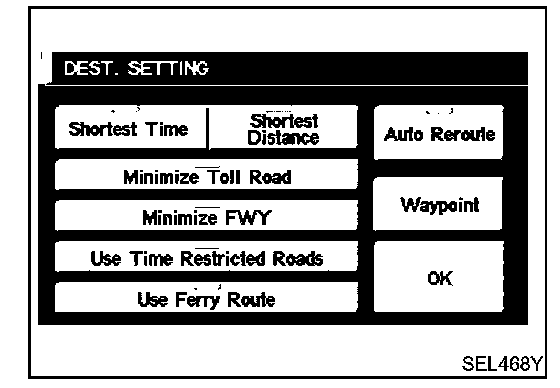

"ROUTE PRIORITIES" MODE
1. Start the engine.
2. Push the "MAP" switch.
3. Touch "Setting".
4. Touch "System Setting".

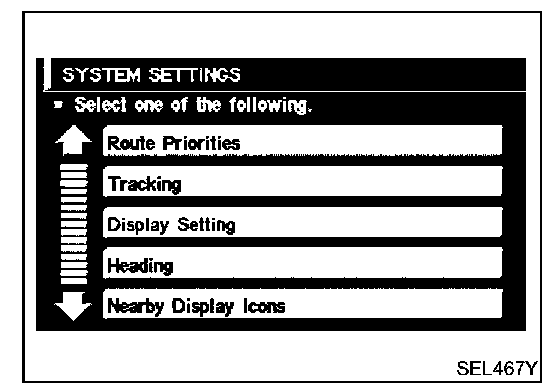

5. Touch "Route Priorities".
6. Select from the itemized list.
"TRACKING" MODE
1. Start the engine.
2. Push the "MAP" switch.
3. Touch "Setting".
4. Touch "System Setting".

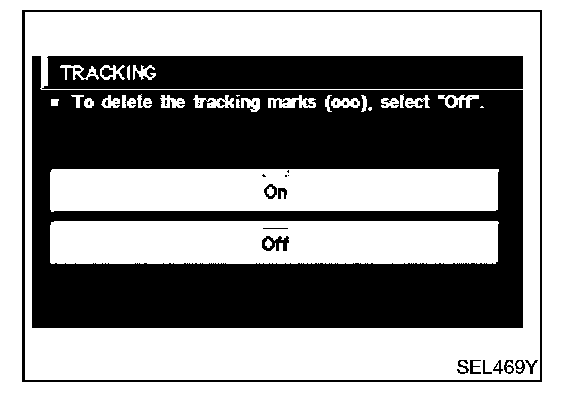

5. Touch "Tracking".
6. Touch the "On" or "Off" icon.
- If you don't need a trail on the map, select "Off".
- If you need a trail on the map, select "On".
7. Push the "MAP" switch to return the display to the current location map.
NOTE: When a trail display is turned OFF, trail data is erased from the memory.

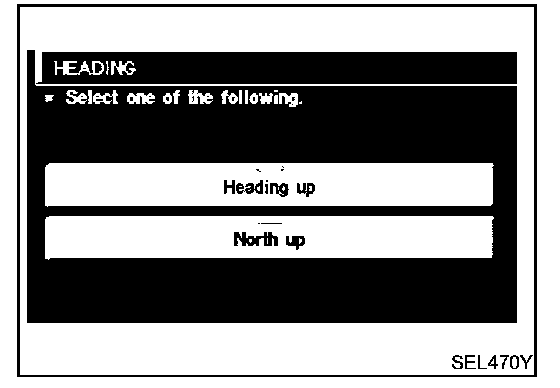

"HEADING" MODE
1. Start the engine.
2. Push the "MAP" switch.
3. Touch "Setting".
4. Touch "System Setting".
5. Touch "Heading".
6. Touch the "Heading up" or "North up" icon.
- To display North up, select "North up".
- To display the car heading up, select "Heading up".
7. Push the "MAP" switch, then the display will go back to the current location map.
"NEARBY DISPLAY ICONS" MODE
1. Start the engine.
2. Push the "MAP" switch.
3. Touch "Setting".
4. Touch "System Setting".
5. Touch "Nearby Display Icons".
6. Select and touch the itemized list.
7. Push the "MAP" switch to return the display to the current location map.

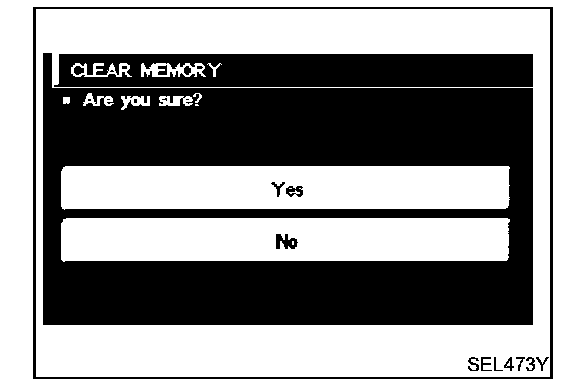

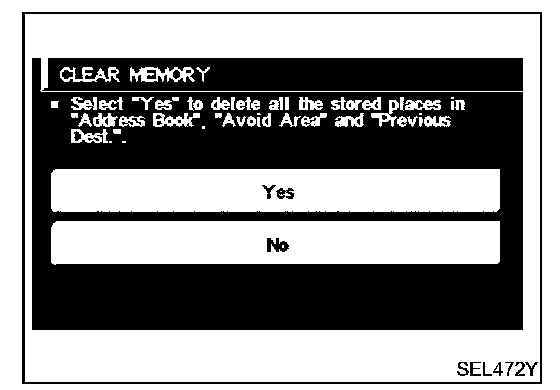

"CLEAR MEMORY" MODE
1. Start the engine.
2. Push the "MAP" switch.
3. Touch "Setting".
4. Touch "System Setting".
5. Touch "Clear Memory".
6. To delete all the stored places in the "Address Book", "Avoid Area" and "Previous Dest", select "Yes".
7. When the "Yes" icon is selected, the stored data will be cleared, and the [SYSTEM SETTINGS] screen will appear.
"MAP & A/C" MODE
1. Start the engine.
2. Push "MAP" switch.
3. Touch "Setting".
4. Touch "System Setting".
5. Touch "MAP & A/C".
6. Touch "Map & A/C" or "Map" icon.
- To set the split display with both the map and the air conditioner information as the initial setting of the NAVI system, select "MAP & A/C".
- To set the map only display as the initial setting of the NAVI system, select "MAP".
7. Push "MAP" switch, then the display will go back to the current location map.
NOTE: When the enlarged view is displayed, the air conditioner control screen will not be displayed.
