Self Diagnostic Operation Procedure

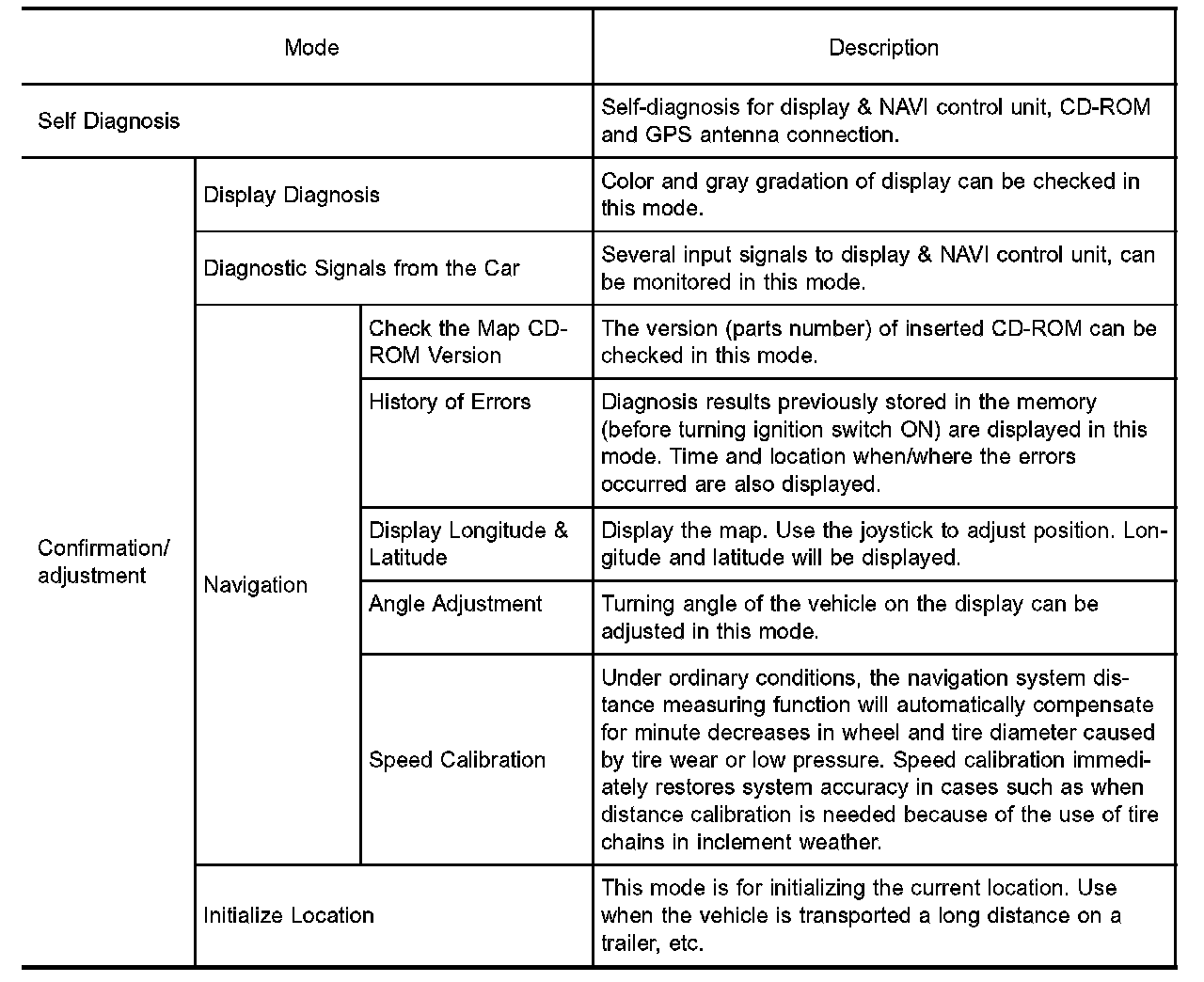

APPLICATION ITEMS

HOW TO PERFORM SELF-DIAGNOSIS MODE




1. Start the engine.

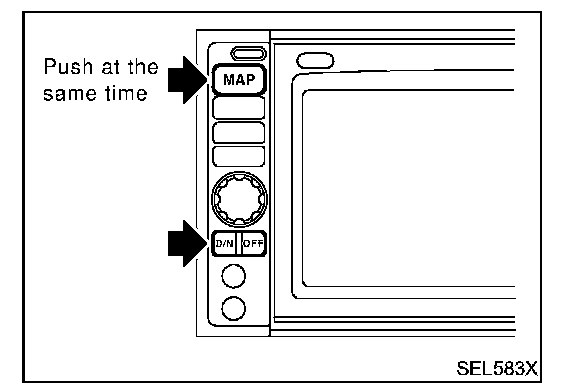

2. Push both of "MAP" and "D/N" switches at the same time for more than 5 seconds.

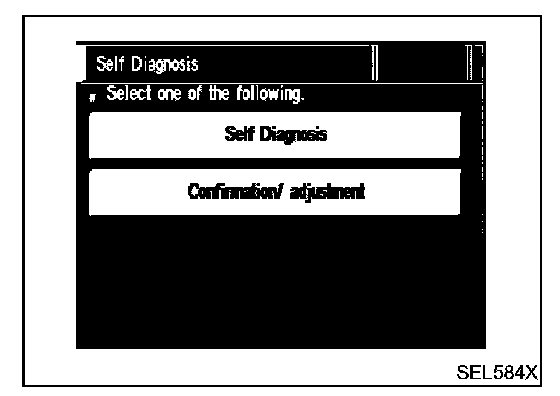

3. Touch "Self Diagnosis" or "Confirmation/adjustment".
- For further procedure, refer to each application item of the self-diagnosis mode.

"Self Diagnosis"




1. Start the engine.
2. Push both" MAP" and "DIN" switches at the same time for more than 5 seconds.

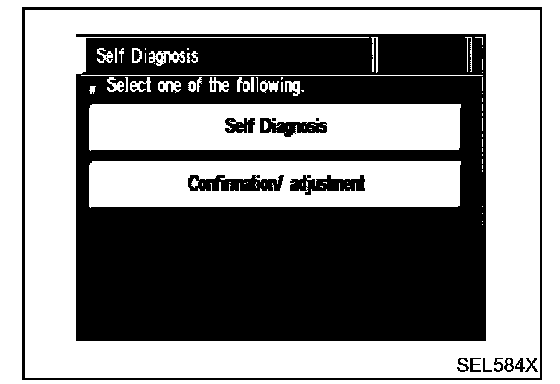

3. Touch "Self Diagnosis".

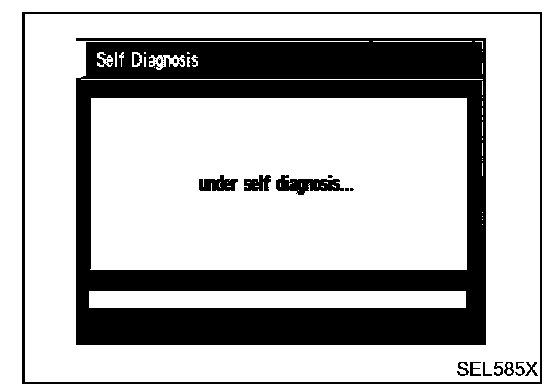

4. Self-diagnosis will be performed.

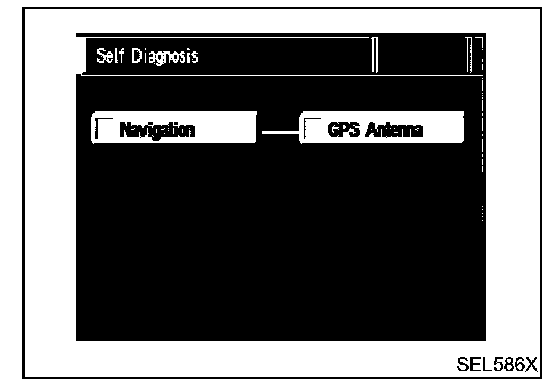

5. Diagnosis results will be displayed. Diagnosis results are indicated by display color. For details refer to "SELF-DIAGNOSIS RESULTS".

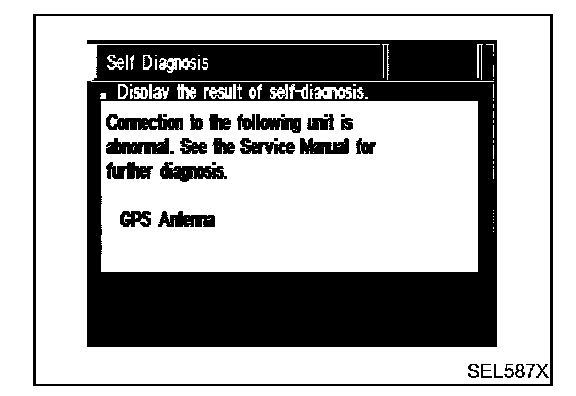

To obtain detailed diagnosis results on the screen, touch "Navigation" or "GPS Antenna".

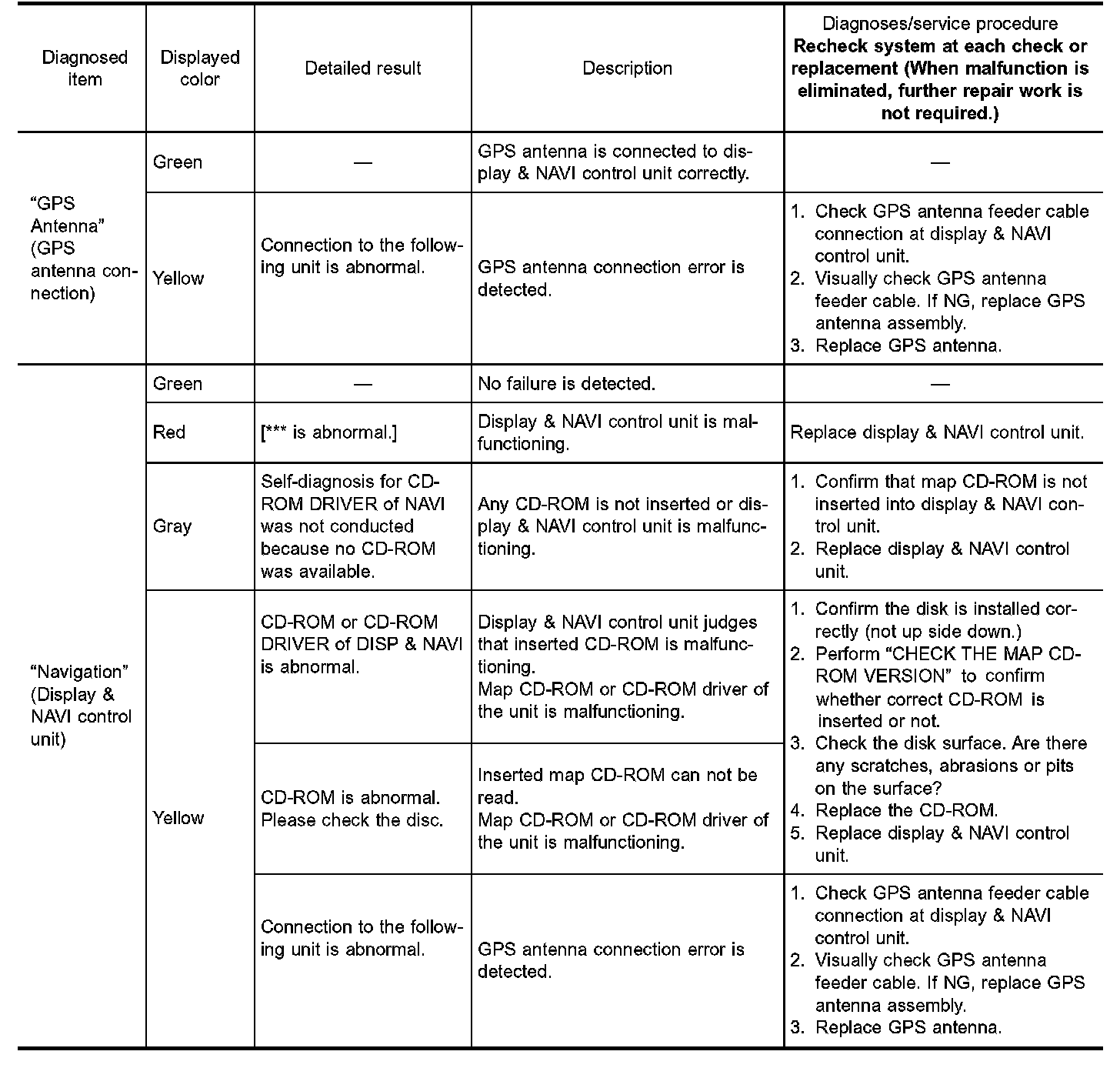

Self-diagnosis Result Chart:

SELF-DIAGNOSIS RESULTS
