Confirmation/Adjustment Mode

"HISTORY OF ERRORS" MODE

Description

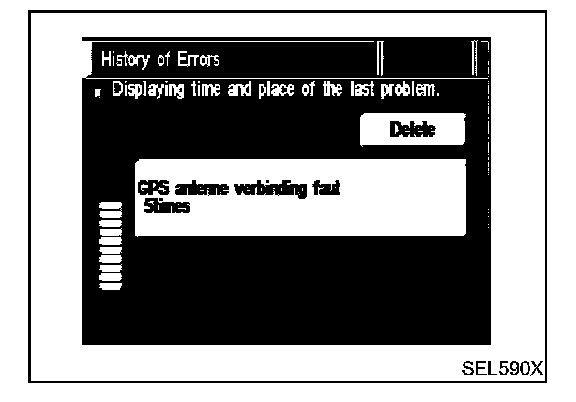

In this mode, historical errors of the system are displayed with the following data.
- How many times the error was detected
- The last time data when the error was detected
- The last place where the error was detected

NOTE:
- The number of errors can be counted up to 50 times. More than 51 times will be indicated as 50 times.
- Malfunction of the GPS board (inside the display & NAVI control unit) will result in the display of incorrect time data.
- When an error occurs, an incorrect position marker appears on the display. The accuracy of the display data (position marker) will be affected.

How to Perform




1. Start the engine.
2. Push both "MAP" and "D/N" switch at the same time for more than 5 seconds.

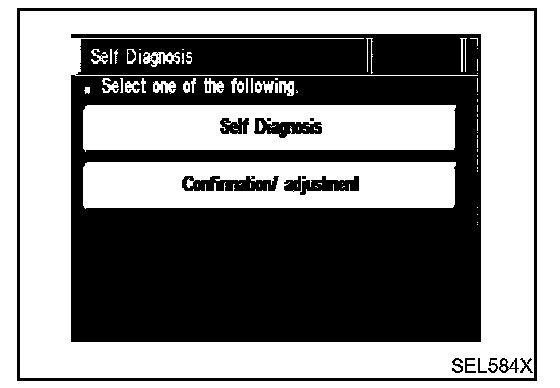

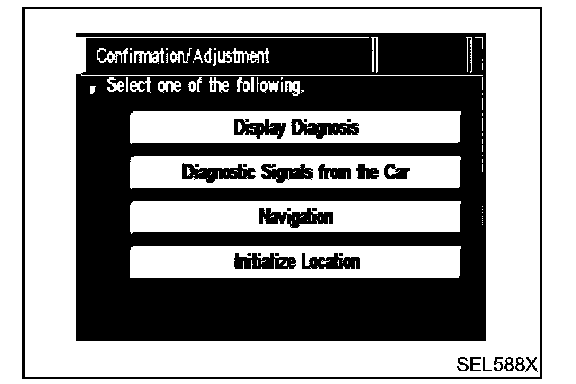

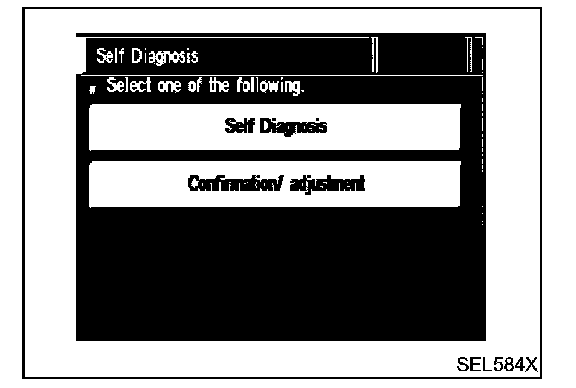

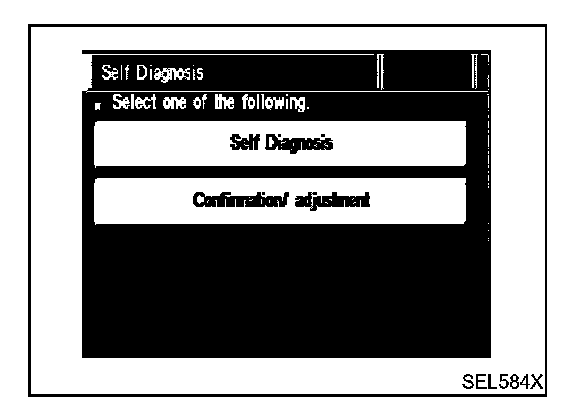

3. Touch "Confirmation/ adjustment".

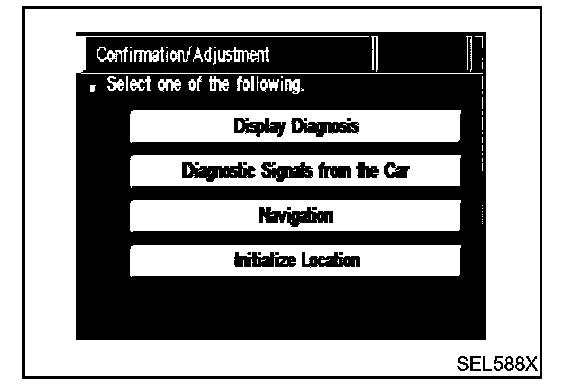

4. Touch "Navigation".




5. Touch "History of Errors".




6. If trouble items are displayed with time count, repair/replace the system according to "HISTORY OF ERRORS" TABLE.
7. If necessary touch error item to display the time when the error was detected and the place where the error was detected.
8. After repairing the system, erase the diagnosis memory

NOTE: When the display & NAVI control unit must be replaced, do not erase the diagnosis memory for further inspection of malfunctions.

a. Start the engine.
b. Push both "Map" and "D/N" switches at the same time for more than 5 seconds.

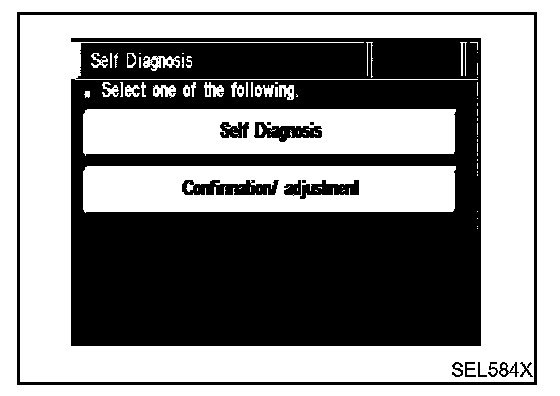

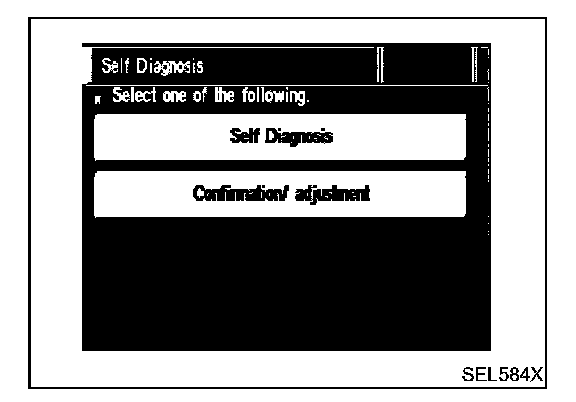

c. Touch "Confirmation/ adjustment".
d. Touch "Navigation".
e. Touch "History of Errors".
f. Touch "Delete".
g. Touch "Yes".

Part 1:

Part 2:

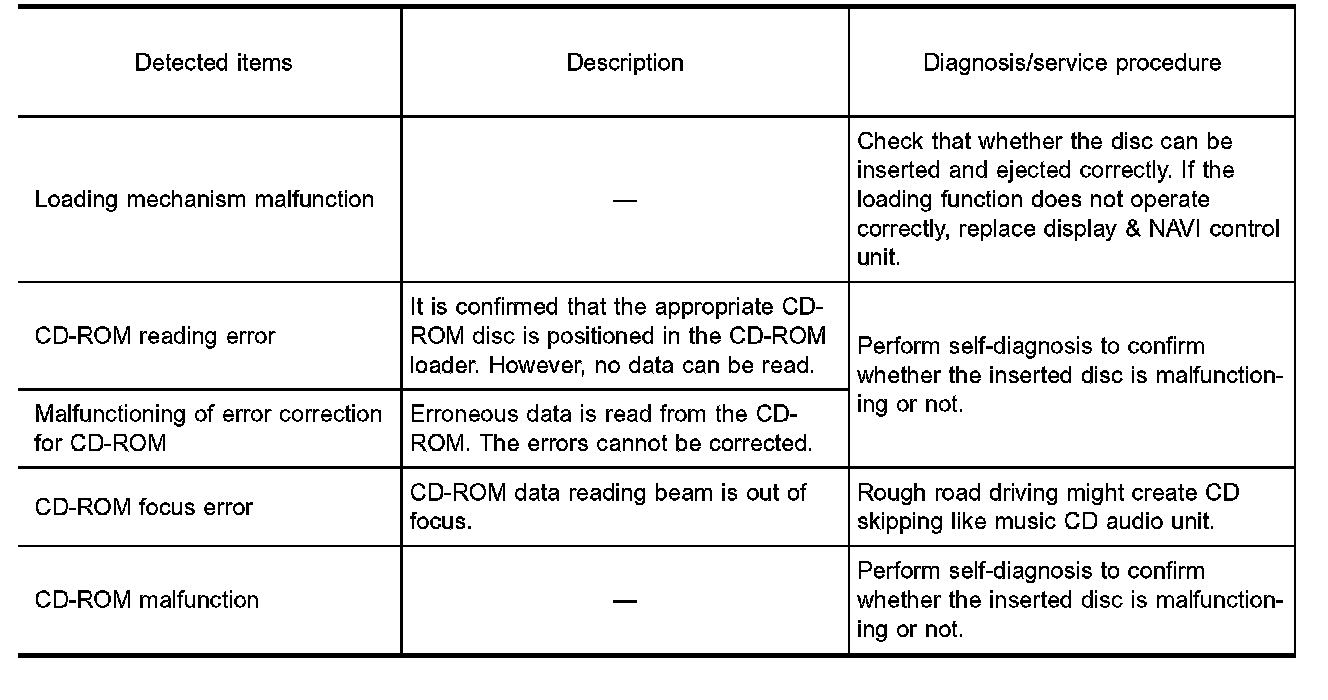

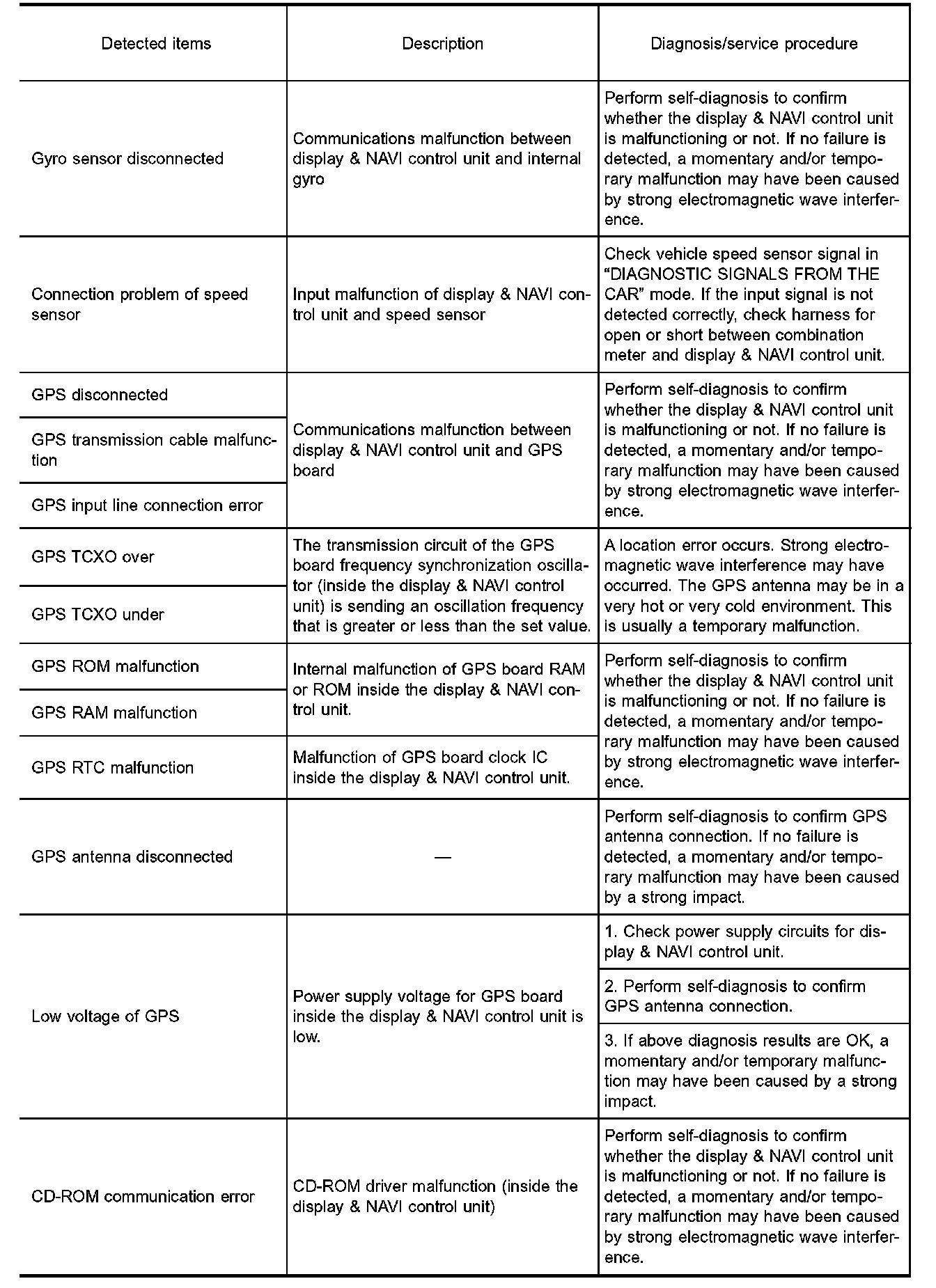

"HISTORY OF ERRORS" TABLE

"DIAGNOSTIC SIGNALS FROM THE CAR" MODE




Description

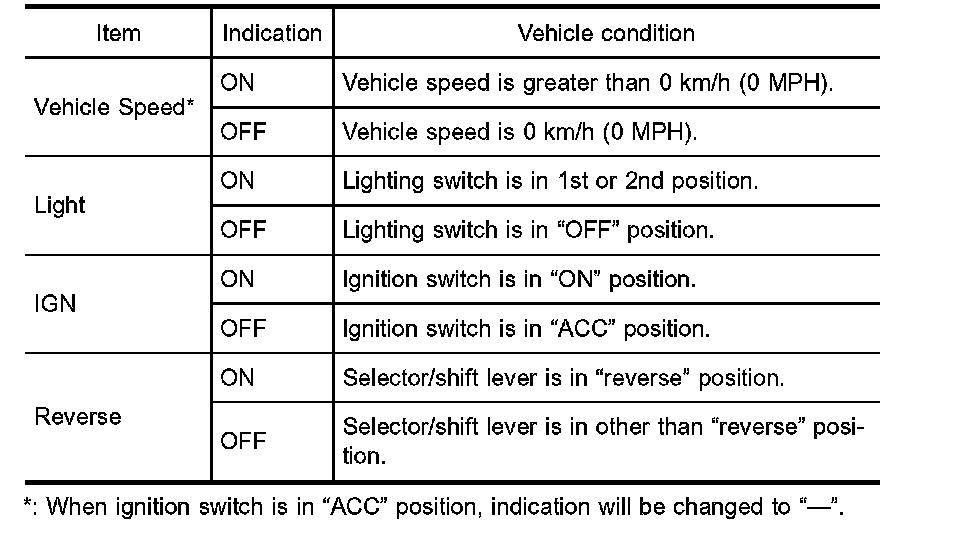

In "Diagnostic Signals From the Car" mode, following input signals to the display & NAVI control unit can be checked on the display.

How to Perform




1. Start the engine.
2. Push both "MAP" and "D/N" switches at the same time for more than 5 seconds.

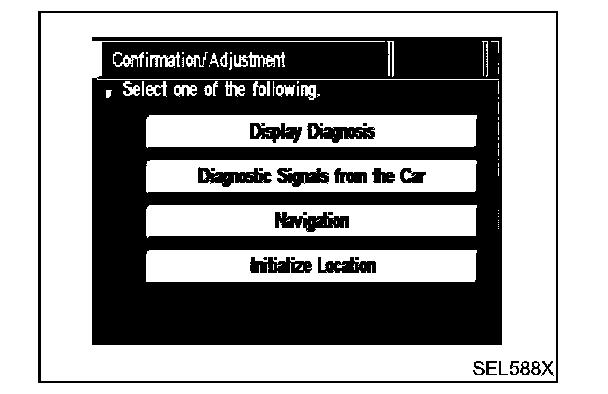

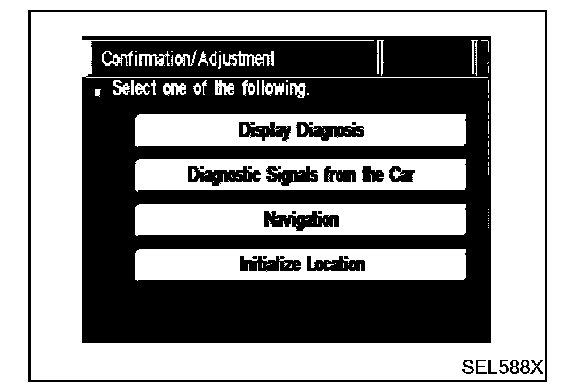

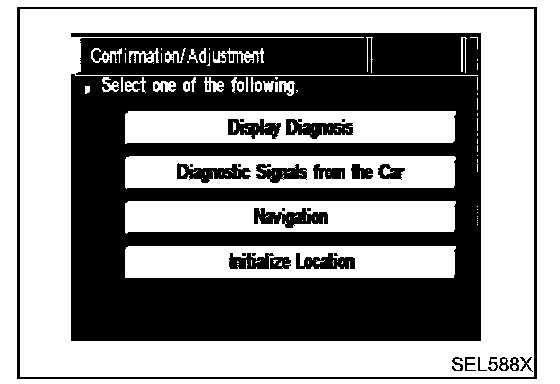

3. Touch "Confirmation/ adjustment".




4. Touch "Diagnostic Signals from the Car".




5. Then "Diagnostic Signals from the Car" mode is performed.

"CHECK THE MAP CD-ROM VERSION" MODE

How to Perform




1. Start the engine.
2. Push both "MAP" and "D/N" switches at the same time for more than 5 seconds.
3. Touch "Confirmation/ adjustment".




4. Touch "Navigation".




5. Touch "Check the Map CD-ROM Version".

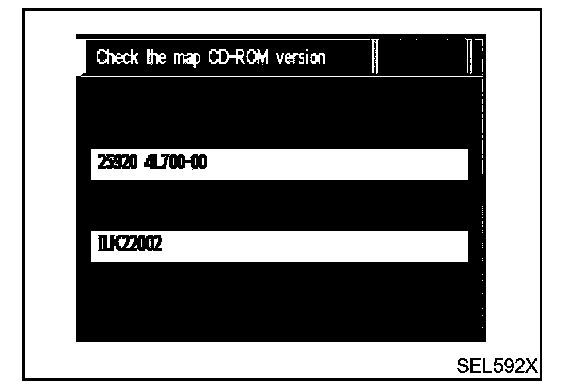

6. The version (parts number) of CD-ROM loaded to the display and NAVI control unit will be displayed.

"DISPLAY DIAGNOSIS" MODE

Description
Use the "Display Diagnosis" mode to check the display color brightness and shading. The display & NAVI control unit must be replaced if the color brightness and shading are abnormal.

How to Perform




1. Start the engine.
2. Push both "MAP" and "D/N" switches at the same time for more than 5 seconds.

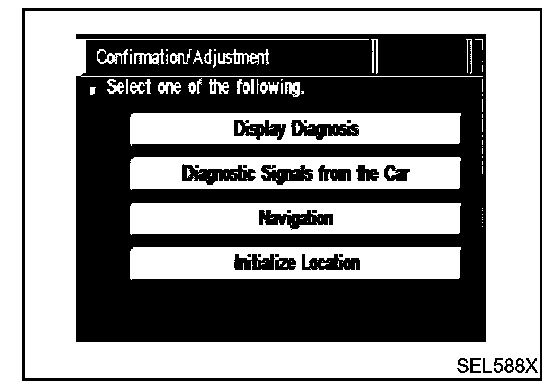

3. Touch "Confirmation/ adjustment".




4. Touch "Display Diagnosis".

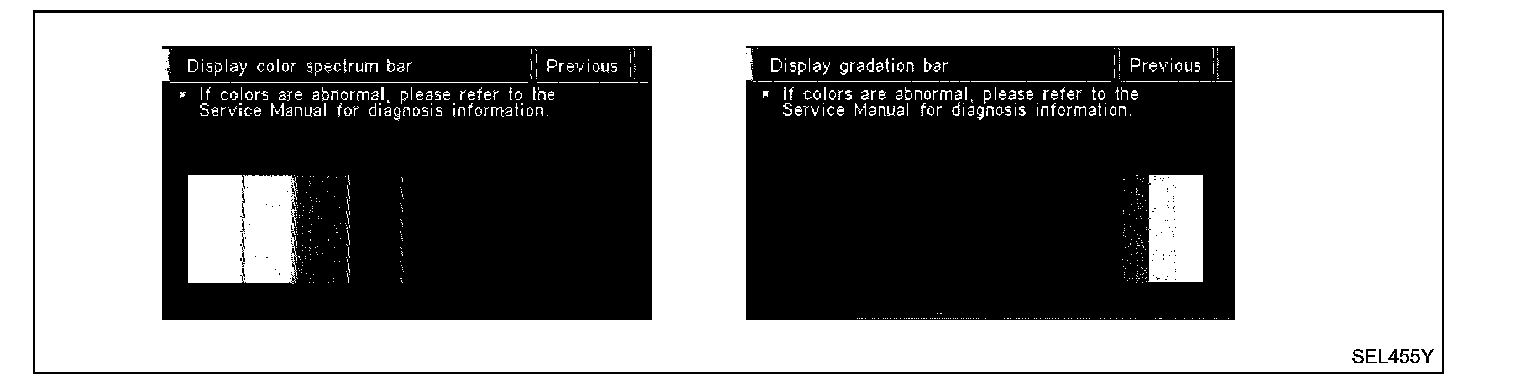

5. Touch "Display Color Spectrum Bar" or "Display Gradation Bar".
6. Then color bar/gray scale will be displayed.

"DISPLAY LONGITUDE & LATITUDE" MODE

Description
The "Display Longitude & Latitude" is used to confirm the longitude and latitude of some optional area point.

How to Perform




1. Start the engine.
2. Push both "MAP" and "D/N" switches at the same time for more than 5 seconds.
3. Touch "Confirmation/ adjustment".




4. Touch "Navigation".




5. Touch "Display Longitude & Latitude".

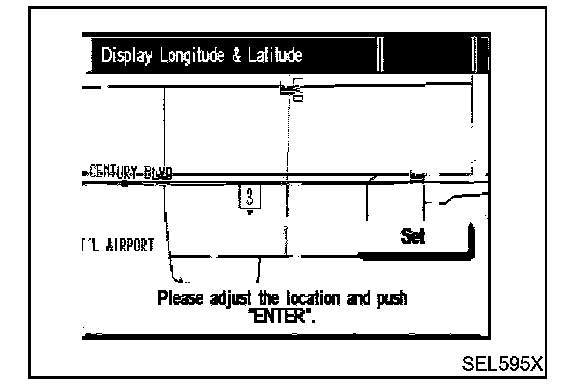

6. Adjust the pointer with using the joystick and touch "Set".
7. The display longitude and latitude are displayed.

"ANGLE ADJUSTMENT" MODE

Description
If the display indicates a larger or smaller turning angle than the actual turning angle, the gyro (angular speed sensor) sensing values must be checked.

In case that the vehicle on the display makes larger angle turn than reality, touch "-". In case that the vehicle on the display makes smaller angle turn than reality touch "+".

How to Perform




1. Start the engine.
2. Push both "MAP" and "D/N" switches at the same time for more than 5 seconds.
3. Touch "Confirmation/ adjustment".




4. Touch "Navigation".




5. Touch "Angle Adjustment".




6. Touch "Left Turn" to adjust the angle to the left. Touch "Right Turn" to adjust the angle to the right.
7. Touch "+" to increase the angle change coefficient or "-" to reduce the angle change coefficient.
8. Touch "Set" to save the changed values in memory.
9. Then the vehicle turning angle on the display has adjusted.

SPEED CALIBRATION




1. Start the engine.
2. Push both "MAP" and "D/N" switches at the same time for more than 5 seconds.
3. Touch "Confirmation/ adjustment".
4. Touch "Navigation".




5. Touch "Speed Calibration".




6. Touch "+" or"-" to adjust the distance change coefficient.
- To make the distance change coefficient smaller, touch "-".
- To make the distance change coefficient larger, touch "+".

7. Touch "Set".
