Home >> Nissan-Datsun >> 2002 >> Maxima GXE V6-3.5L (VQ35) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Vehicle Security (Theft Warning) System >> Component Tests >> Door Key Cylinder Switch Check

Door Key Cylinder Switch Check

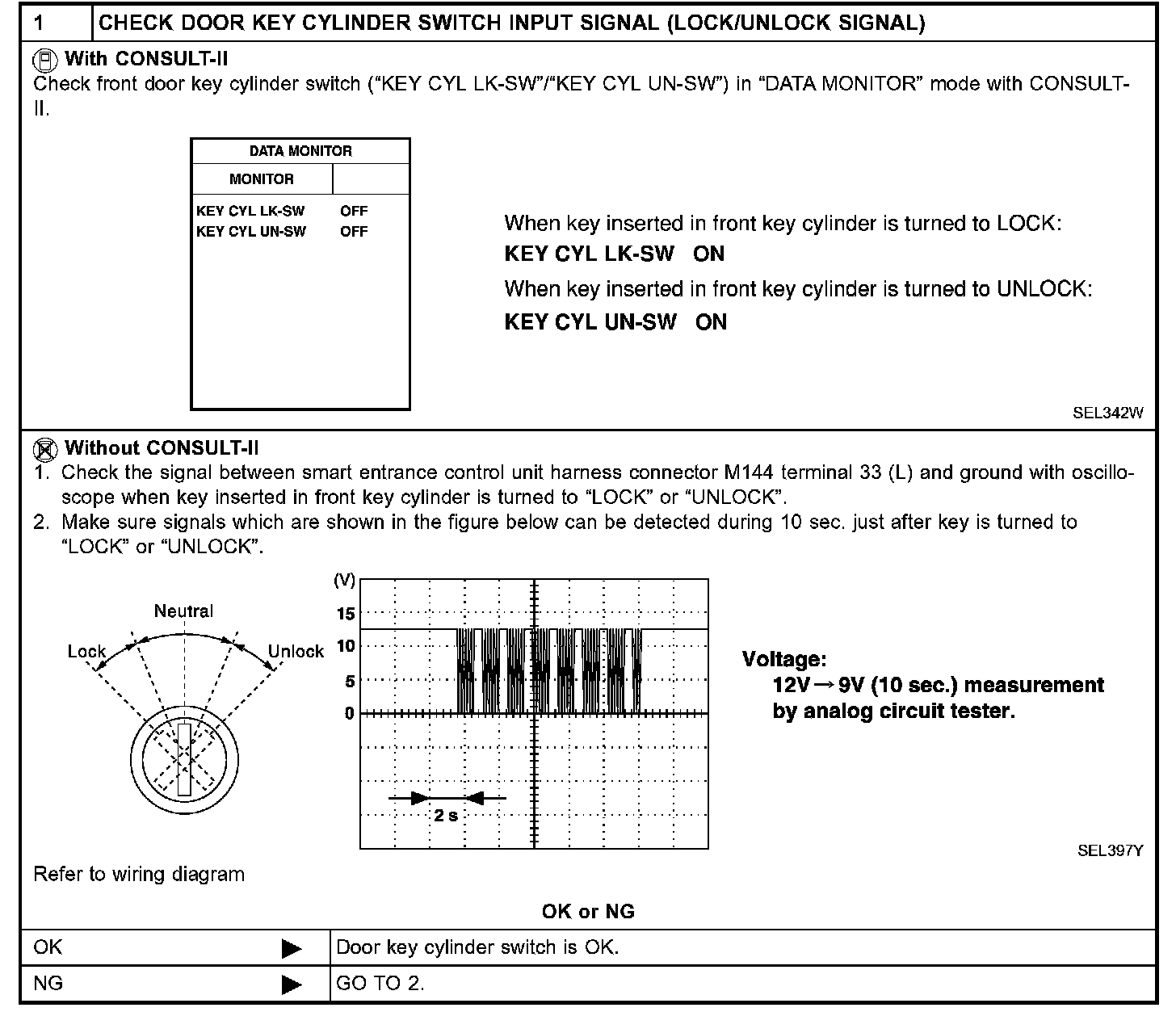

Step 1:

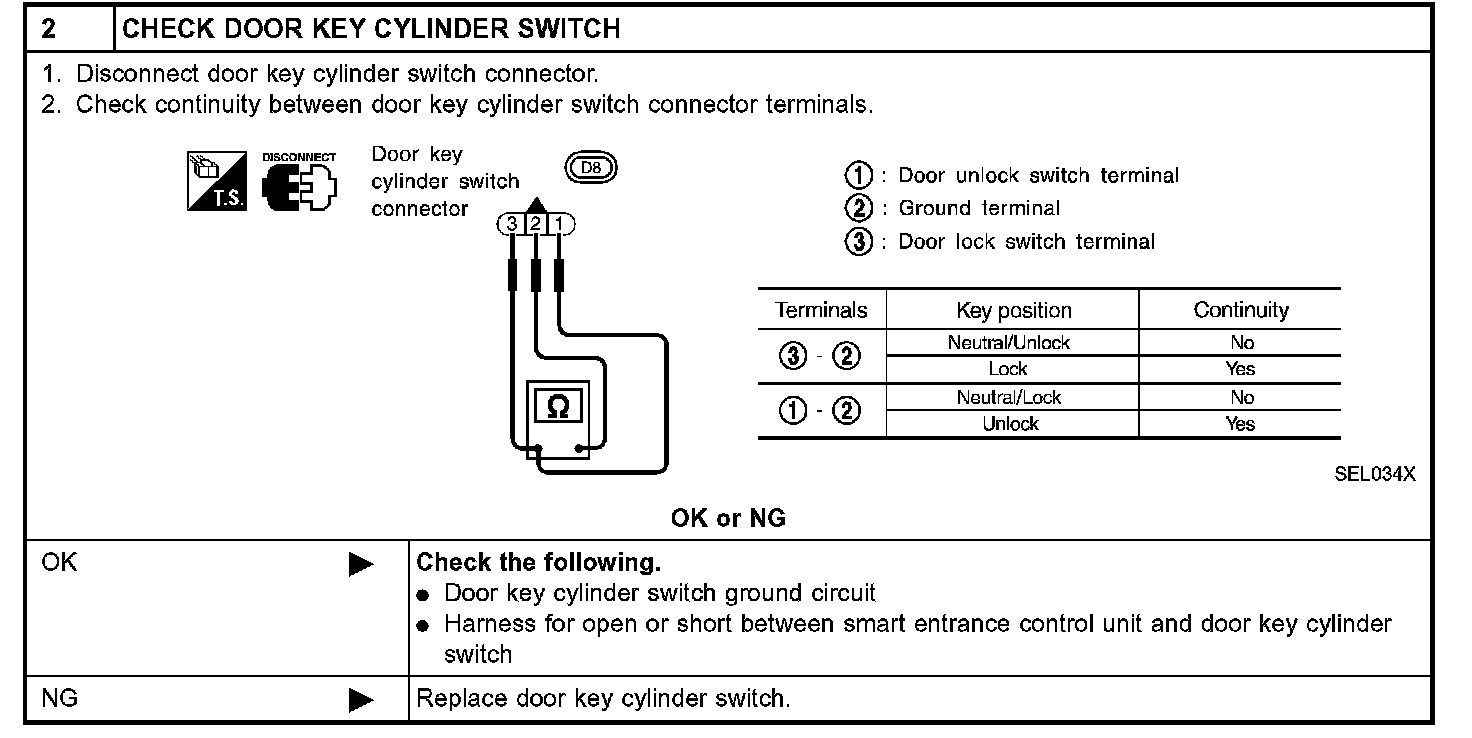

Step 2:
