Consult-II Inspection Procedure

1. Turn ignition switch OFF.

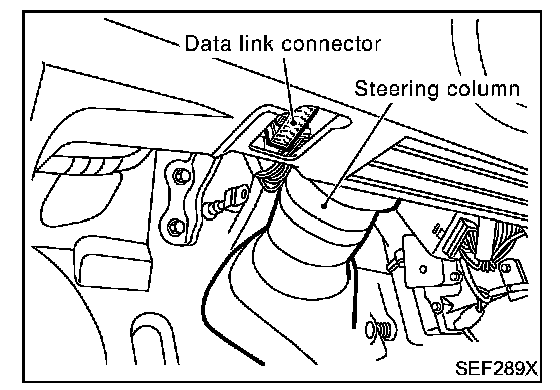

2. Connect "CONSULT-II" to Data link connector.




3. Insert NVIS (NATS) program card into CONSULT-II.

<-: Program card
NATS (AEN00A)

4. Turn ignition switch ON.

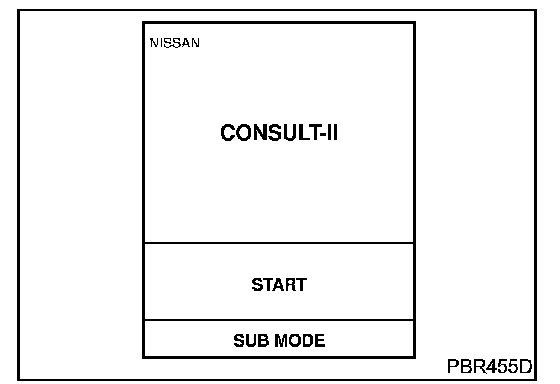

5. Touch "START".

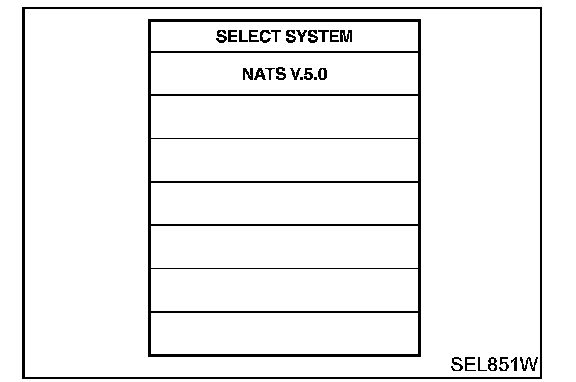

6. Select "NATS" V.5.0".




7. Perform each diagnostic test mode according to each service procedure.

For further information, see the CONSULT-II Operation Manual, IVIS/NVIS.
