Home >> Nissan-Datsun >> 2002 >> Maxima GXE V6-3.5L (VQ35) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Items Descriptions >> Remote Keyless Entry System

Remote Keyless Entry System

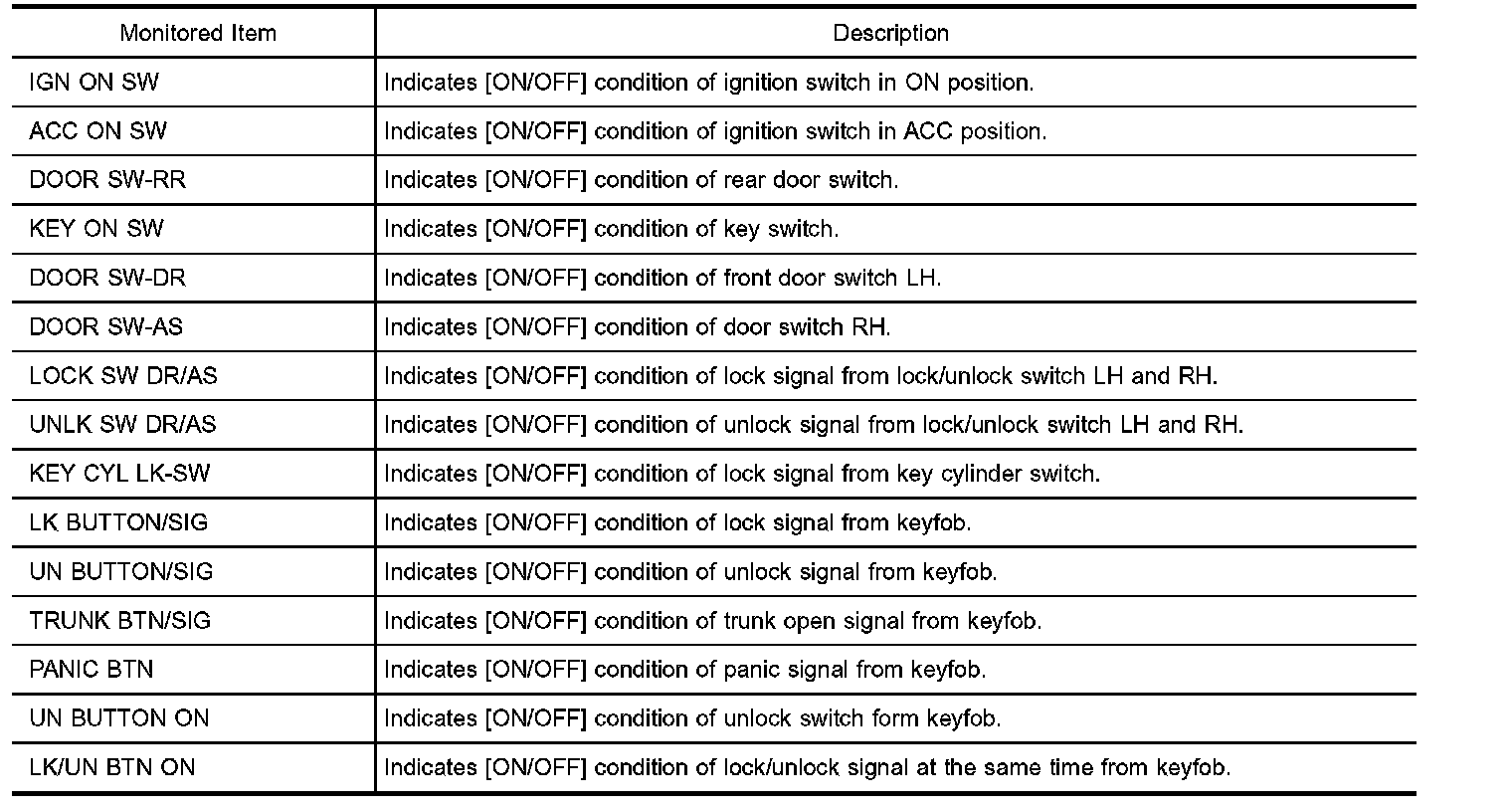

Multi Remote ENT - Data Monitor:

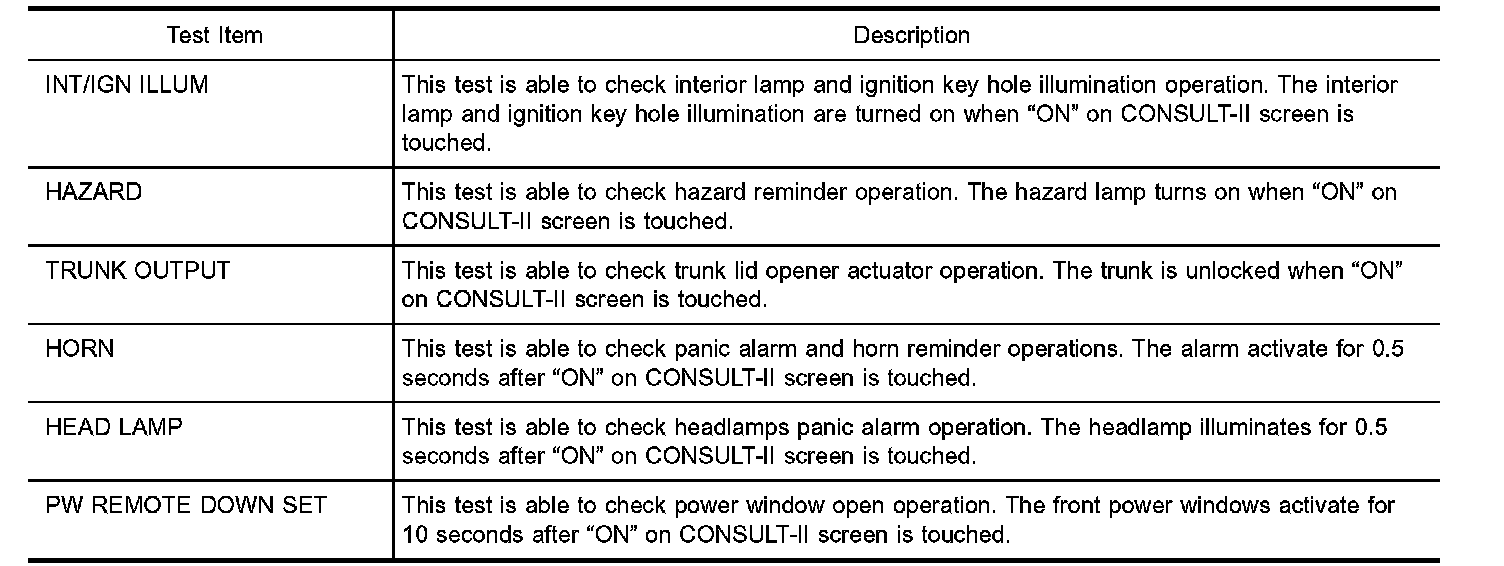

Multi Remote ENT - Active Test:

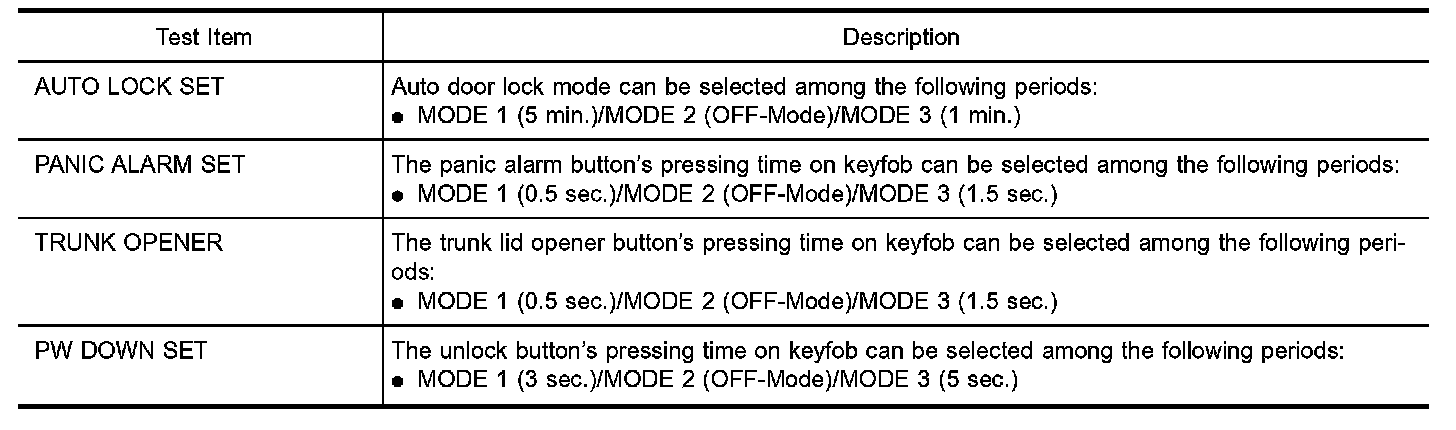

Multi Remote ENT - Work Support Part 1:



Multi Remote ENT - Work Support Part 2:
