Symptom Chart

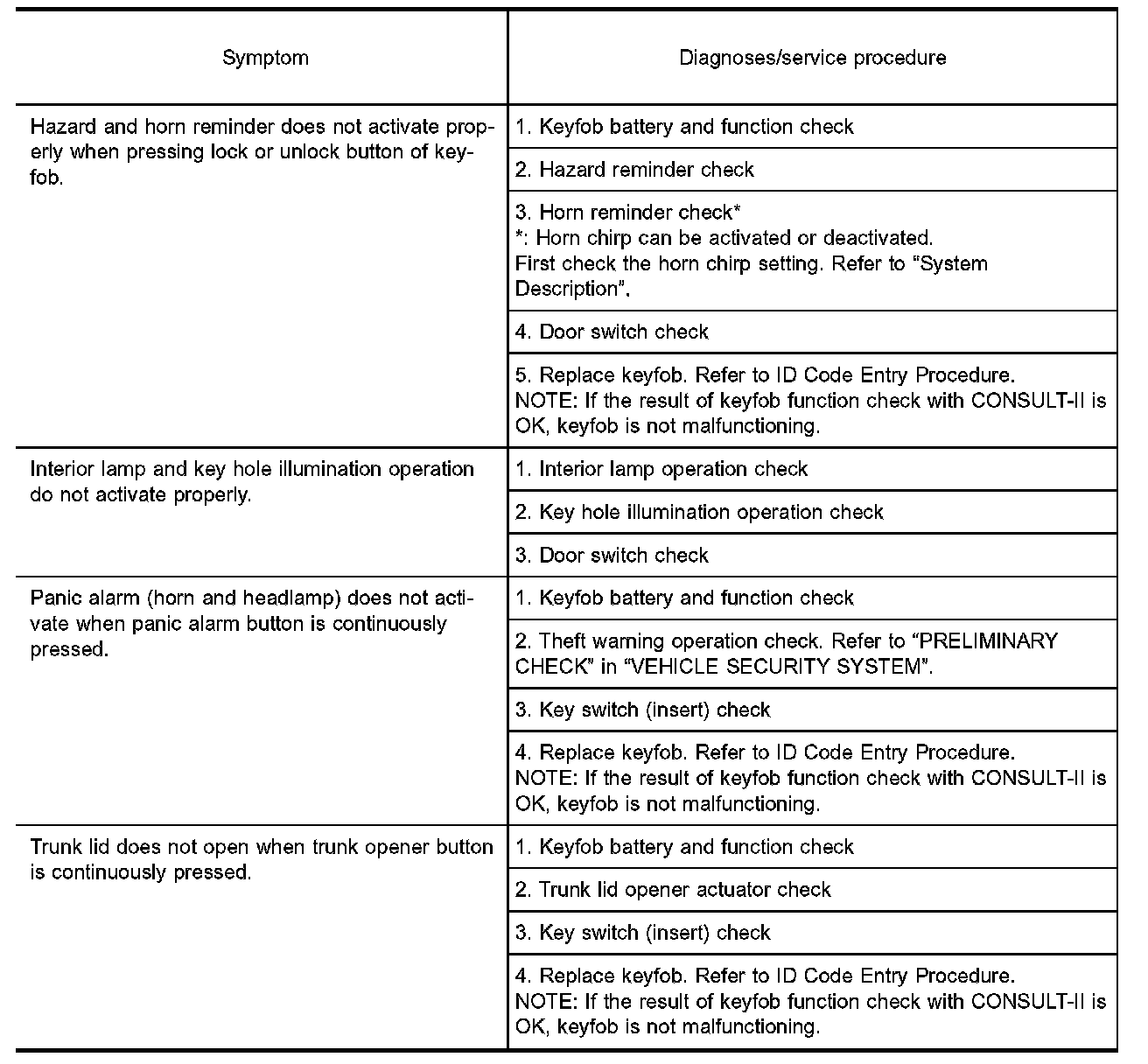

Part 1:

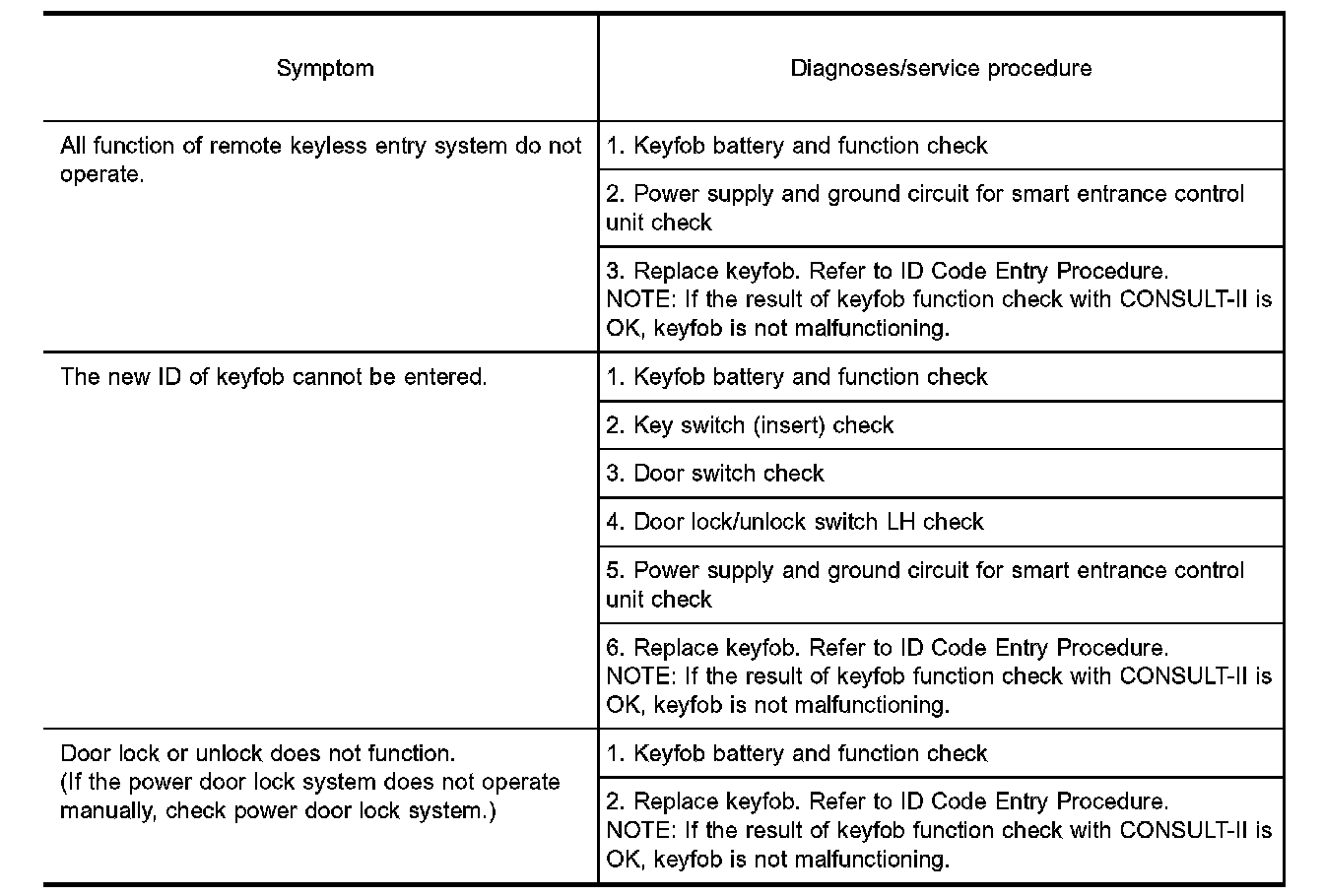

Part 2:

NOTE:
- Always check keyfob battery before replacing keyfob.
- The panic alarm operation and trunk lid opener operation of keyfob system do not activate with the ignition key inserted in the ignition key cylinder.
