Home >> Nissan-Datsun >> 2002 >> Maxima GXE V6-3.5L (VQ35) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Testing and Inspection >> Component Tests and General Diagnostics >> Smart Entrance Control System >> Smart Entrance Control Unit Inspection Table

Smart Entrance Control Unit Inspection Table

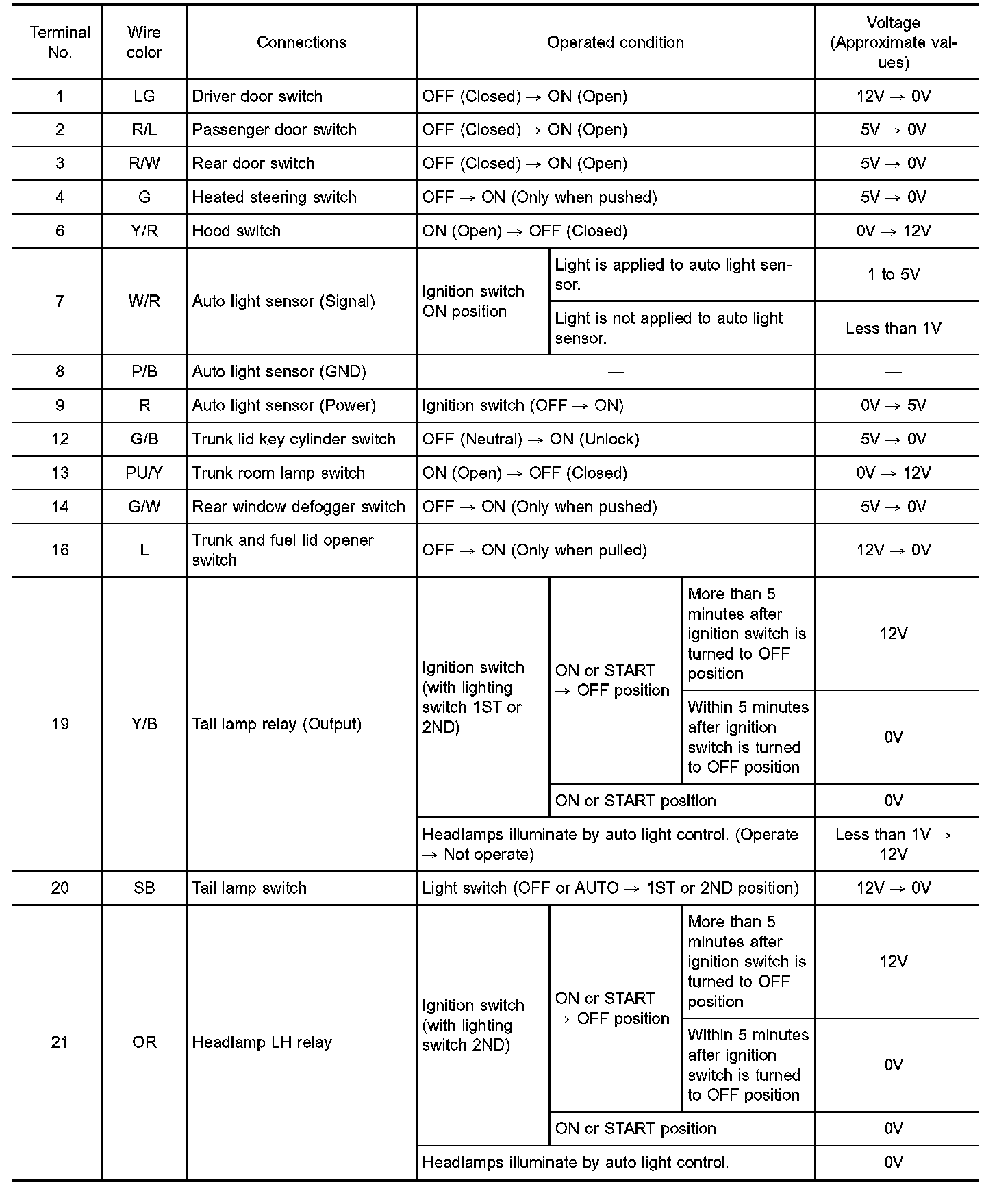

Smart Entrance Control Unit Inspection Table Part 1:

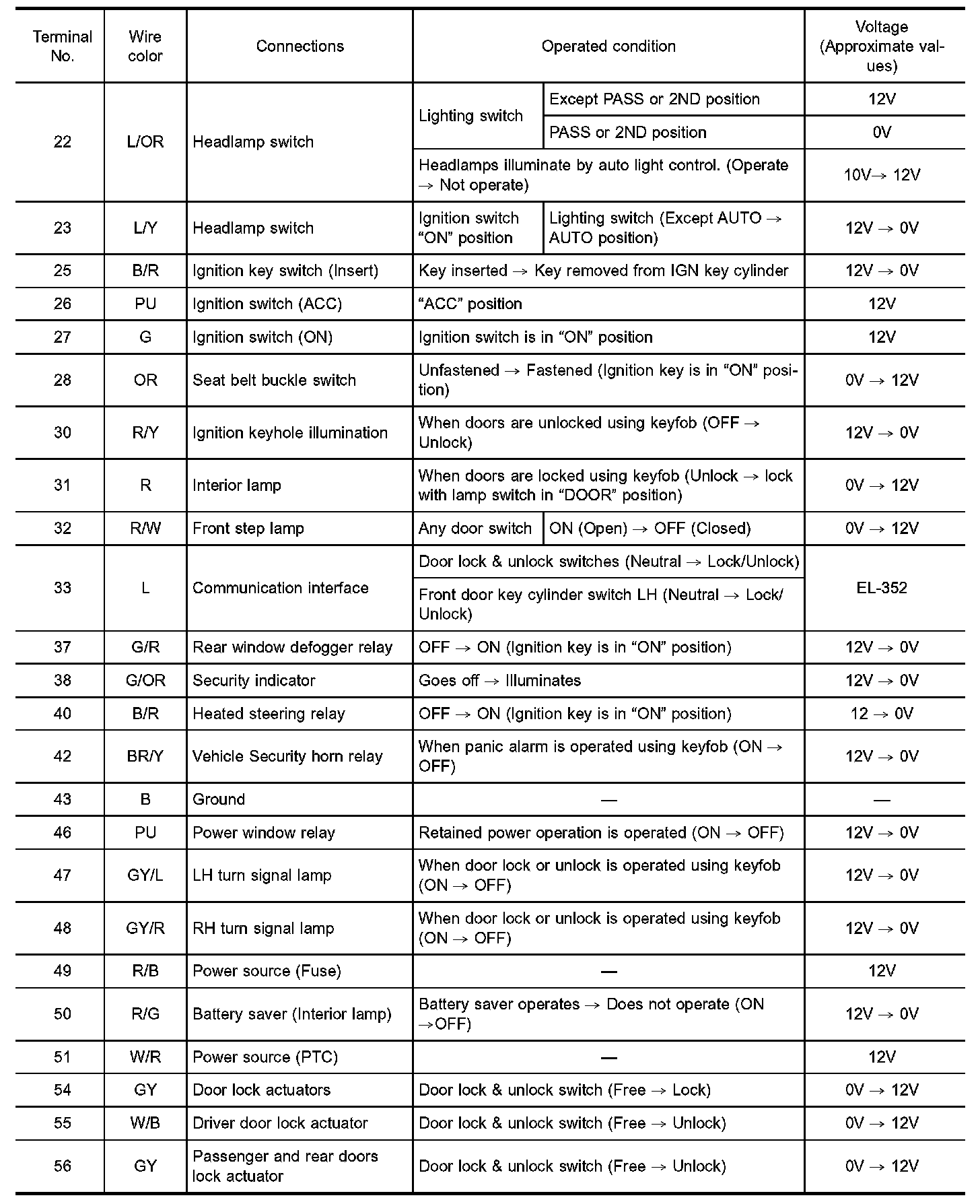

Smart Entrance Control Unit Inspection Table Part 2:



Smart Entrance Control Unit Inspection Table Part 3:
