Smart Entrance Control Unit

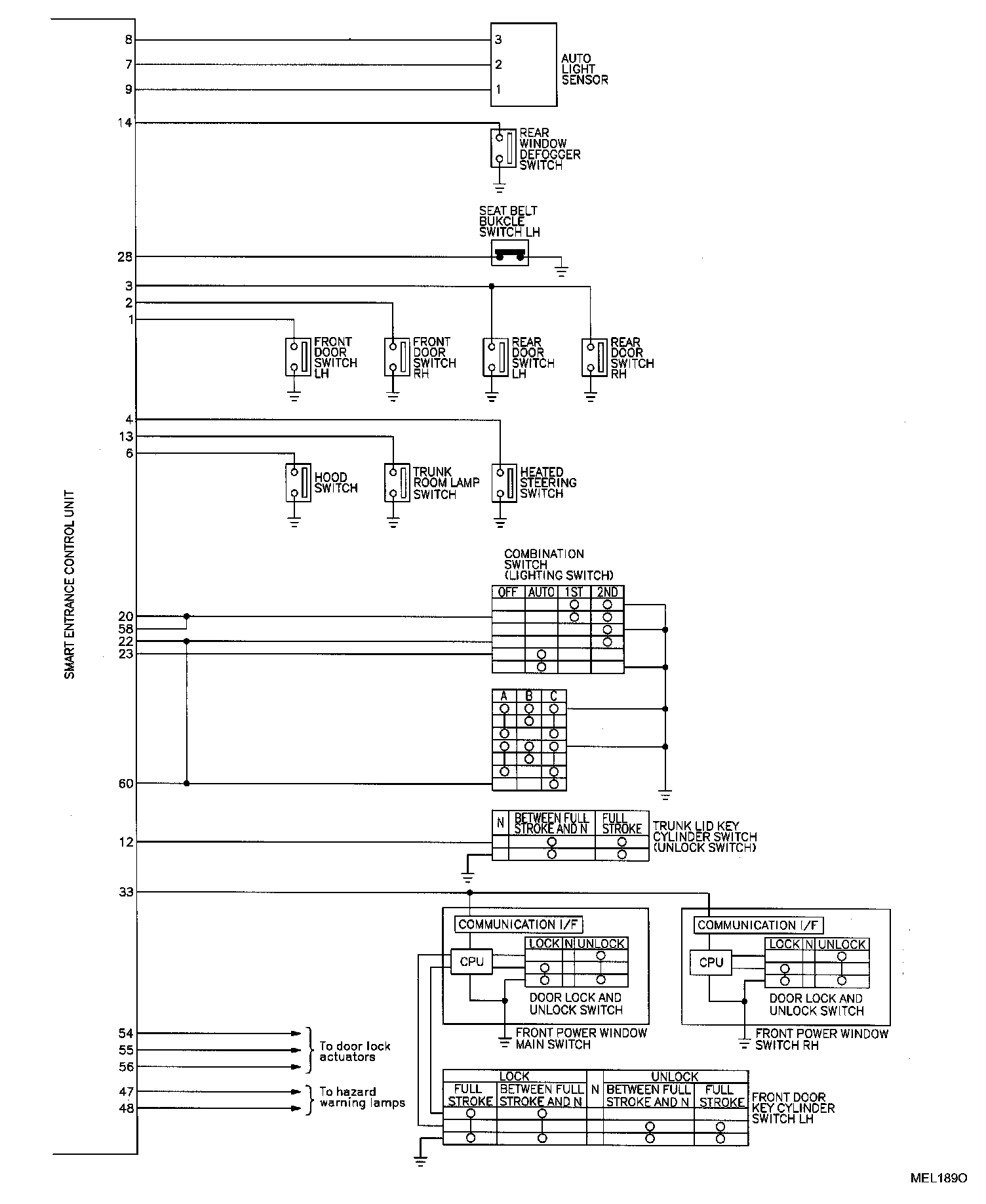

Smart Entrance Control Unit Schematic Part 1:

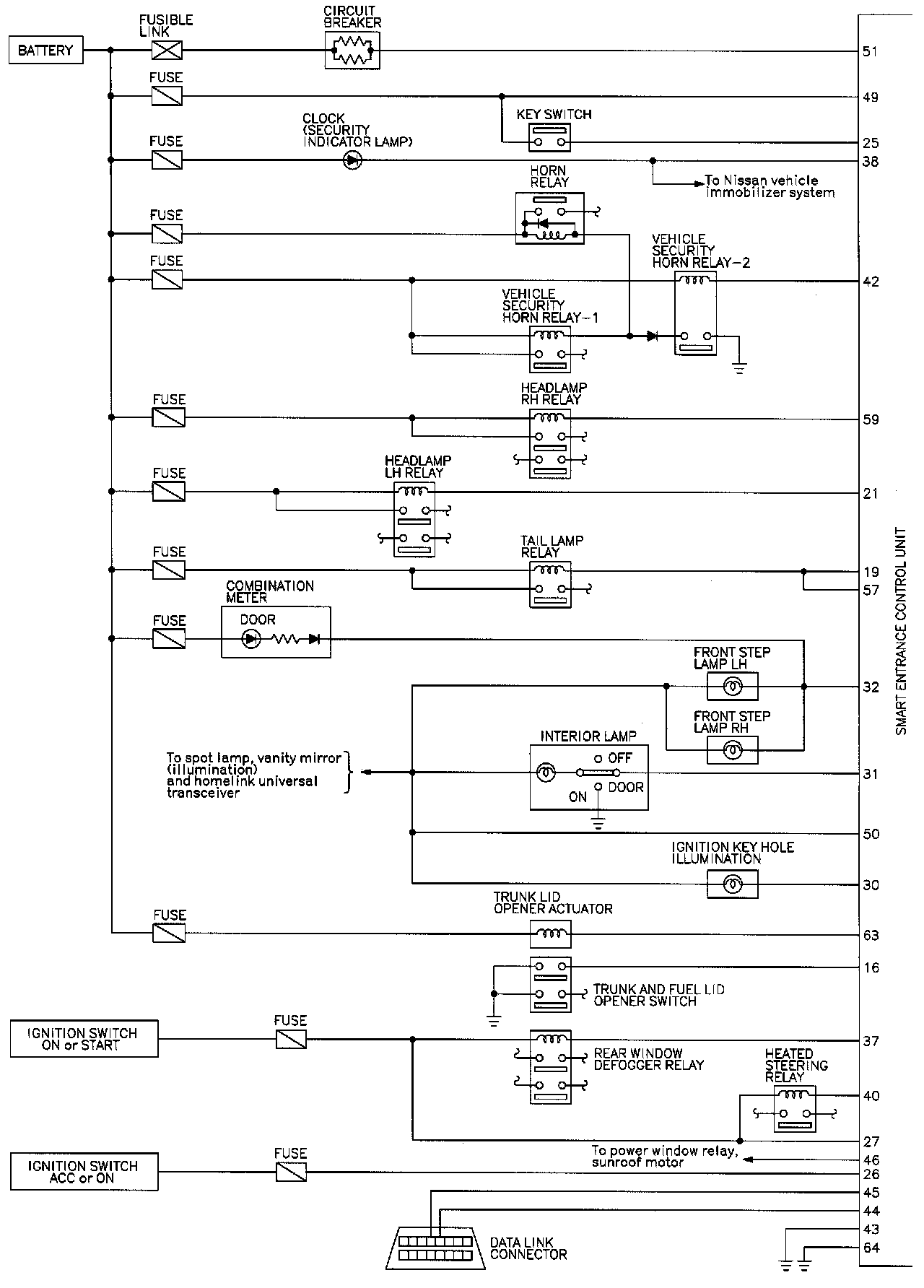

Smart Entrance Control Unit Schematic Part 2:
