P1805

DTC P1805 BRAKE SWITCH

Description
Brake switch signal is applied to the ECM through the stop lamp switch when the brake pedal is depressed. This signal is used mainly to decrease the engine speed when the vehicle is driving.

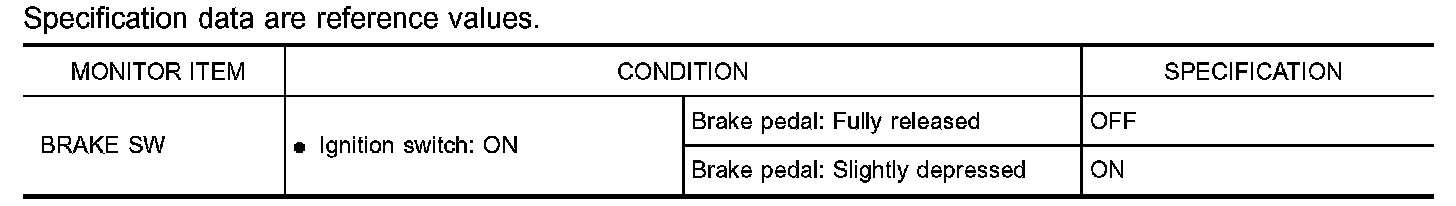

CONSULT-II Reference Value In Data Monitor Mode:

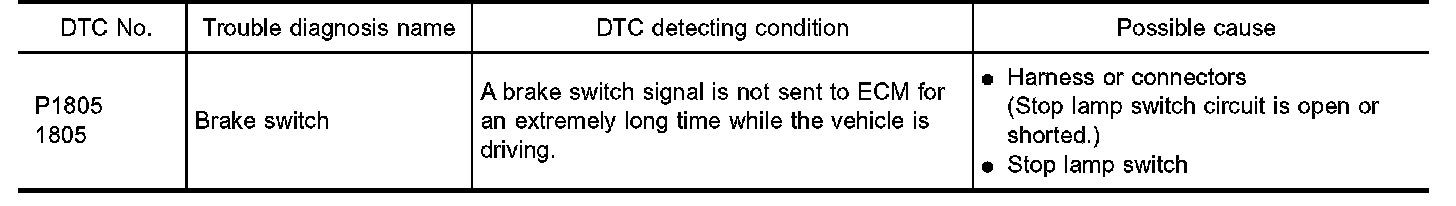

On Board Diagnosis Logic:

DTC Confirmation Procedure

WITH CONSULT-II
1. Turn ignition switch "ON".
2. Fully depress the brake pedal for at least 5 seconds.
3. Erase the DTC with CONSULT-II.

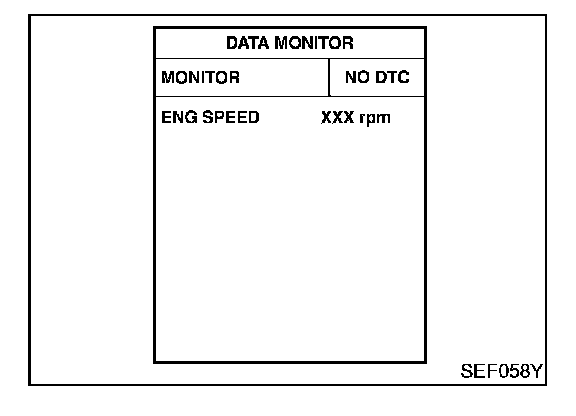

4. Select "DATA MONITOR" mode with CONSULT-II.
5. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

WITH GST
Follow the procedure "WITH CONSULT-II" above.

EC-BRK/SW-01:

Wiring Diagram

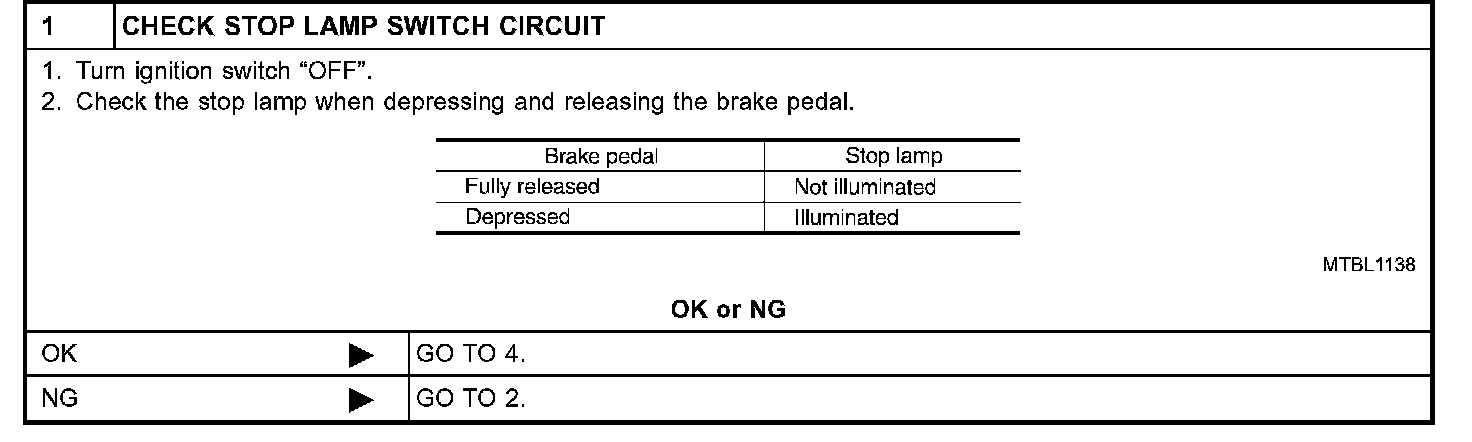

Diagnostic Procedure Step 1:

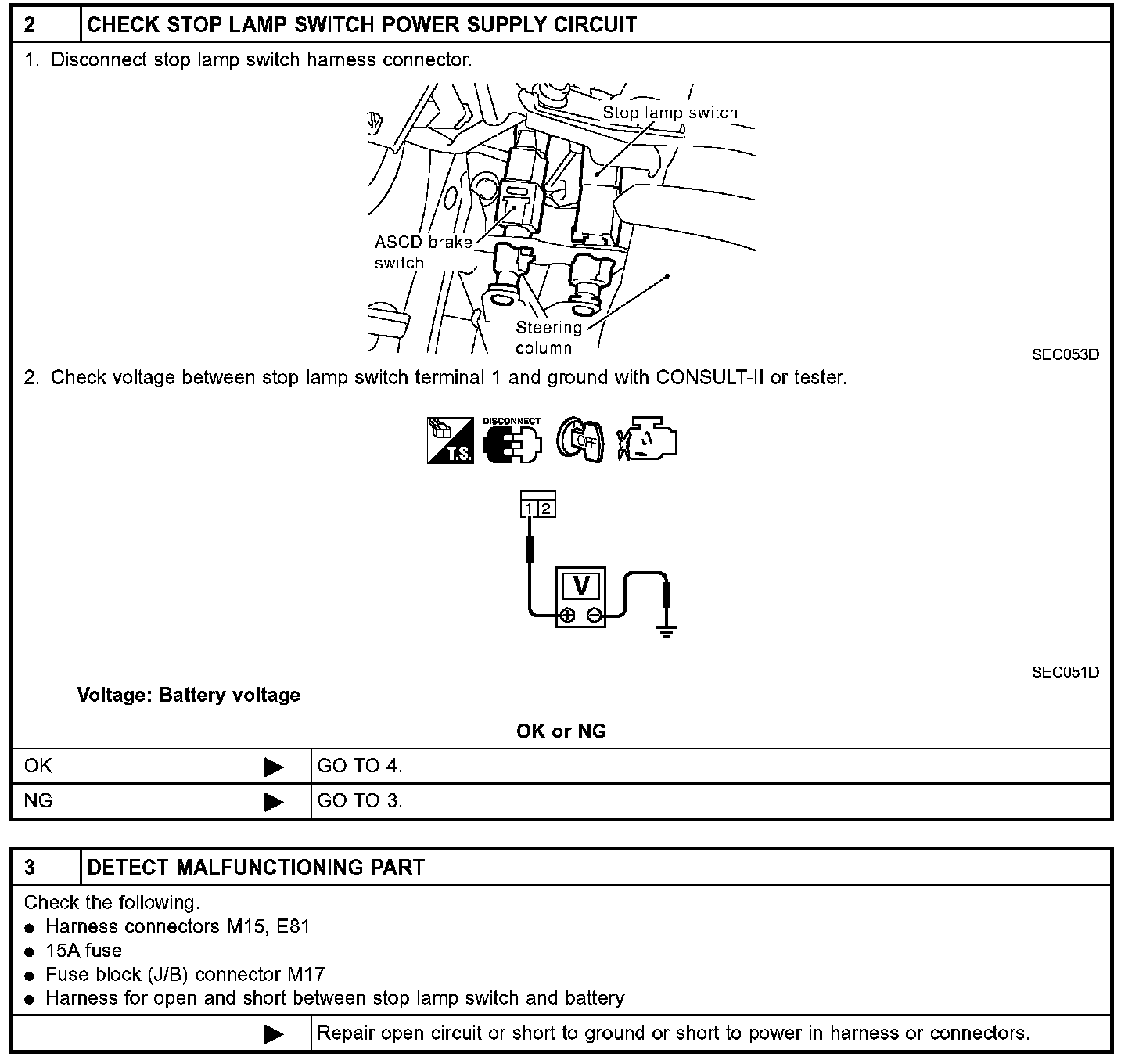

Diagnostic Procedure Step 2 - 3:

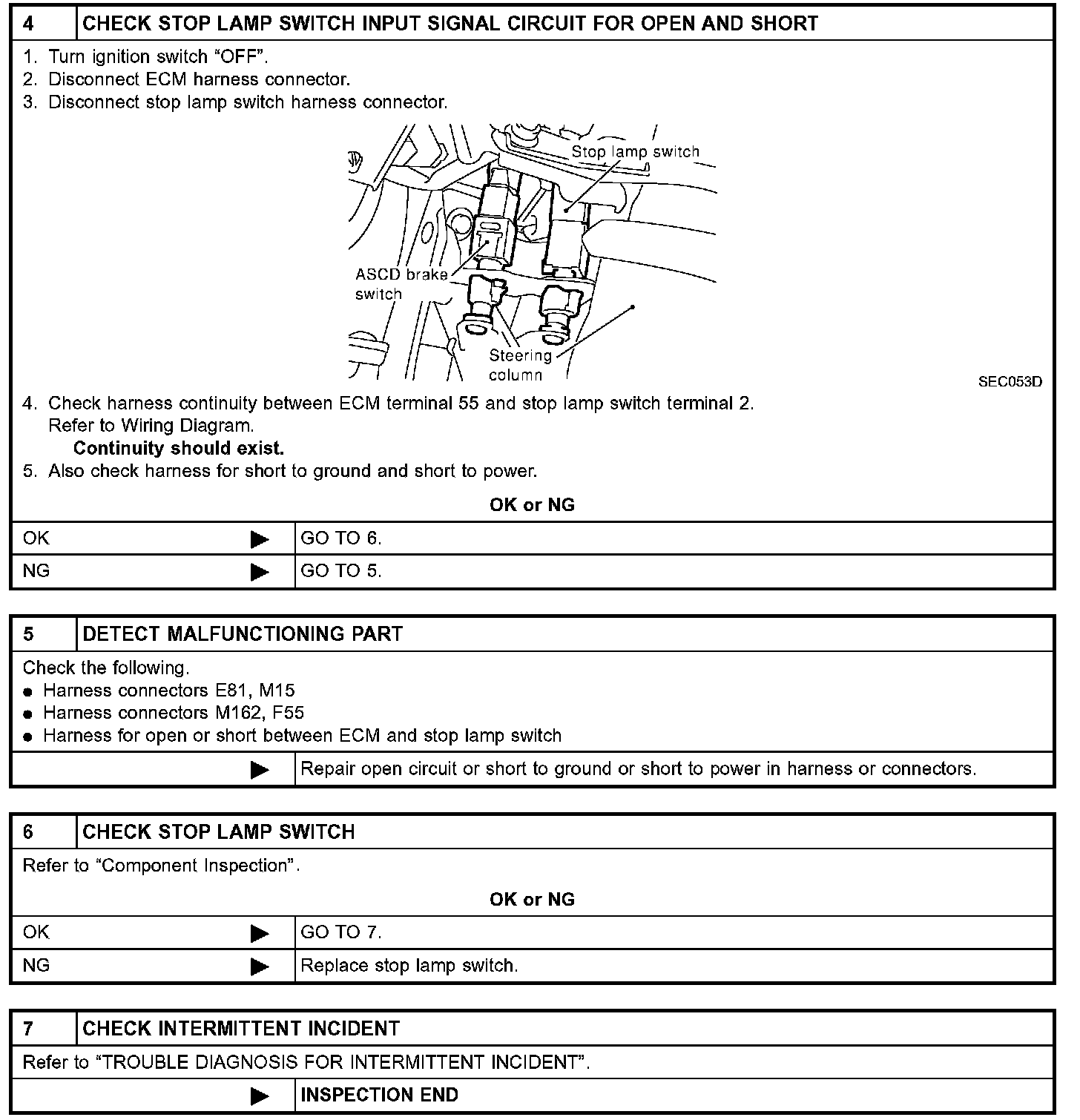

Diagnostic Procedure Step 4 - 7:

Diagnostic Procedure



Component Inspection




STOP LAMP SWITCH
1. Disconnect stop lamp switch harness connector.







2. Check continuity between stop lamp switch terminals 1 and 2 under the given conditions.
3. If NG, replace stop lamp switch.
