P1564

DTC P1564 ASCD STEERING SWITCH

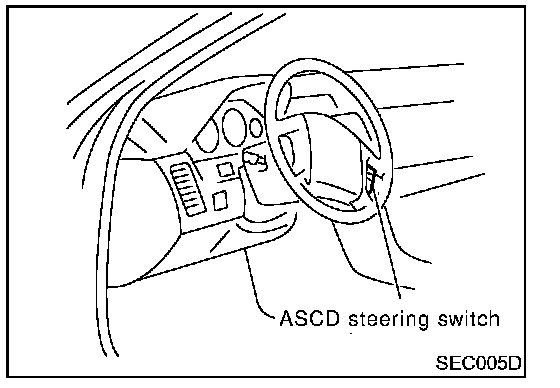

Component Description
ASCD steering switch has variant values of electrical resistance for each button. ECM reads voltage variation of switch, and determines which button is operated.

Refer to Cruise Control/Description for the ASCD function.

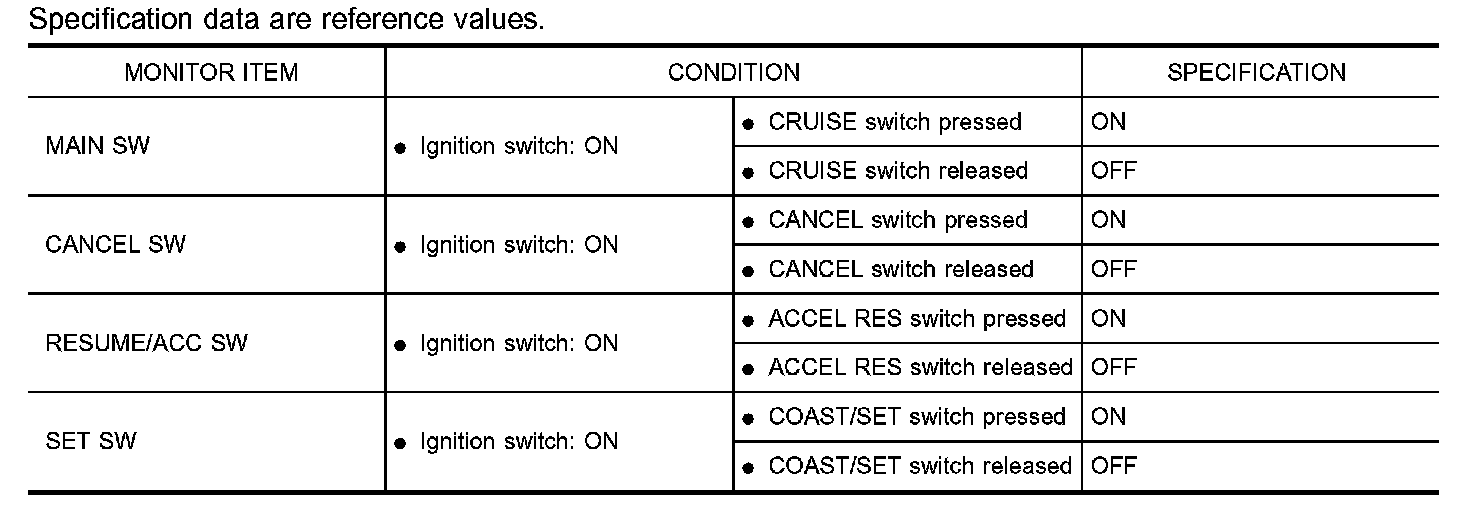

CONSULT-II Reference Value In Data Monitor Mode:

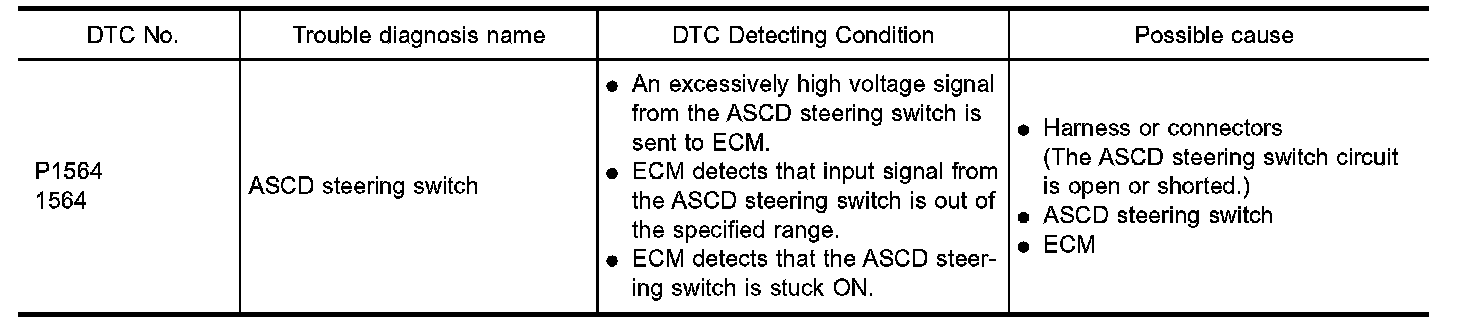

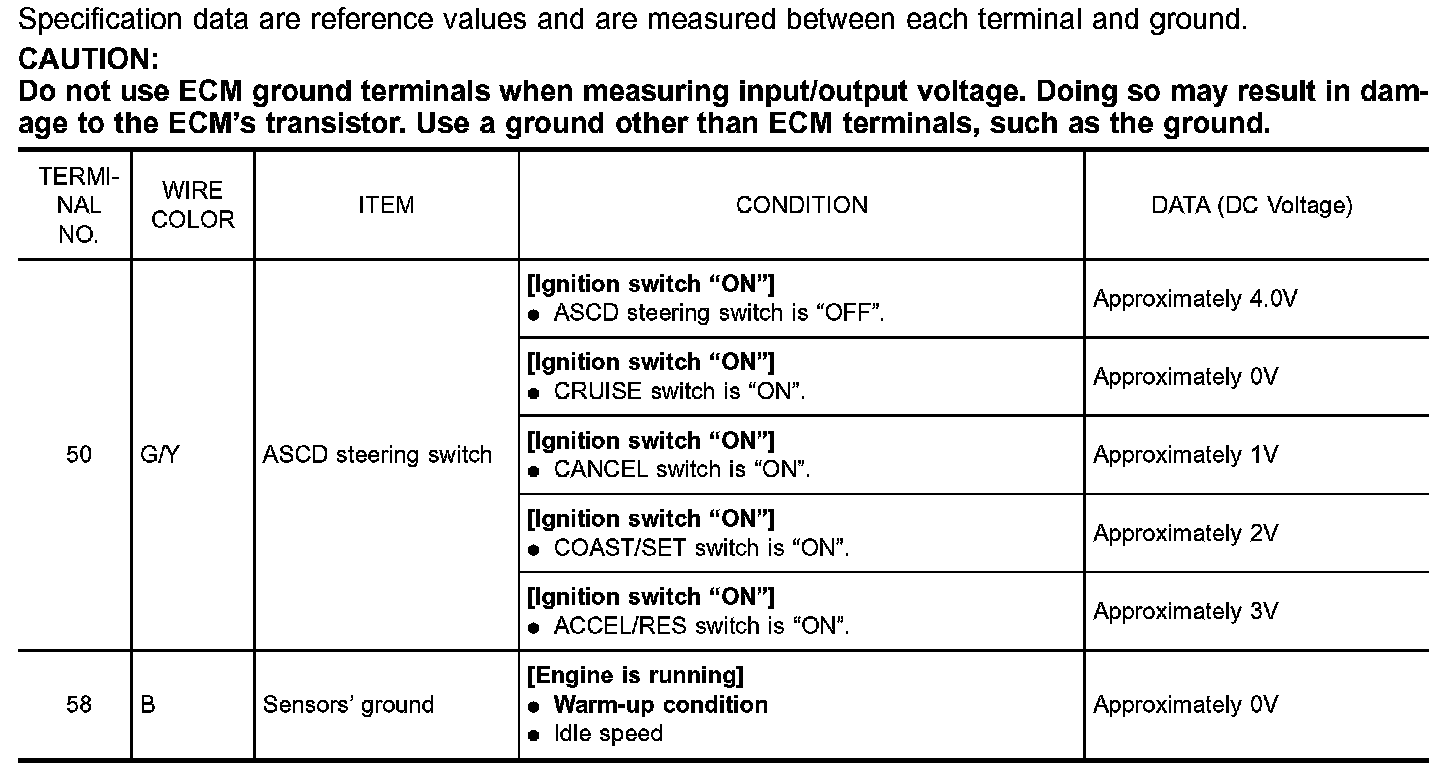

On Board Diagnosis Procedure:

DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.

With CONSULT-II
1. Turn ignition switch "ON".
2. Select "DATA MONITOR" mode with CONSULT-II.
3. Wait at least 10 seconds.
4. Press "CRUISE" switch for at least 10 seconds, then release it and wait at least 10 seconds.
5. Press "ACCEL/RES" switch for at least 10 seconds, then release it and wait at least 10 seconds.
6. Press "COAST/SET" switch for at least 10 seconds, then release it and wait at least 10 seconds.
7. Press "CANCEL" switch for at least 10 seconds, then release it and wait at least 10 seconds.
8. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

With GST
Follow the procedure "With CONSULT-II" above.

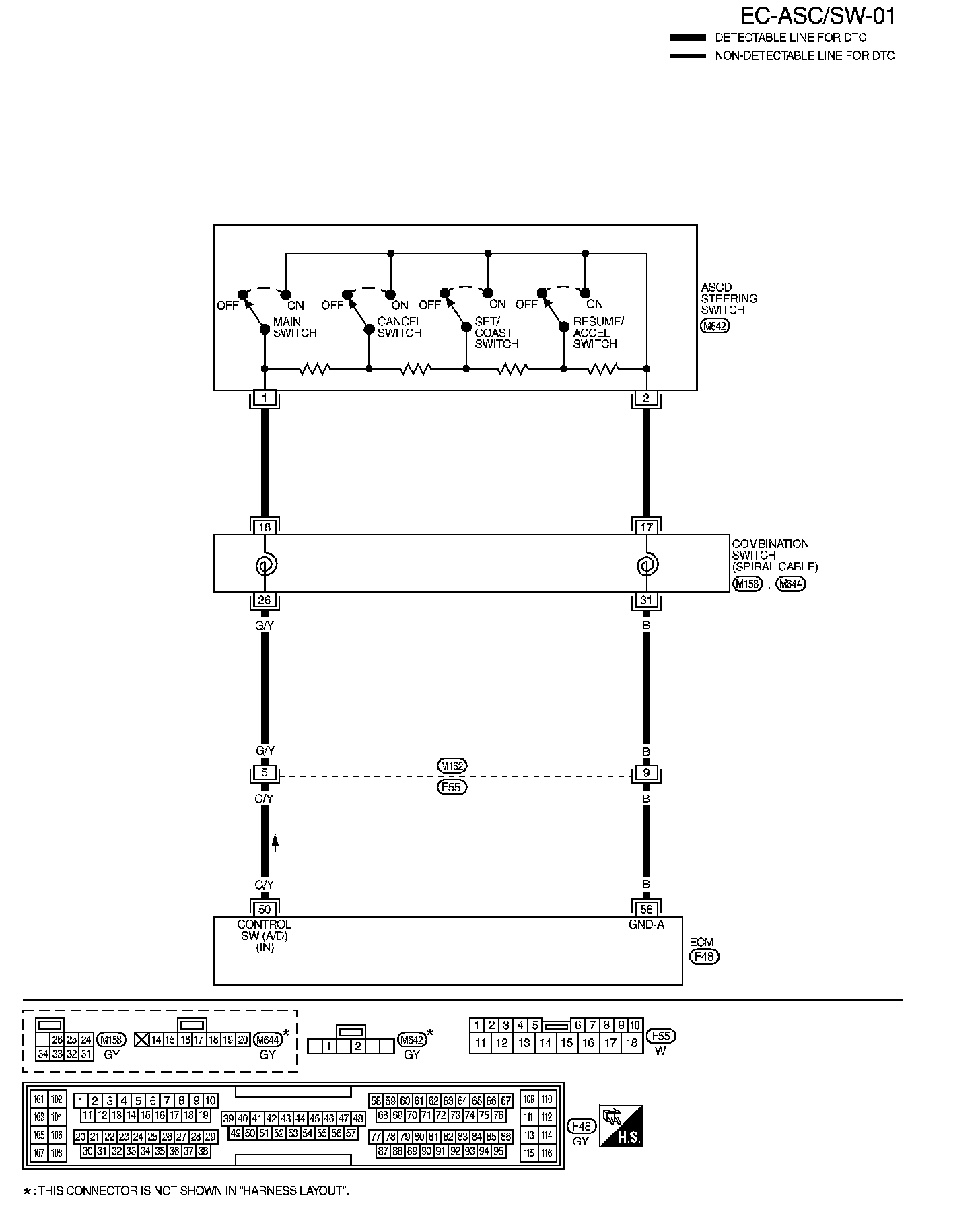

EC-ASC/SW-01:

Wiring Diagram

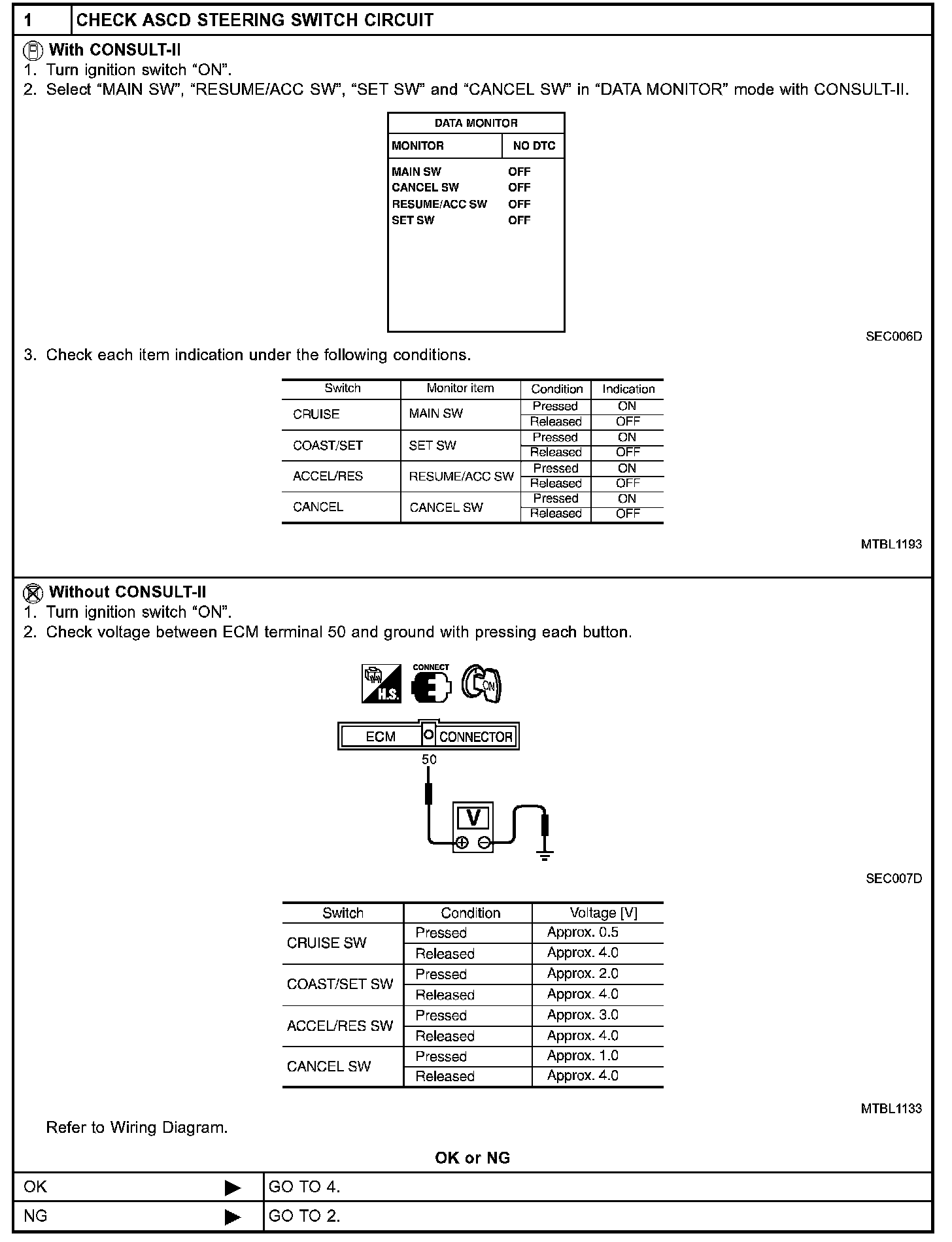

Diagnostic Procedure Step 1:

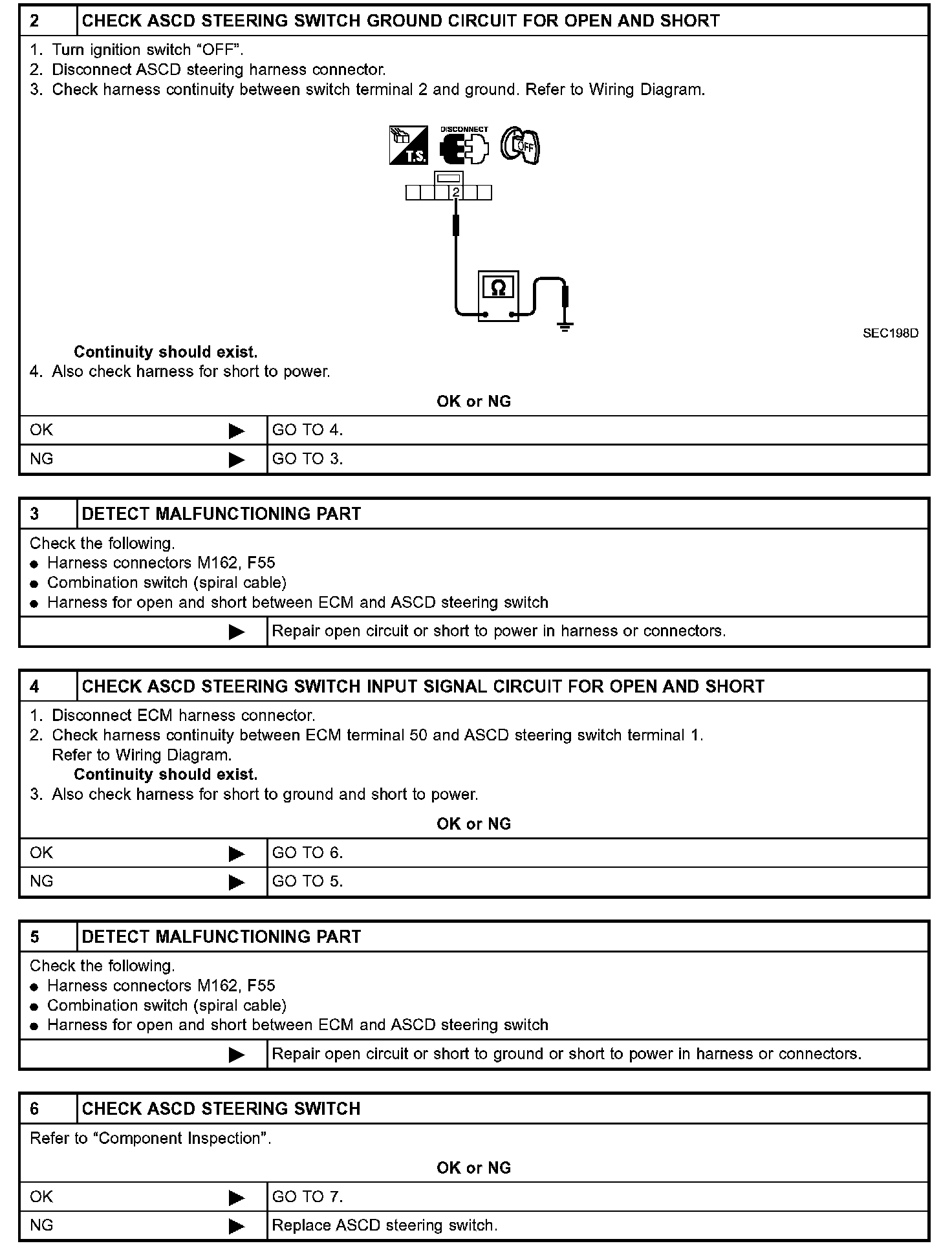

Diagnostic Procedure Step 2 - 6:

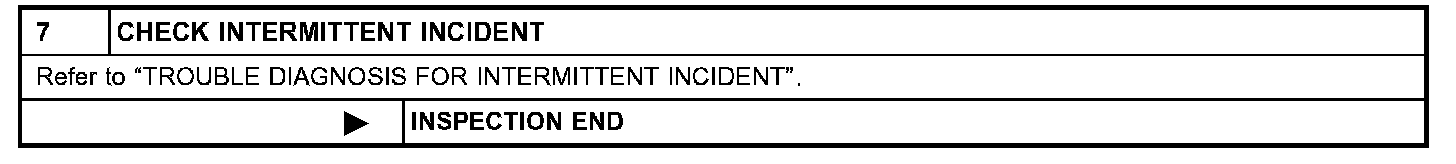

Diagnostic Procedure Step 7:

Diagnostic Procedure

Component Inspection

ASCD STEERING SWITCH
1. Disconnect ASCD steering switch.







2. Check continuity between terminals 1 and 2 by pushing each switch.
