P1229

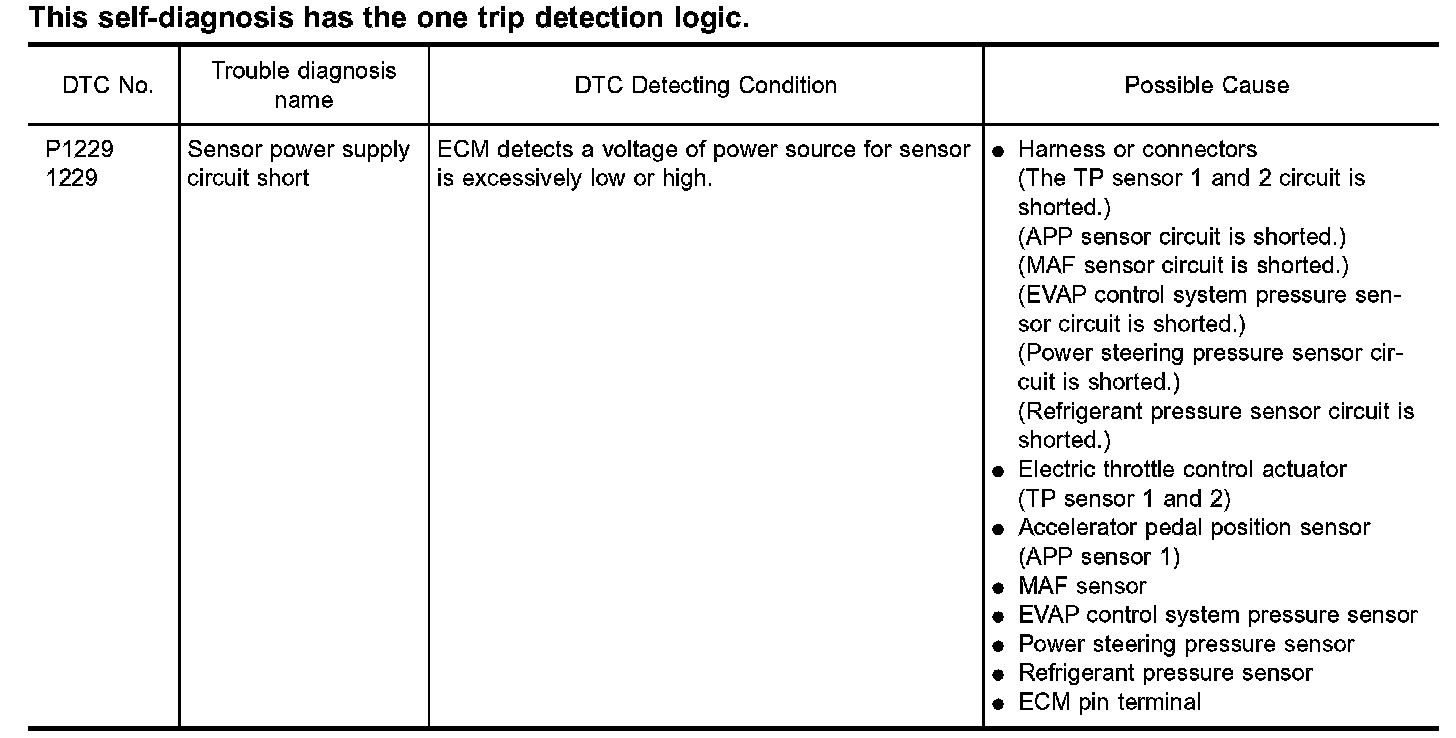

On Board Diagnosis Logic:

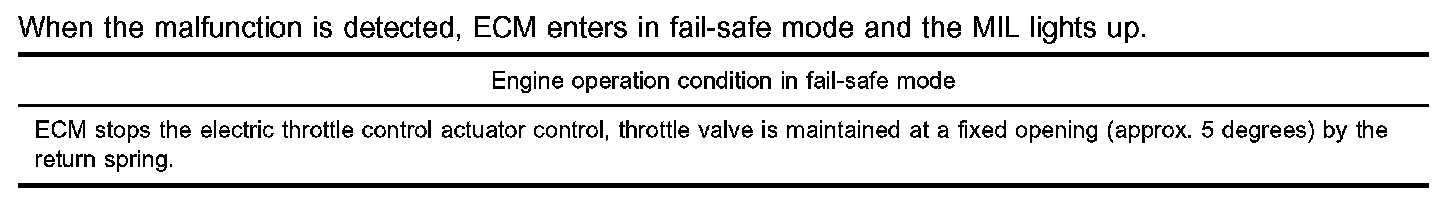

Fail-safe Mode:
DTC Confirmation Procedure
NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.
TESTING CONDITION: Before performing the following procedure, confirm that battery voltage is more than 10 V at idle.
With CONSULT-II

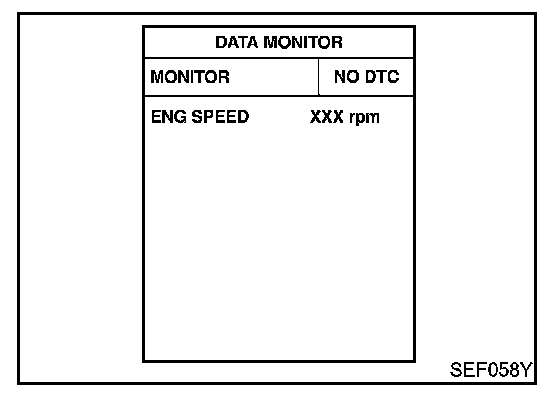

1. Turn ignition switch "ON".
2. Select "DATA MONITOR" mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to "Diagnostic Procedure" below.
With GST
Follow the procedure "With CONSULT-II" above.

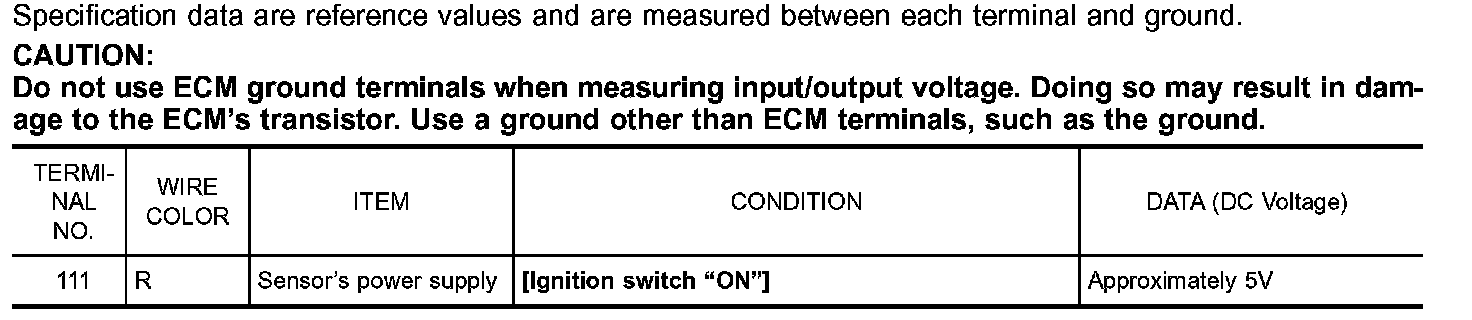

EC-SEN/PW-01:
Wiring Diagram
Diagnostic Procedure

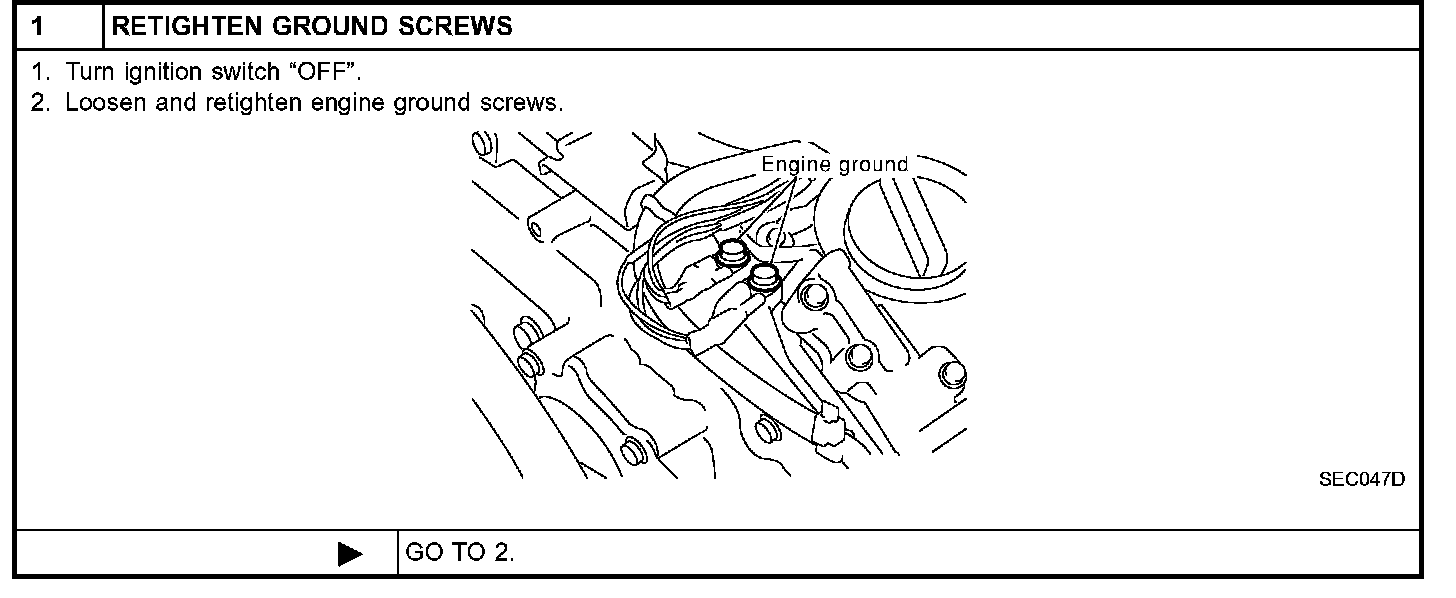

Diagnostic Procedure Step 1:

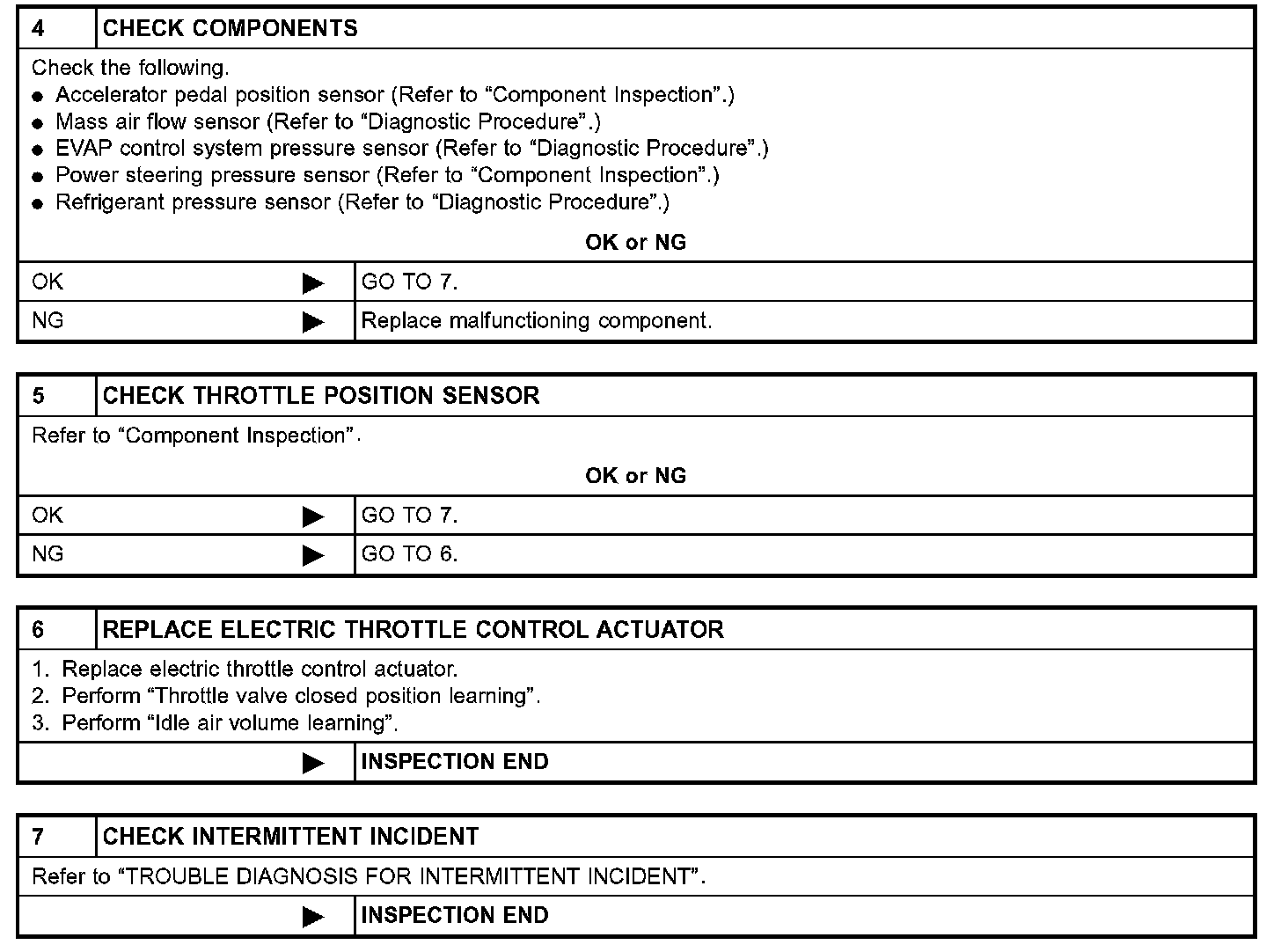

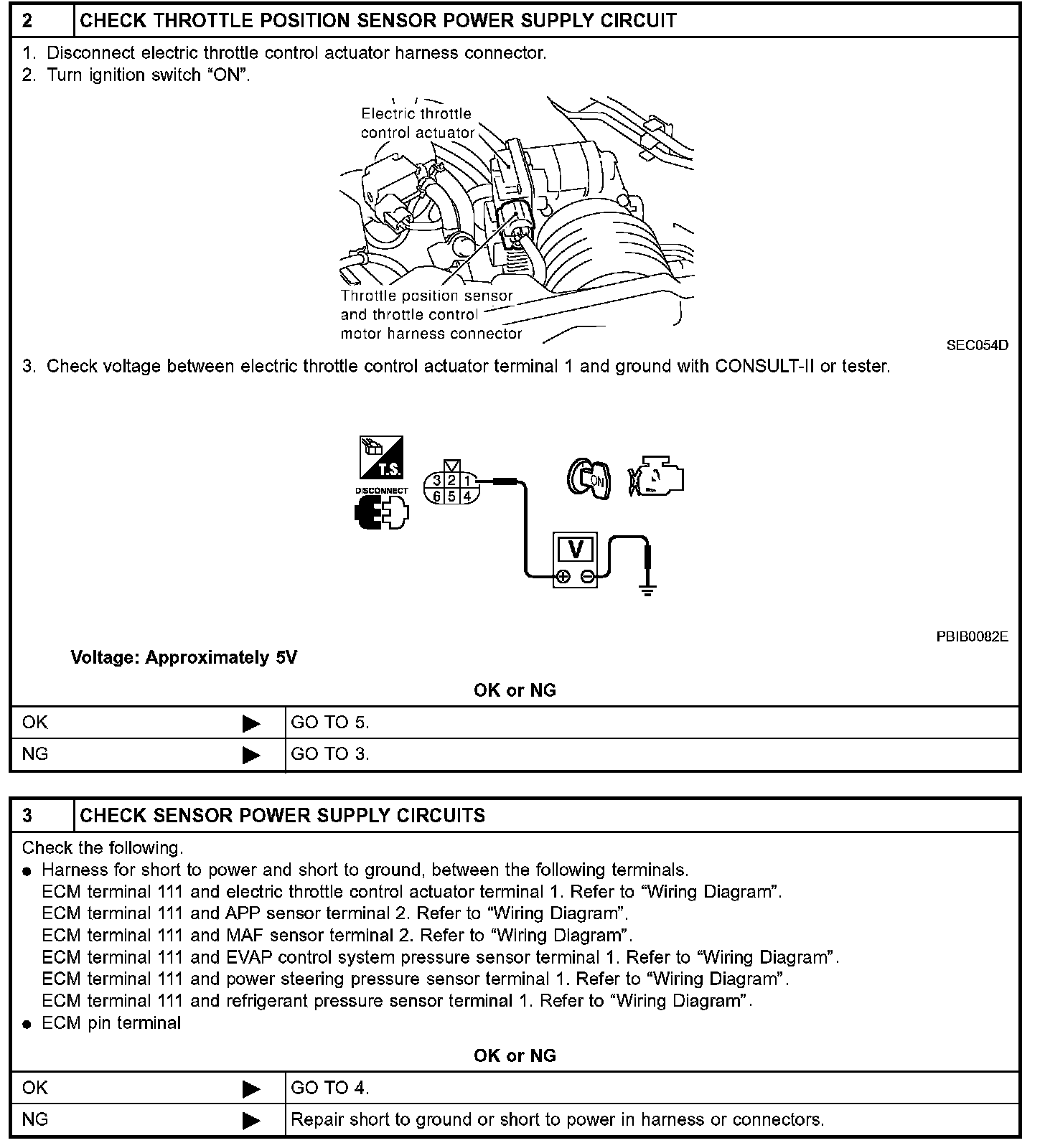

Diagnostic Procedure Step 2 - 3:
