P1212

DTC P1212 ABS/TCS COMMUNICATION LINE

Description

NOTE: If DTC P1212 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC U1000, U1001. Refer to "DTC U1000, U1001 CAN COMMUNICATION LINE".

This CAN communication line is used to control the smooth engine operation during the ABS or TCS operation. Pulse signals are exchanged between ECM and ABS actuator and electric unit or ABS/TCS control unit.

Be sure to erase the malfunction information such as DTC not only in ABS actuator and electric unit or ABS/TCS control unit but also ECM after the ABS or ABS/TCS related repair.

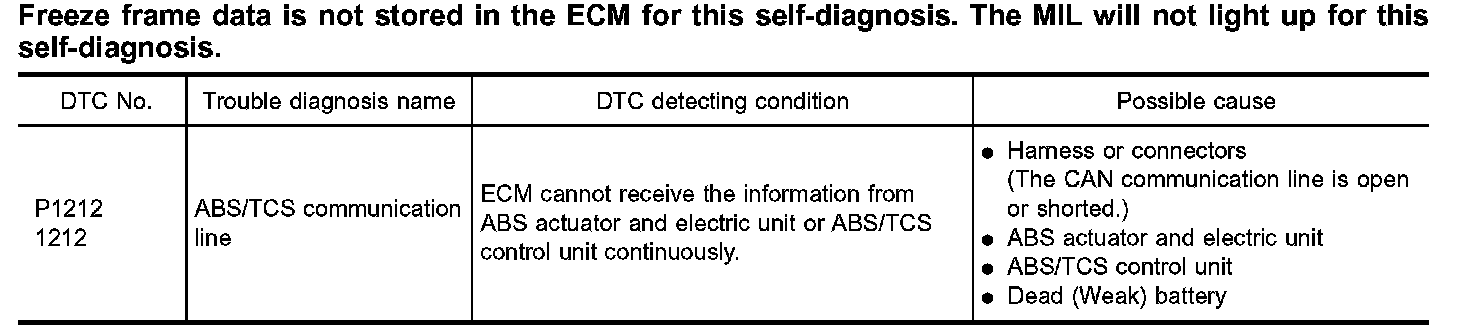

On Board Diagnosis Logic:

DTC Confirmation Procedure

TESTING CONDITION: Before performing the following procedure, confirm that battery voltage is more than 10.5 V at idle.

WITH CONSULT-II
1. Turn ignition switch "ON".

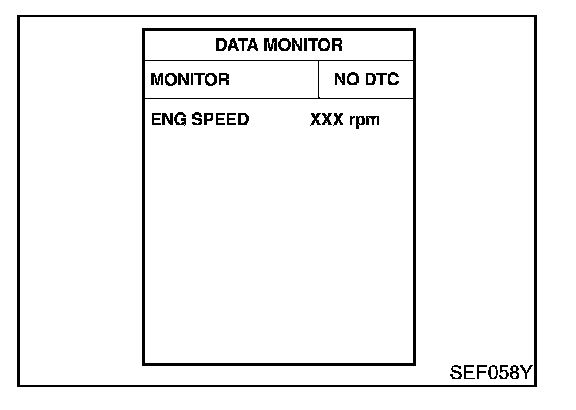

2. Select "DATA MONITOR" mode with CONSULT-II.
3. Start engine and let it idle for at least 10 seconds.
4. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

WITH GST
Follow the procedure "WITH CONSULT-II" above.

Diagnostic Procedure

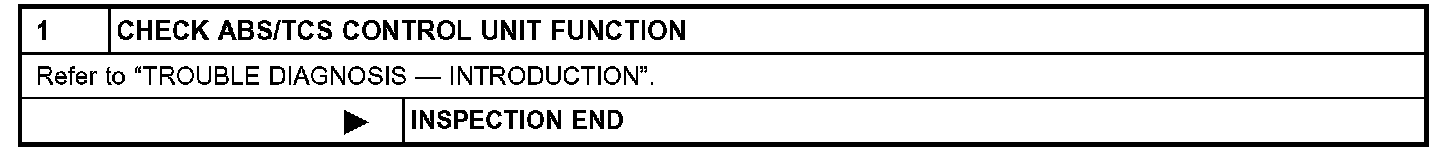

Diagnostic Procedure Step 1:
