P1211

DTC P1211 ABS/TCS CONTROL UNIT

Description
The malfunction information related to ABS or ABS/TCS is transferred through the CAN communication line from ABS actuator and electric unit or ABS/TCS control unit to ECM.

Be sure to erase the malfunction information such as DTC not only for ABS actuator and electric unit or ABS/TCS control unit but also for ECM after the ABS or ABS/TCS related repair.

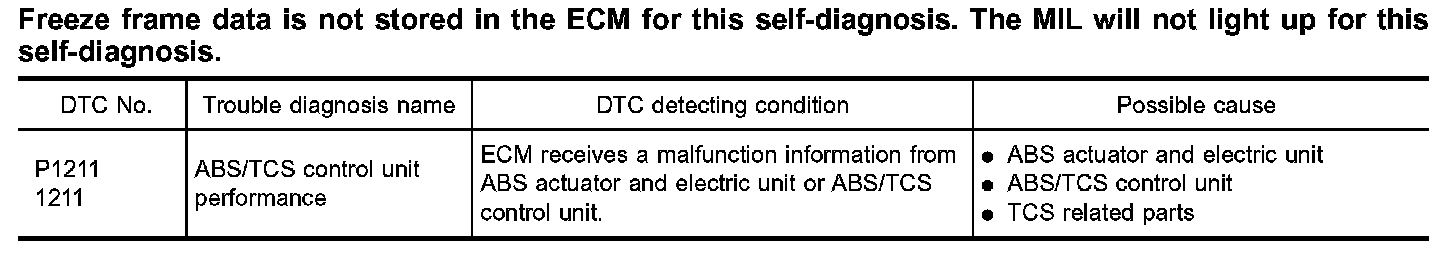

On Board Diagnosis Logic:

DTC Confirmation Procedure

TESTING CONDITION: Before performing the following procedure, confirm that battery voltage is more than 10.5 V at idle.

With CONSULT-II
1. Turn ignition switch "ON".

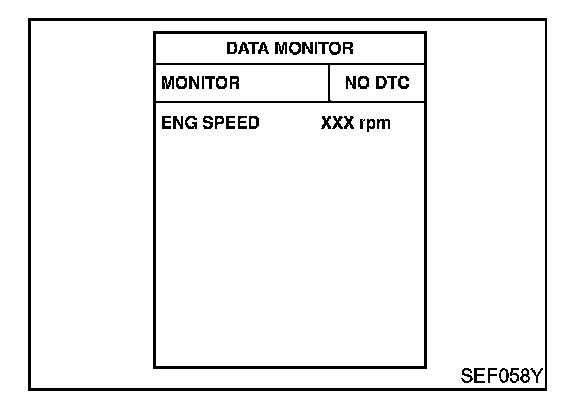

2. Select "DATA MONITOR" mode with CONSULT-II.
3. Start engine and let it idle for at least 60 seconds.
4. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

WITH GST
Follow the procedure "WITH CONSULT-II" above.

Diagnostic Procedure
Go to Brakes & Traction Control/Antilock Brakes/Traction Control Systems/Testing (With ABS models or With ABS/TCS models), "TROUBLE DIAGNOSIS - INTRODUCTION".
