P1128

DTC P1128 THROTTLE CONTROL MOTOR

Component Description
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.

The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feedback to the ECM to control the throttle control motor to make the throttle valve opening angle properly in response to driving condition.

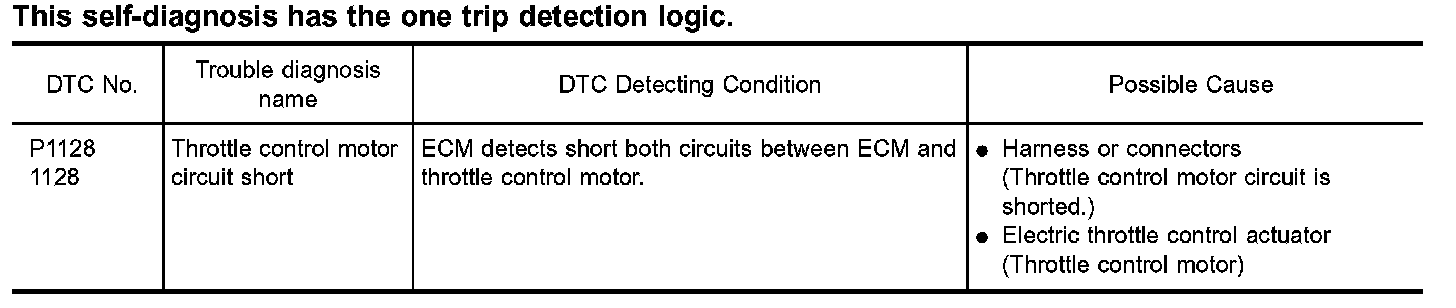

On Board Diagnosis Logic:

DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.

With CONSULT-II
1. Turn ignition switch "ON" and wait at least 2 seconds.

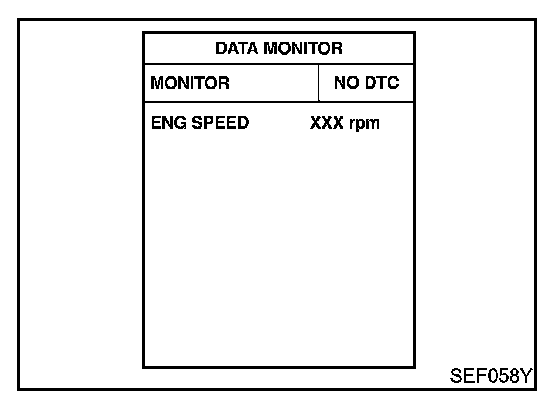

2. Select "DATA MONITOR" mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If DTC is detected, go to "Diagnostic Procedure" below.

With GST
Follow the procedure "With CONSULT-II" above.

EC-ETC3-01:

Wiring Diagram

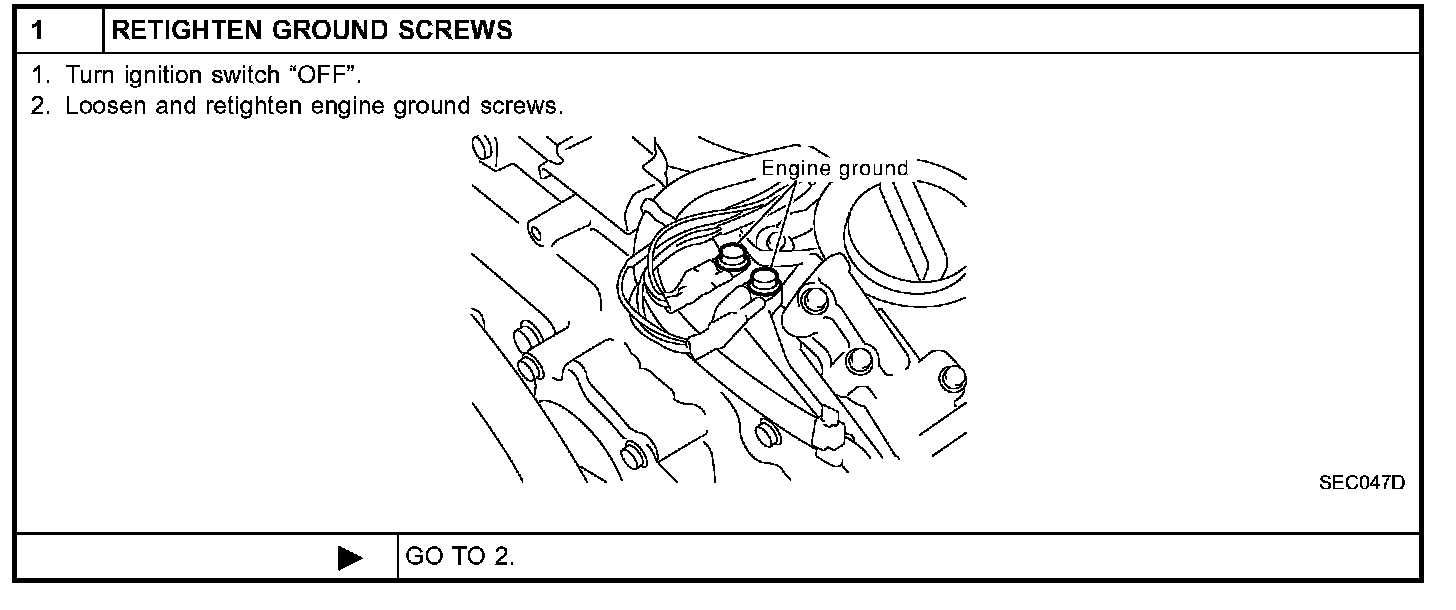

Diagnostic Procedure Step 1:

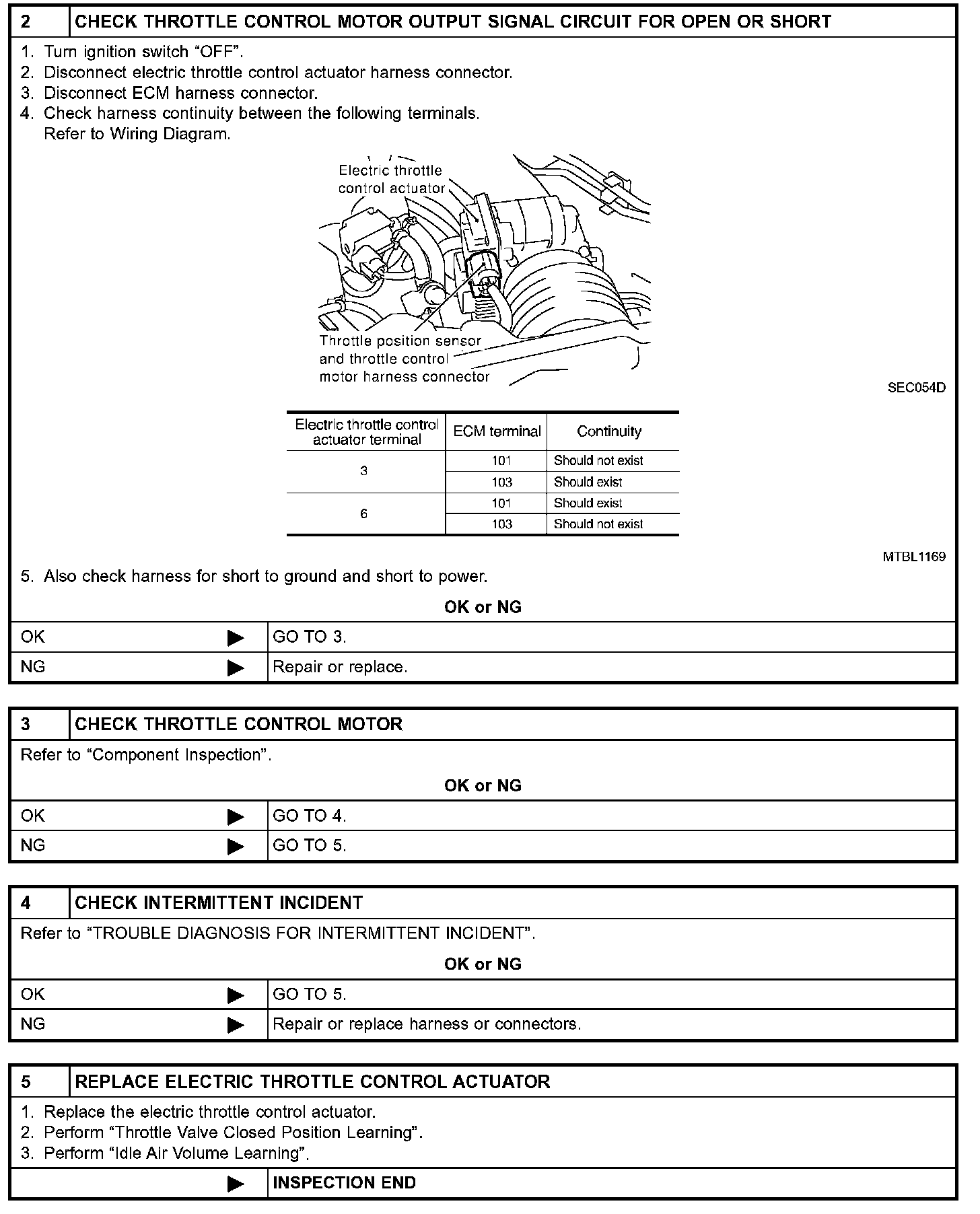

Diagnostic Procedure Step 2 - 5:

Diagnostic Procedure

Component Inspection




THROTTLE CONTROL MOTOR
1. Disconnect electric throttle control actuator harness connector.

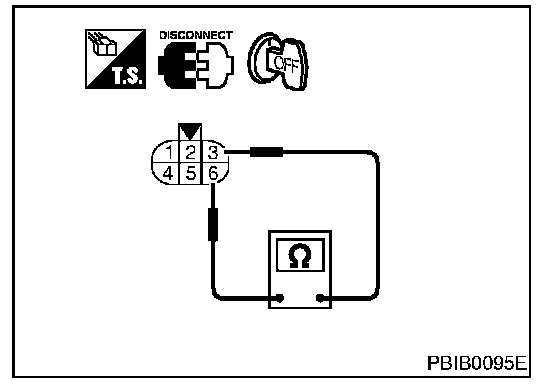

2. Check resistance between terminals 3 and 6.
Resistance: Approximately 1 - 15 ohms [at 25 °C (77 °F)]
3. If NG, replace electric throttle control actuator and go to next step.
4. Perform "Throttle Valve Closed Position Learning".
5. Perform "Idle Air Volume Learning".
