P1102
DTC P1102 MAF SENSOR

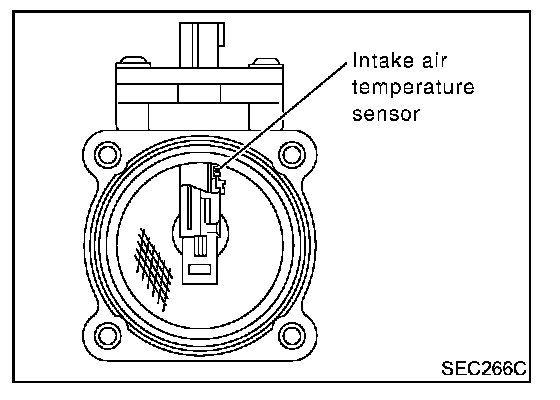

Component Description
The mass air flow sensor is placed in the stream of intake air. It measures the intake flow rate by measuring a part of the entire intake flow. It consists of a hot film that is supplied with electric current from the ECM. The temperature of the hot film is controlled by the ECM a certain amount. The heat generated by the hot film is reduced as the intake air flows around it. The more air, the greater the heat loss.
Therefore, the ECM must supply more electric current to maintain the temperature of the hot film as air flow increases. The ECM detects the air flow by means of this current change.

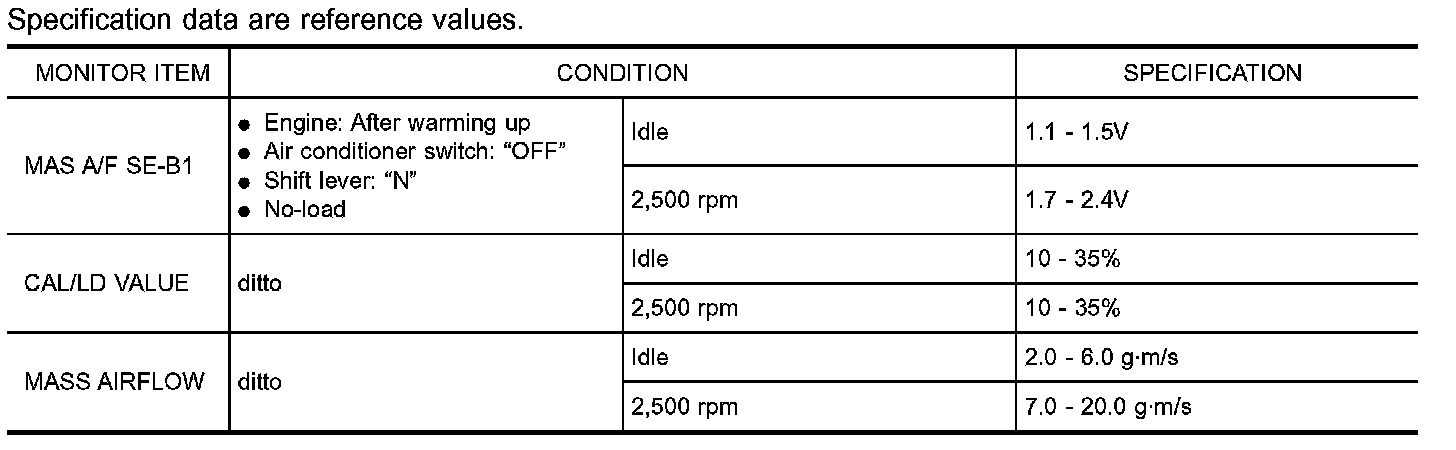

CONSULT-II Reference Value In Data Monitor Mode:

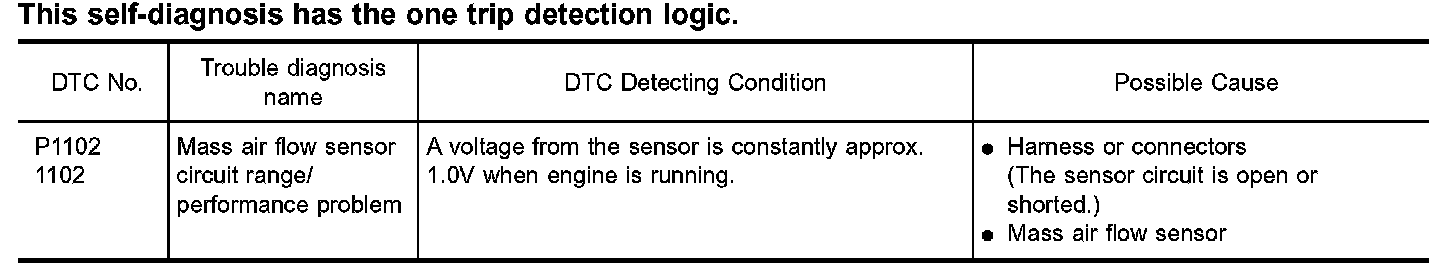

On Board Diagnosis Logic:

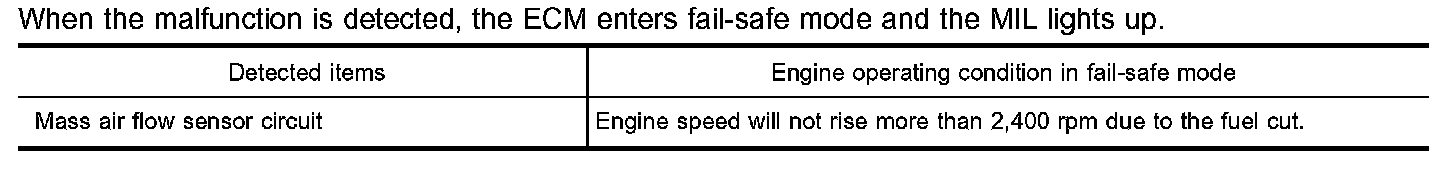

Fail-safe Mode:
DTC Confirmation Procedure
NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch "ON".

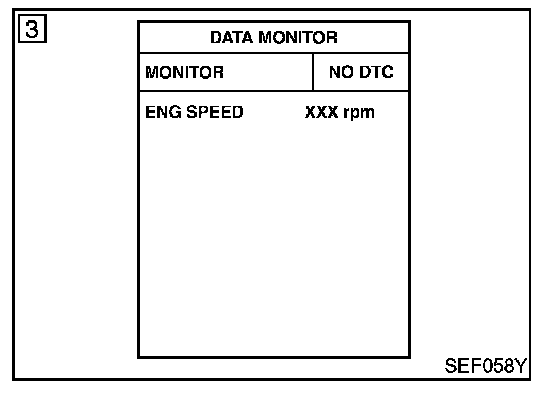

2. Select "DATA MONITOR" mode with CONSULT-II.
3. Start engine and wait 5 seconds at most.
4. If DTC is detected, go to "Diagnostic Procedure" below.
WITH GST
Follow the procedure "With CONSULT-II" above.
EC-MAFS-01:

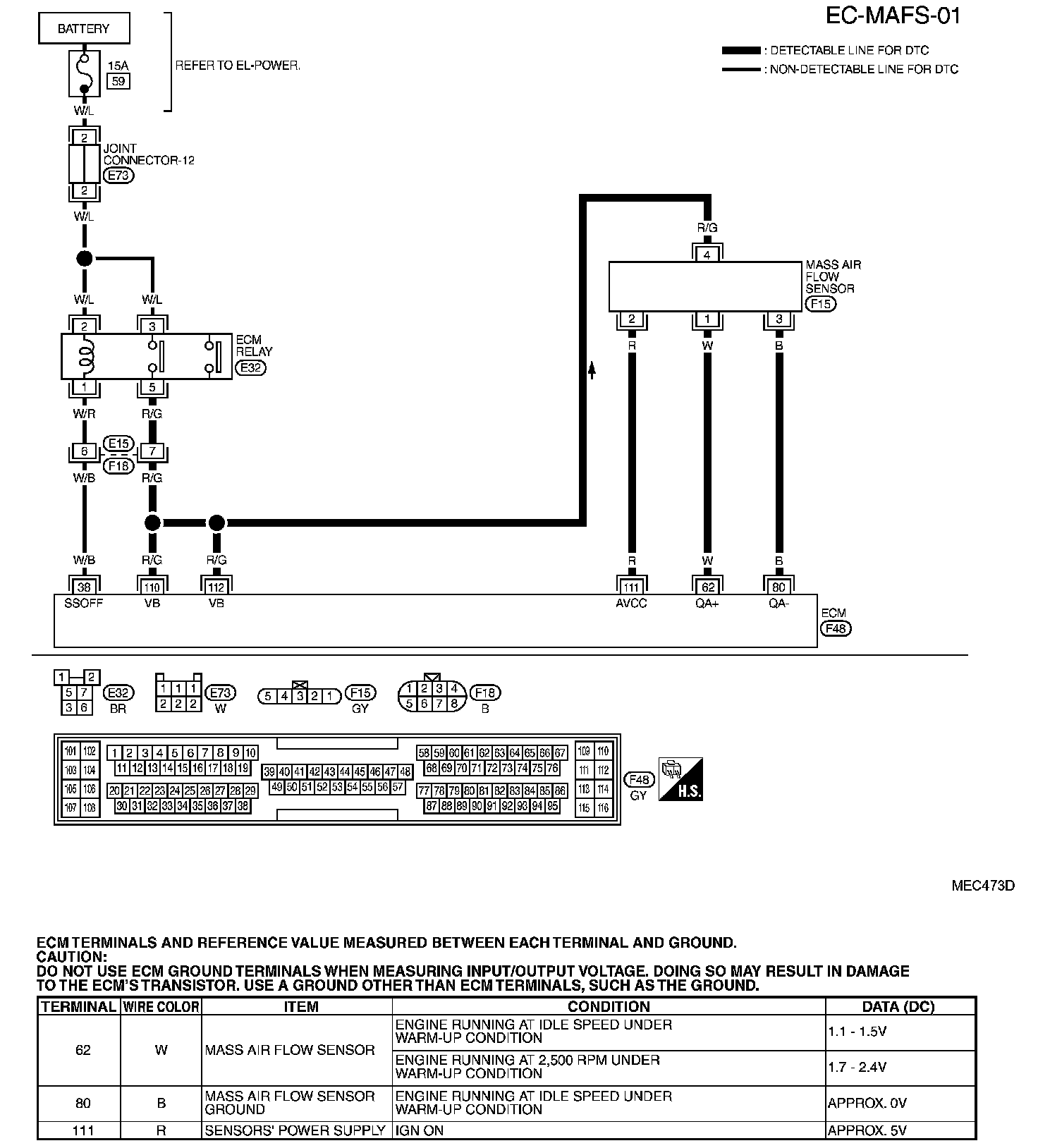

Wiring Diagram
Diagnostic Procedure

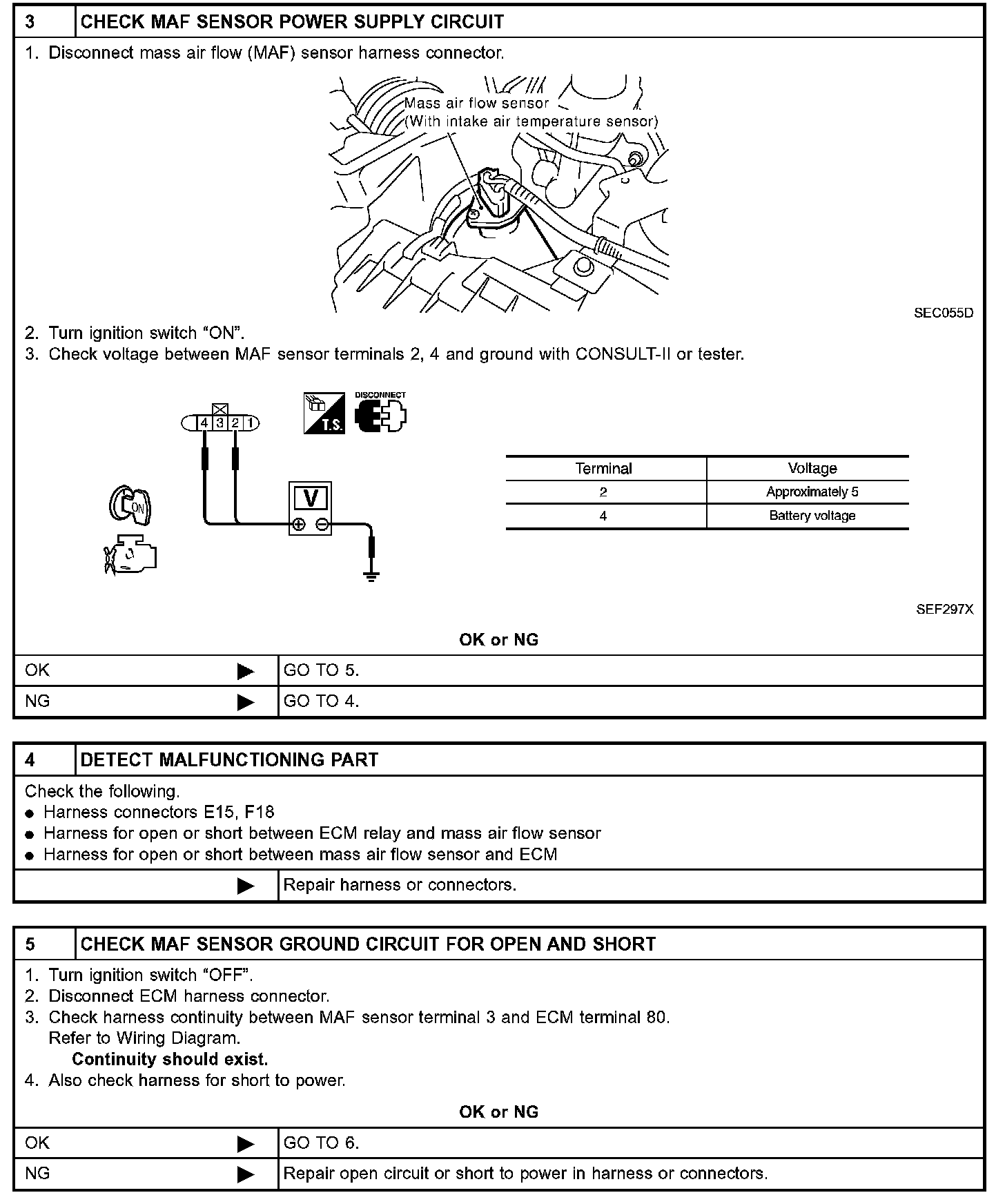

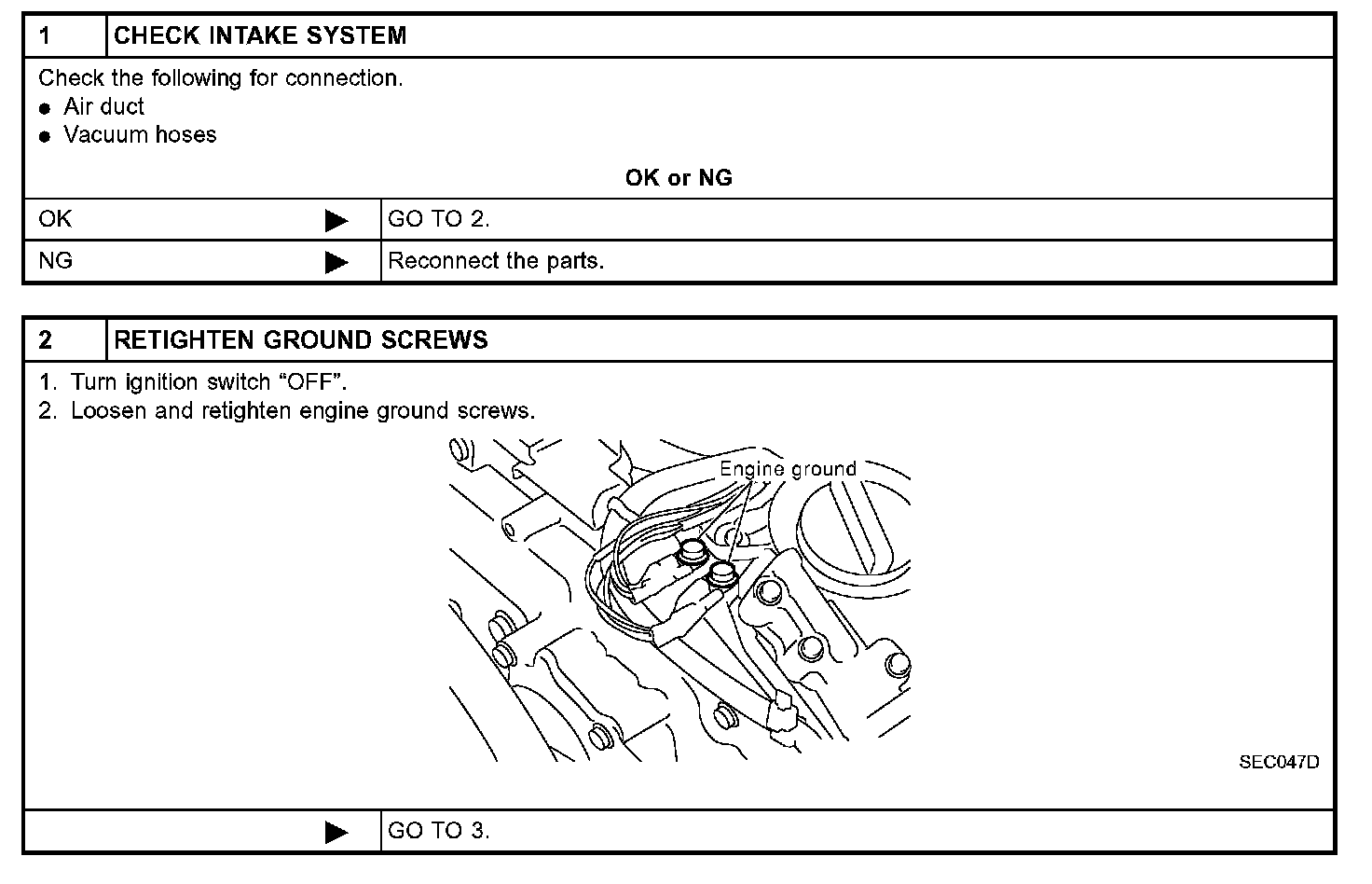

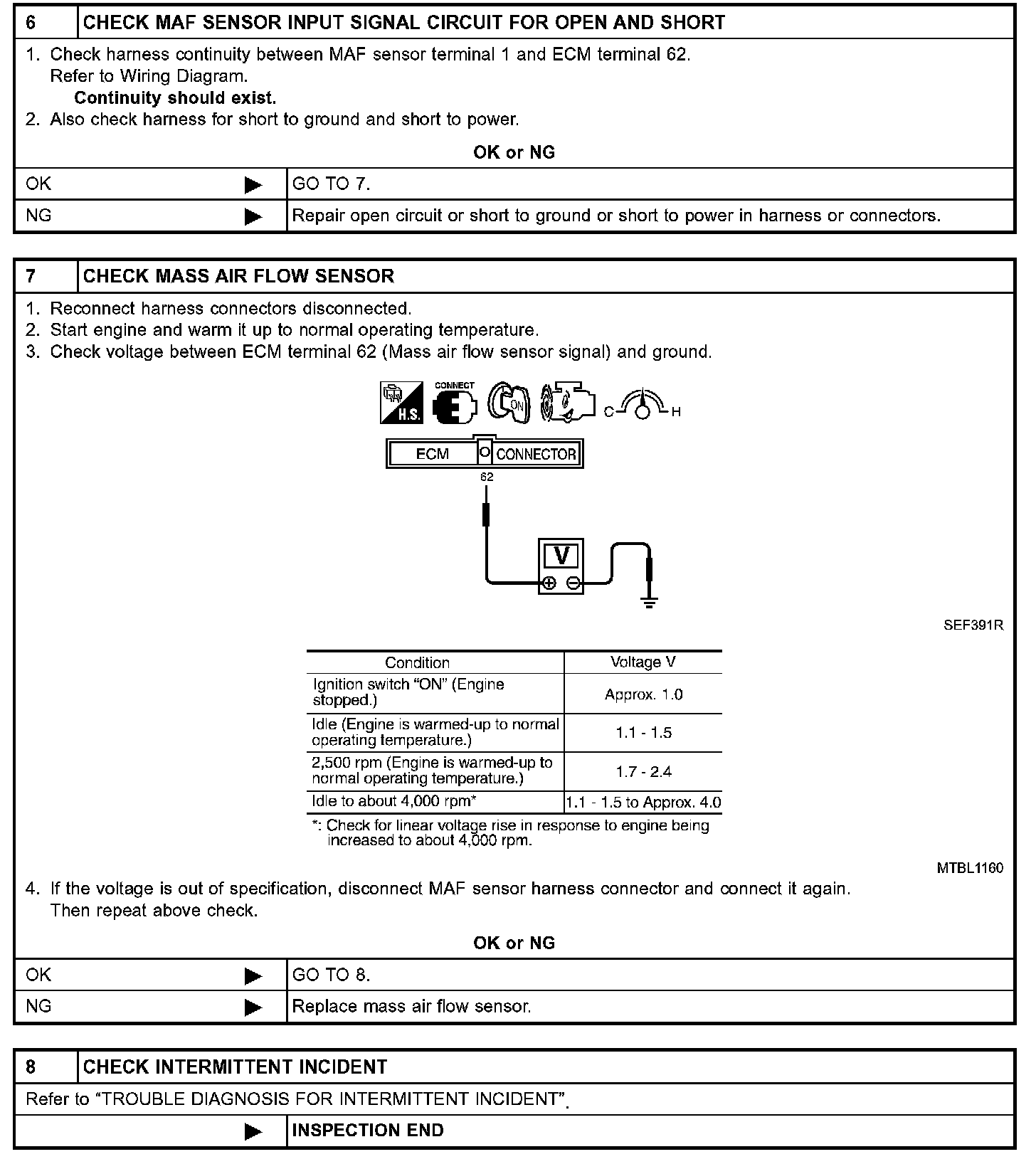

Diagnostic Procedure Step 1 - 2:
Diagnostic Procedure Step 3 - 5:
