P0442

DTC P0442 EVAP CONTROL SYSTEM

On Board Diagnosis Logic

NOTE: If DTC P0442 is displayed with P1448, perform trouble diagnosis for DTC P1448 first.

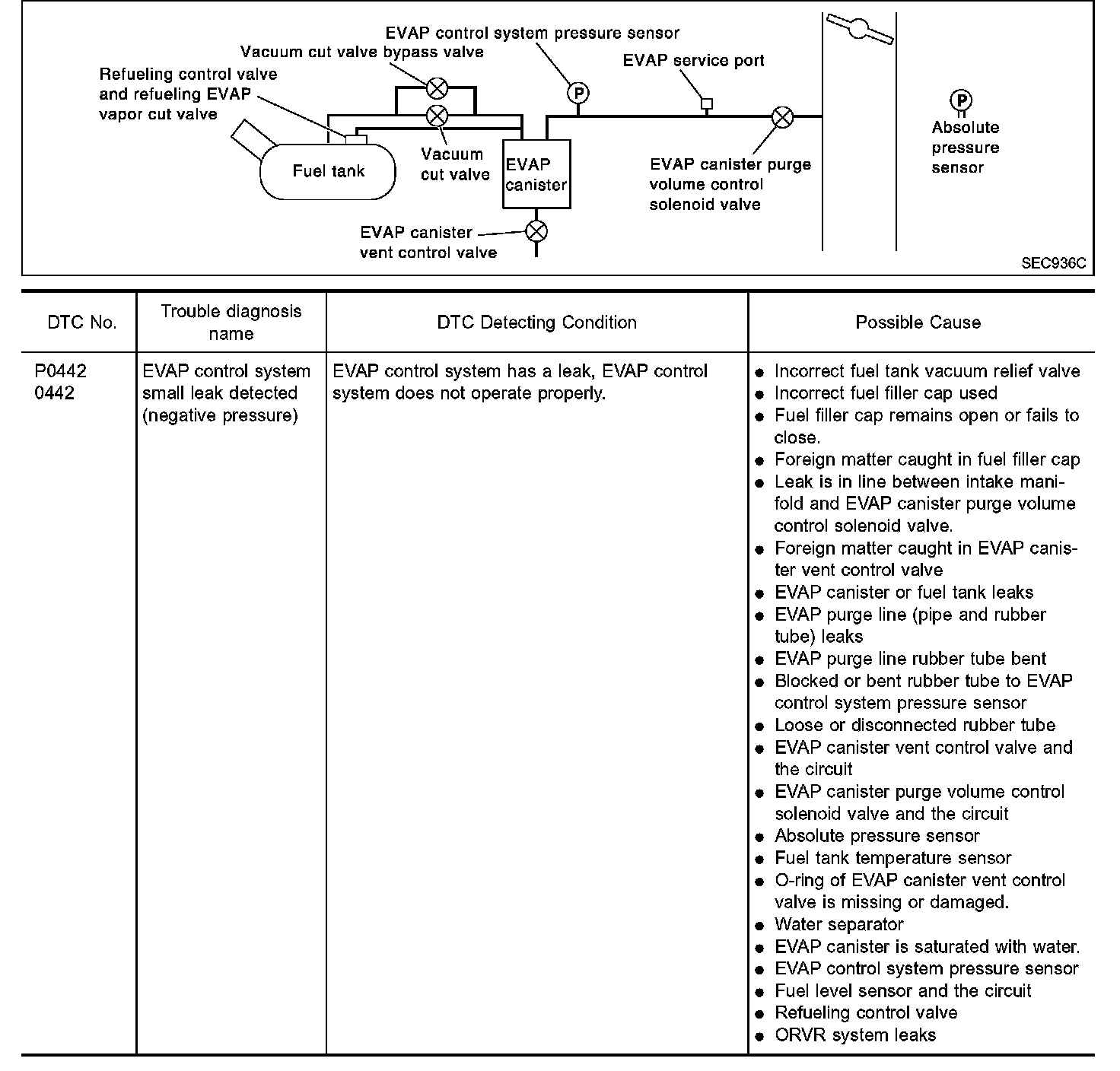

This diagnosis detects leaks in the EVAP purge line using engine intake manifold vacuum.

If pressure does not increase, the ECM will check for leaks in the line between the fuel tank and EVAP canister purge volume control solenoid valve, under the following "Vacuum test" conditions.

The vacuum cut valve bypass valve is opened to clear the line between the fuel tank and the EVAP canister purge volume control solenoid valve. The EVAP canister vent control valve will then be closed to shut the EVAP purge line off. The EVAP canister purge volume control solenoid valve is opened to depressurize the EVAP purge line using intake manifold vacuum. After this occurs, the EVAP canister purge volume control solenoid valve will be closed.

CAUTION:

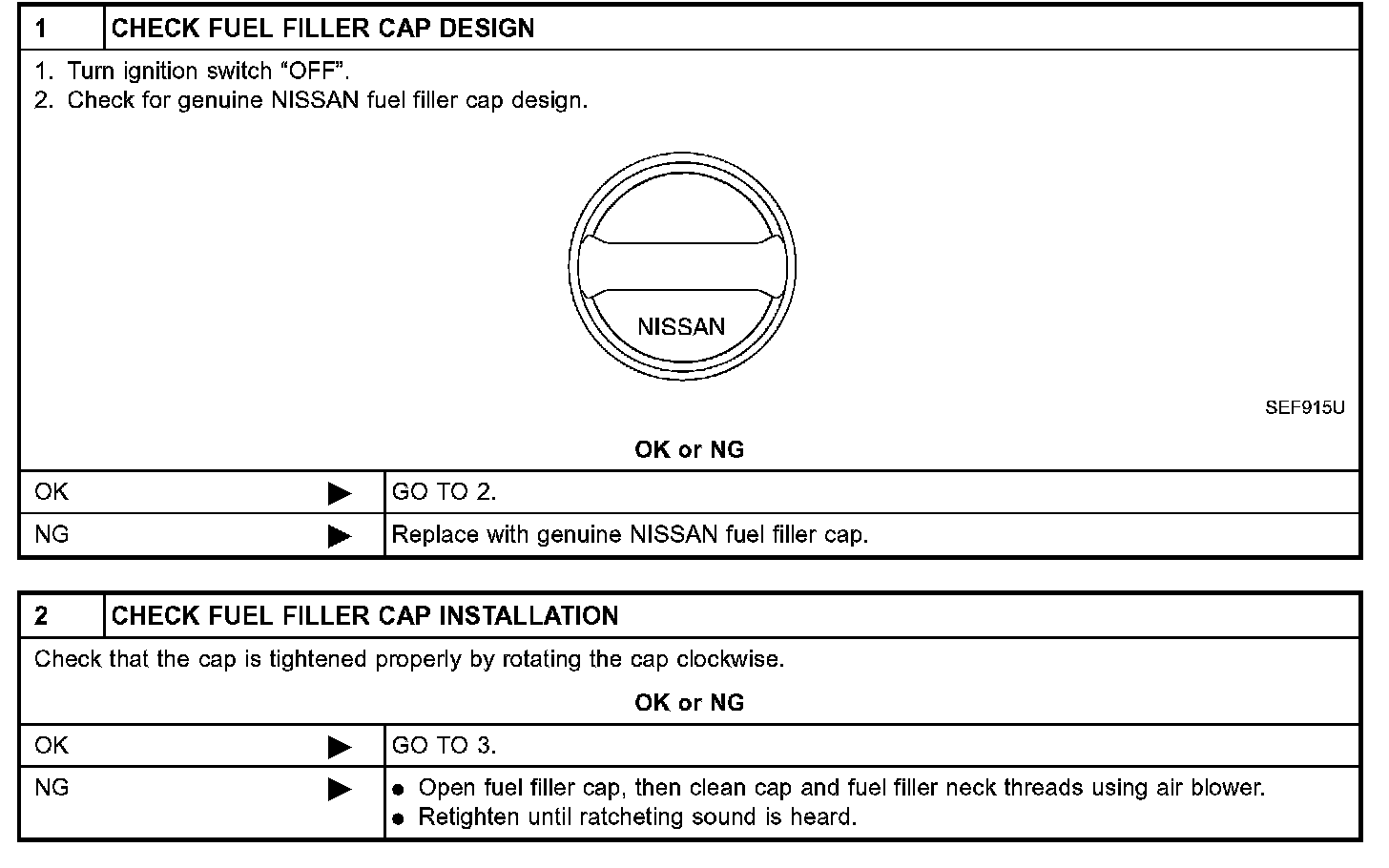

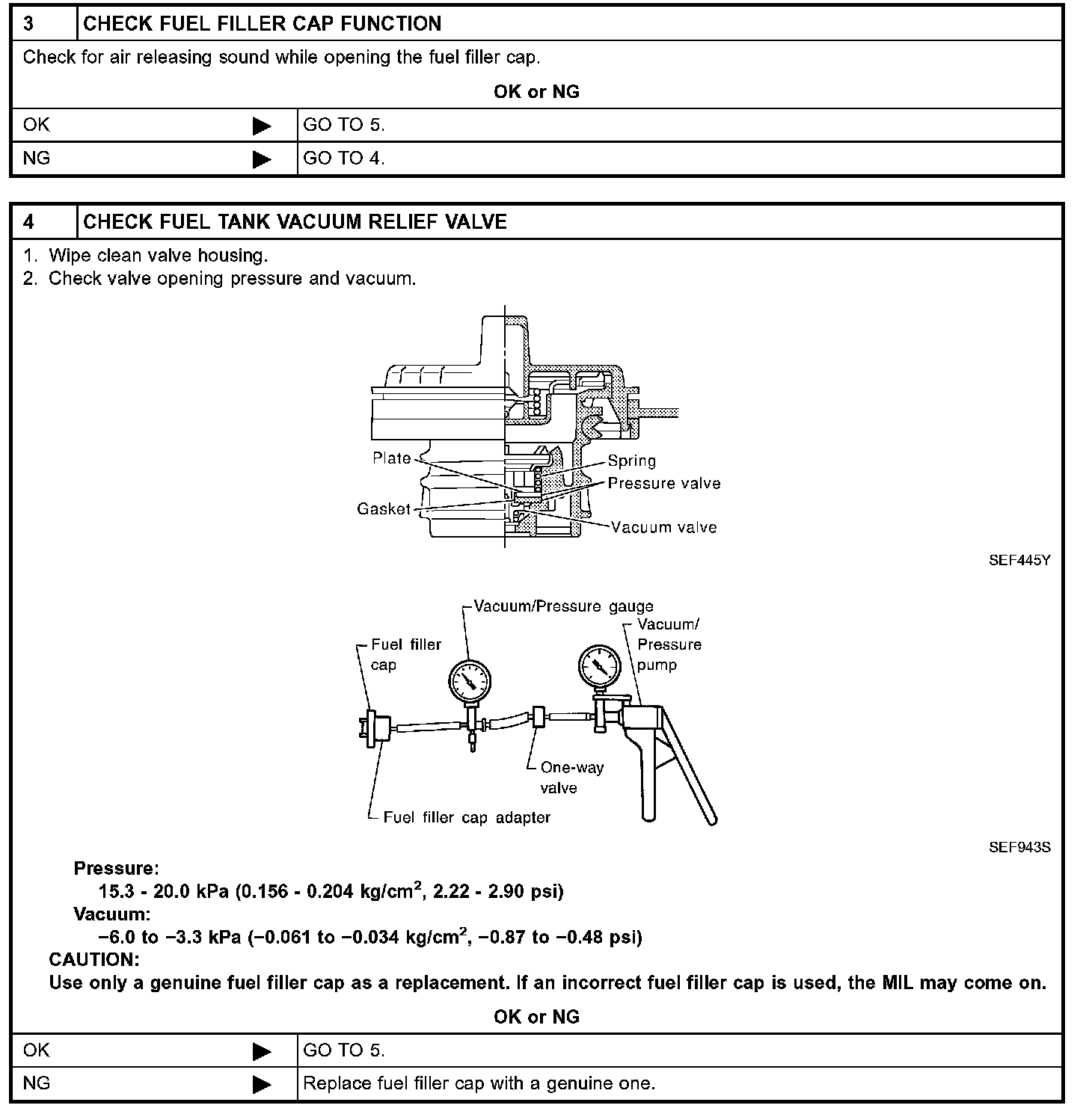

- Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may come on.
- If the fuel filler cap is not tightened properly, the MIL may come on.
- Use only a genuine NISSAN rubber tube as a replacement.

DTC Confirmation Procedure

NOTE:
- If DTC P0442 is displayed with P1448, perform trouble diagnosis for DTC P1448 first.
- If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.
- Make sure that EVAP hoses are connected to EVAP canister purge volume control solenoid valve properly.

TESTING CONDITION:
- Perform "DTC WORK SUPPORT" when the fuel level is between 1/4 to 3/4 full and vehicle is placed on flat level surface.
- Always perform test at a temperature of 0 to 30 °C (32 to 86 °F).
- Open engine hood before conducting the following procedure.

WITH CONSULT-II
1. Turn ignition switch "ON".
2. Turn ignition switch "OFF" and wait at least 10 seconds.
3. Turn ignition switch "ON" and select "DATA MONITOR" mode with CONSULT-II.
4. Make sure that the following conditions are met.
COOLAN TEMP/S: 0 - 70 °C (32 - 158 °F)
INT/A TEMP SE: 0 - 30 °C (32 - 86 °F)

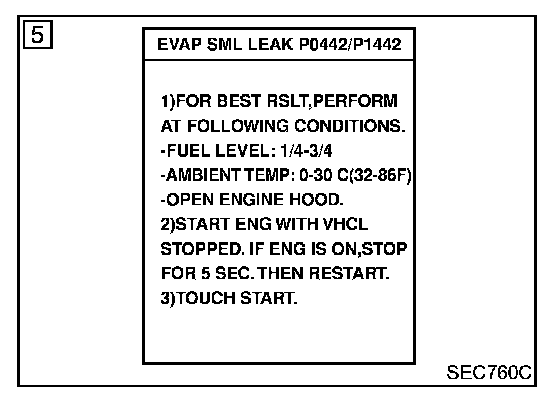

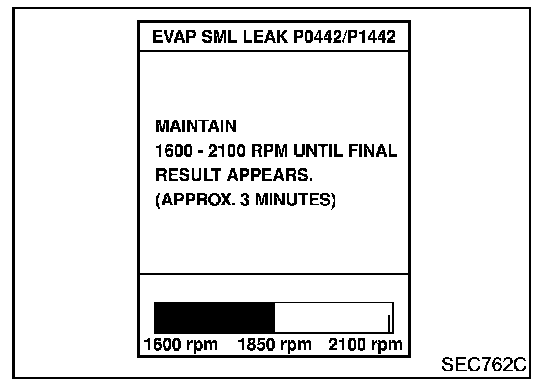

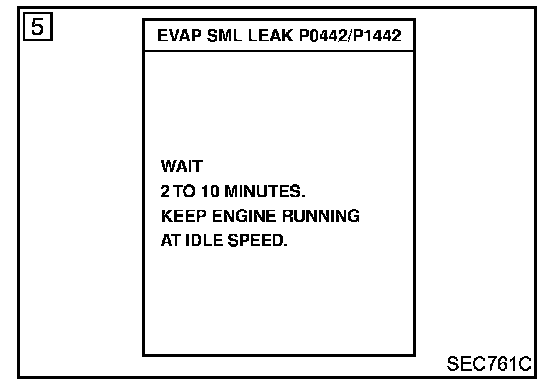

5. Select "EVP SML LEAK P0442/P1442" of "EVAPORATIVE SYSTEM" in "DTC WORK SUPPORT" mode with CONSULT II.
Follow the instruction displayed.

NOTE: If the engine speed cannot be maintained within the range displayed on the CONSULT-II screen, go to "Basic Inspection". Initial Inspection (Basic Inspection)

6. Make sure that "OK" is displayed.
If "NG" is displayed, refer to "Diagnostic Procedure" below.

NOTE: Make sure that EVAP hoses are connected to EVAP canister purge volume control solenoid valve properly.

WITH GST

NOTE: Be sure to read the explanation of "Driving Pattern" before driving vehicle.

1. Start engine.
2. Drive vehicle according to "Driving Pattern".
3. Stop vehicle.
4. Select "MODE 1" with GST.
- If SRT of EVAP system is not set yet, go to the following step.
- If SRT of EVAP system is set, the result will be OK.
5. Turn ignition switch "OFF" and wait at least 10 seconds.
6. Start engine.
It is not necessary to cool engine down before driving.
7. Drive vehicle again according to the "Driving Pattern".
8. Stop vehicle.
9. Select "MODE 3" with GST.
- If P0442 is displayed on the screen, go to "Diagnostic Procedure" below.
- If P0441 is displayed on the screen, go to "Diagnostic Procedure" for DTC P0441.
- If P0441 and P0442 are not displayed on the screen, go to the following step.
10. Select "MODE 1" with GST.
- If SRT of EVAP system is set, the result will be OK.
- If SRT of EVAP system is not set, go to step 6.

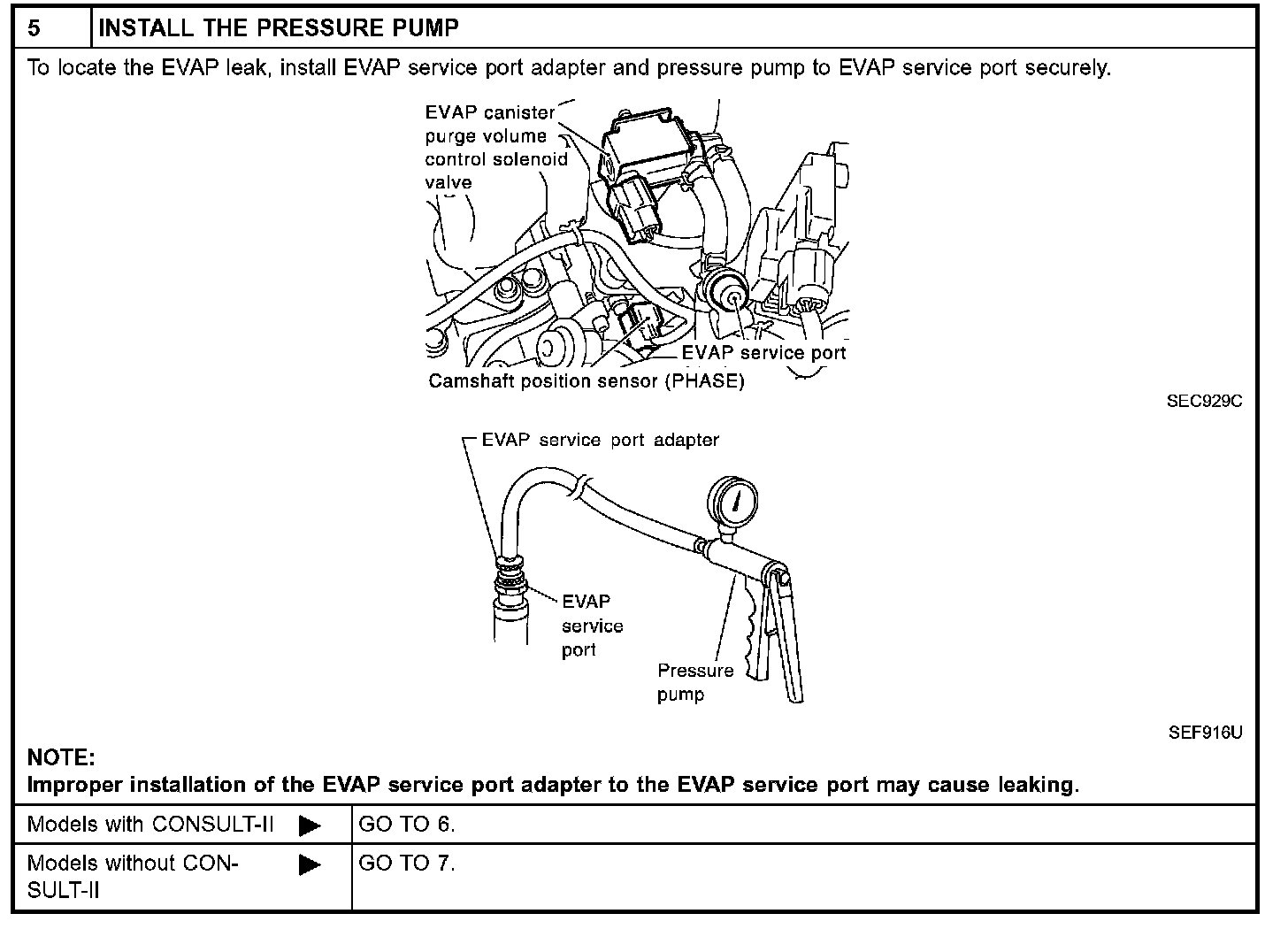

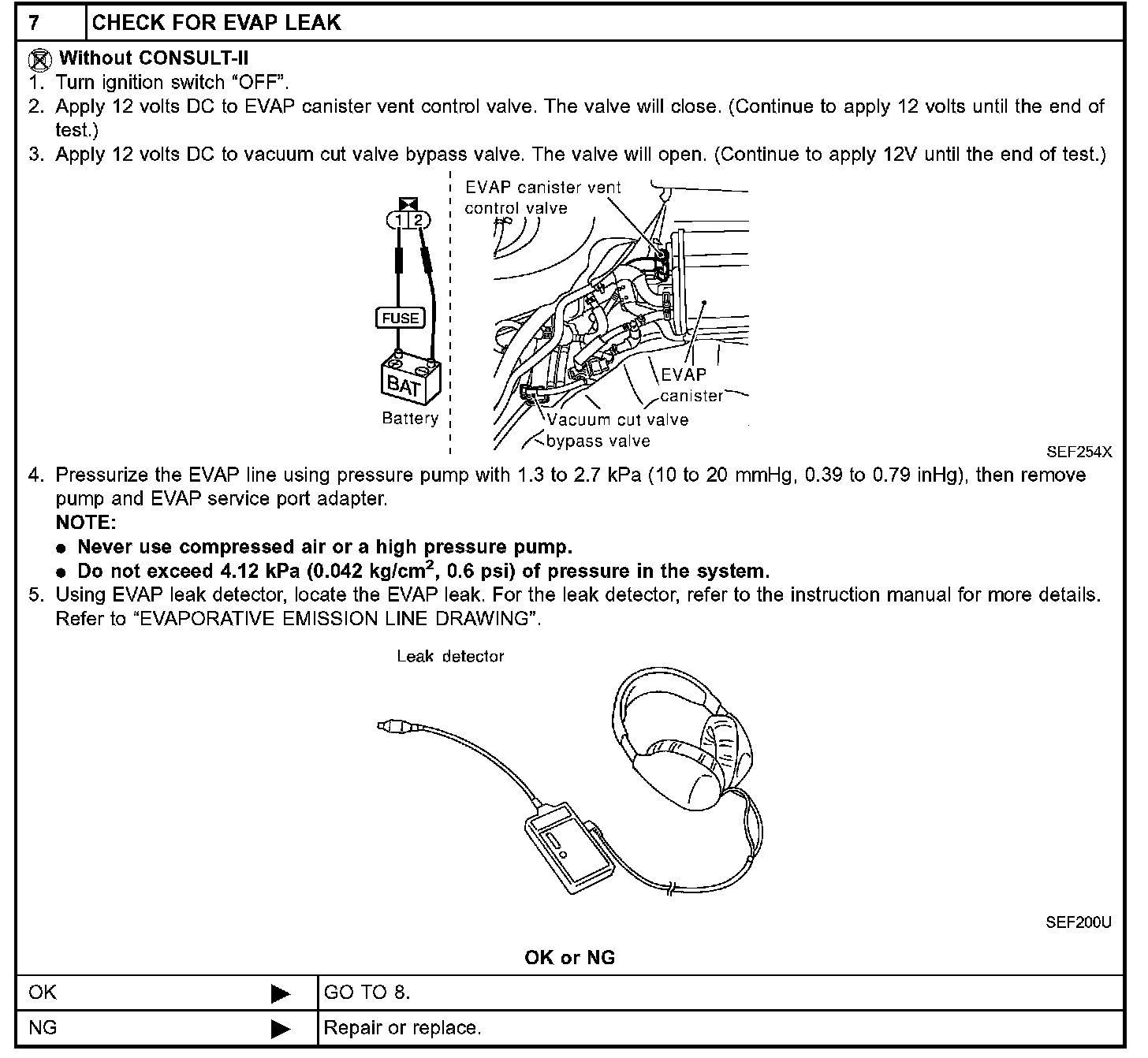

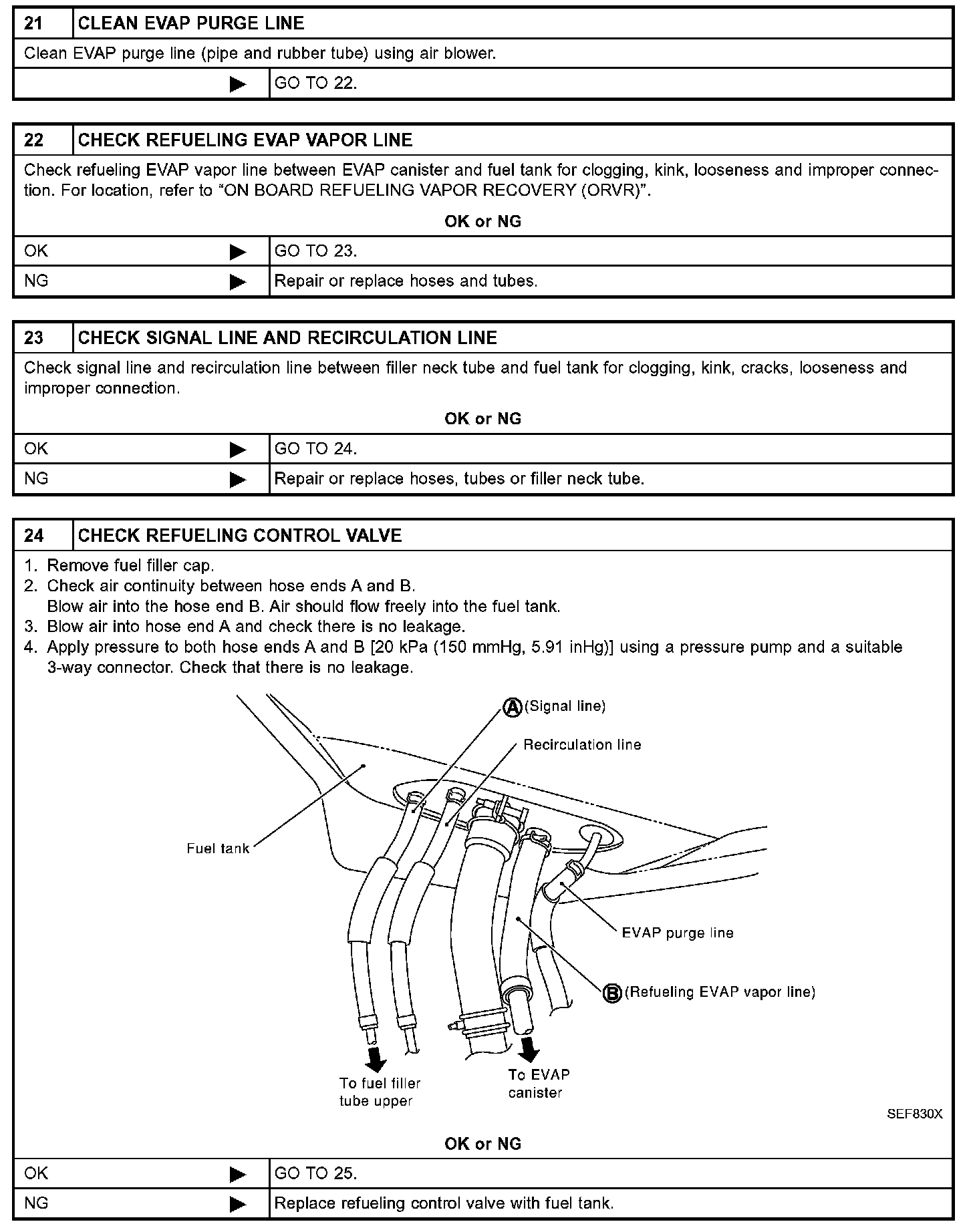

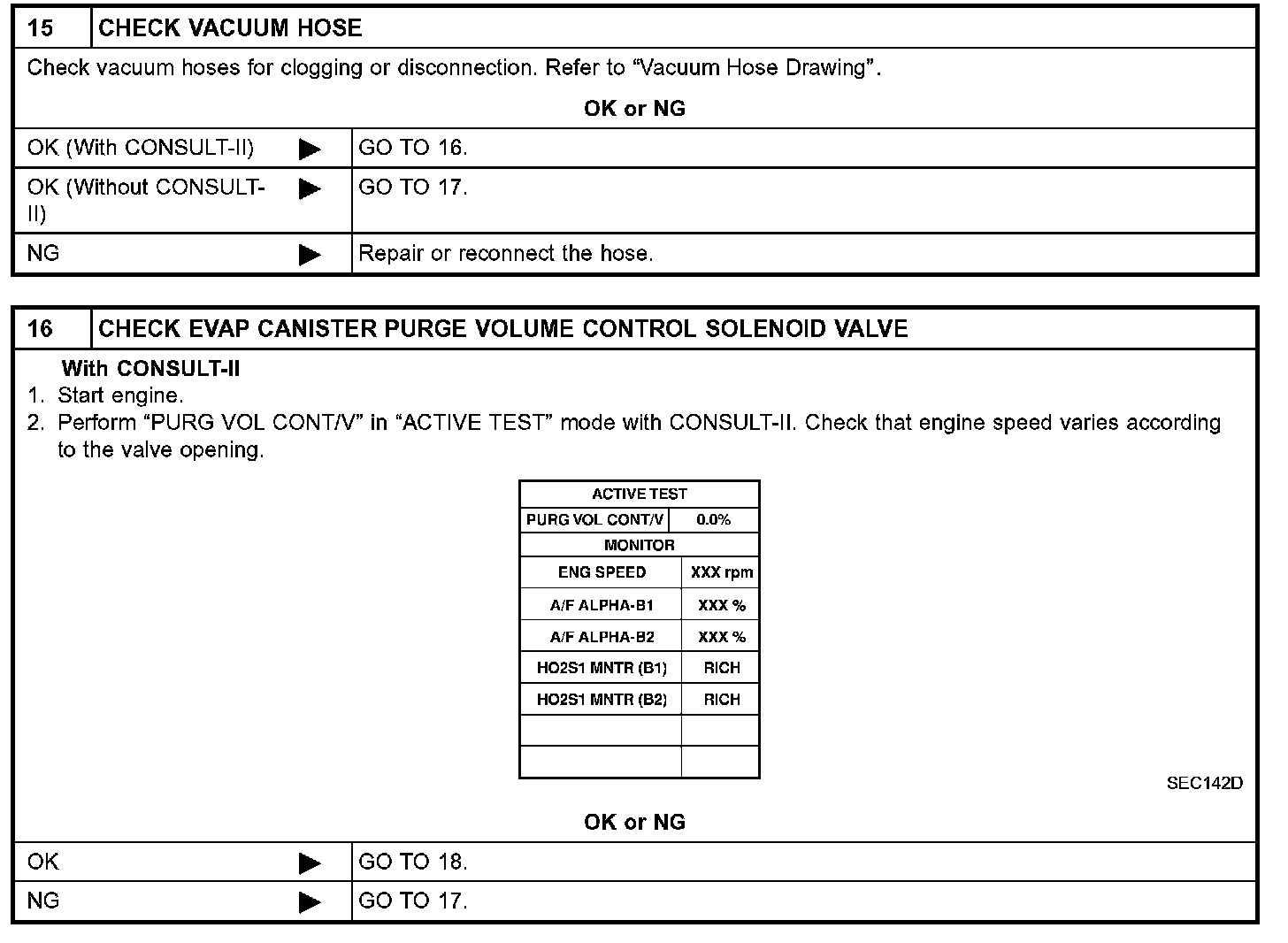

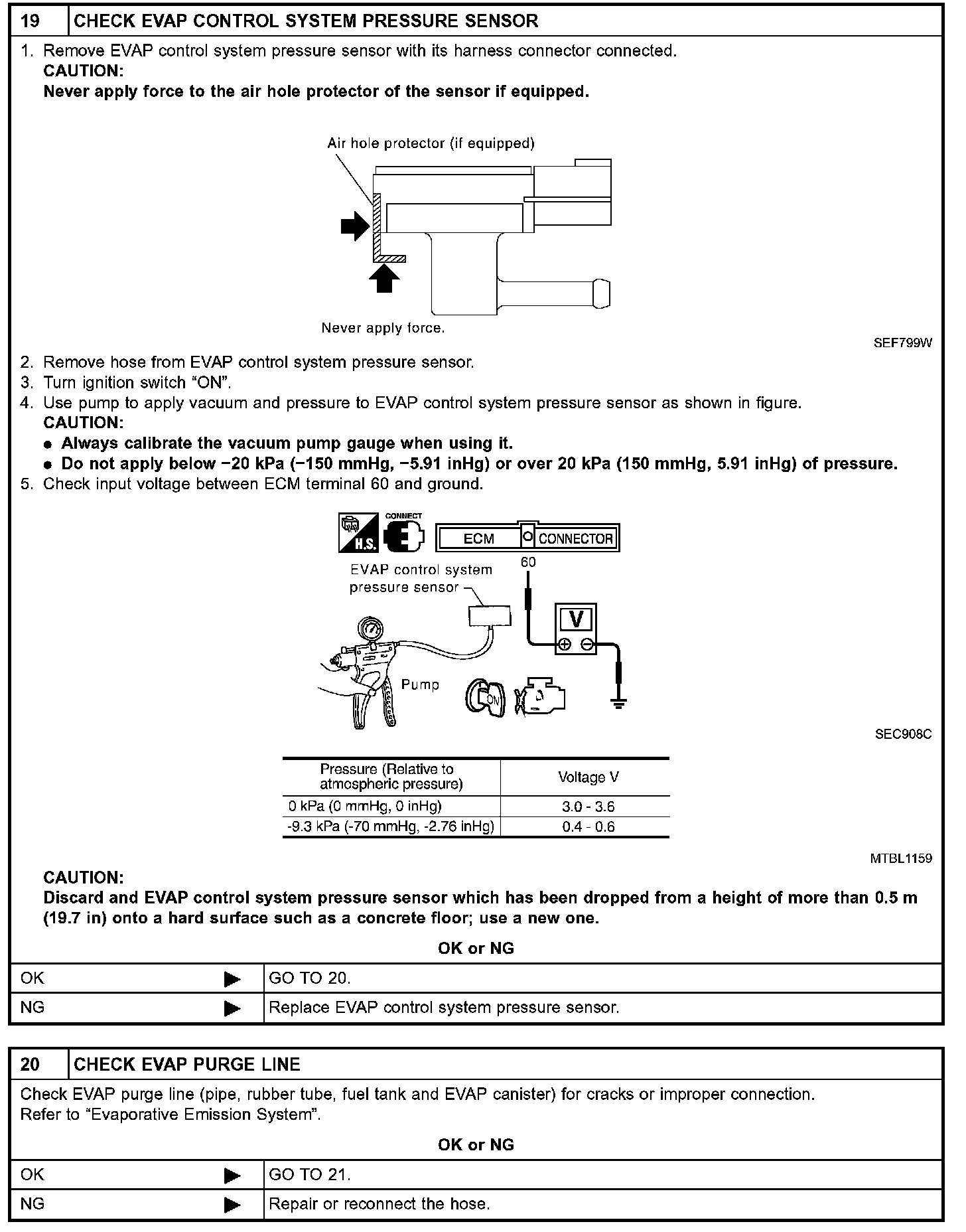

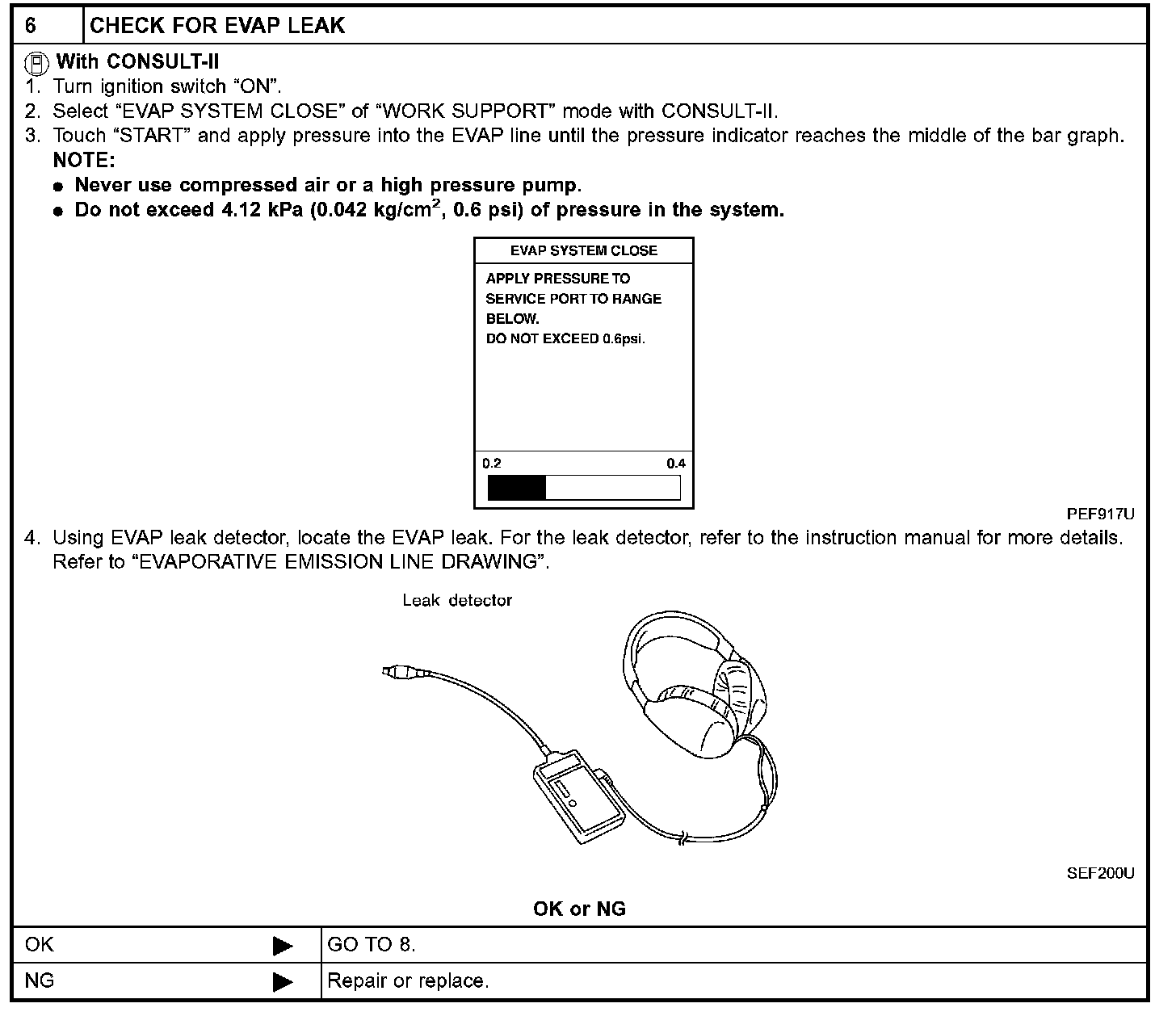

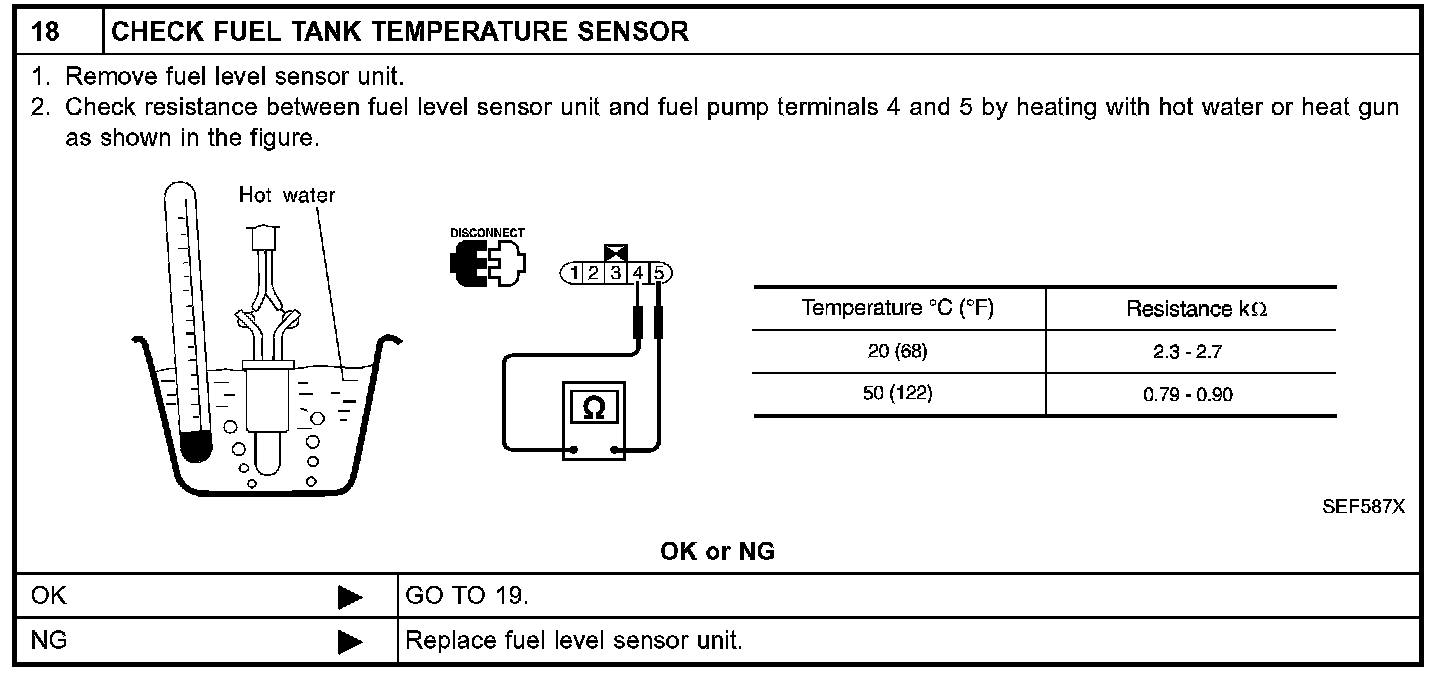

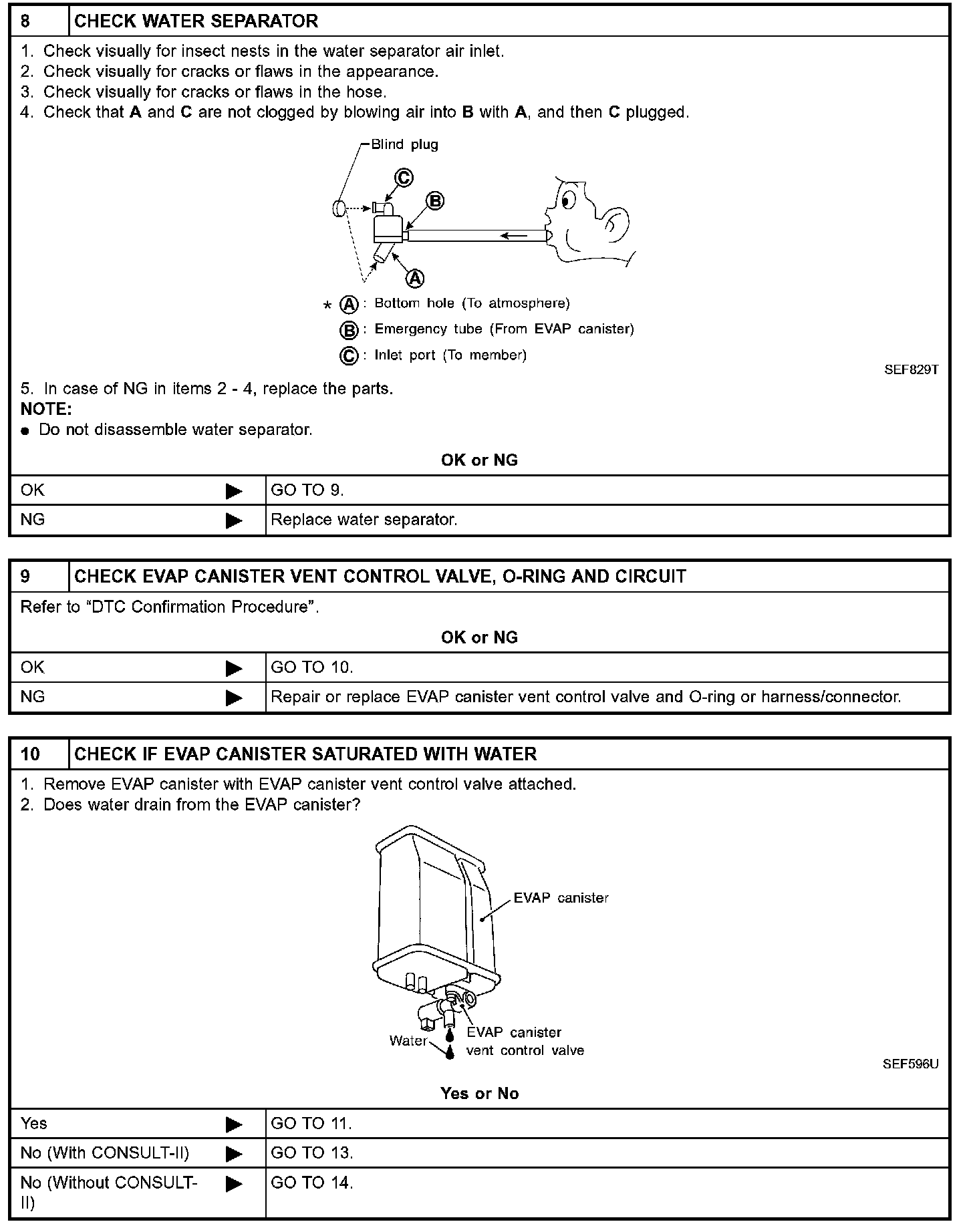

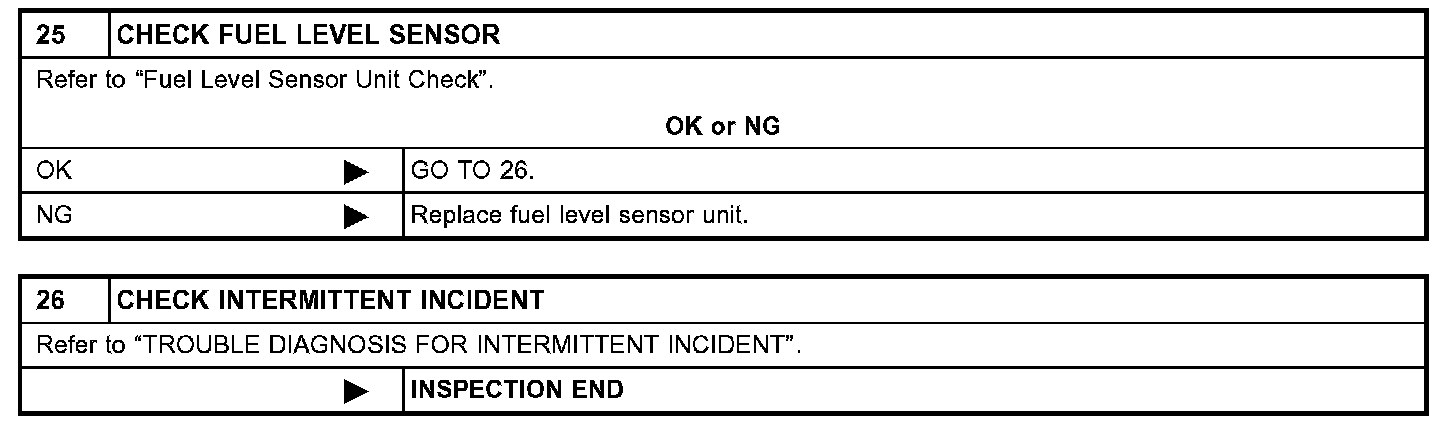

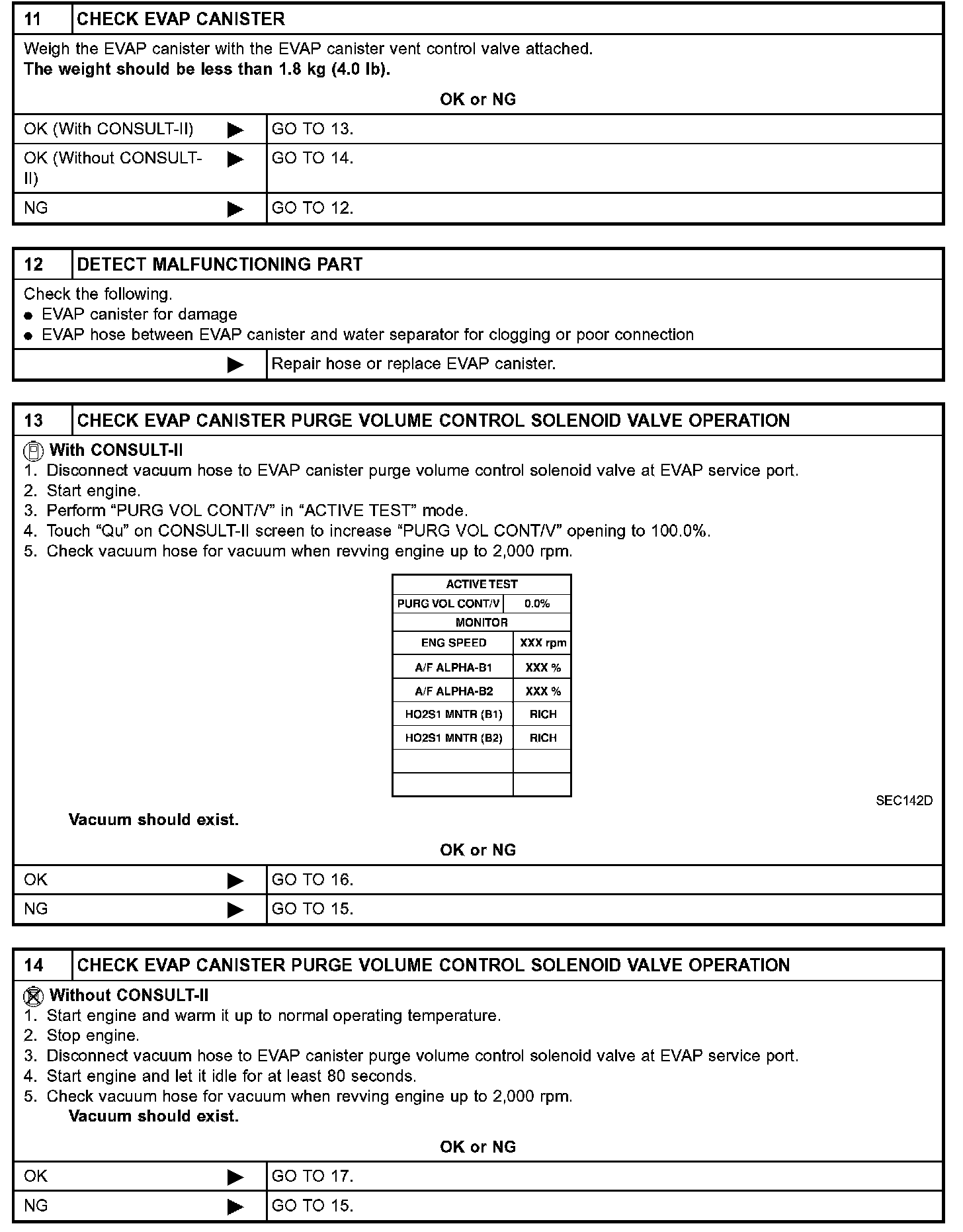

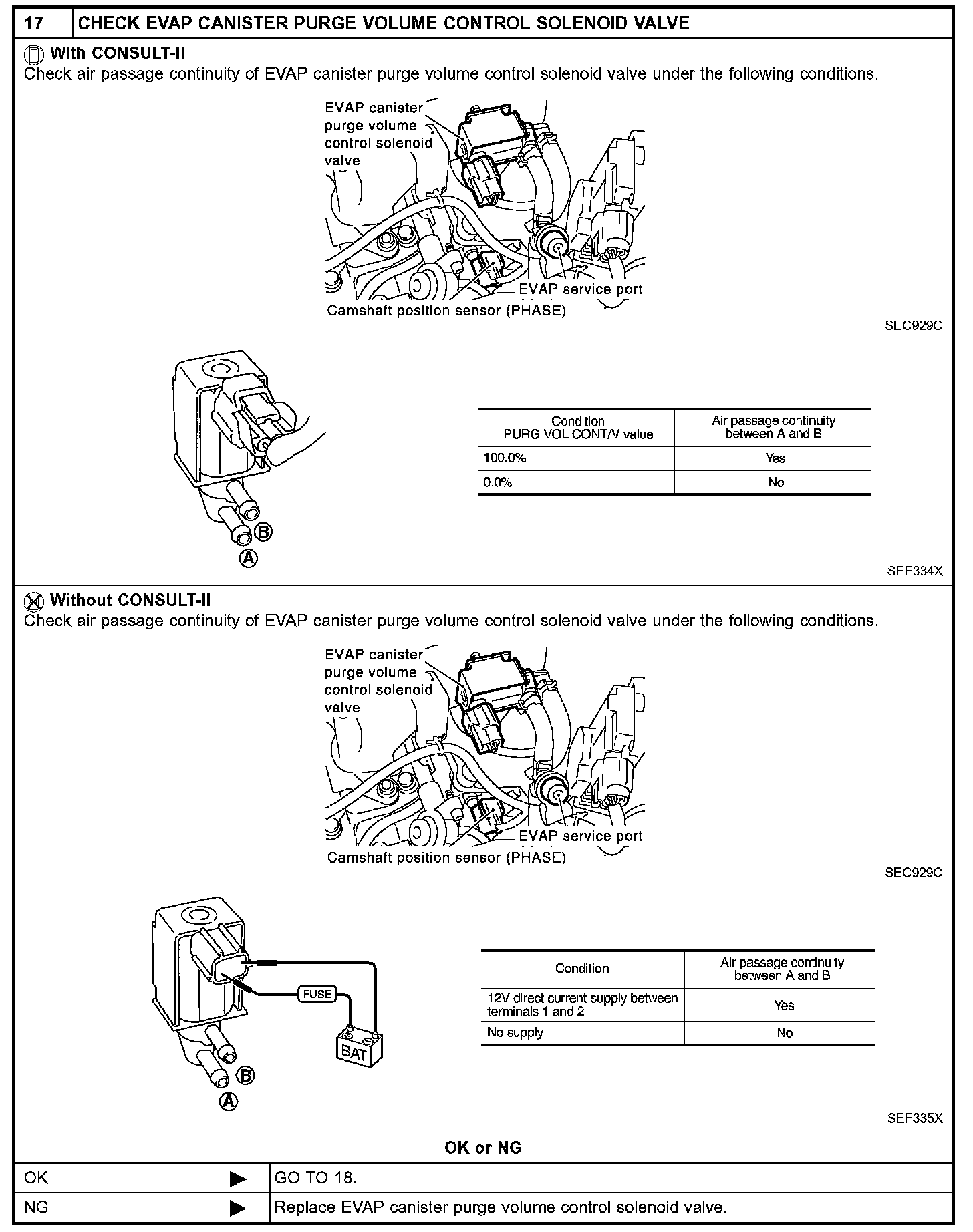

Diagnostic Procedure
