P0107

DTC P0107 Absolute Pressure Sensor

Component Description
The absolute pressure sensor is built into ECM. The sensor detects ambient barometric pressure and sends the voltage signal to the microcomputer.

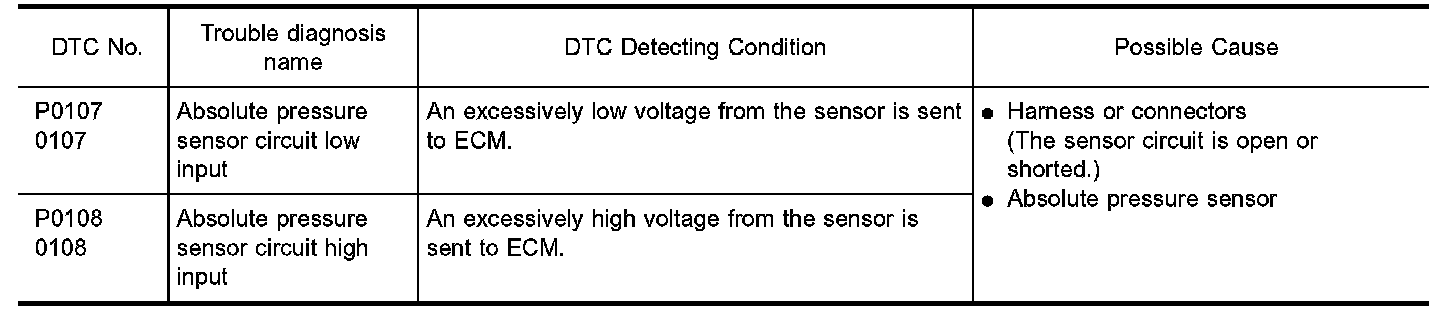

On Board Diagnostic Logic:

DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

With CONSULT-II
1. Turn ignition switch ON.

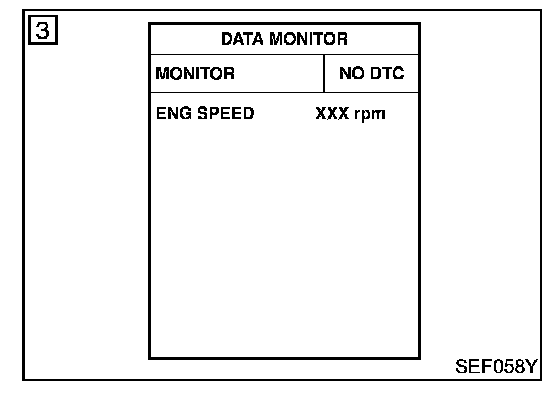

2. Select "DATA MONITOR" mode with CONSULT-II.




3. Wait at least 6 seconds.
4. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

With GST
Follow the procedure "With CONSULT-II".

Diagnostic Procedure

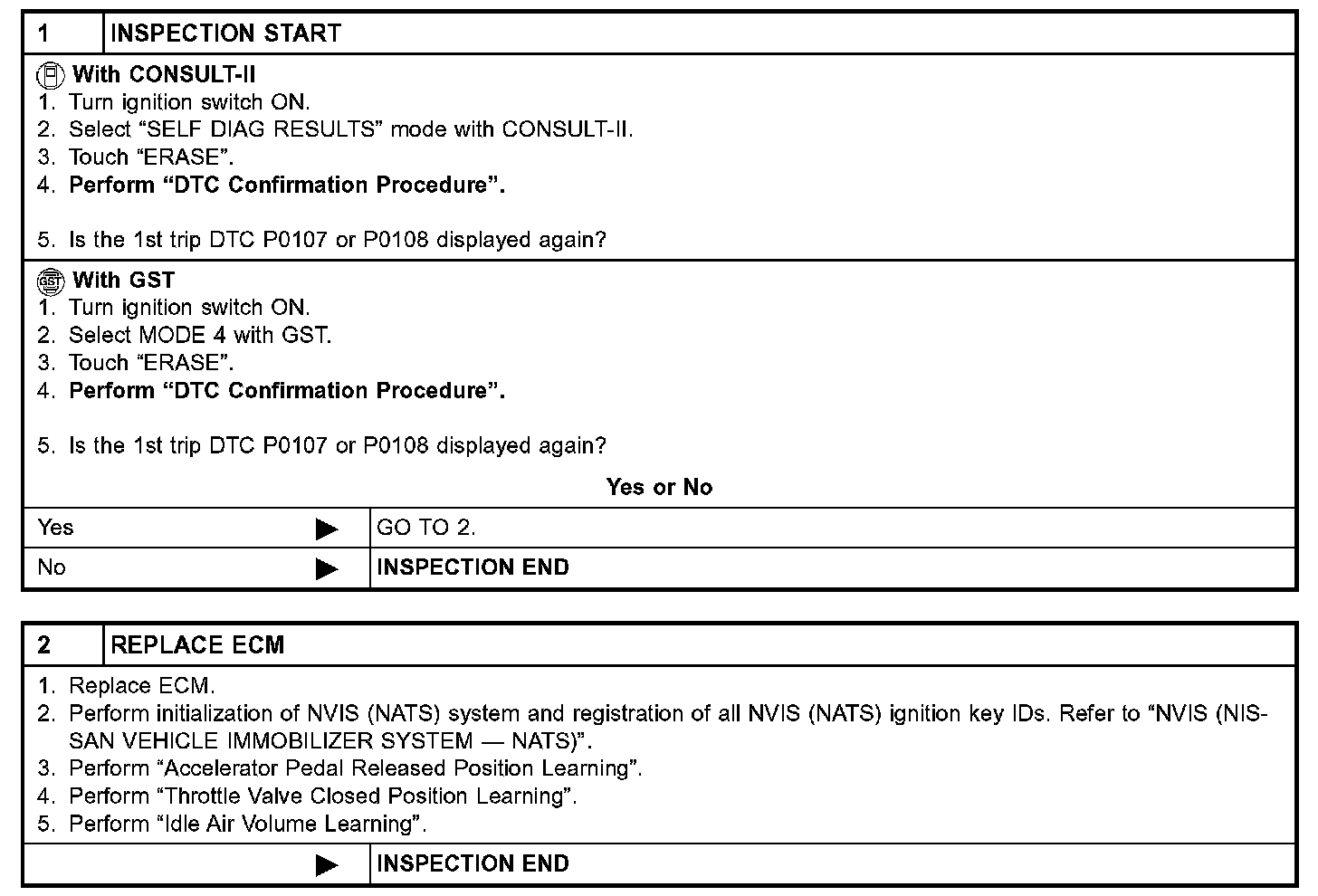

Diagnostic Procedure Step 1 - 2:
