Home >> Nissan-Datsun >> 2002 >> Maxima GXE V6-3.5L (VQ35) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Manufacturer Trouble Code Descriptions >> Air Bag System

Air Bag System

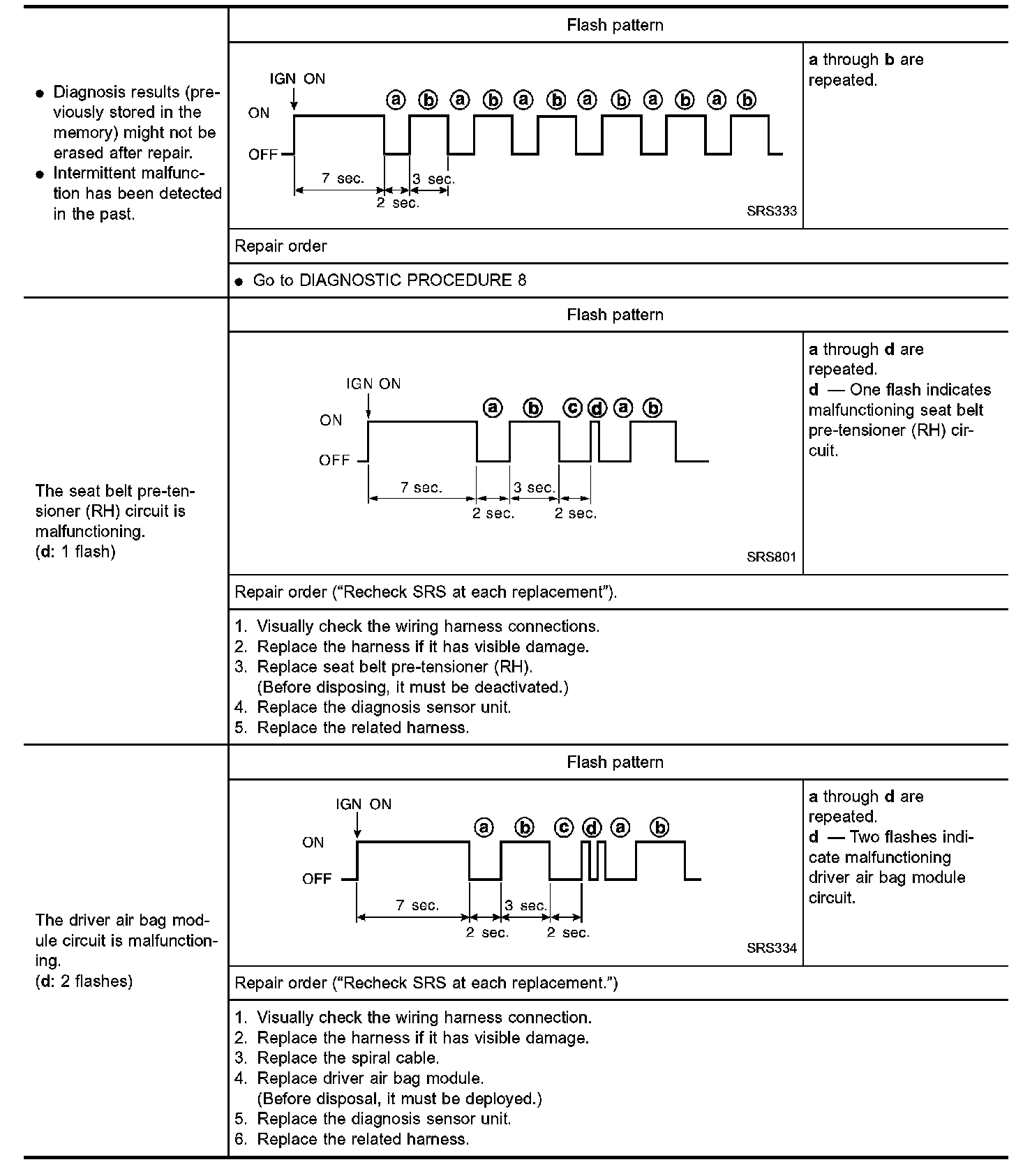

Air Bag Warning Lamp Flash Code (Diagnosis Mode) Part 1:

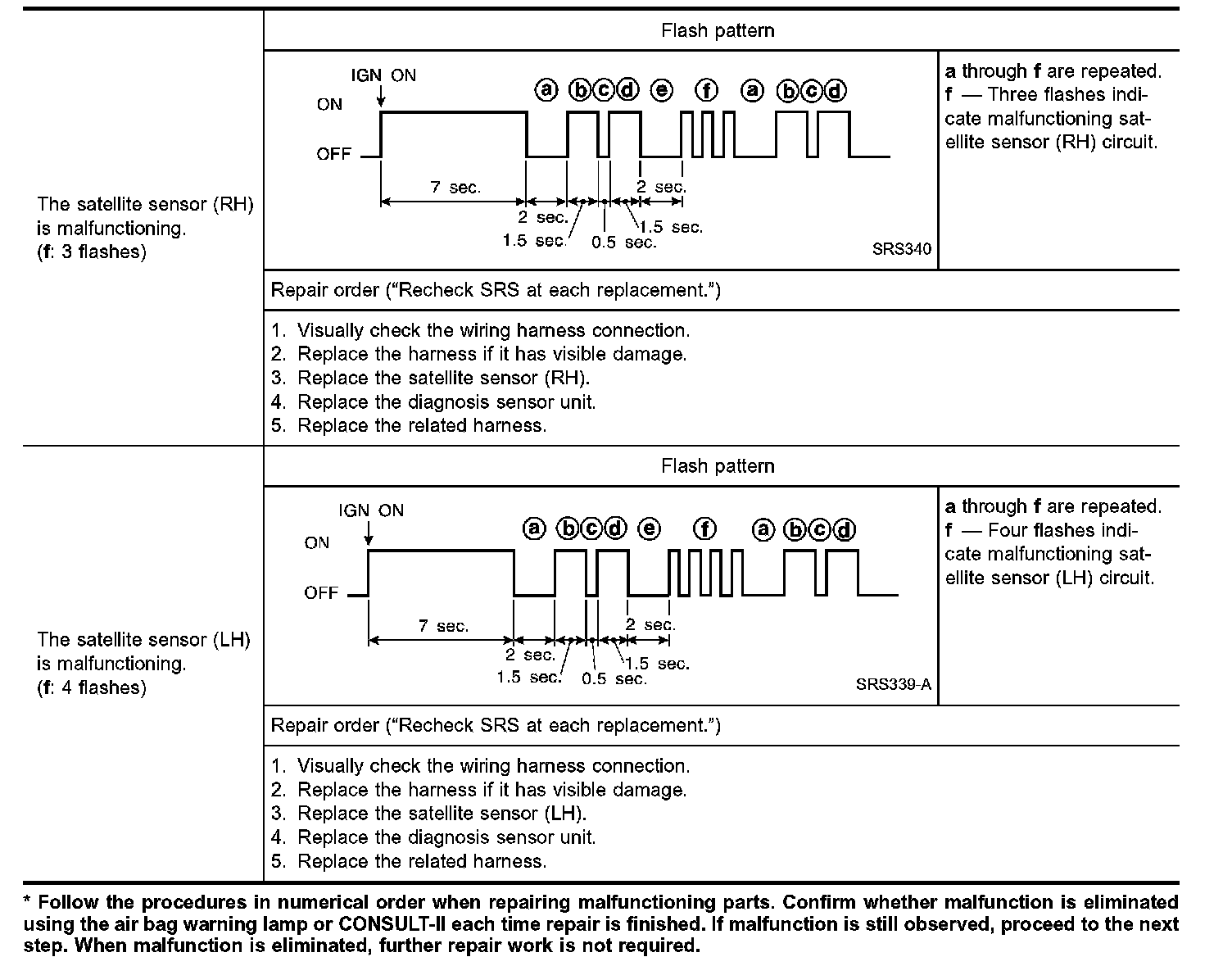

Air Bag Warning Lamp Flash Code (Diagnosis Mode) Part 2:

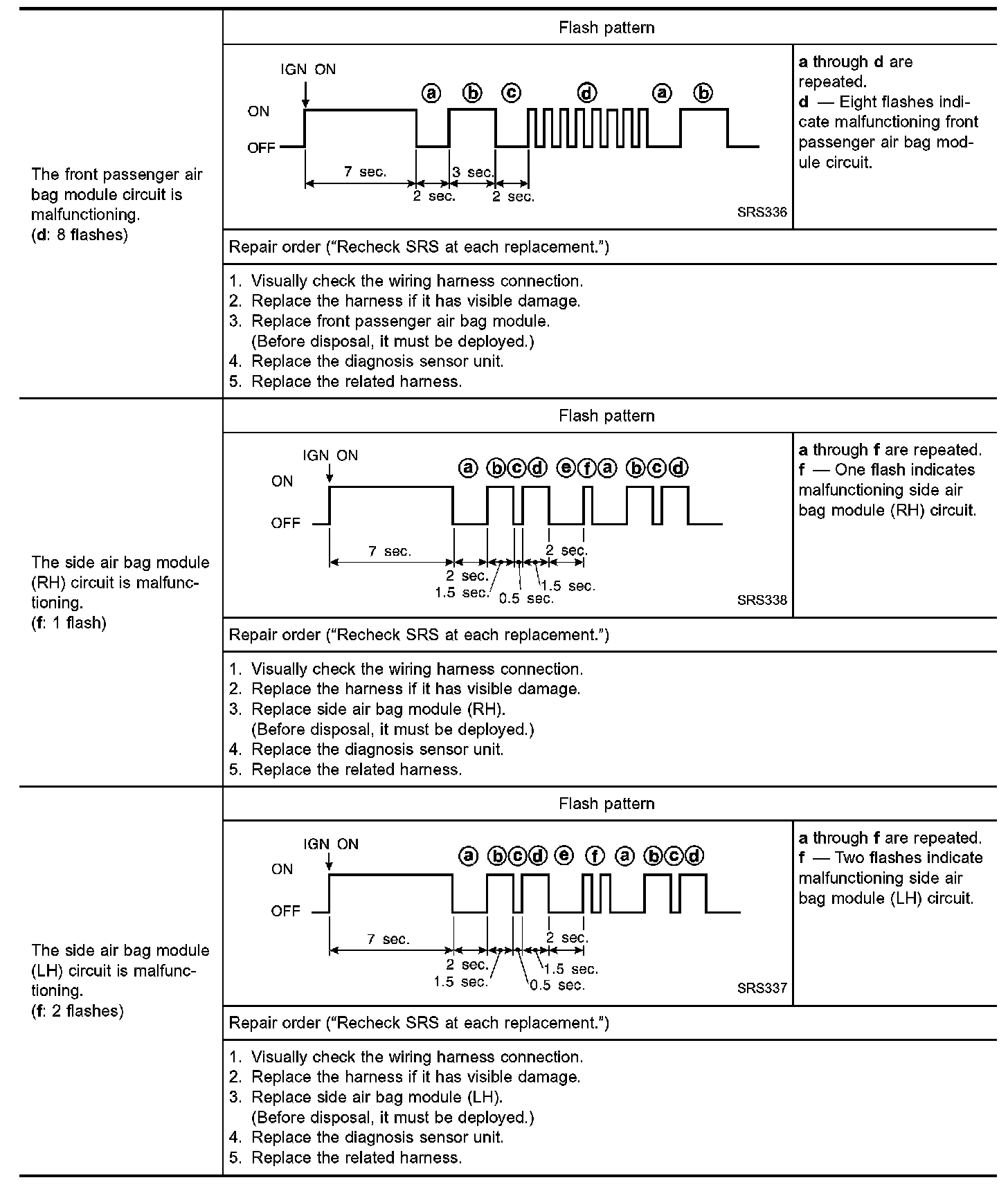

Air Bag Warning Lamp Flash Code (Diagnosis Mode) Part 3:

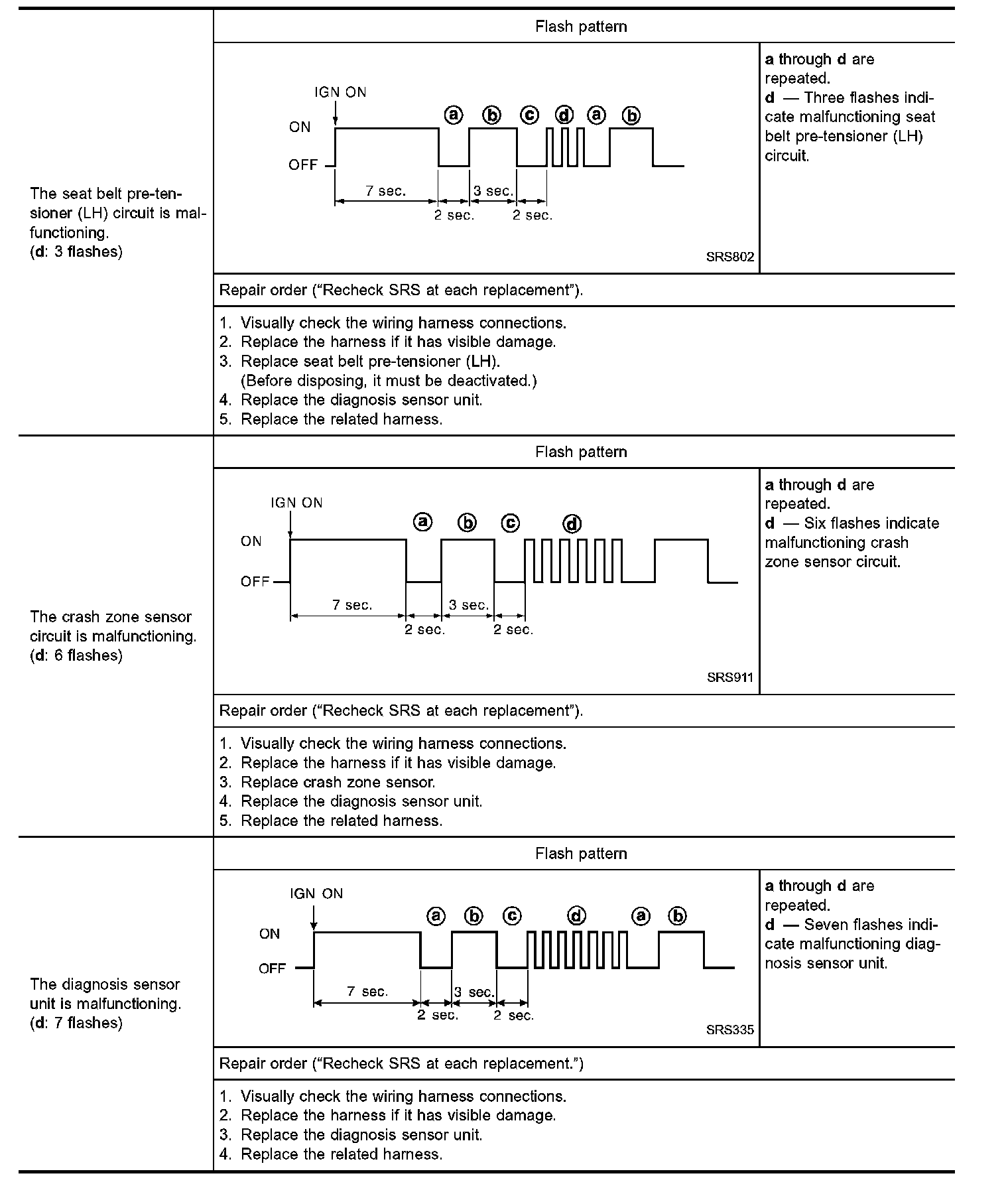

Air Bag Warning Lamp Flash Code (Diagnosis Mode) Part 4:
