Maxima GXE V6-3.5L (VQ35)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
C Code Charts
>>
C1109
C1109
Low Voltage
DIAGNOSTIC PROCEDURE

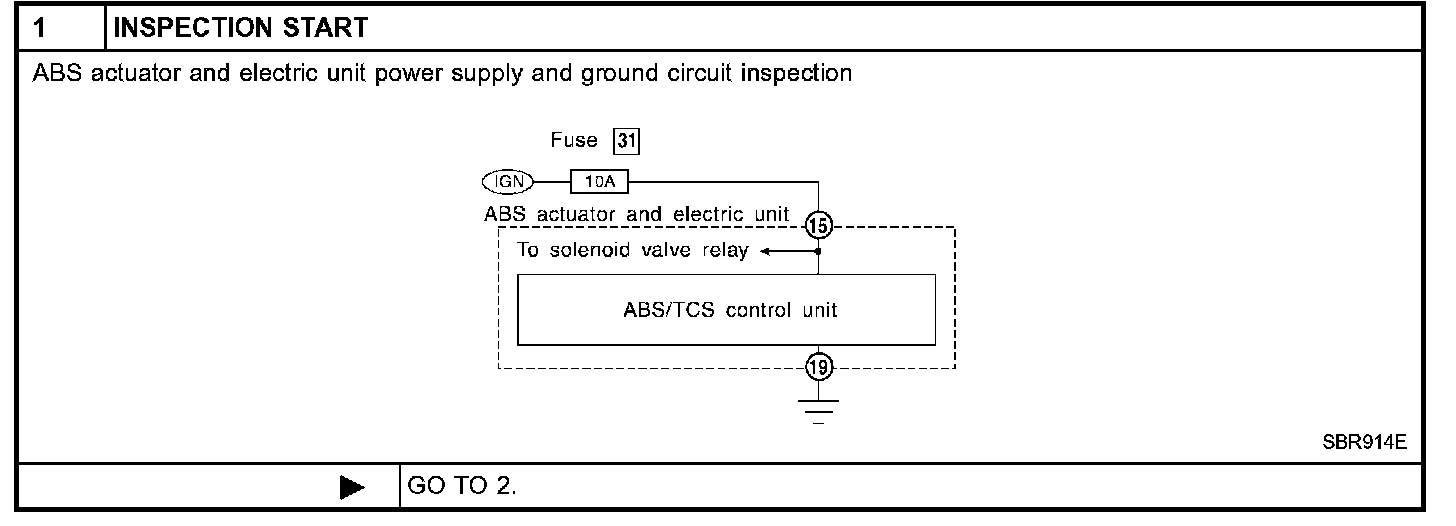

Procedure 1

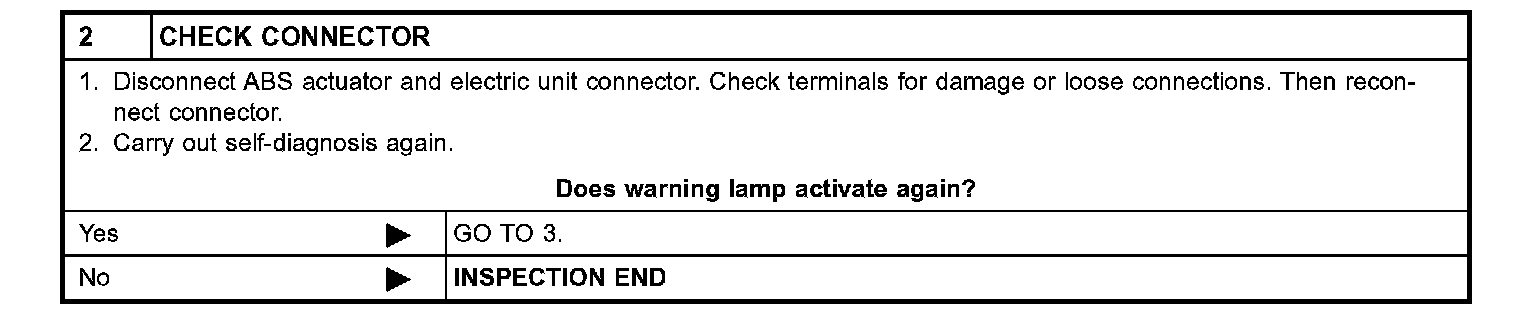

Procedure 2

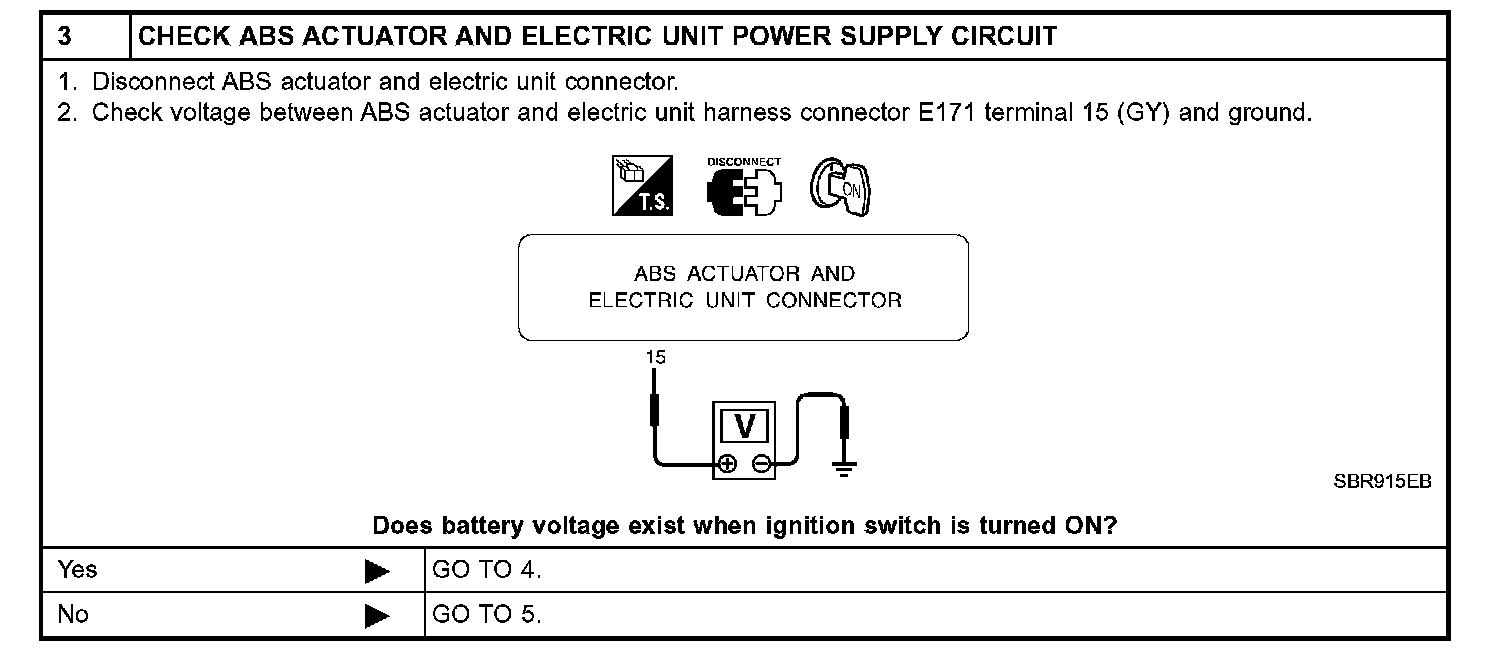

Procedure 3
Procedure 4

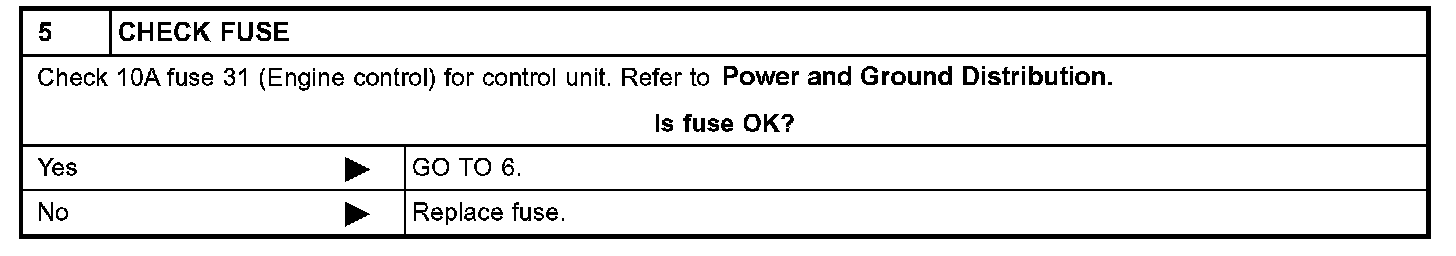

Procedure 5

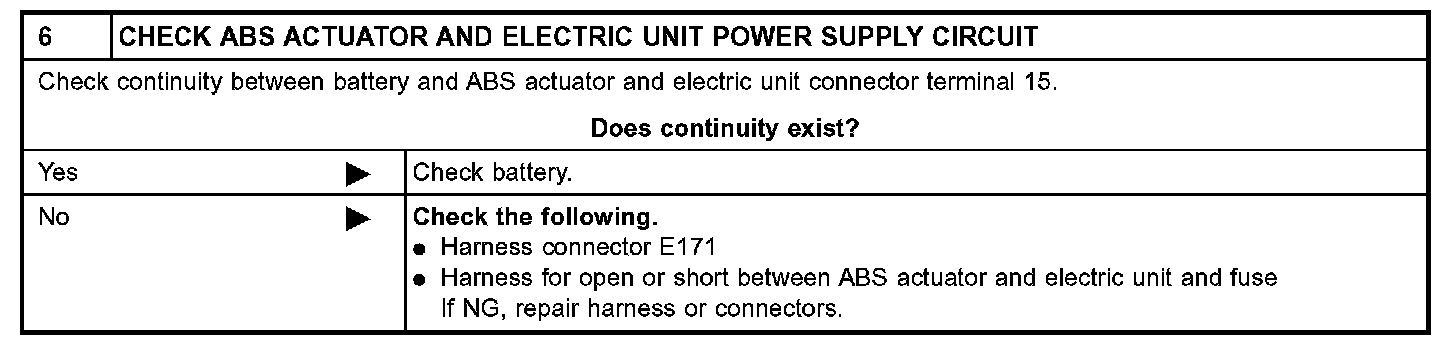

Procedure 6
