Without Consult-II

DESCRIPTION
- The purpose of the test is to determine overall performance of A/T and analyze causes of problems.





- The road test consists of the following three parts:
1. Check before engine is started
2. Check at idle
3. Cruise test





- Before road test, familiarize yourself with all test procedures and items to check.
- Conduct tests on all items until specified symptom is found. Troubleshoot items which check out No Good after road test.

1. CHECK BEFORE ENGINE IS STARTED





1: CHECK O/D OFF INDICATOR LAMP





2: CHECK O/D OFF INDICATOR LAMP

2. CHECK AT IDLE





1: CHECK ENGINE START





2: CHECK ENGINE START





3: CHECK VEHICLE MOVE





4: CHECK VEHICLE MOVE





5: CHECK VEHICLE MOVE





6: CHECK SHIFT SHOCK





7: CHECK VEHICLE MOVE





8: CHECK VEHICLE MOVE

3. CRUISE TEST

- Check all items listed in Parts 1 through 3.

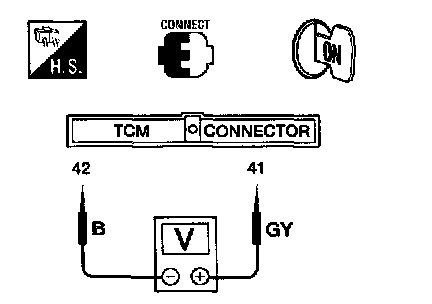

- Throttle position sensor can be checked by voltage across terminals 41 and 42 of TCM.

Cruise Test - Part 1





1: CHECK STARTING GEAR (D1) POSITION





2: CHECK SHIFT UP (D1 TO D2)





3: CHECK SHIFT UP (D2 TO D3)





4: CHECK SHIFT UP (D3 TO D4)





5: CHECK LOCK-UP (D4 TO D4 L/U)





6: CHECK HOLD LOCK-UP





7: CHECK SHIFT DOWN (D4 L/U TO D4)





8: CHECK SHIFT DOWN (D4 TO D3)

Cruise Test - Part 2





1: CHECK STARTING GEAR (D1) POSITION





2: CHECK SHIFT UP AND SHIFT DOWN (D3 TO D4 TO D2)





3: CHECK SHIFT UP (D2 TO D3)





4: CHECK SHIFT UP (D3 TO D4) AND ENGINE BRAKE

Cruise Test - Part 3





1: VEHICLE SPEED D4 POSITION





2: CHECK SHIFT DOWN (D4 TO D3)





3: CHECK ENGINE BRAKE





4: CHECK SHIFT DOWN (D3 TO D2)





5: CHECK ENGINE BRAKE





6: CHECK SHIFT DOWN





7: CHECK ENGINE BRAKE
