Assembly (1)

Assembly (1)

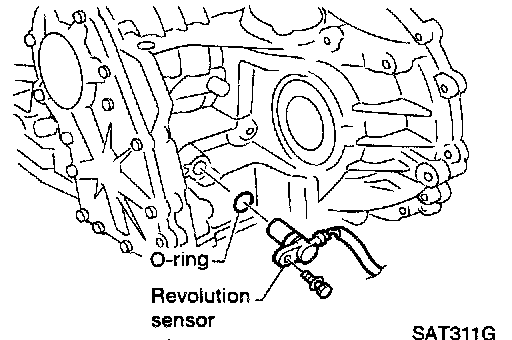

1. Install revolution sensor onto transmission case.
Always use new sealing parts.





1 of 3





2 of 3





3 of 3

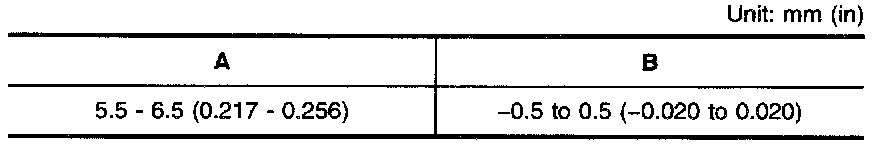

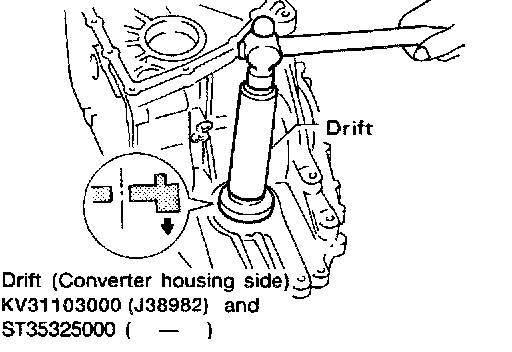

2. Install differential side oil seals on transmission case and converter housing, so that "A" and "B" are within specifications.

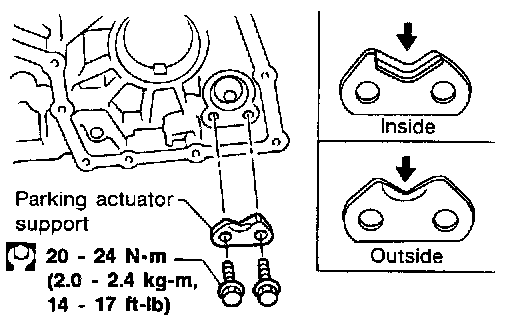

3. Install parking actuator support to transmission case.
- Pay attention to direction of parking actuator support.

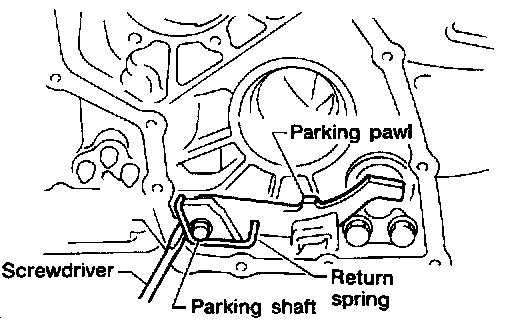

4. Install parking pawl on transmission case and fix it with parking shaft.





5. Install return spring.
