Seals and Gaskets: Service and Repair

Differential Side Oil Seal Replacement
1. Remove drive shaft assemblies using Tool.

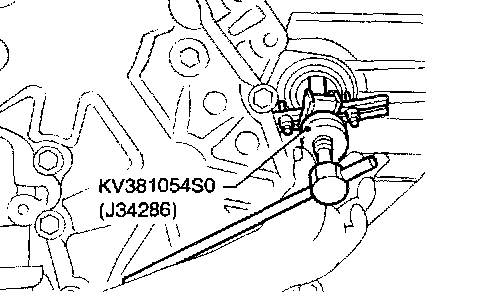

2. Remove oil seals.

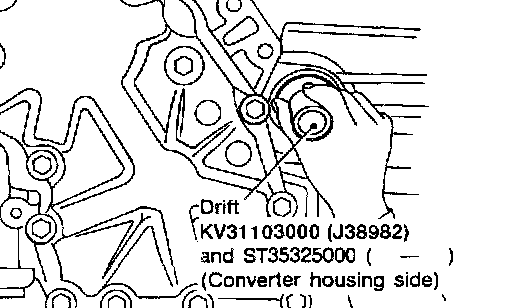

3. Install oil seals using Tool.
- Apply ATF to oil seal surface before installing.





Location

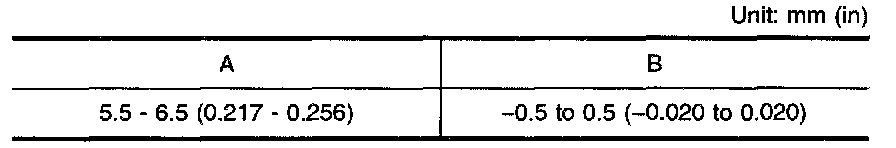

Table

- Install oil seals so that dimensions "A" and "B" are within specifications.

4. Reinstall any part removed.
