Timer/Control Unit: Testing and Inspection

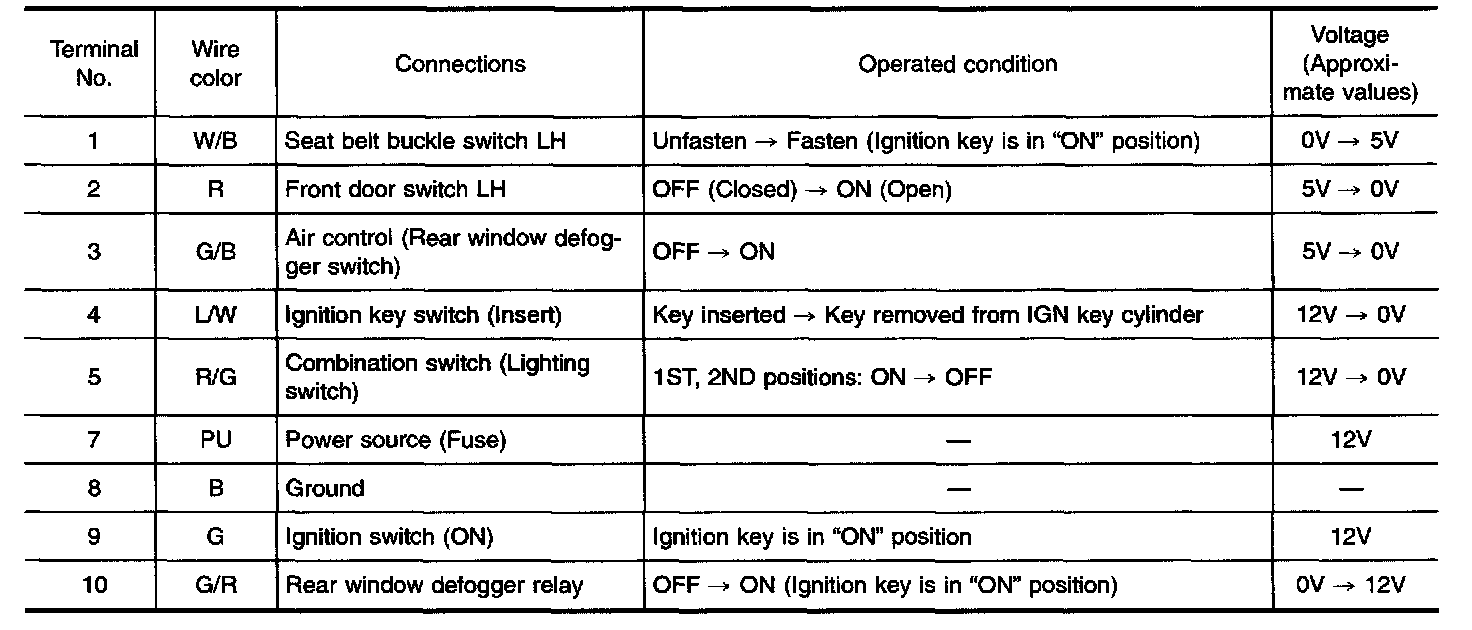

Time Control Unit Inspection Table (Without Power Door Locks) (Terminal No. 1 - 10):

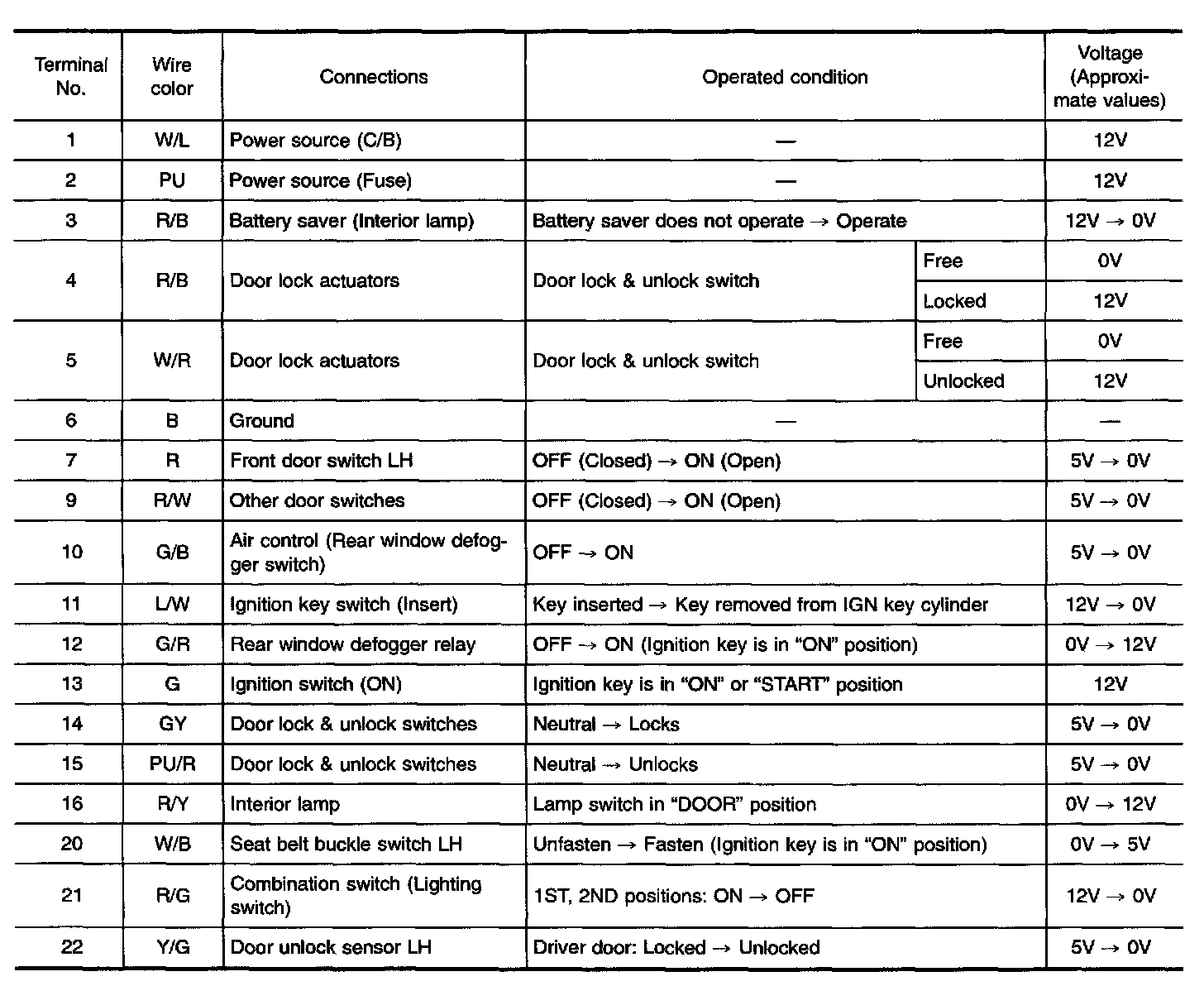

Time Control Unit Inspection Table (With Power Door Locks) (Terminal No. 1 - 22):
