ISO Fix Child Restraint Anchorage

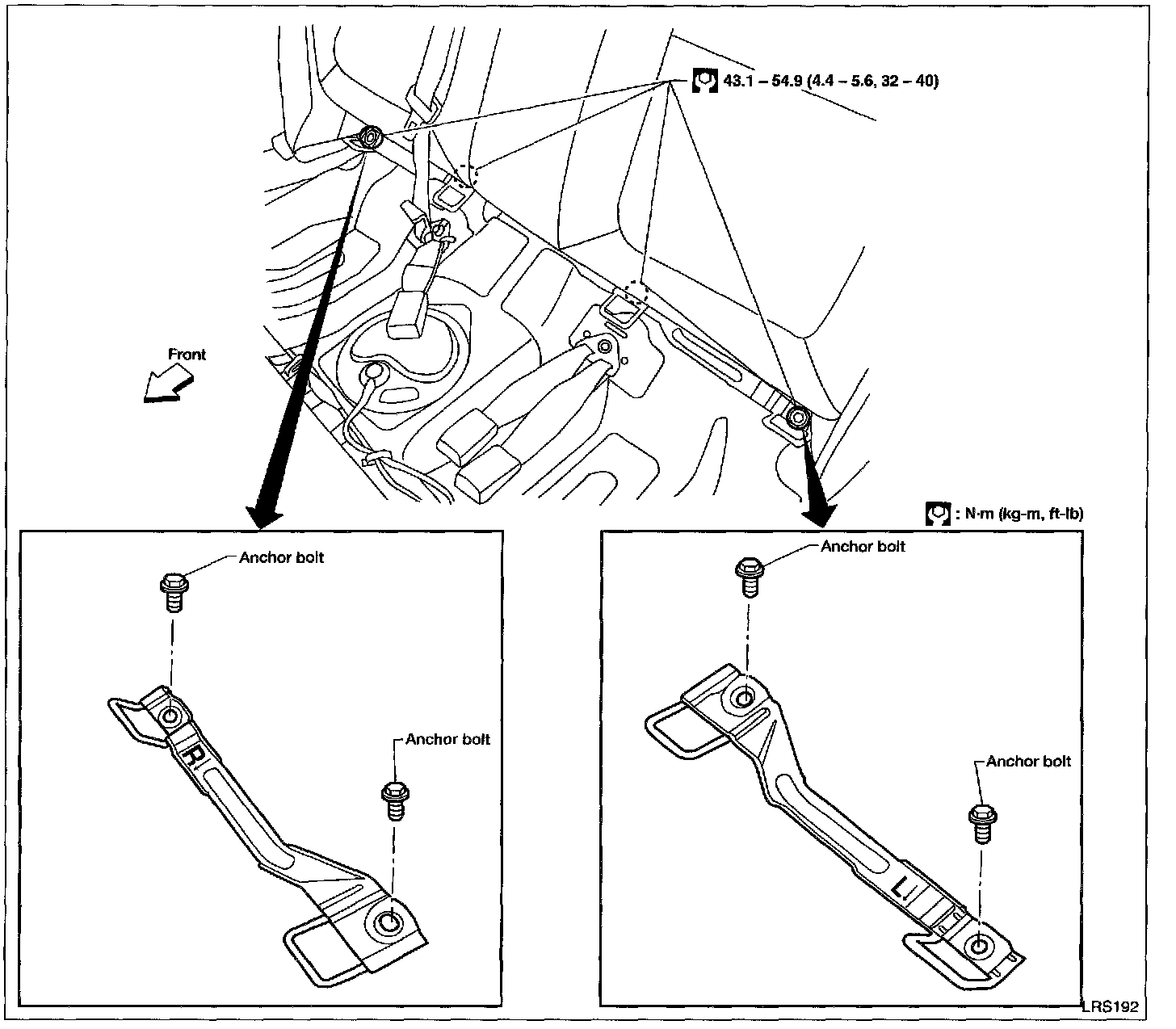

REMOVAL AND INSTALLATION

CAUTION: Replace anchor bolts if they are deformed or worn out.

1. Remove rear seat cushion. Refer to "REAR SEAT" for details.
2. Remove ISO-FIX child restraint anchorage.

NOTE: LH and RH ISO-FIX child restraint anchorage are different.

Install with arrow facing forward.
