Front Seat Belt

Component Locations Overview:

Component Views:

REMOVAL AND INSTALLATION
1. Slide the seat all the way forward and tilt the seat back toward the front.

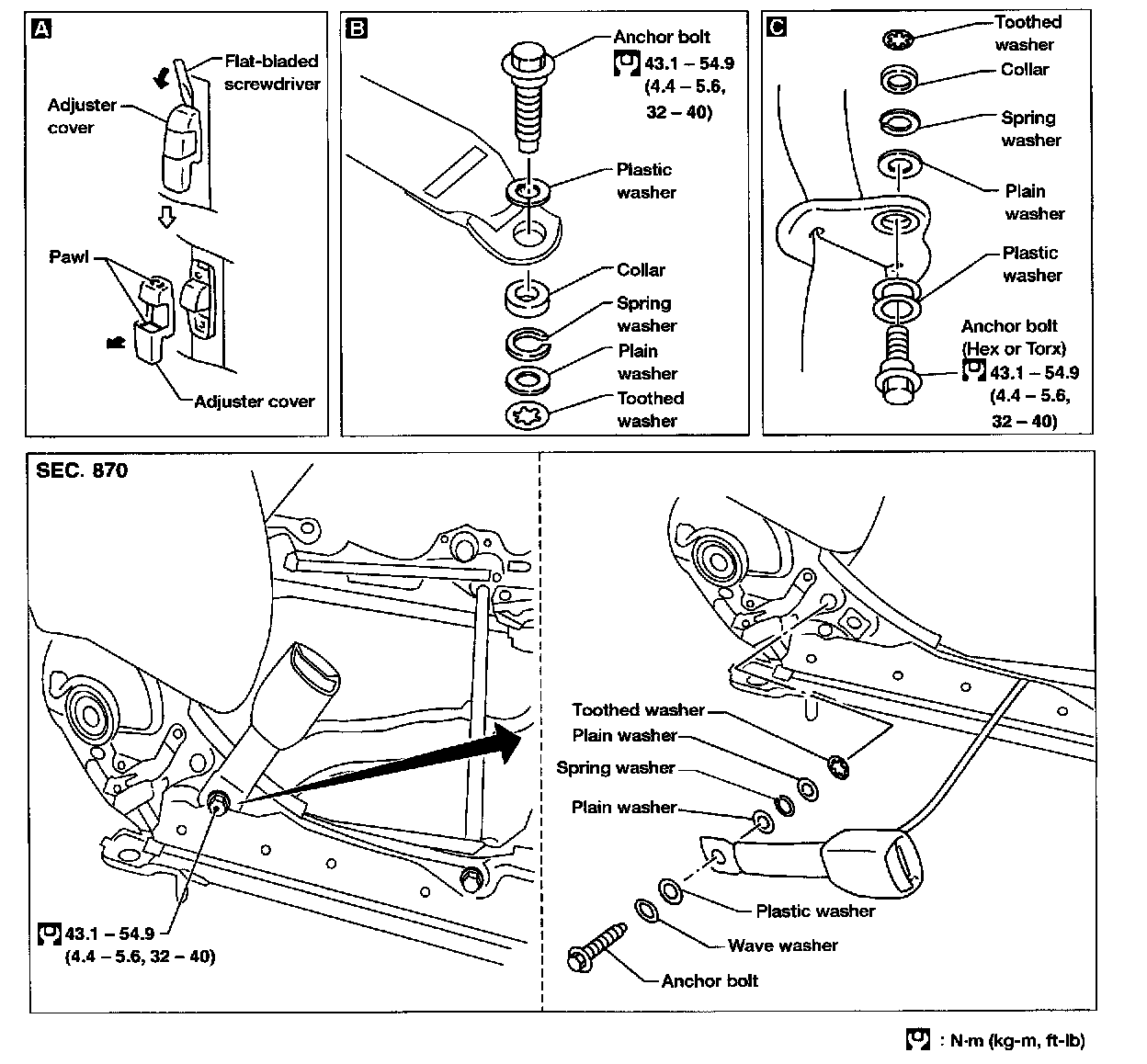

2. Remove adjuster cover. [A]
3. Remove floor anchor bolt. [B]
4. Remove shoulder anchor bolt. [C]
5. Remove center pillar upper and lower garnish.
6. Disconnect front seat belt pre-tensioner connector.
7. Remove the screw securing front seat belt pre-tensioner retractor, then remove seat belt and seat belt pre-tensioner retractor.
8. Remove bolts securing seat belt adjuster, then remove seat belt adjuster.

Reverse procedure to install.
