A/T Does Not Shift: D1->D2 or Does Not Kickdown: D4->D2

A/T Does Not Shift: D1 -> D2 0r Does Not Kickdown: D4 -> D2

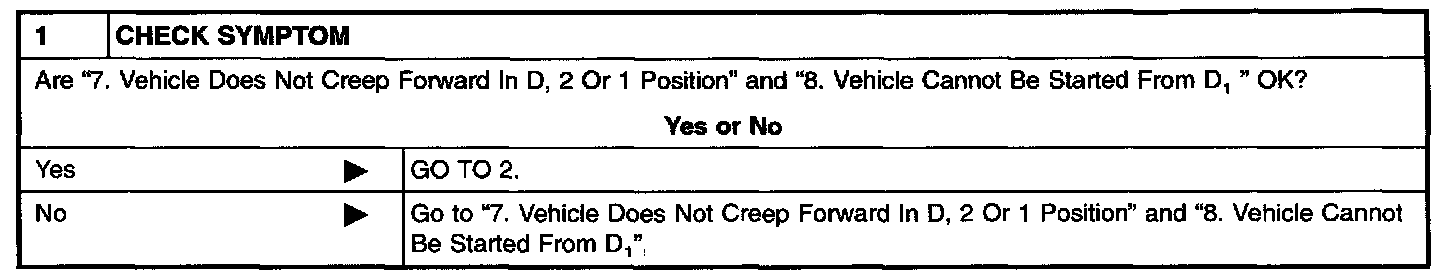

1: CHECK SYMPTOM

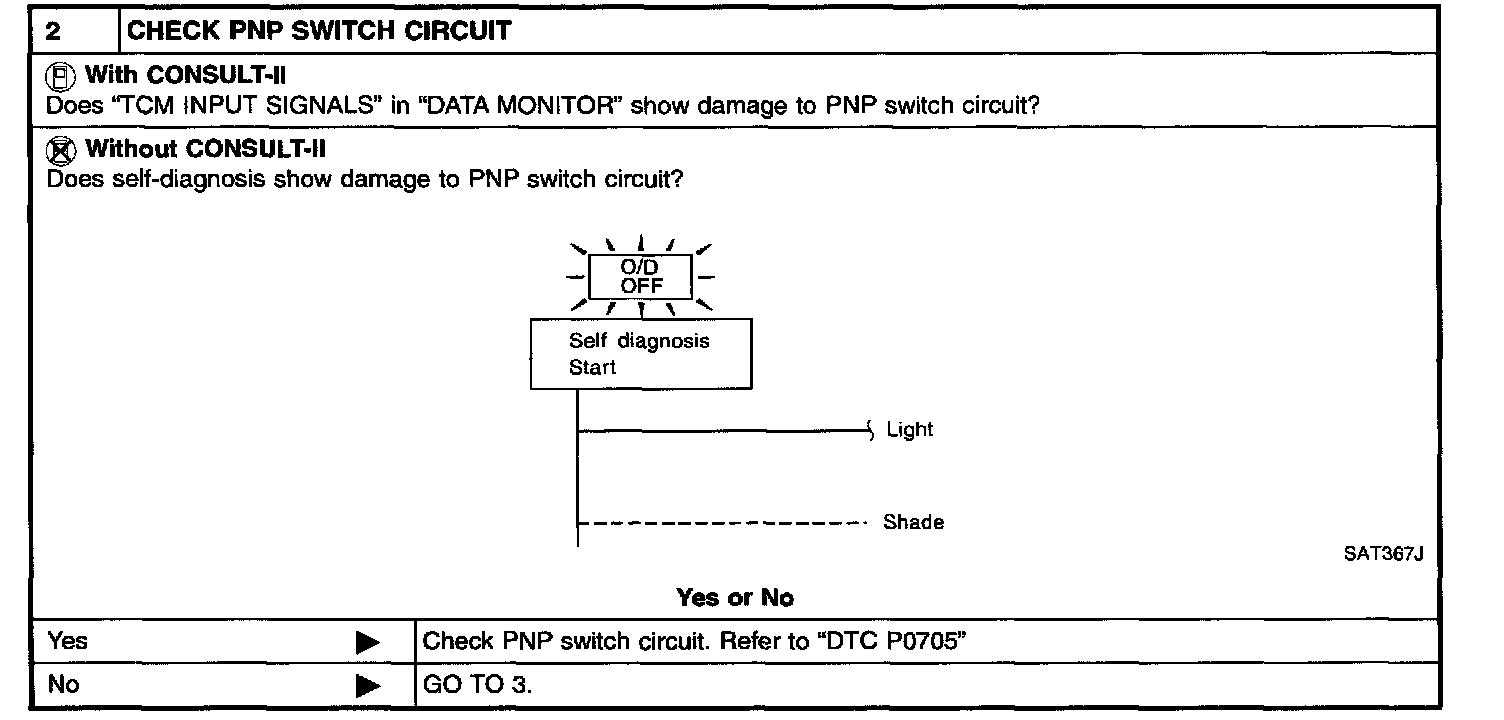

2: CHECK PNP SWITCH CIRCUIT

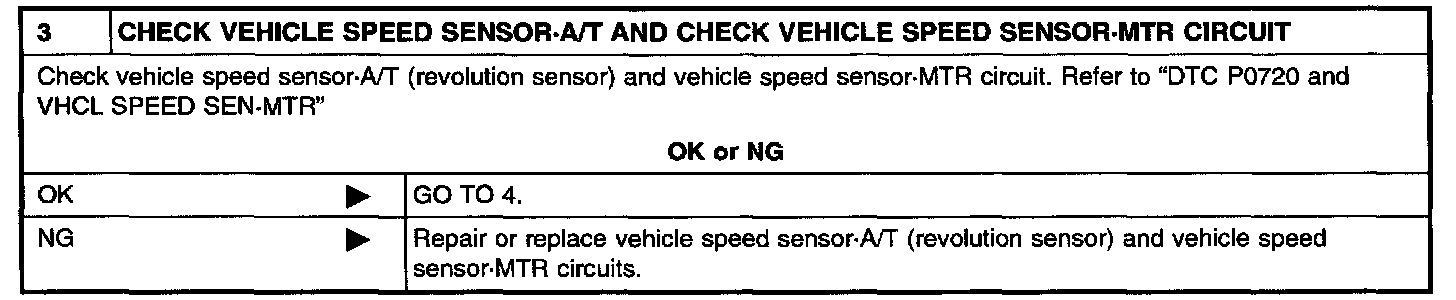

3: CHECK VEHICLE SPEED SENSOR-A/T AND VEHICLE SPEED SENSOR-MTR CIRCUIT

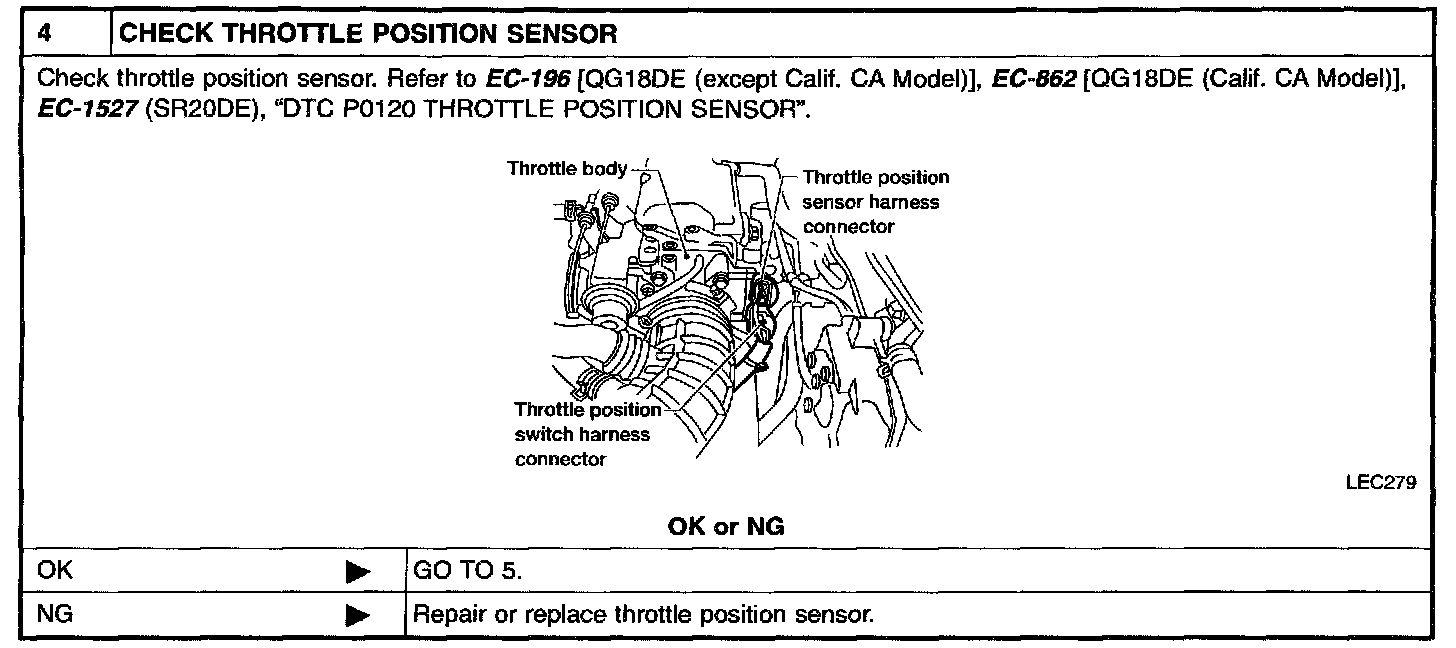

4: CHECK THROTTLE POSITION SENSOR

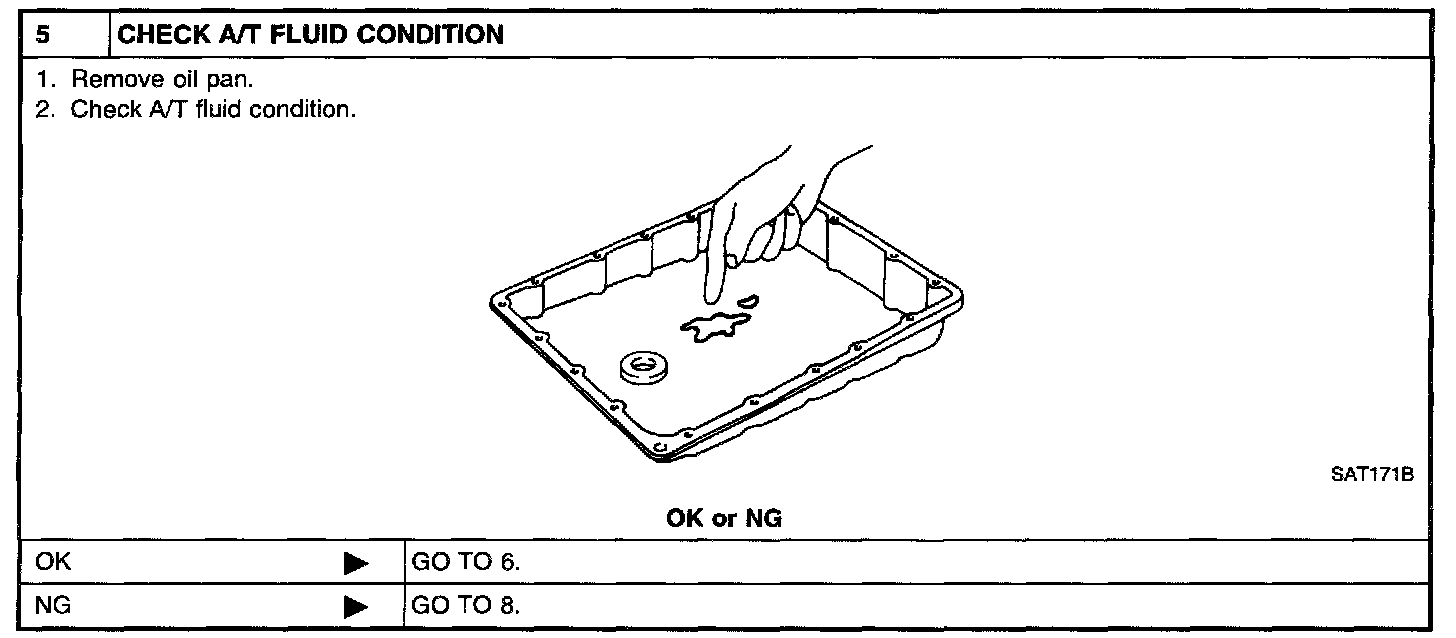

5: CHECK A/T FLUID CONDITION

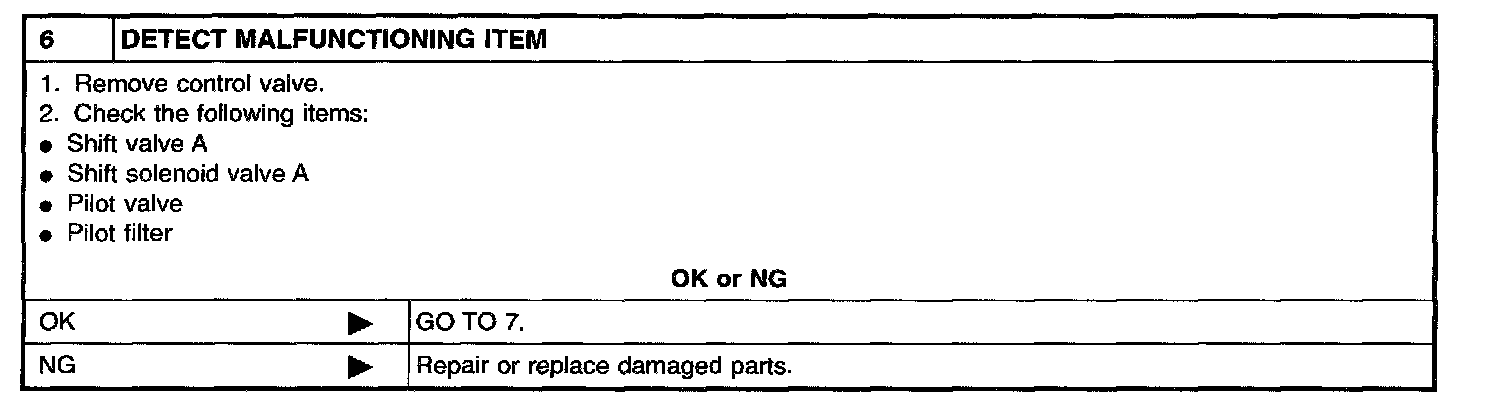

6: DETECT MALFUNCTIONING ITEM

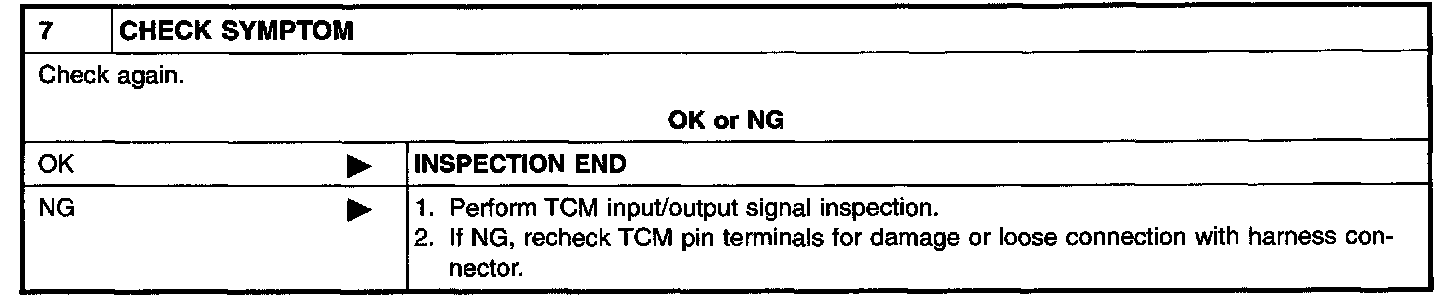

7: CHECK SYMPTOM

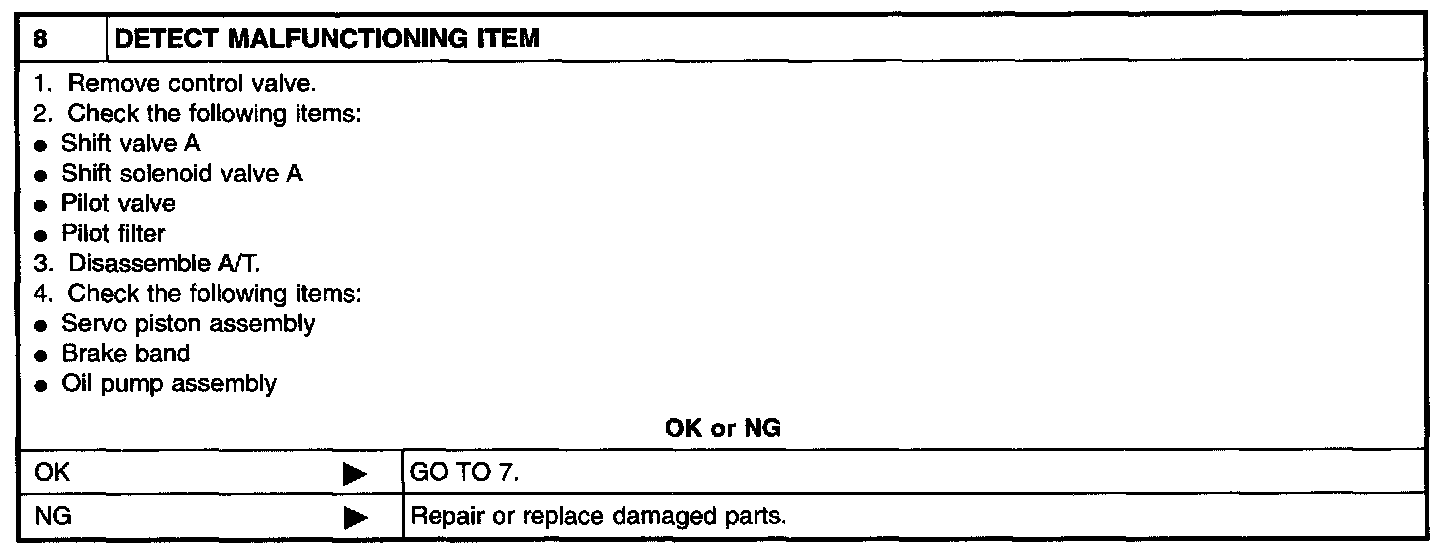

8: DETECT MALFUNCTIONING ITEM

SYMPTOM: A/T does not shift from D1 to D2 at the specified speed. A/T does not shift from D4 to D2 when depressing accelerator pedal fully at the specified speed.
