Main Power Supply and Ground Circuit Testing

Trouble Diagnosis For Power Supply

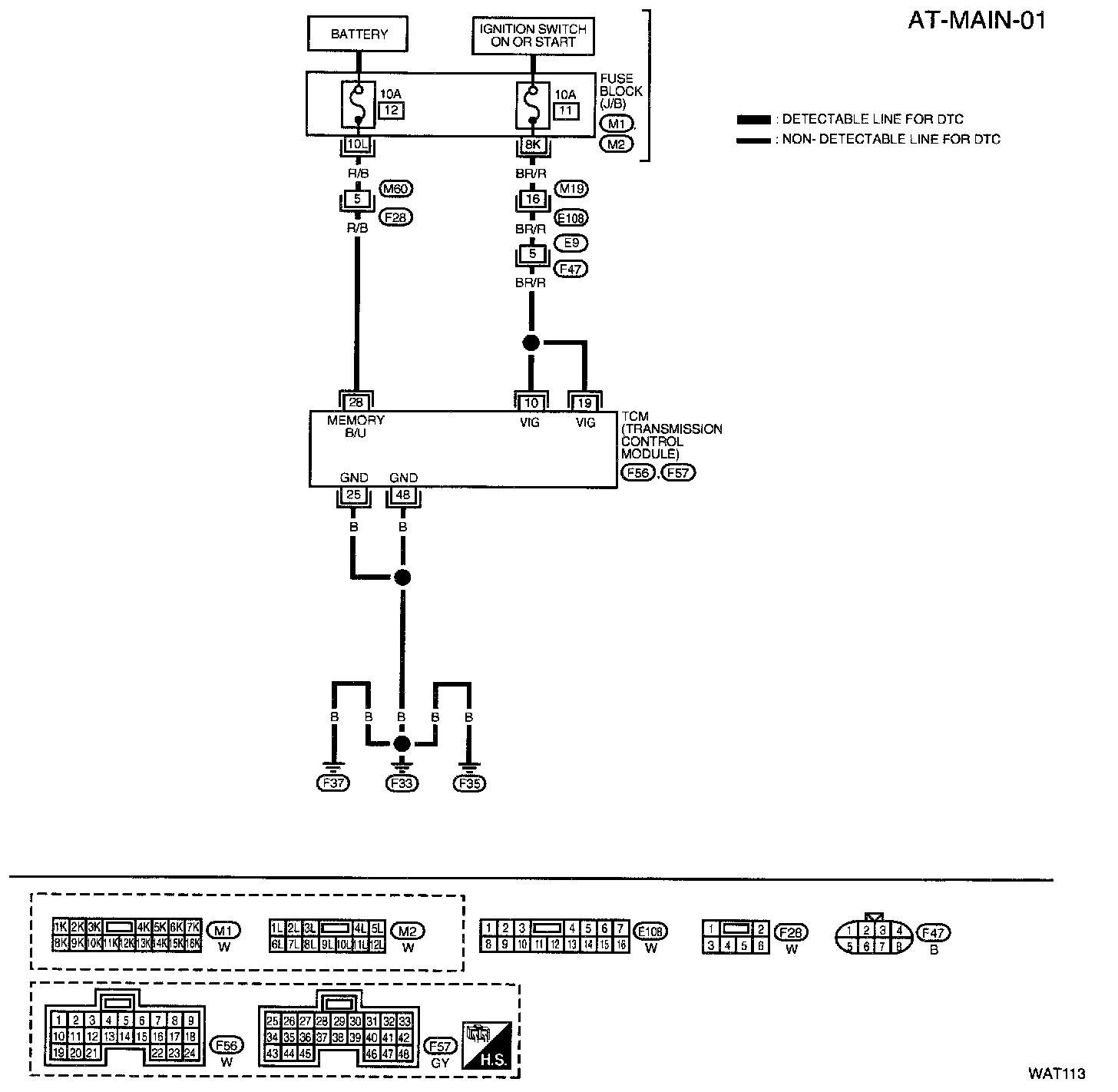

WIRING DIAGRAM - AT - MAIN

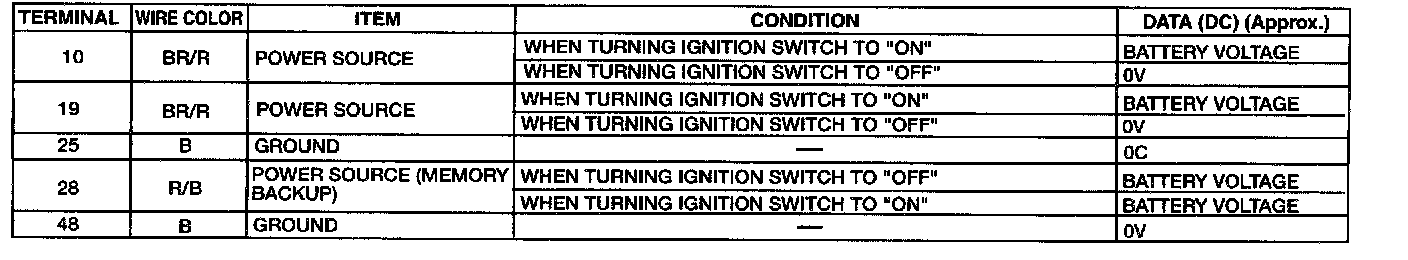

TRANSMISSION CONTROL MODULE TERMINALS AND REFERENCE VALUE BETWEEN TERMINAL AND GROUND

DIAGNOSTIC PROCEDURE

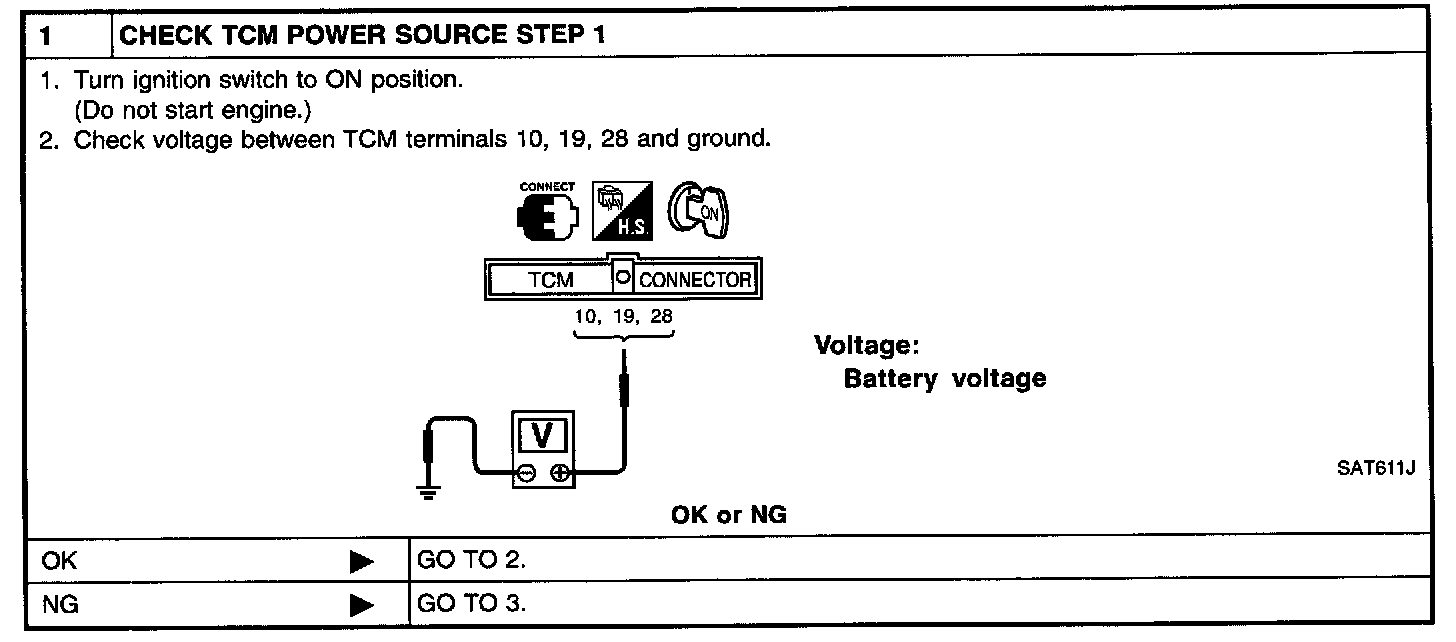

1 Check TCM power source step 1

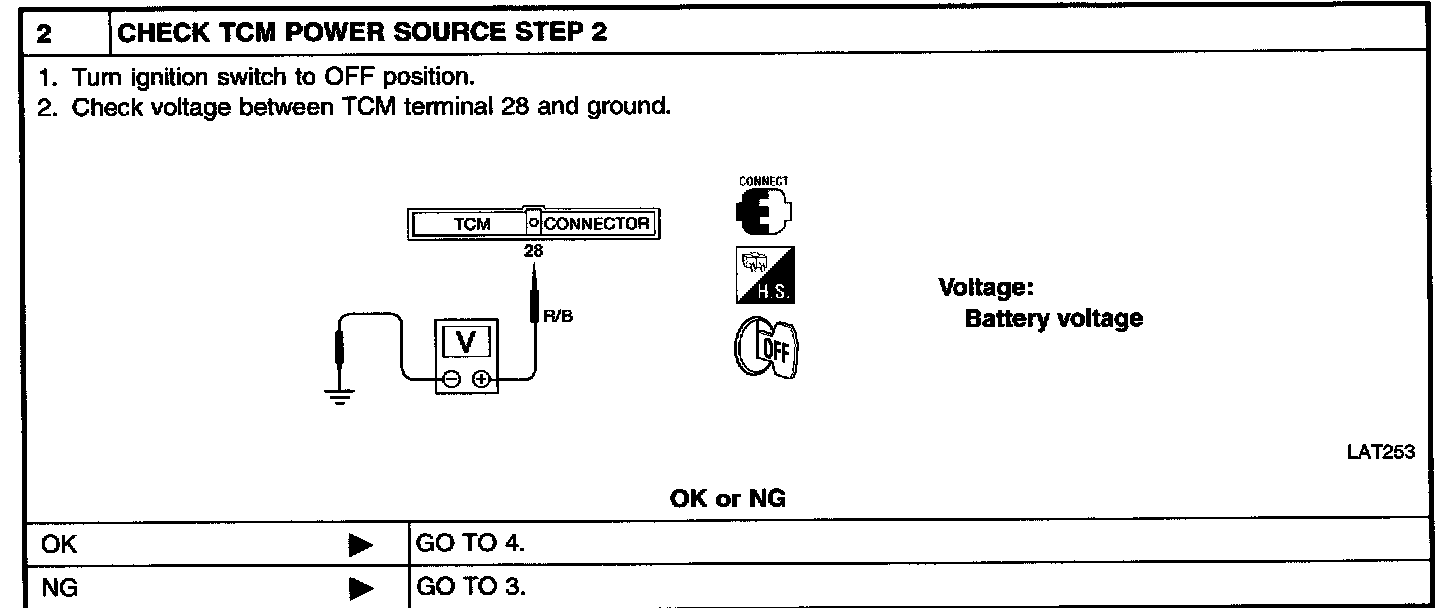

2 Check TCM power source step 2

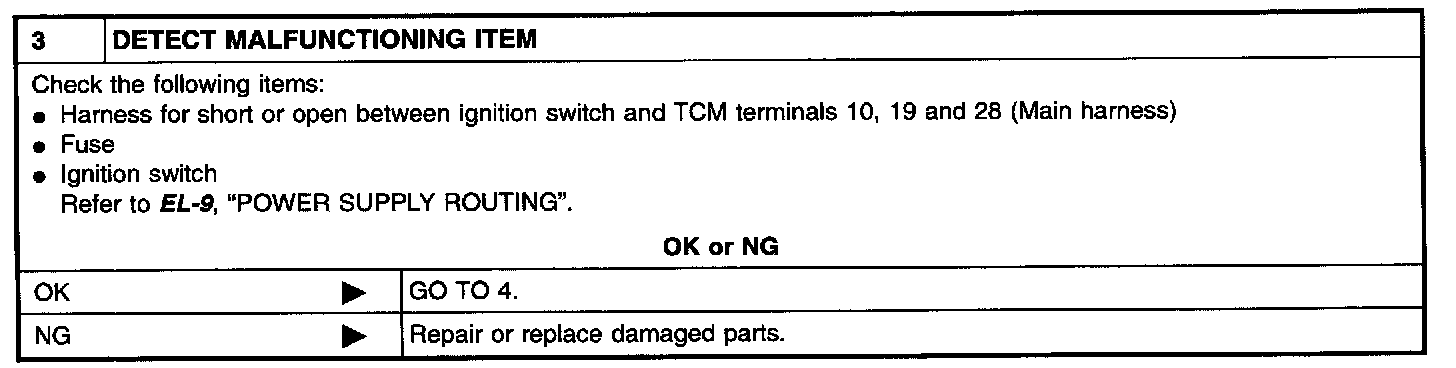

3 Detect malfunctioning item

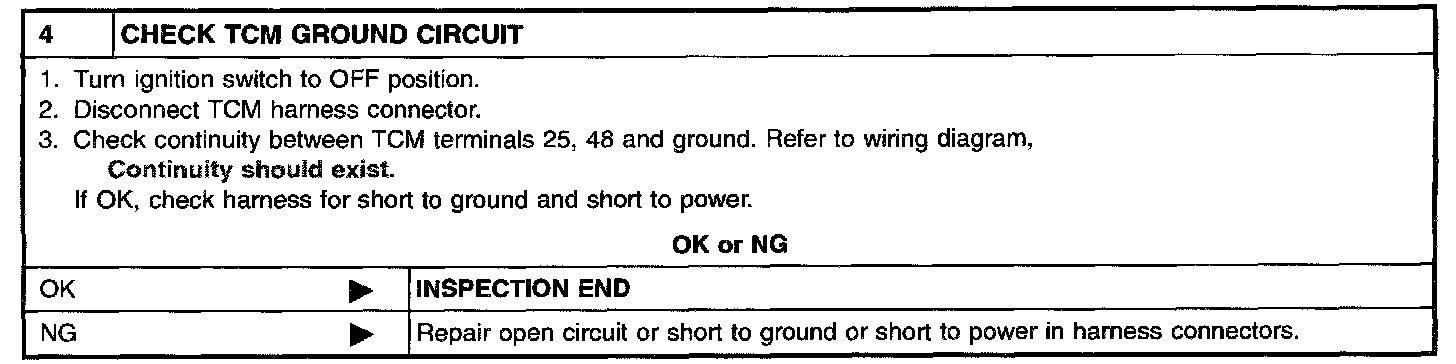

4 Check TCM ground circuit
