Power Supply Testing

Main Power Supply and Ground Circuit

EC-MAIN-01:

EC-MAIN-01 Connector View:

ECM Terminals And Reference Value:

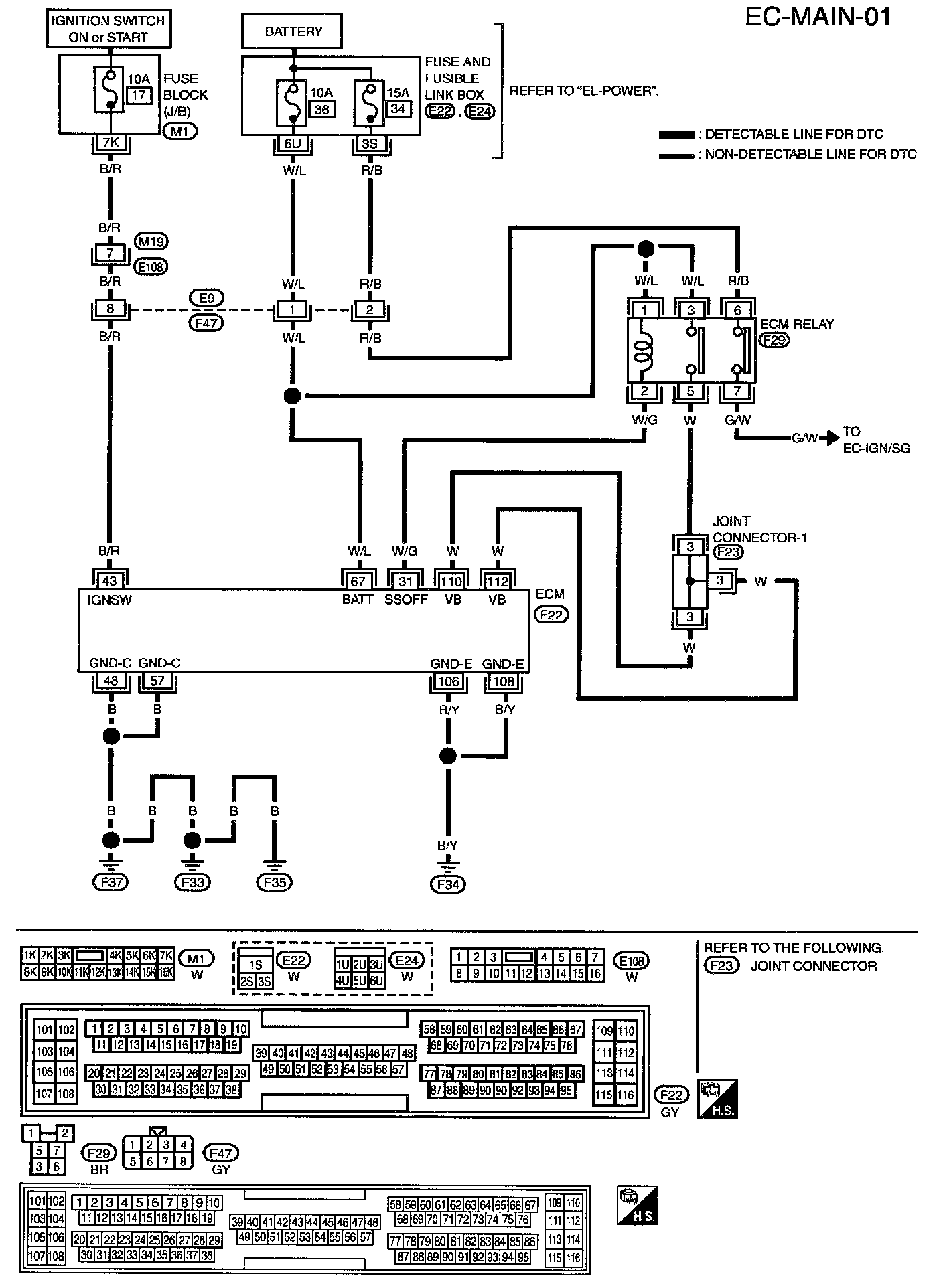

WIRING DIAGRAM

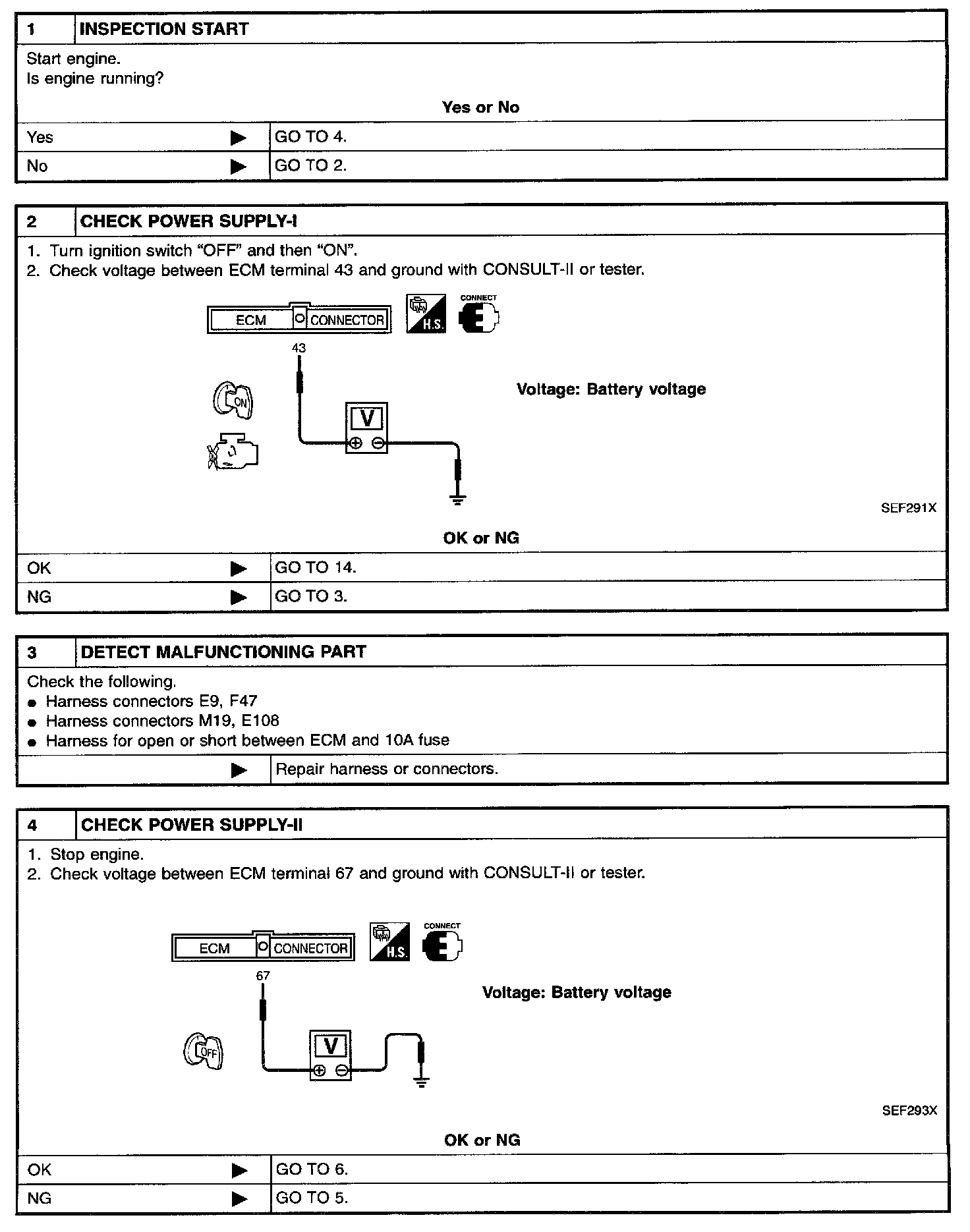

Steps 1 - 4:

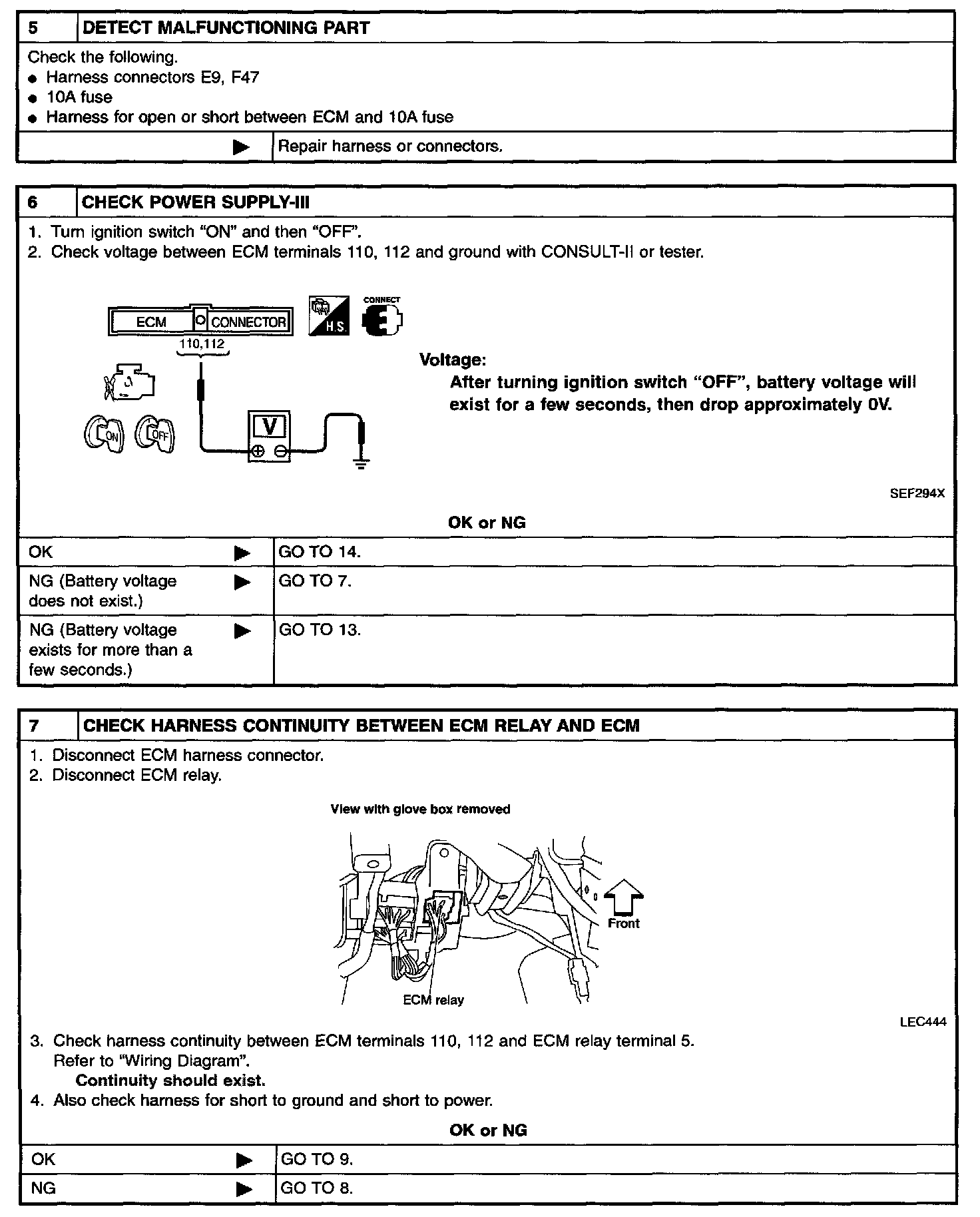

Steps 5 - 7:

Steps 8 - 12:

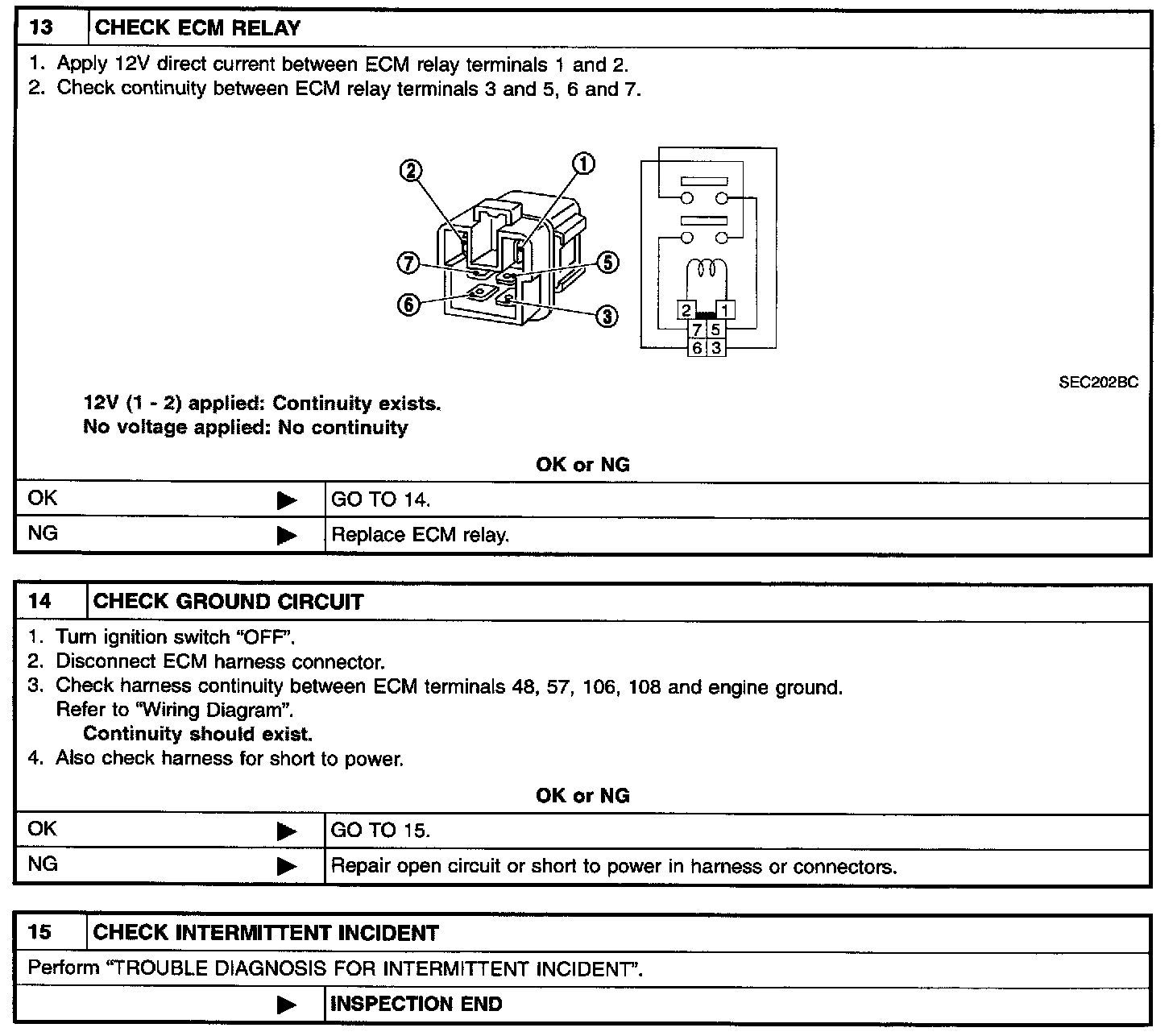

Steps 13 - 15:

DIAGNOSTIC PROCEDURE
