Electrical Diagrams

HEATED OXYGEN SENSOR 1 (FRONT)

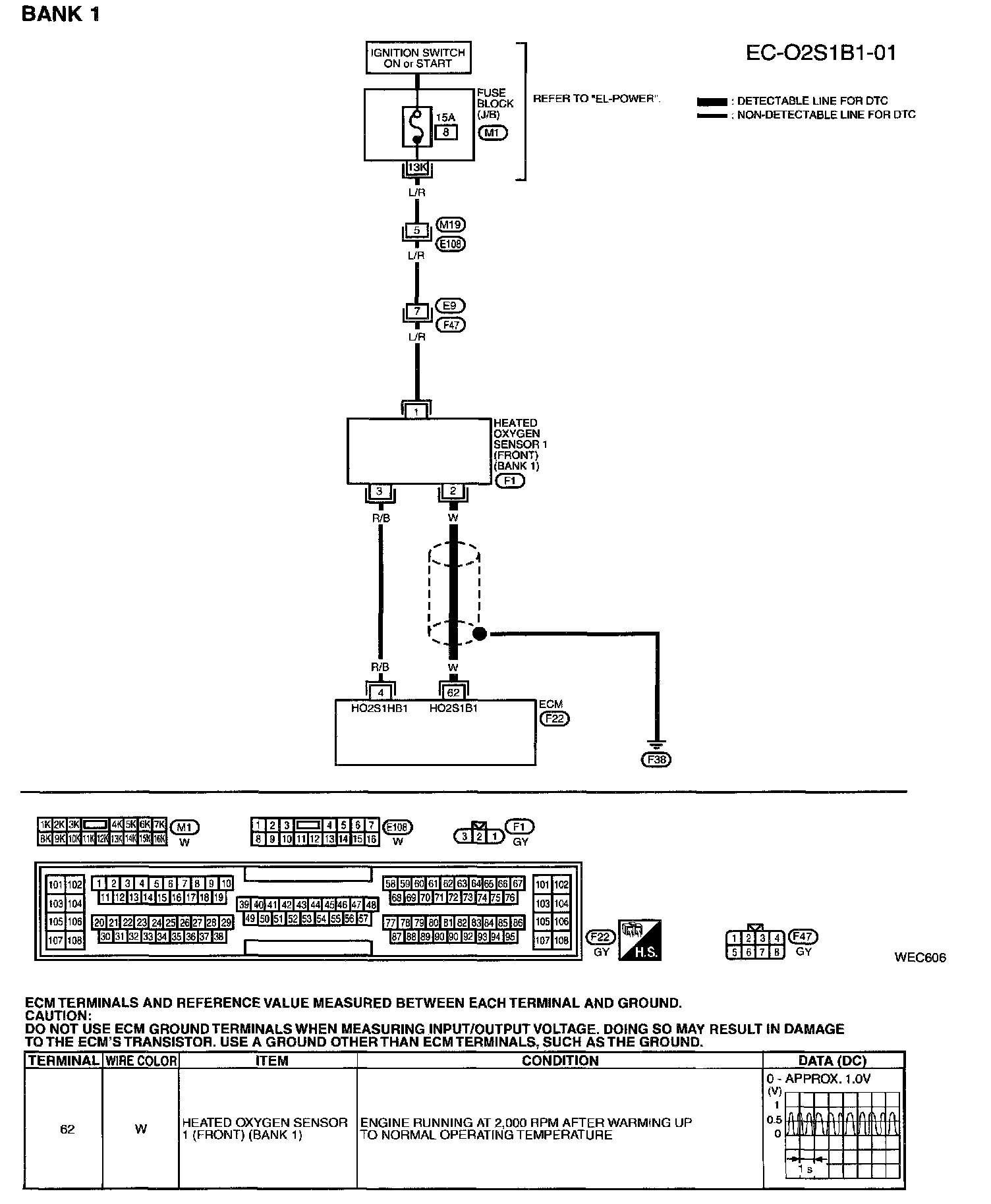

EC-O2S1B1-01:




FRONT BANK 1

EC-O2S1B2-01:




FRONT BANK 2

HEATED OXYGEN SENSOR 1 HEATER (FRONT)

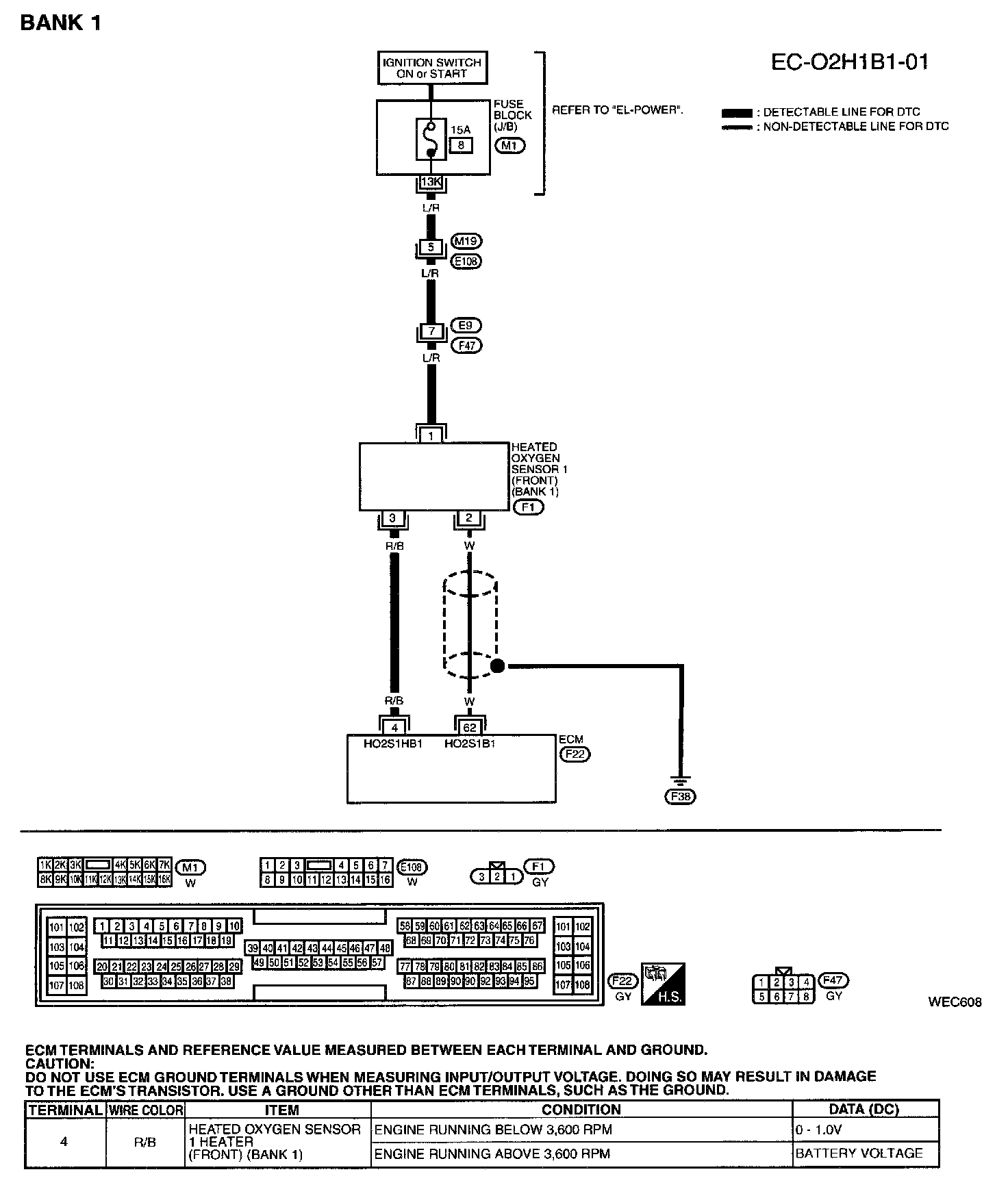

EC-O2H1B1-01:




FRONT BANK 1

EC-O2H1B2-01:




FRONT BANK 2

HEATED OXYGEN SENSOR 2 (REAR)

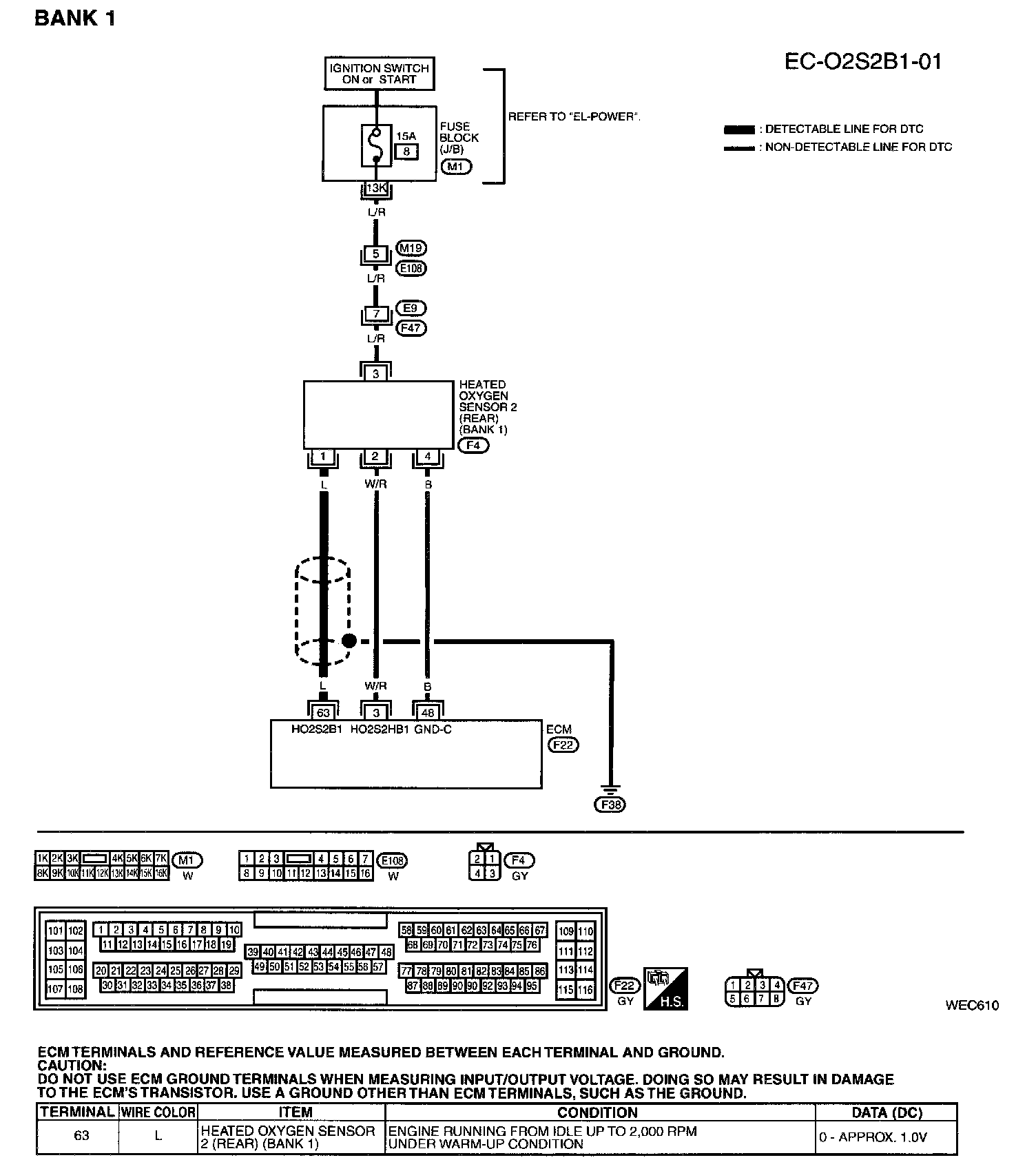

EC-O2S2B1-01:




FRONT BANK 1

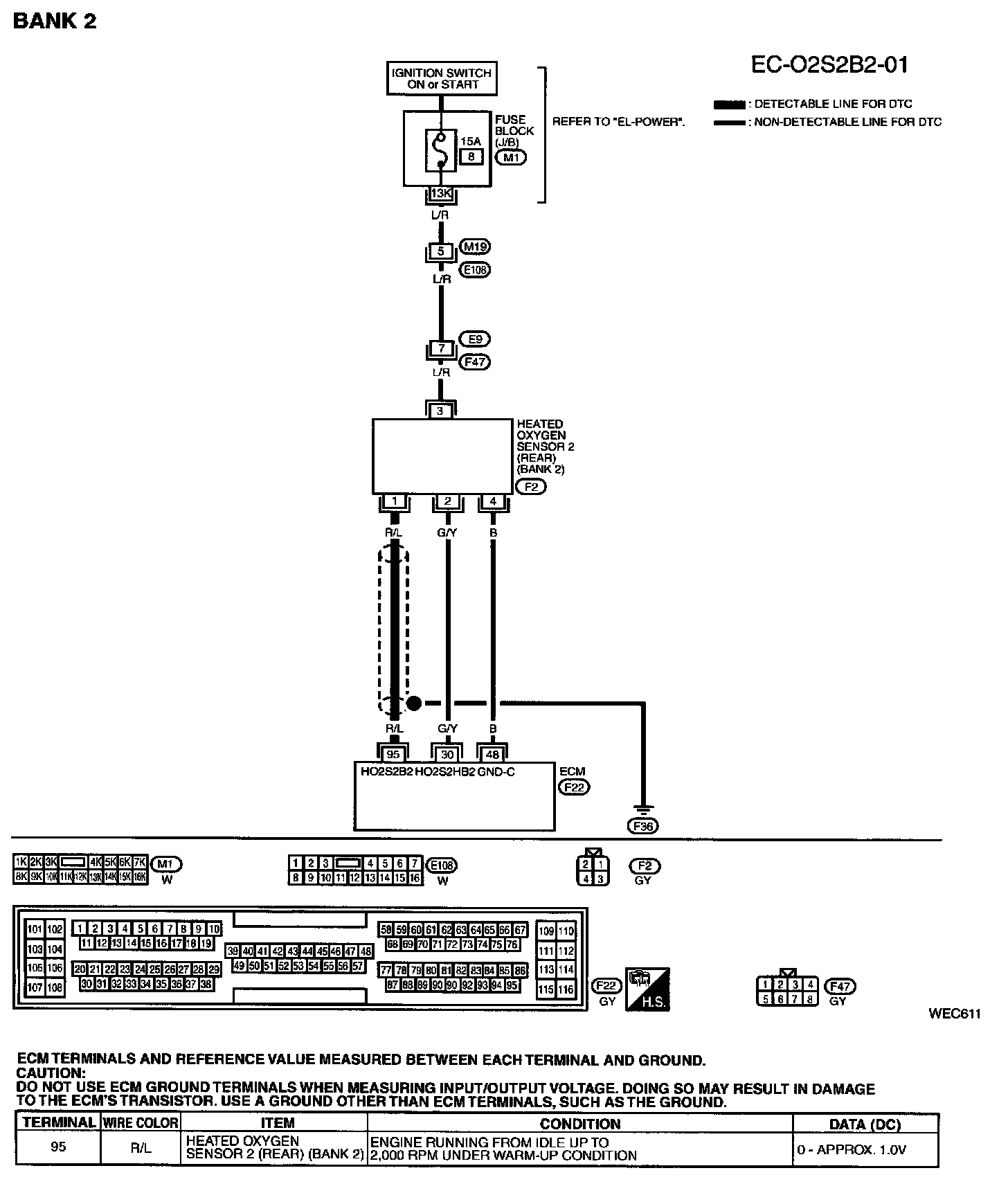

EC-O2S2B2-01:




FRONT BANK 2

HEATED OXYGEN SENSOR 2 HEATER (REAR)

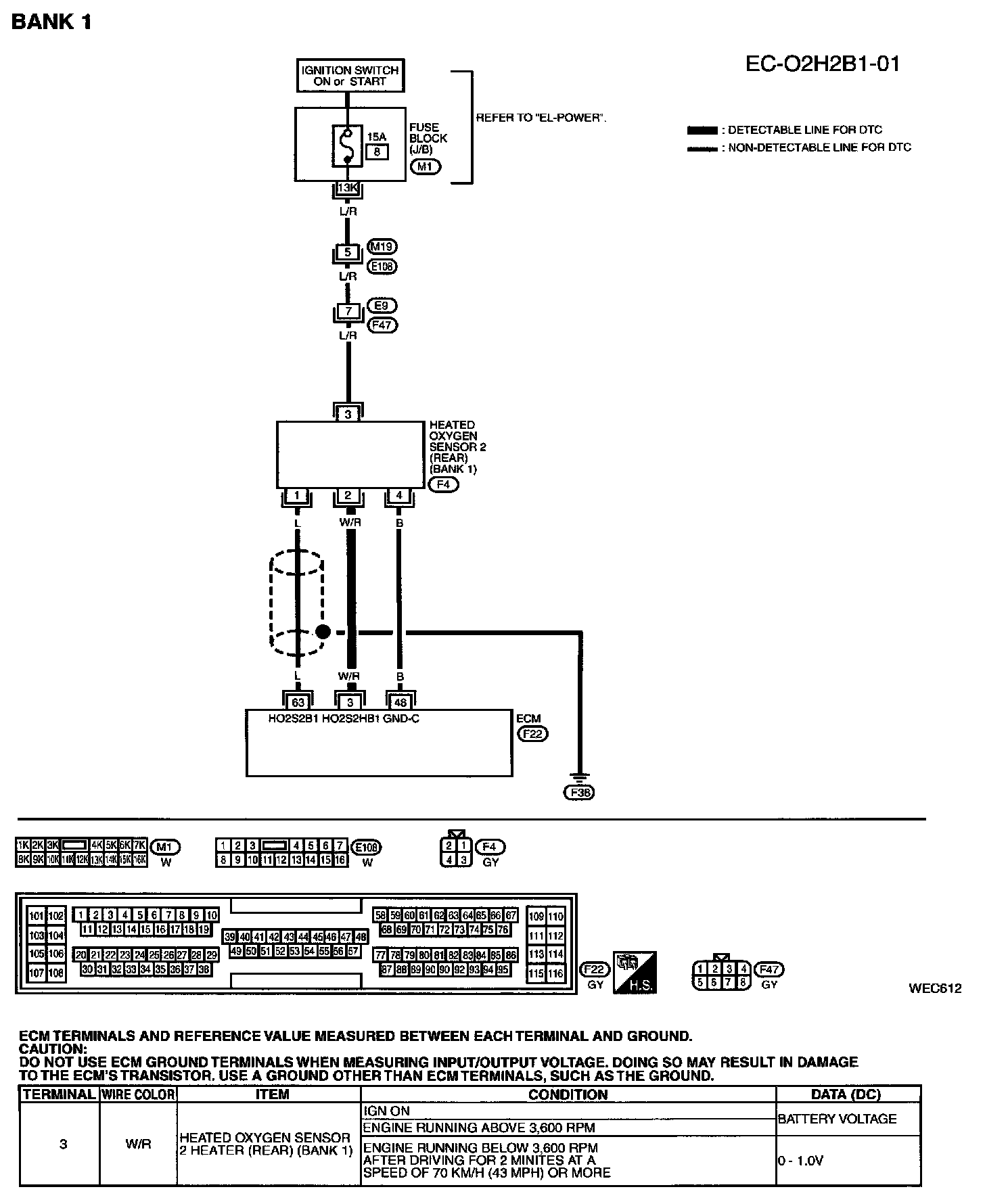

EC-O2H2B1-01:




FRONT BANK 1

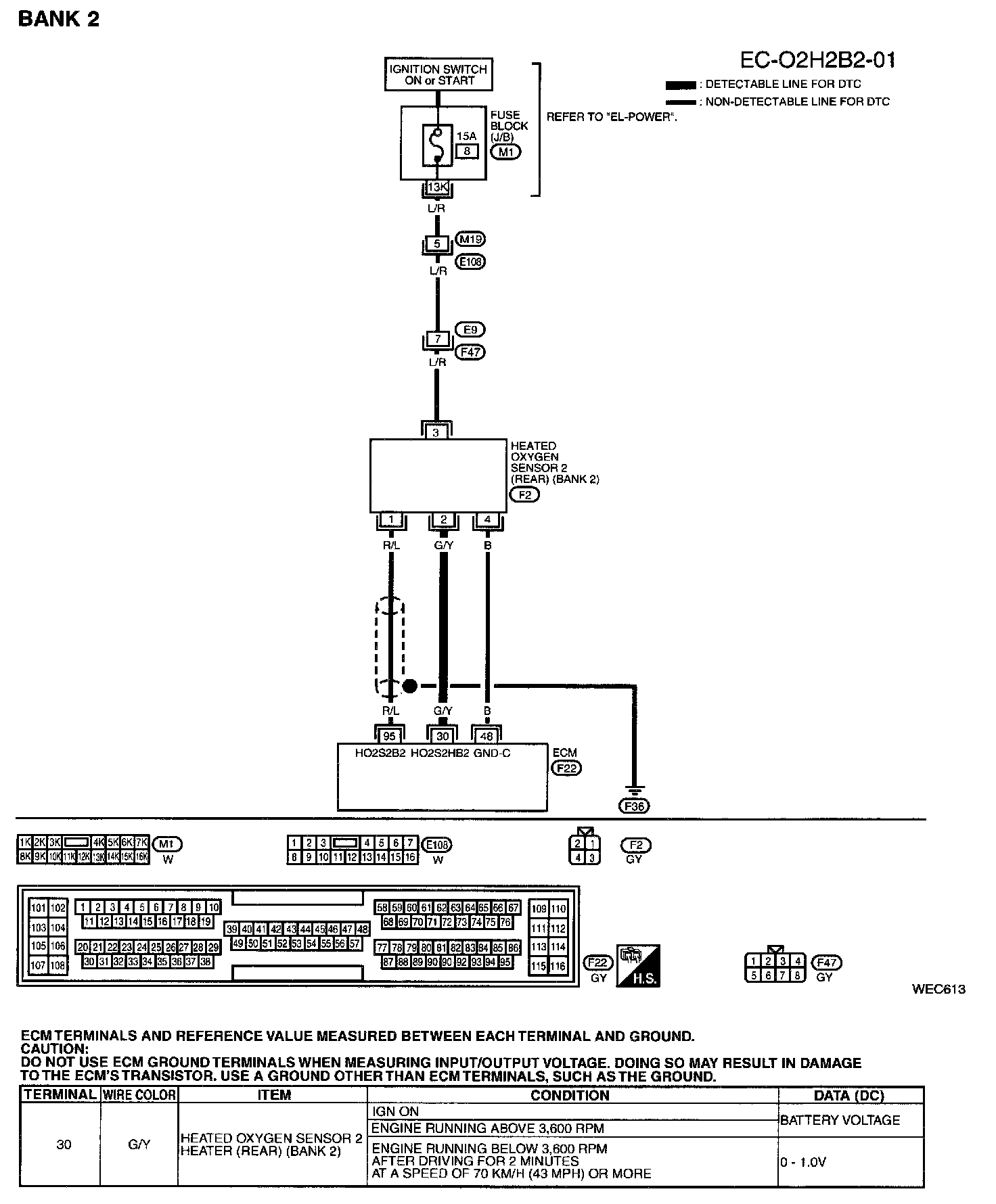

EC-O2H2B2-01:




FRONT BANK 2
