Non-Trouble Code Procedures

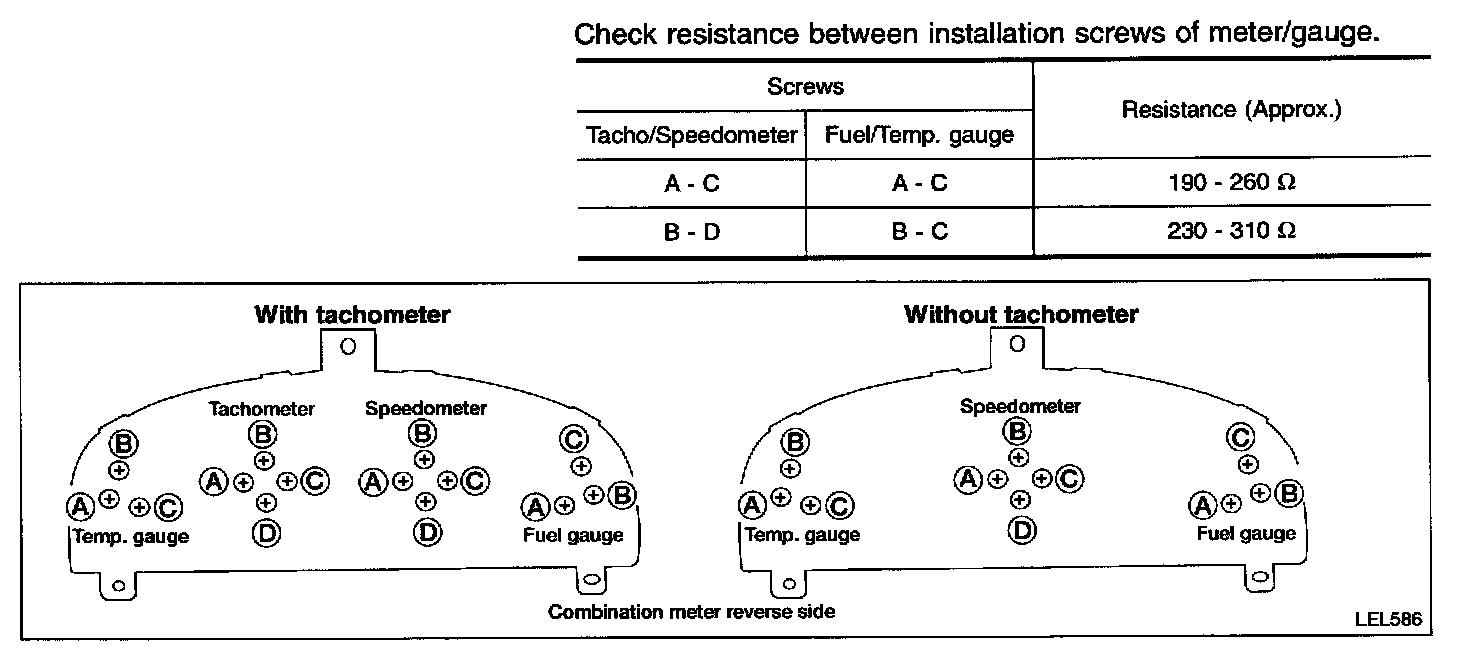

METER/GAUGE RESISTANCE CHECK

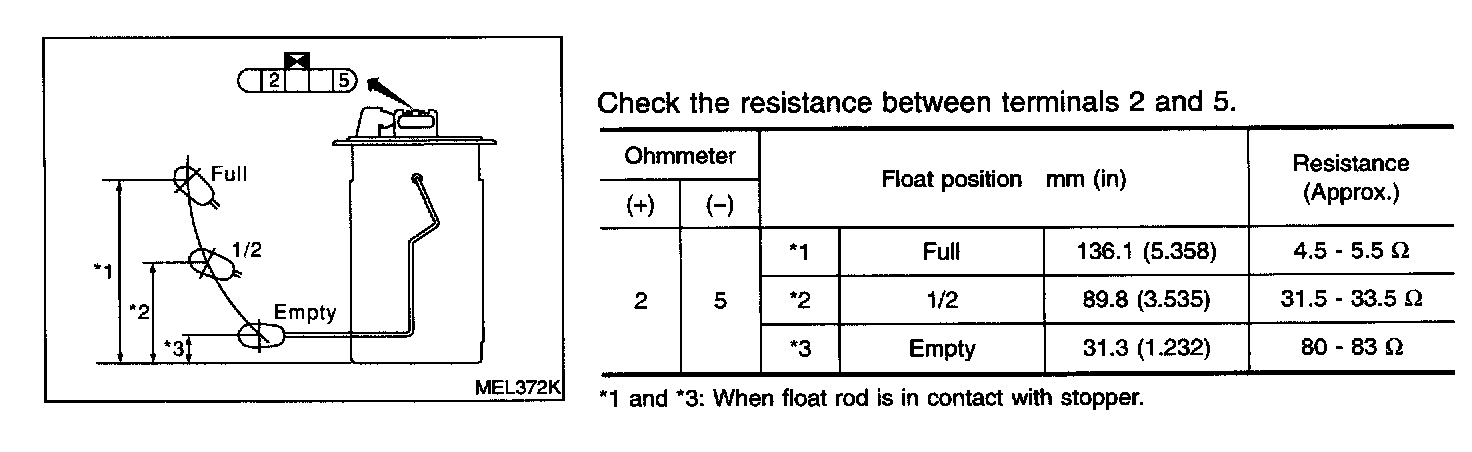

FUEL LEVEL SENSOR UNIT CHECK

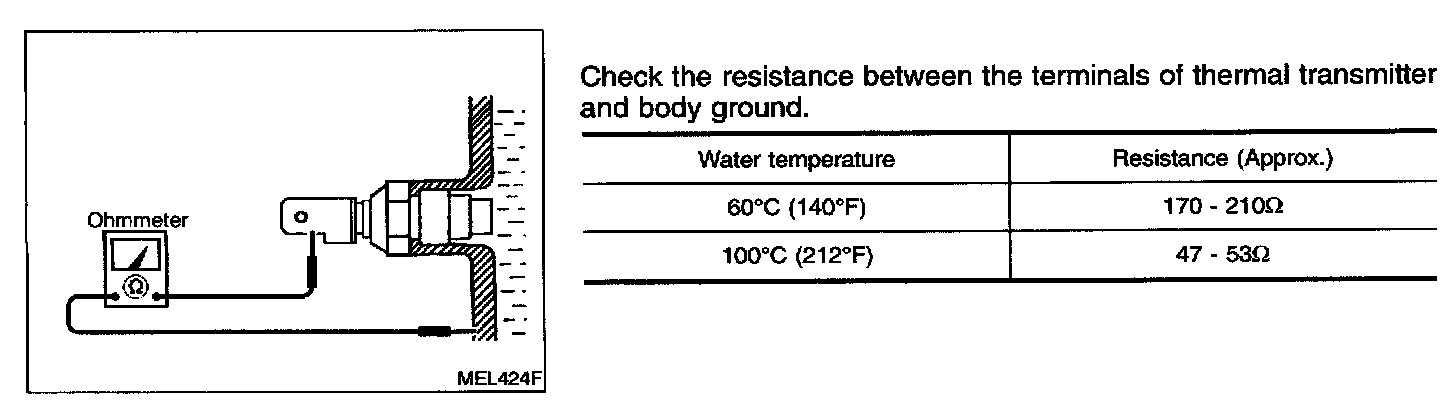

THERMAL TRANSMITTER CHECK

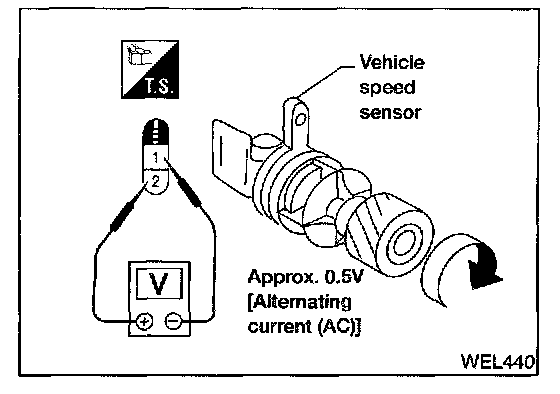

VEHICLE SPEED SENSOR SIGNAL CHECK
1. Remove vehicle speed sensor from transmission.
2. Turn vehicle speed sensor pinion quickly and measure voltage across terminals 1 and 2.
