Consult-II Inspection Procedure (W/ Multi-Remote Control System)

"KEY WARN ALM"/"LIGHT WARN ALM"/"SEAT WARN ALM"
1. Turn ignition switch "OFF".

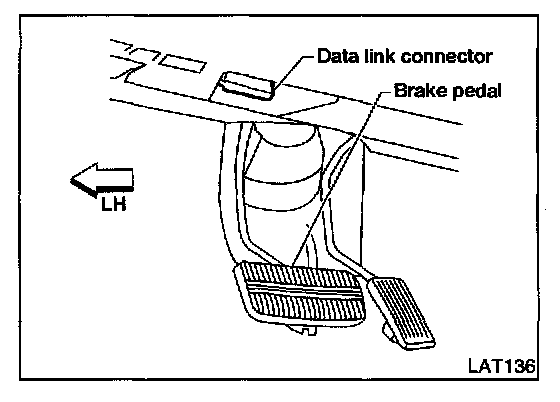

2. Connect "CONSULT-II" to the data link connector.




3. Turn ignition switch "ON".
4. Touch "START".




5. Touch "SMART ENTRANCE".

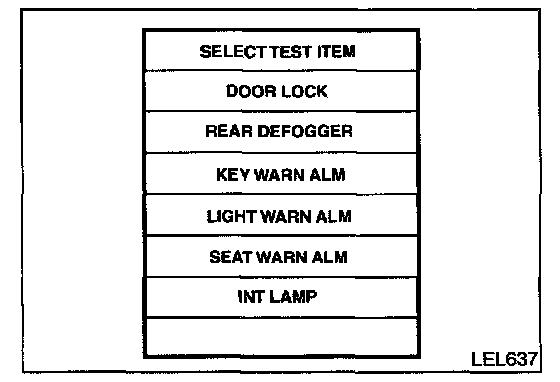

6. Touch "KEY WARN ALM", "LIGHT WARN ALM" or "SEAT WARN ALM".




7. Select diagnosis mode.
"DATA MONITOR" and "ACTIVE TEST" are available for the warning chime.
