Home >> Nissan-Datsun >> 2001 >> Sentra XE L4-1.8L (QG18DE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Testing and Inspection >> Blend Door >> Mode Door

Mode Door

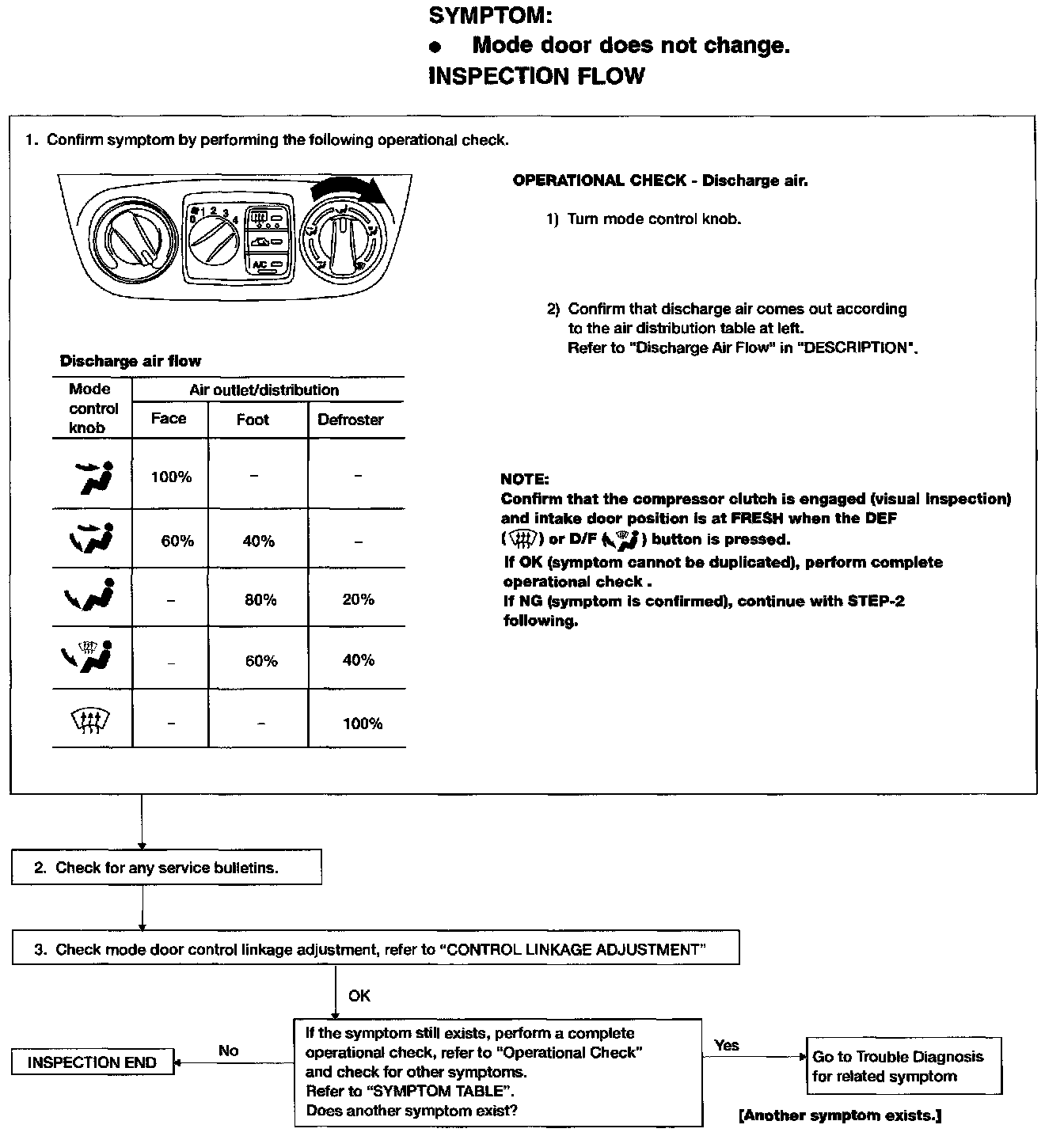

Trouble Diagnosis Procedure for Mode Door - Inspection Flow:
