Air Door Cable: Adjustments

CONTROL LINKAGE ADJUSTMENT

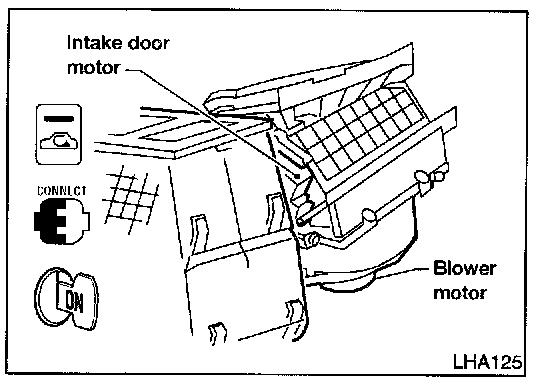

Intake Door Motor
1. Install intake door motor on intake unit.
Ensure that the intake door motor lever is fitted into the slit portion of intake door link.
2. Connect the intake door motor harness connector.
3. Turn ignition switch to "ON" position.
4. Check that intake door operates properly when REC switch is turned ON and OFF.

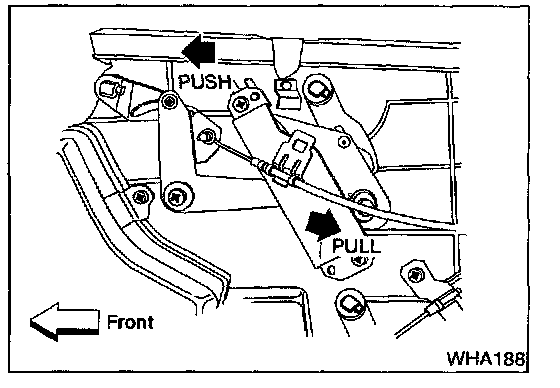

Mode Door
- Turn mode door control knob to position.
- Set side link in DEF mode.
- Pull on outer cable in direction of arrow and then clamp it.
- After positioning mode door control cable, check that it operates properly.

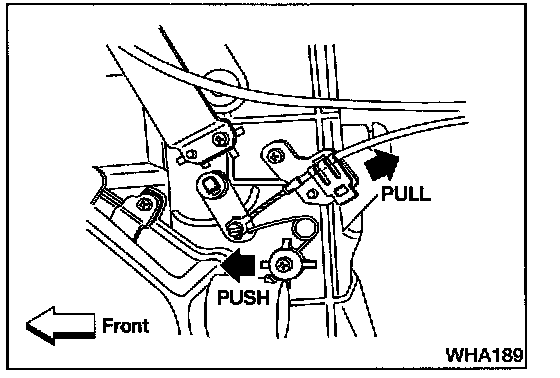

Temperature Control Cable
- Turn temperature control knob to the full cold position.
- Set the air mix door lever in the full cold position by hand.
- Pull on cable cover in the direction of the arrow and then clamp cable cover.

After positioning air mix door control cable, check for proper operation.
