Radiator Cooling Fan Motor: Testing and Inspection

Component Inspection

COOLING FAN RELAYS-1 AND -2




1. Disconnect cooling fan motor harness connectors.

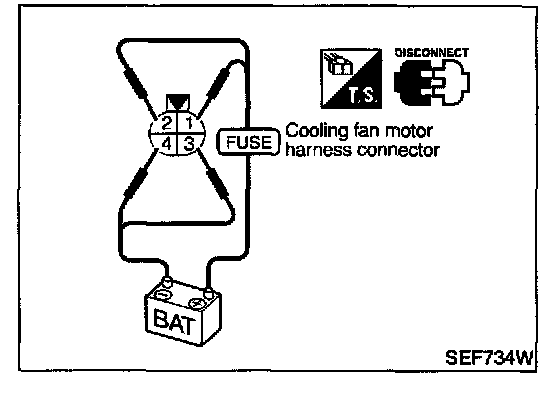

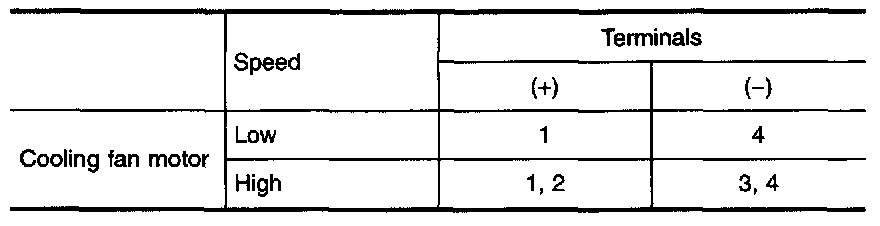

2. Supply coling fan motor terminals with battery voltage and check operations.

Cooling fan motor should operate.
If NG, replace cooling fan motor.
