FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2001
>>
Sentra XE L4-1.8L (QG18DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
Wiper and Washer Systems

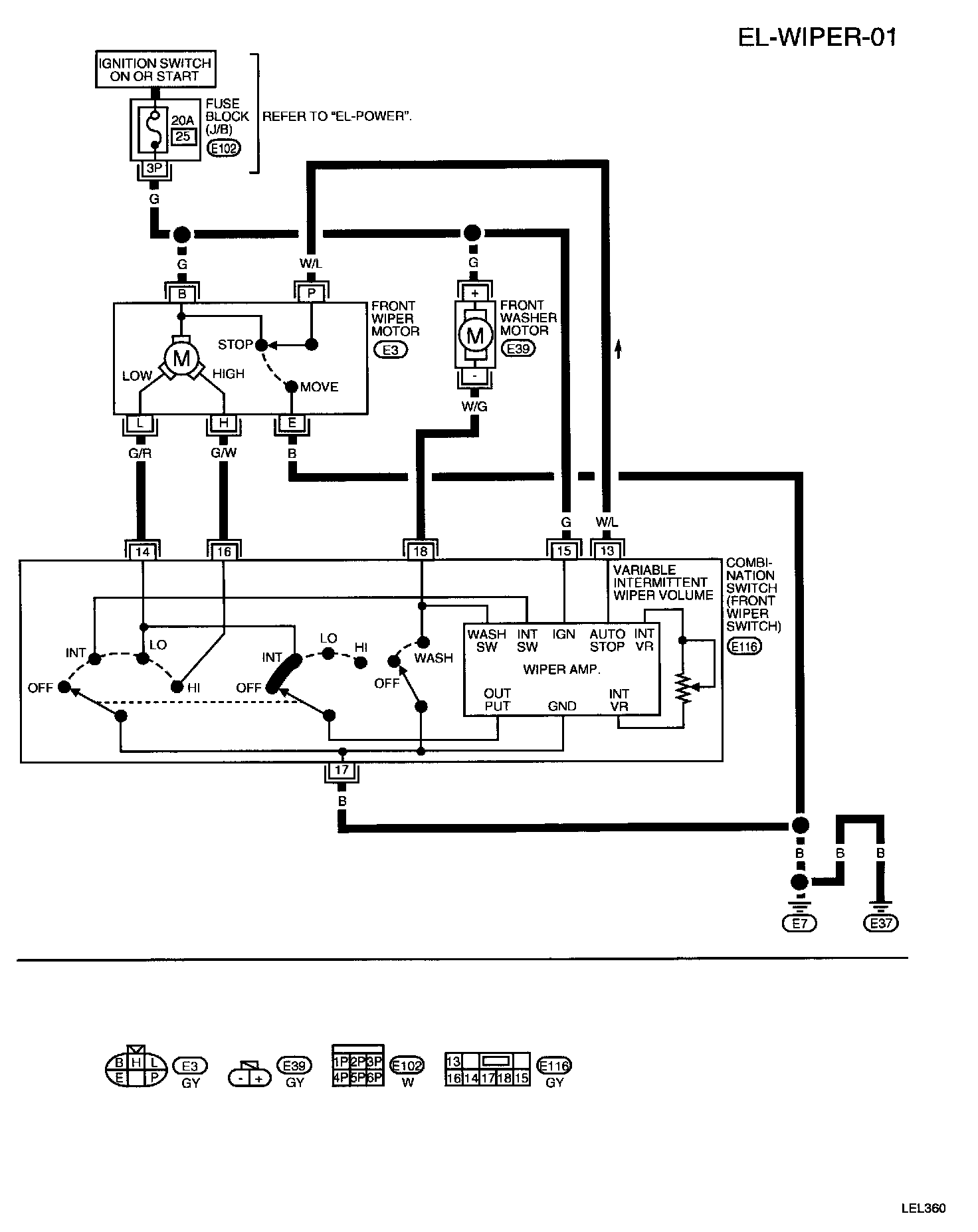

EL-WIPER-01 (With Intermittent Wipers):

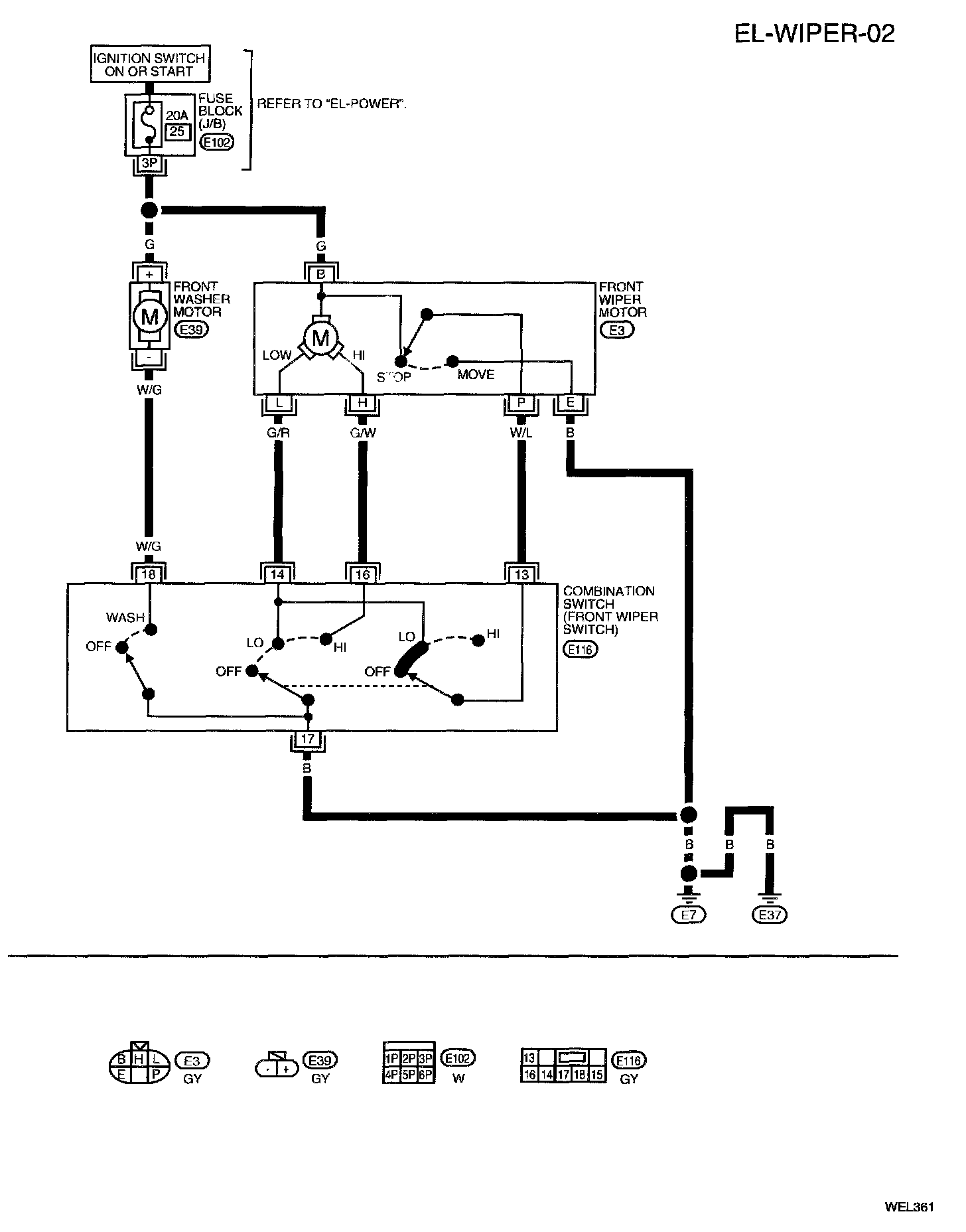

EL-WIPER-02 (Without Intermittent Wipers):
