Sentra XE L4-1.8L (QG18DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
Audible Warning Device

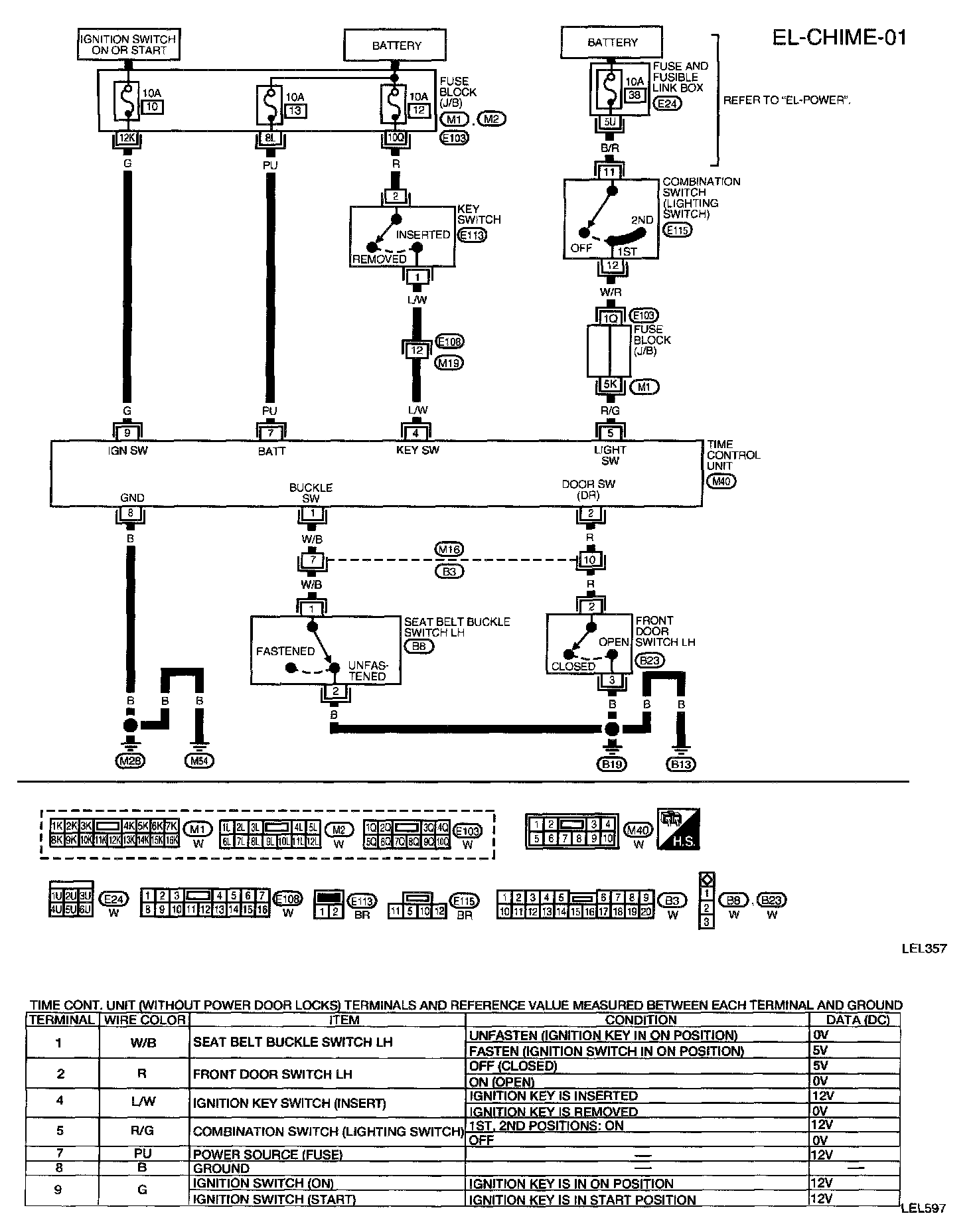

EL-CHIME-01 (Without Power Door Locks):

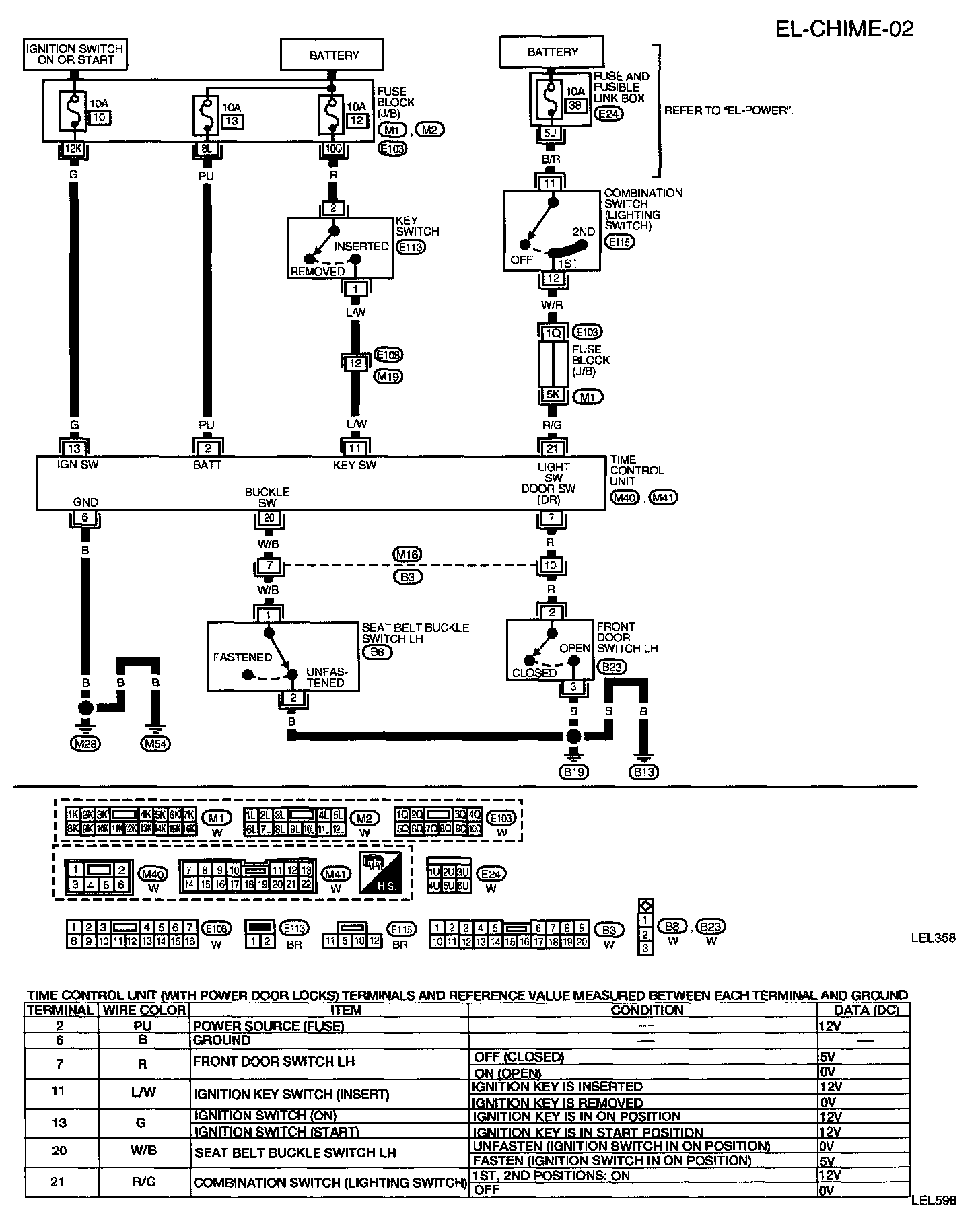

EL-CHIME-02 (With Power Door Locks And Without Multi-Remote Control System):

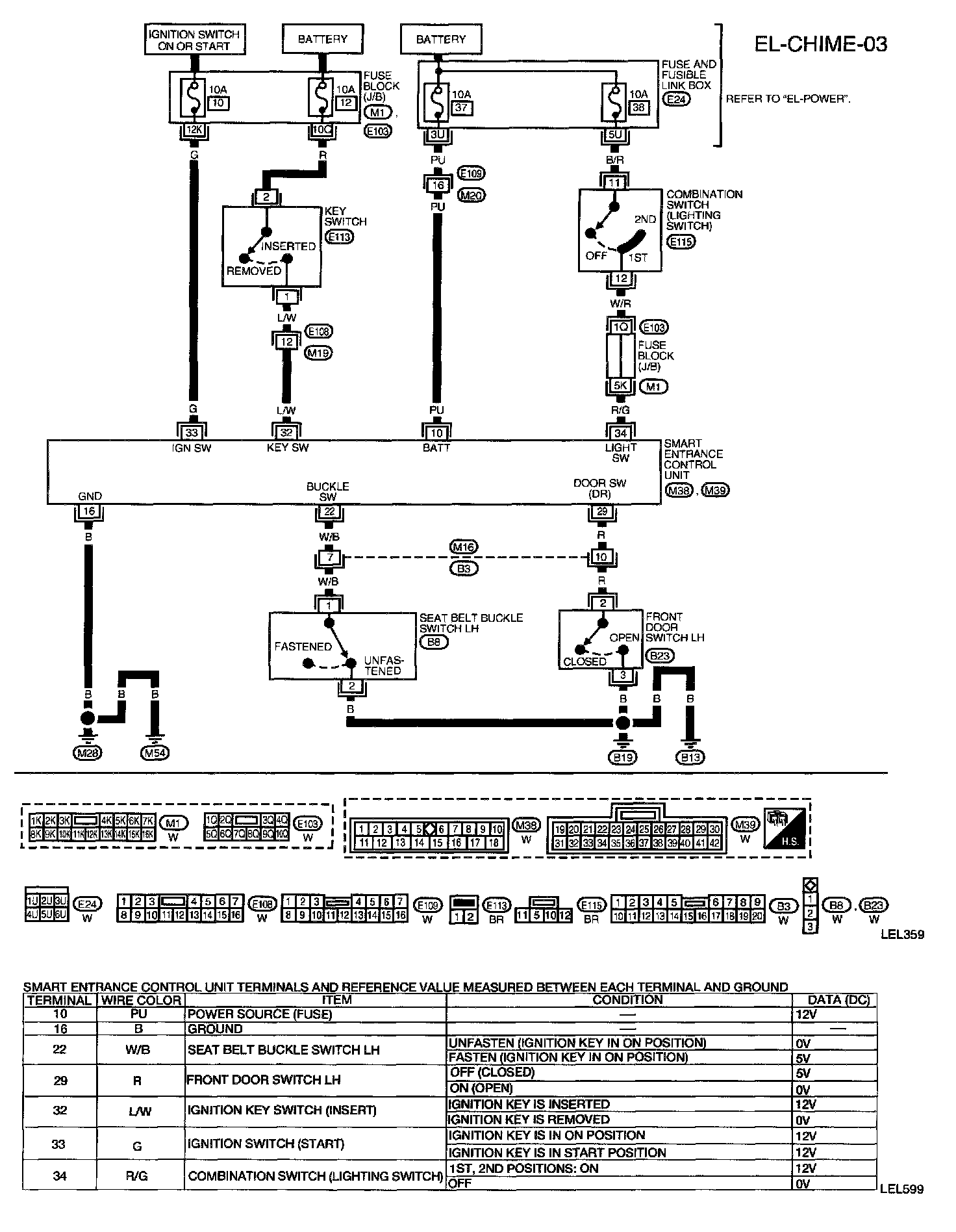

EL-CHIME-03 (With Multi-Remote Control System):
