Home
>>
Nissan-Datsun
>>
2001
>>
Sentra XE L4-1.8L (QG18DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Modules/Control Units/Actuators
Modules/Control Units/Actuators

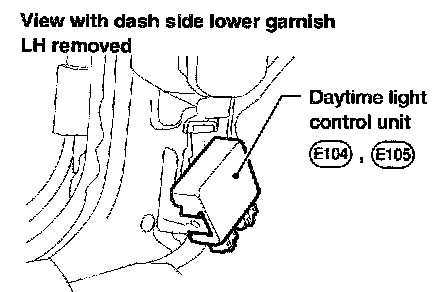

Daytime Light Control Unit:

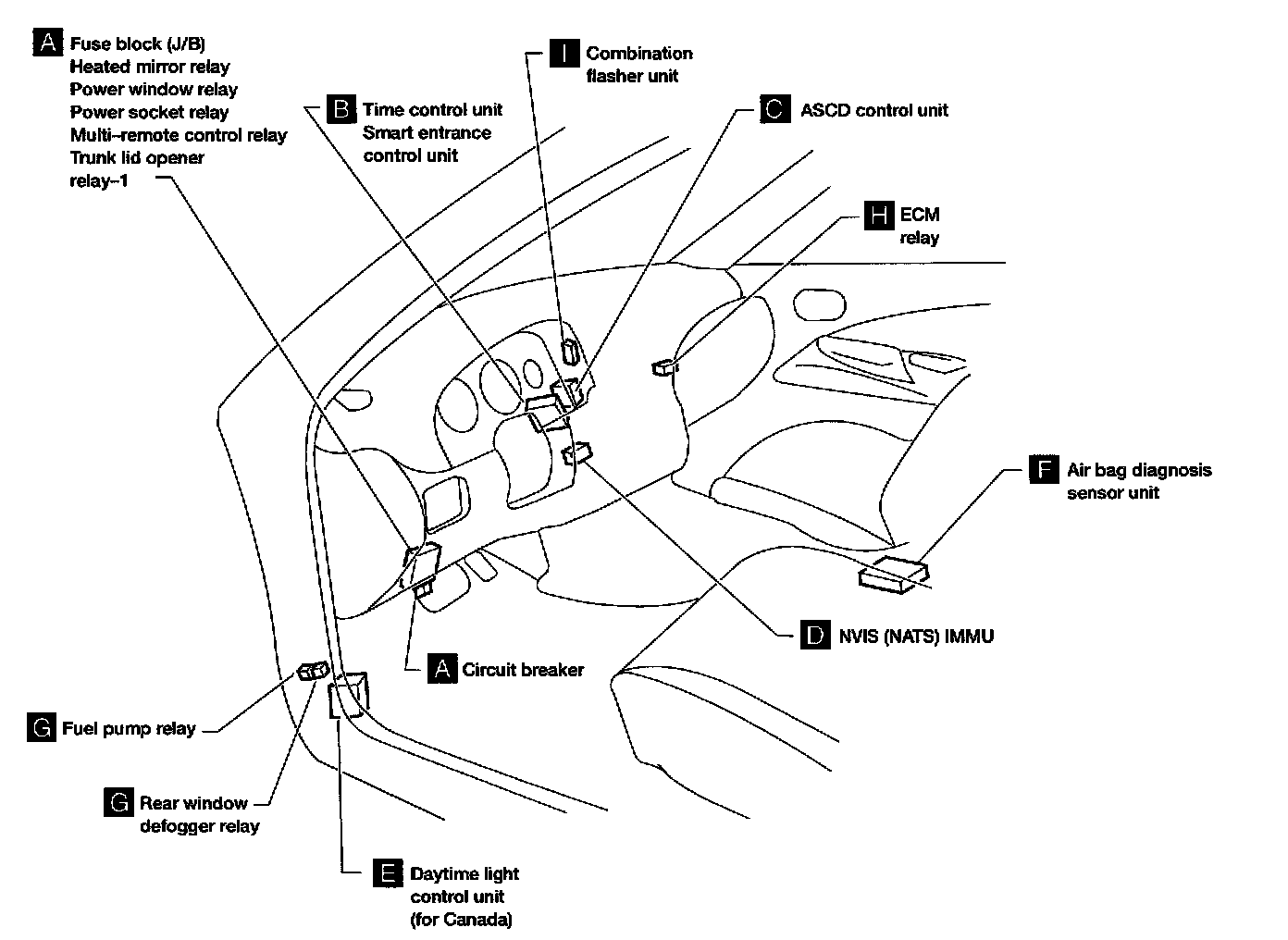

Passenger Compartment Component Locations Overview:

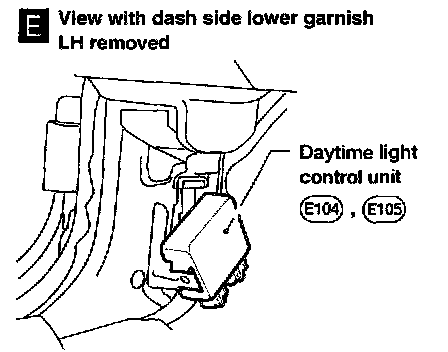

Component View E:
