ASCD Component Inspections

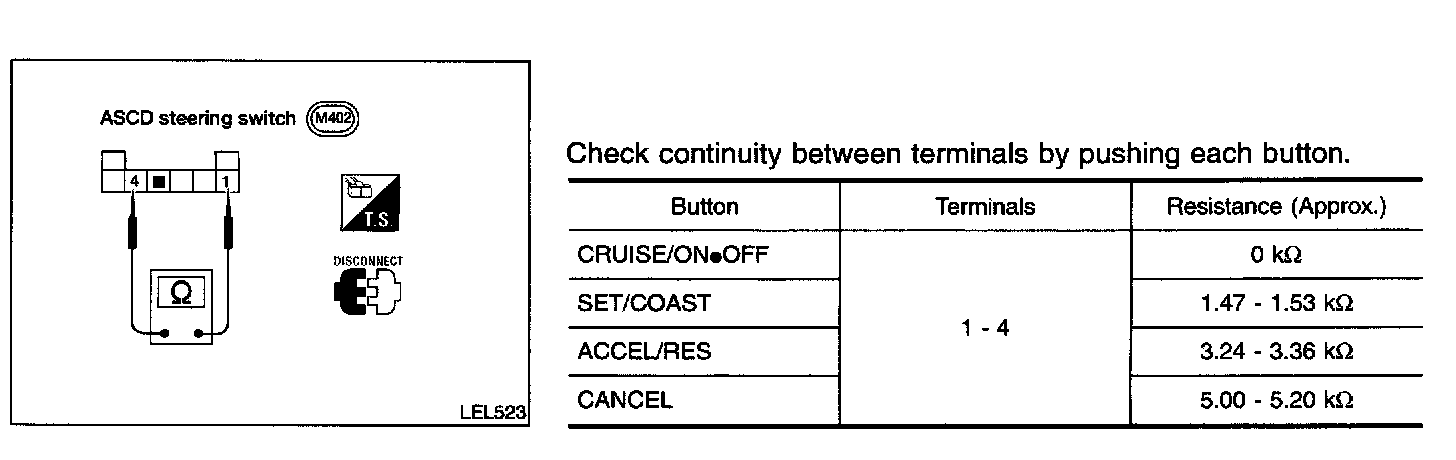

ASCD STEERING SWITCH




ASCD BRAKE SWITCH AND STOP LAMP SWITCH

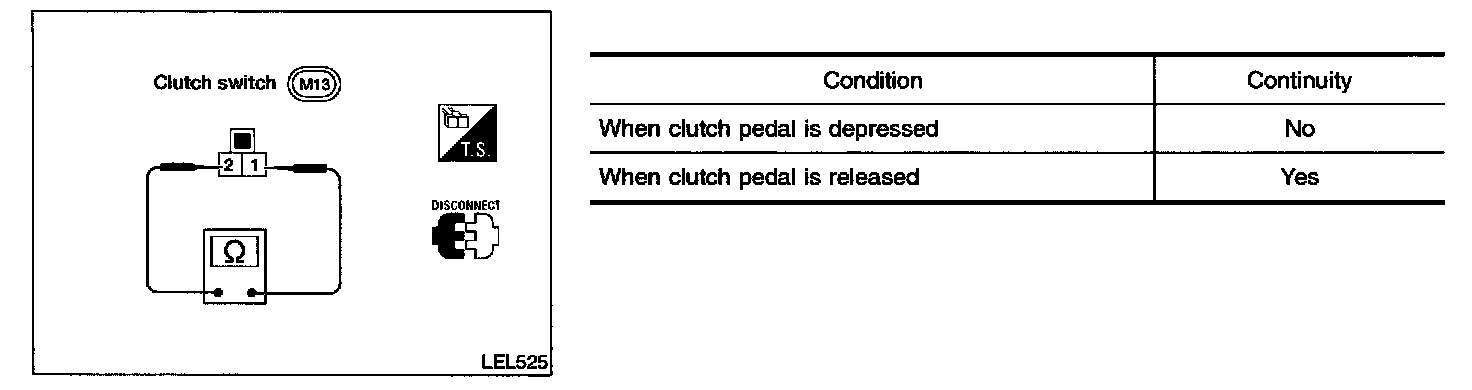

ASCD CLUTCH SWITCH (M/T)




PARK/NEUTRAL POSITION SWITCH (A/T)

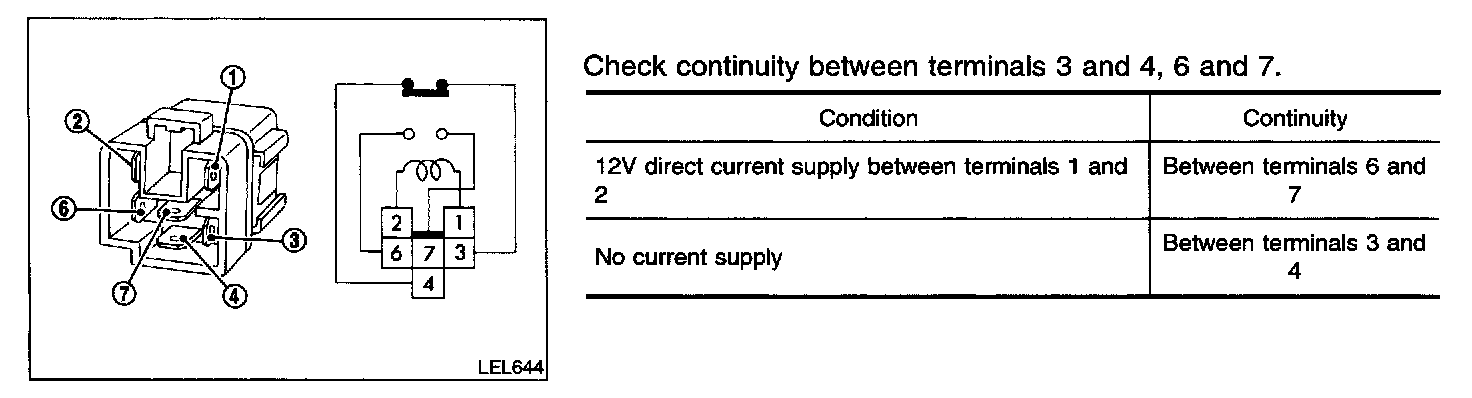

PARK/NEUTRAL POSITION (PNP) RELAY
