ASCD Circuit Inspections

Steps 1 - 2:

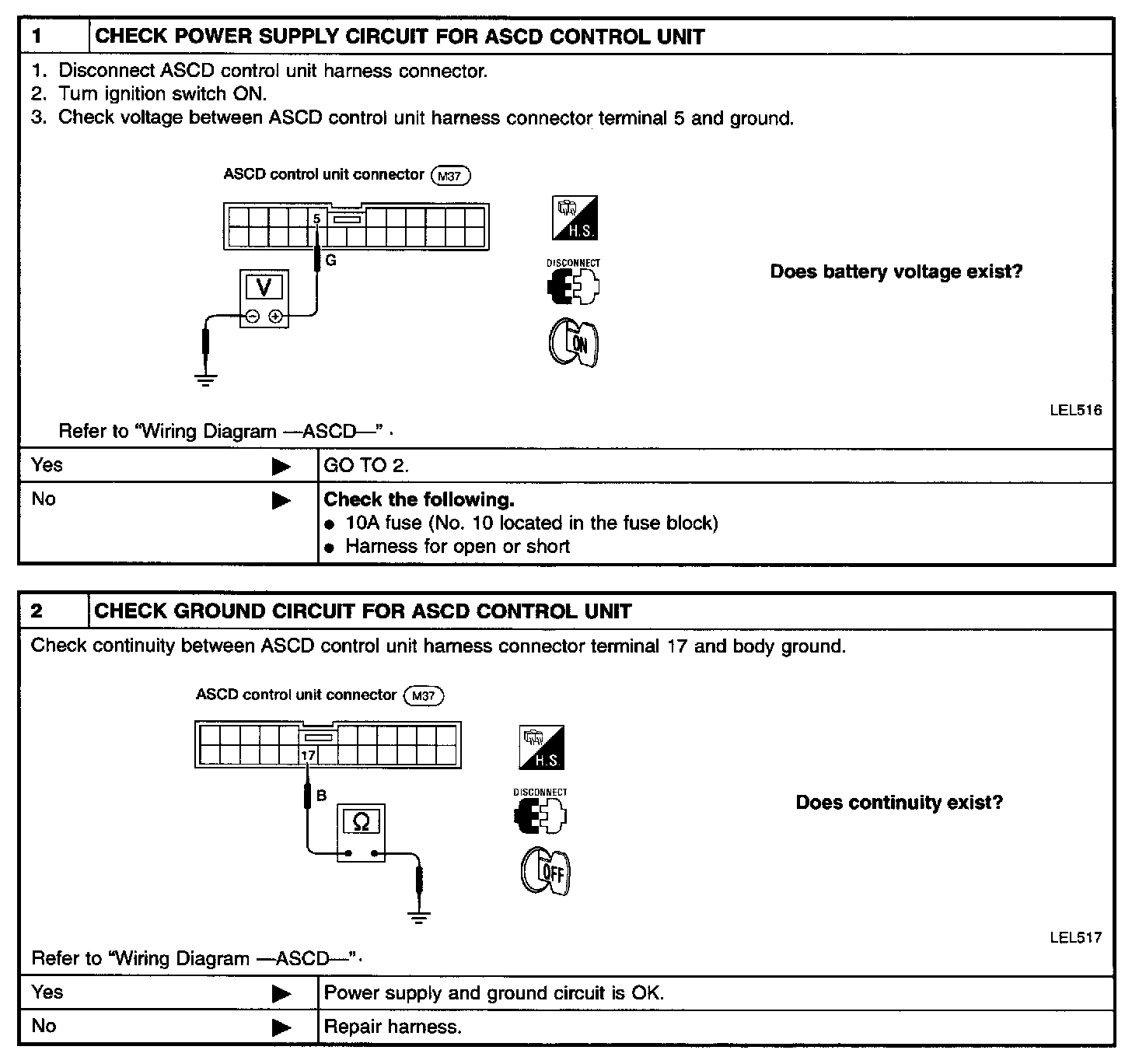

POWER SUPPLY AND GROUND CIRCUIT CHECK

Steps 1 - 2:

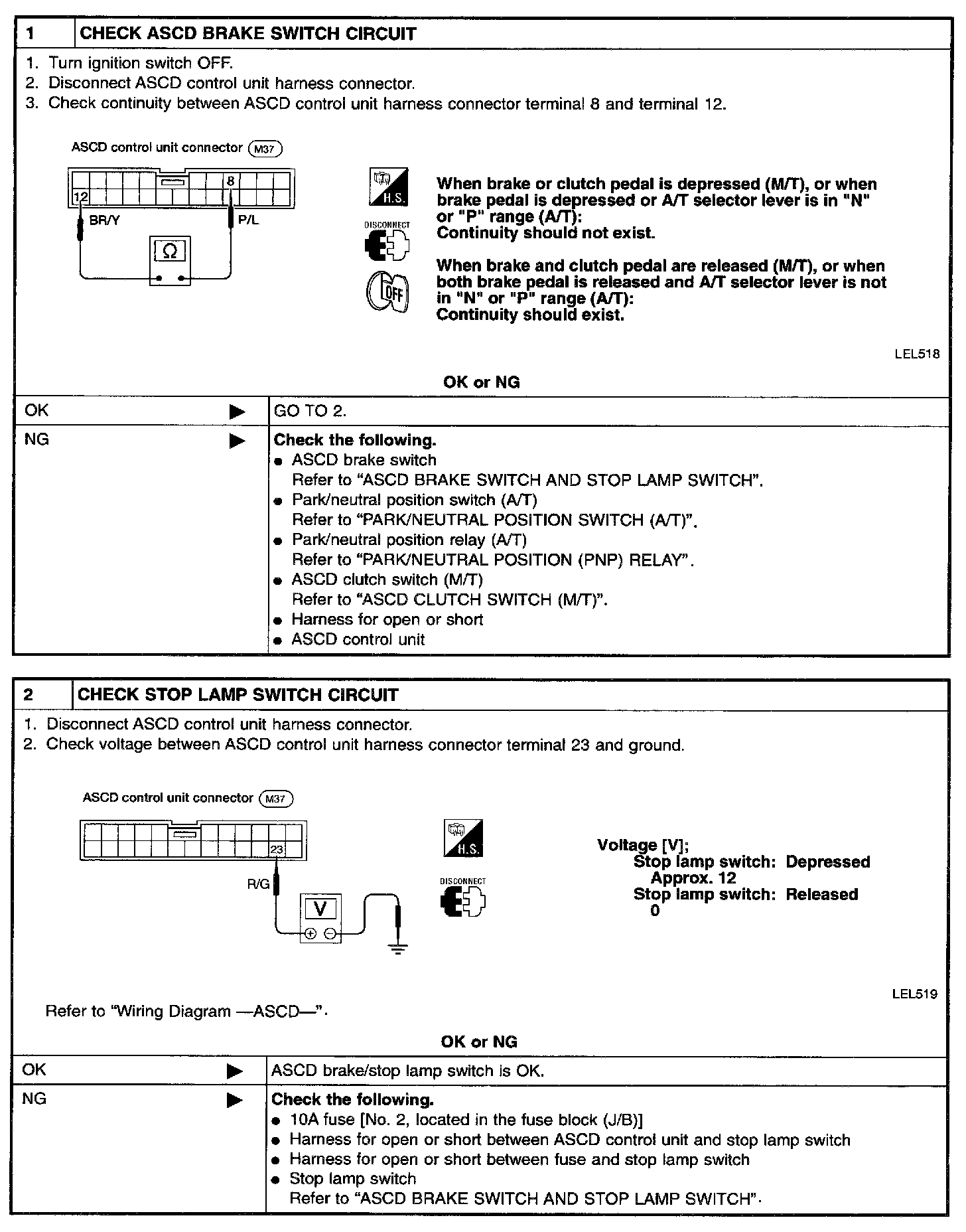

ASCD BRAKE/STOP LAMP SWITCH CHECK

Steps 1 - 2:

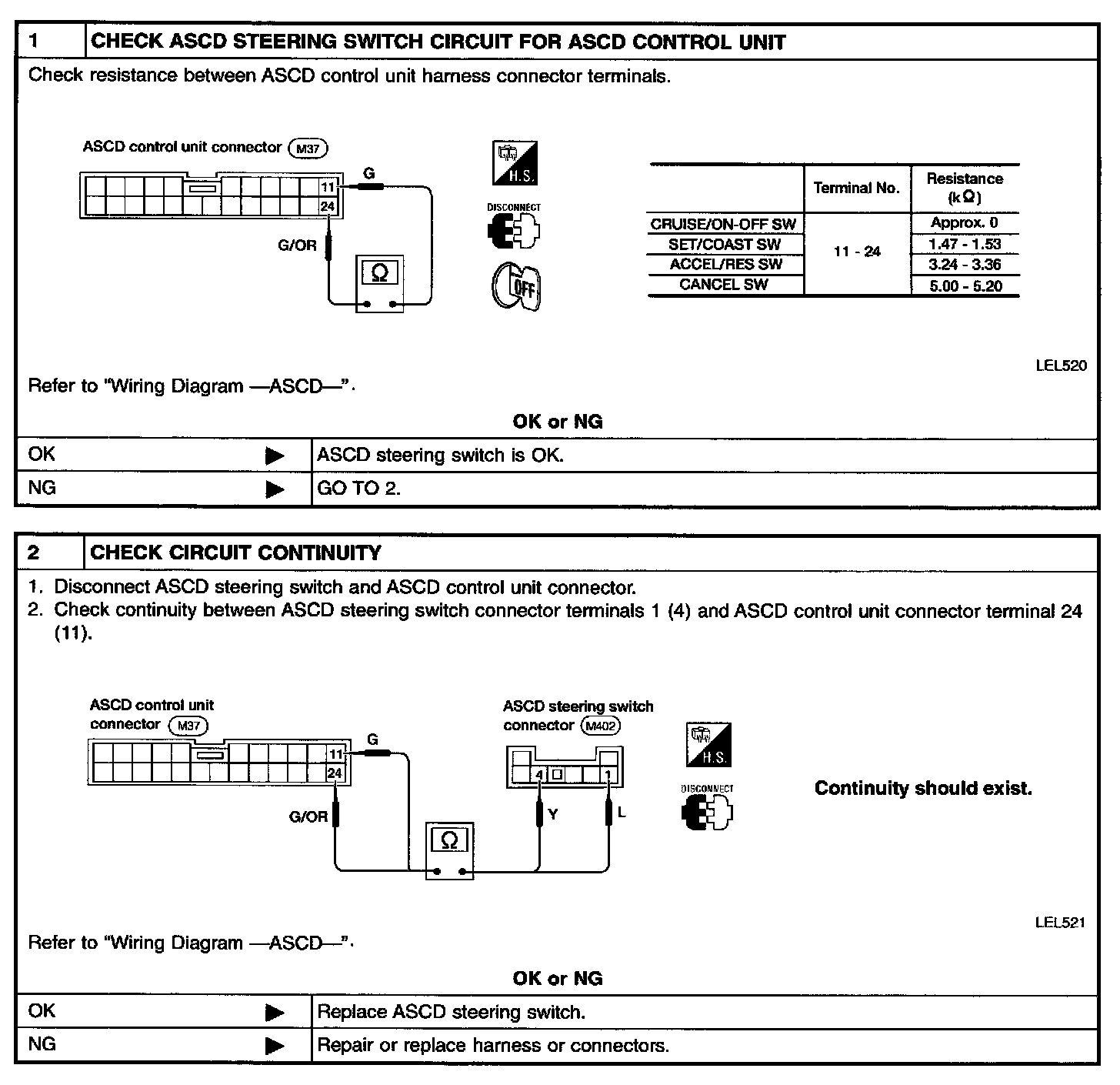

ASCD STEERING SWITCH CHECK

Steps 1 - 2:

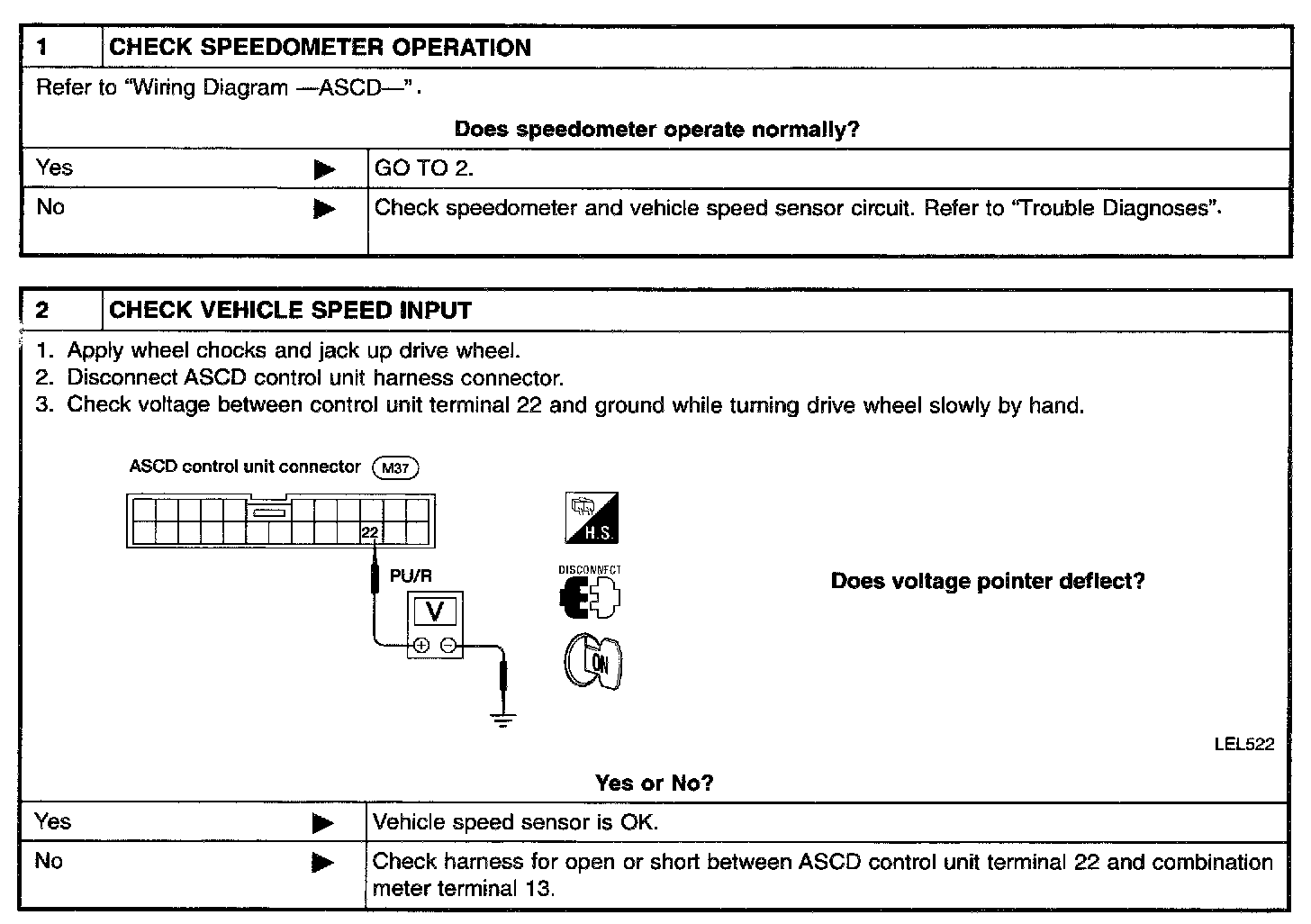

VEHICLE SPEED SENSOR CHECK

Step 1:

Step 2:

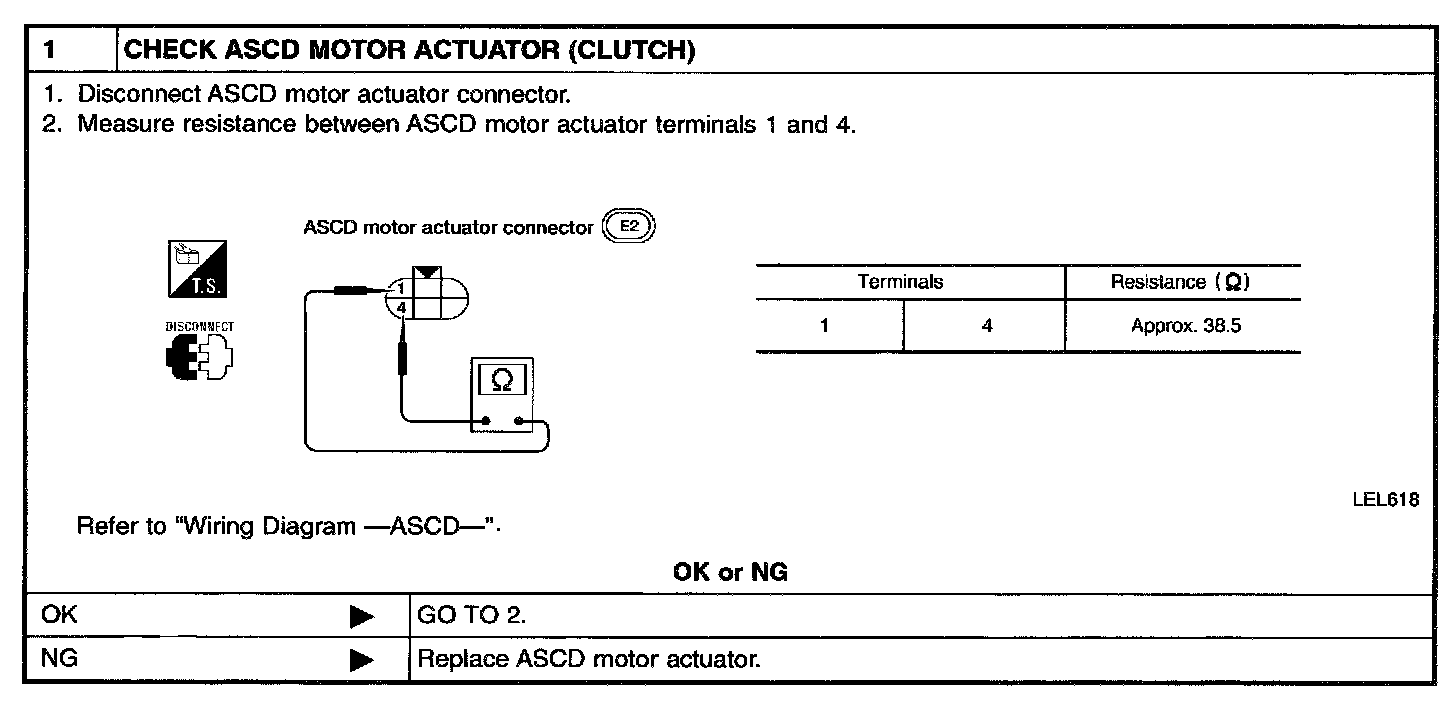

ASCD MOTOR ACTUATOR CIRCUIT CHECK

Step 1:

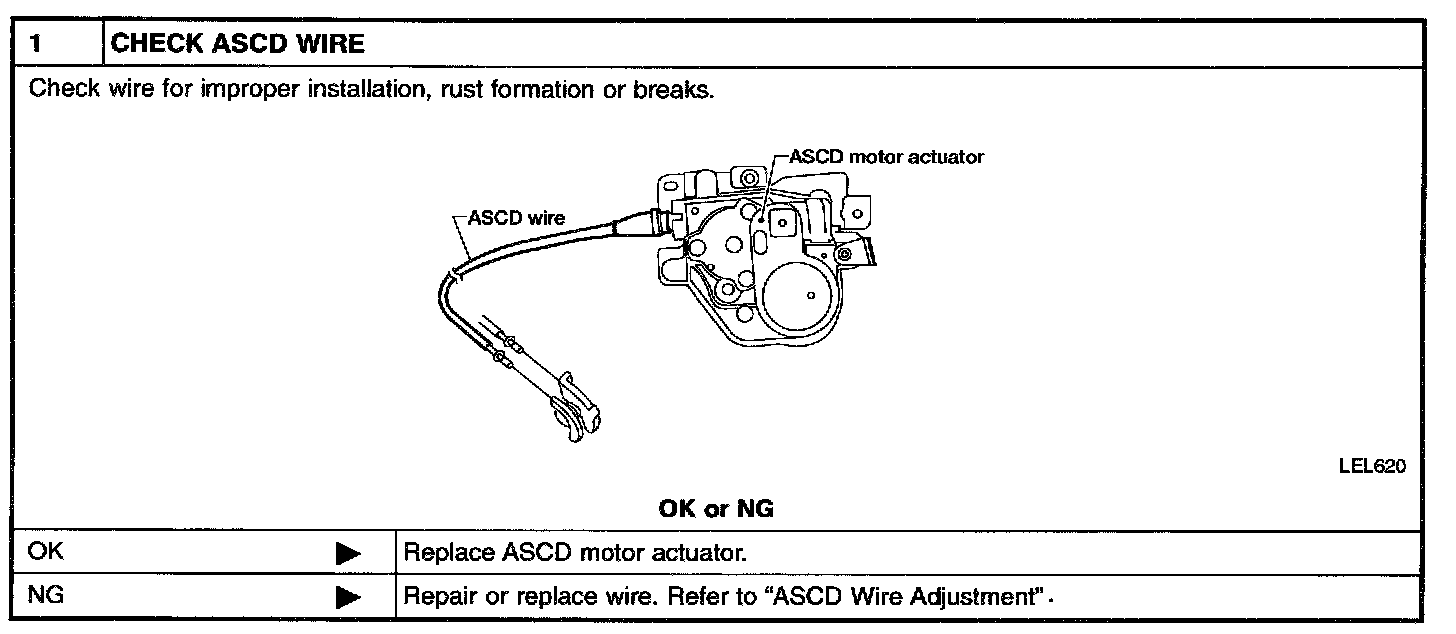

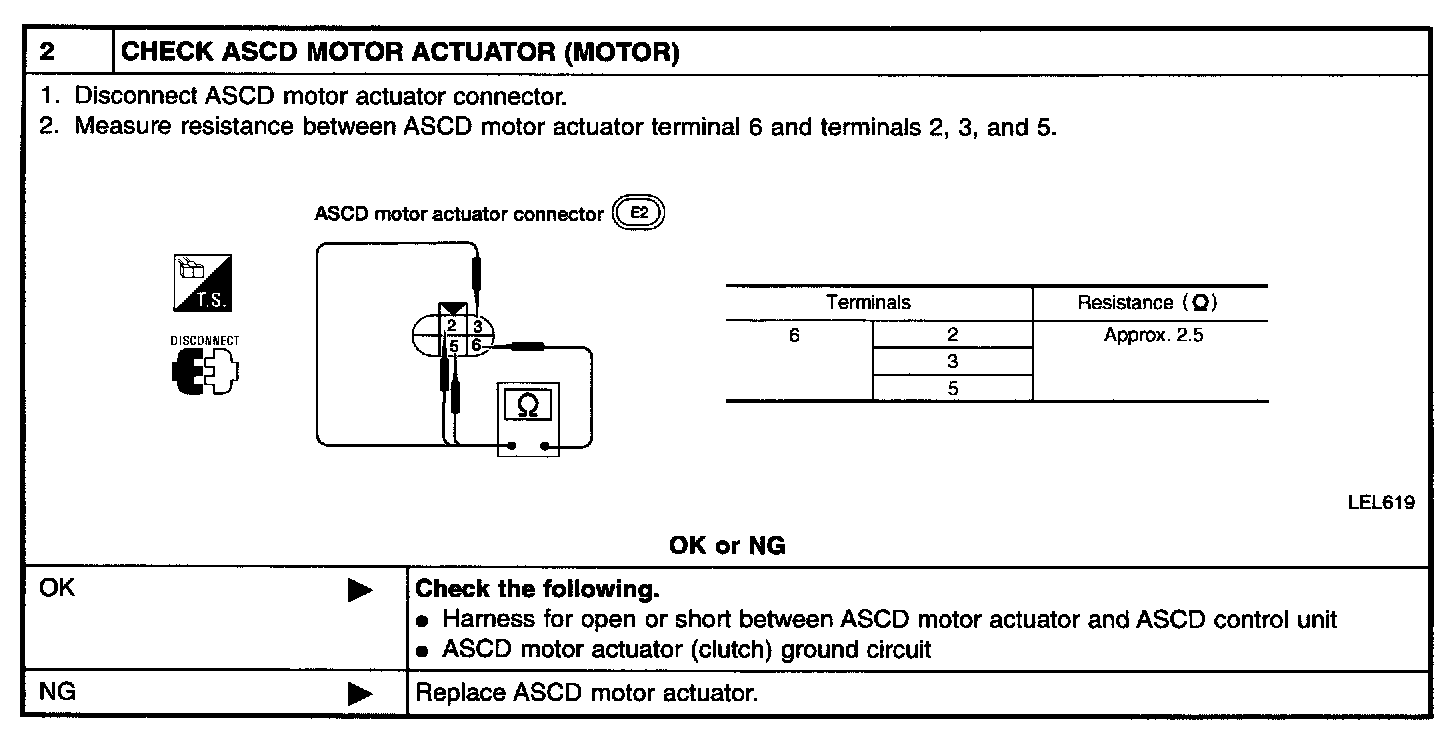

ASCD MOTOR ACTUATOR CHECK
