Home >> Nissan-Datsun >> 2001 >> Sentra XE L4-1.8L (QG18DE) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

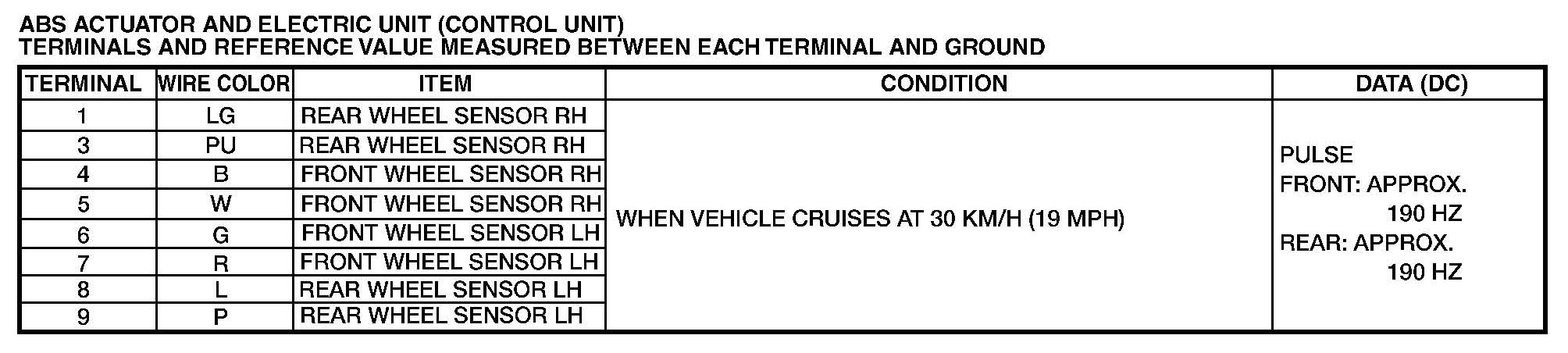

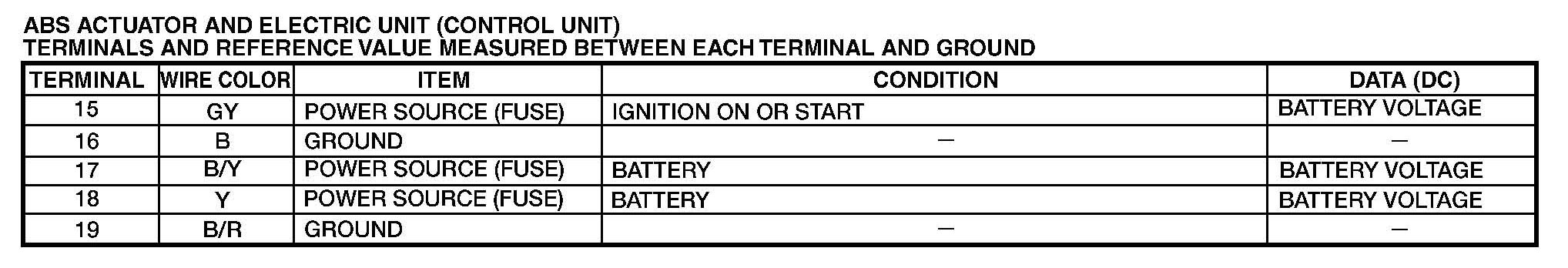

Pinout Values and Diagnostic Parameters
