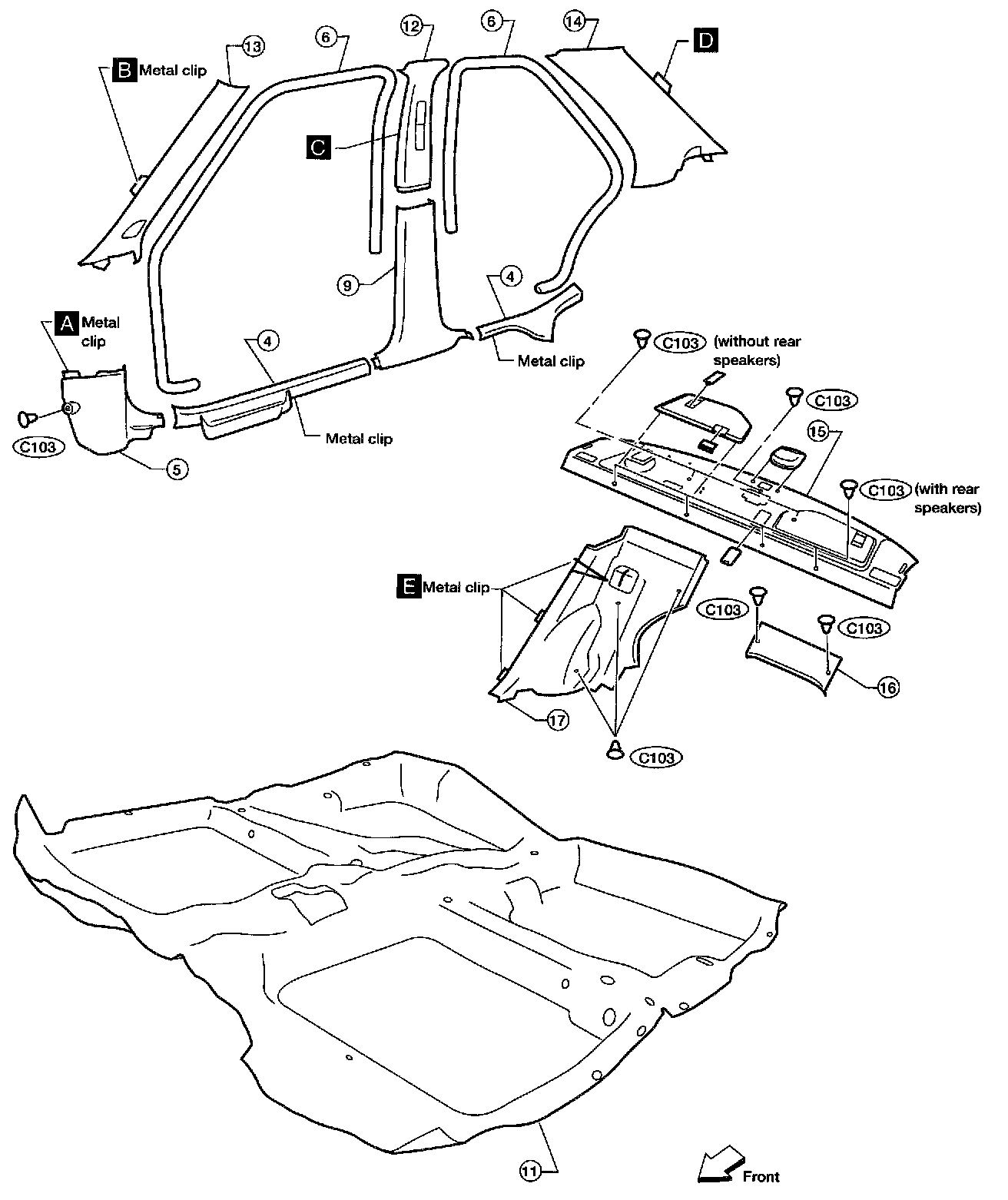

Side and Floor Trim

Part 1:

Part 2:

Removal and Installation

CAUTION: Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

1. Remove A/T finisher or M/T shift lever boot.
2. Remove the console.
3. Remove front and rear seats.
4. Remove kick plates.

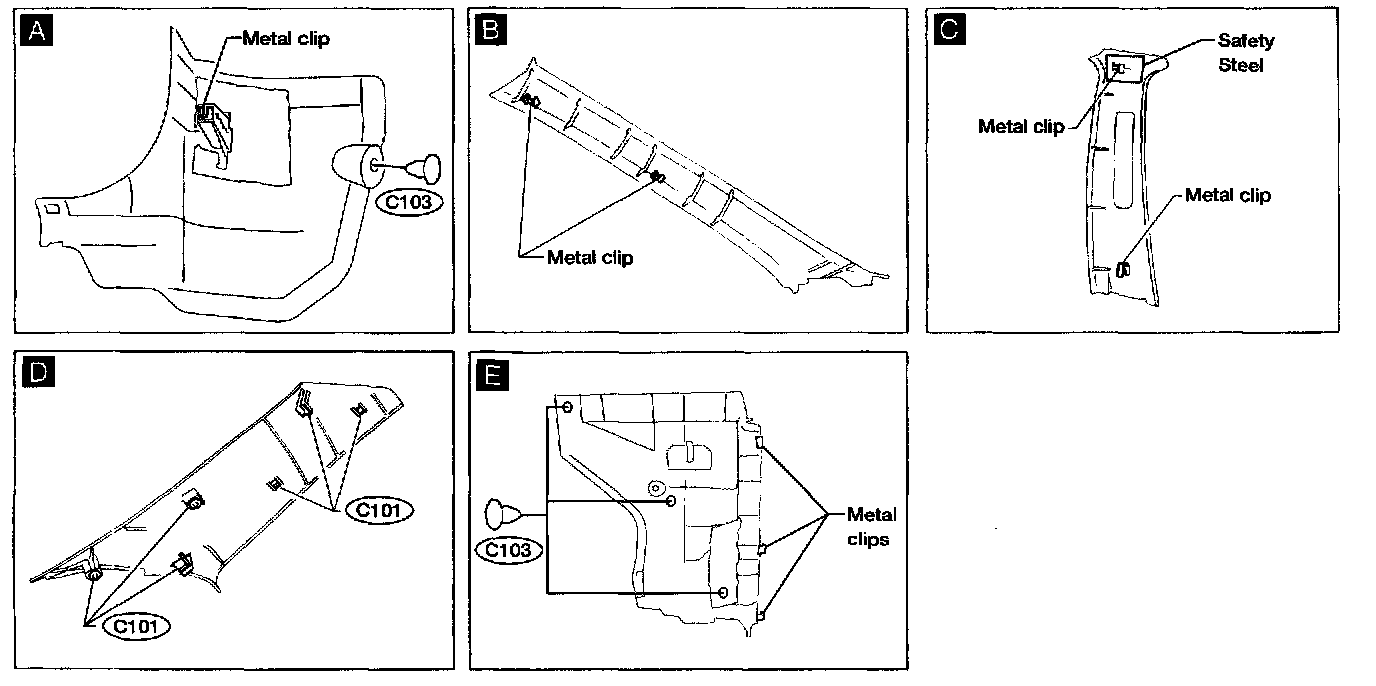

5. Remove dash side lower garnish. A
6. Remove body side welts.
7. Remove front seat belt floor anchor bolt.
8. Remove rear seat belt floor anchor bolt.
9. Remove center pillar lower garnish.
10. Remove adjuster cover and pillar anchor bolt.
11. Remove floor carpet.
12. Remove center pillar upper garnish. C
13. Remove front pillar garnish. B
14. Remove rear pillar garnish. D
15. Remove parcel shelf.
16. Remove center rear seat back finisher.
17. Remove side rear seat back finishers. E
