Nissan-Datsun
>>
2001
>>
Sentra XE L4-1.8L (QG18DE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

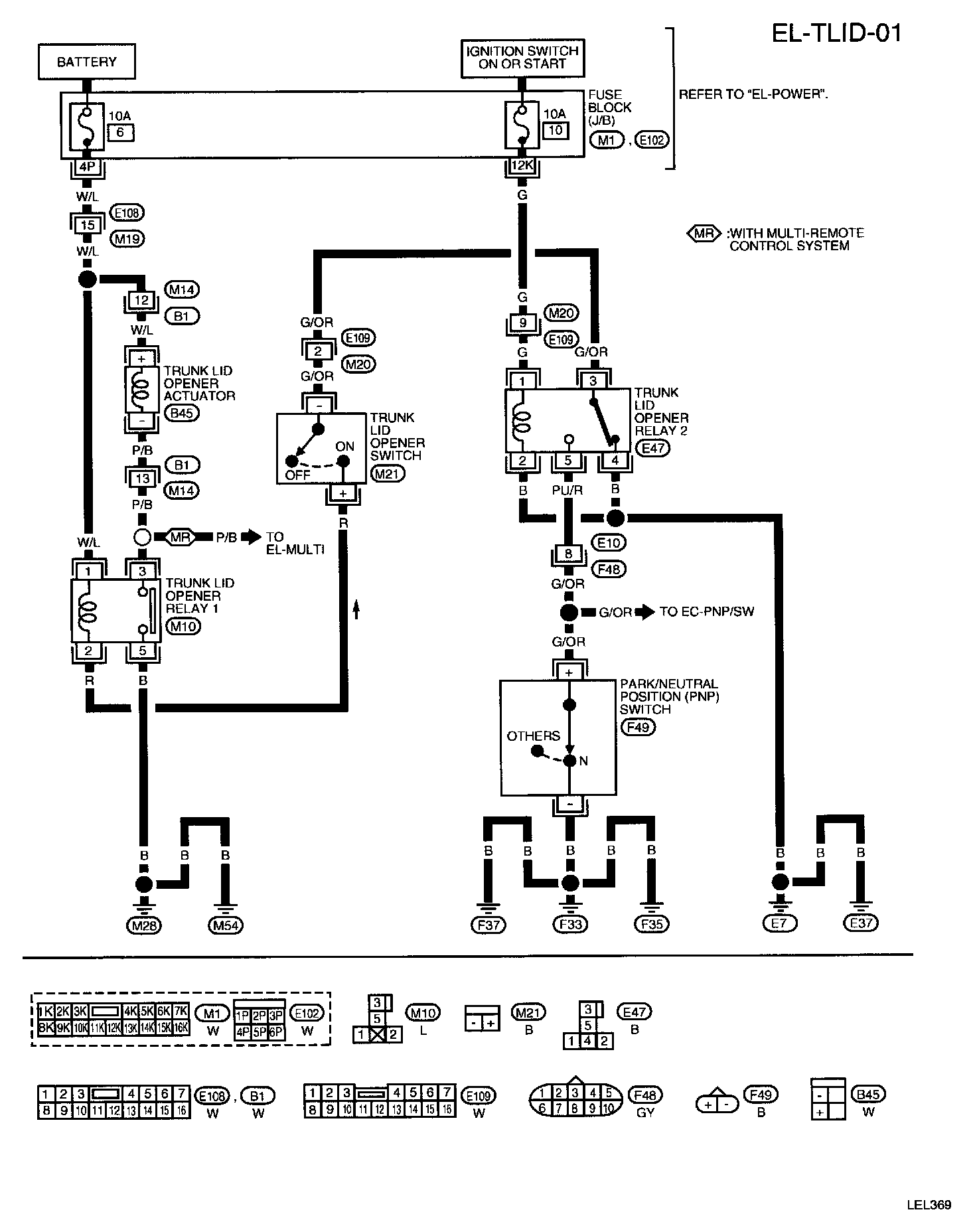

EL-TLID-01 (With M/T):

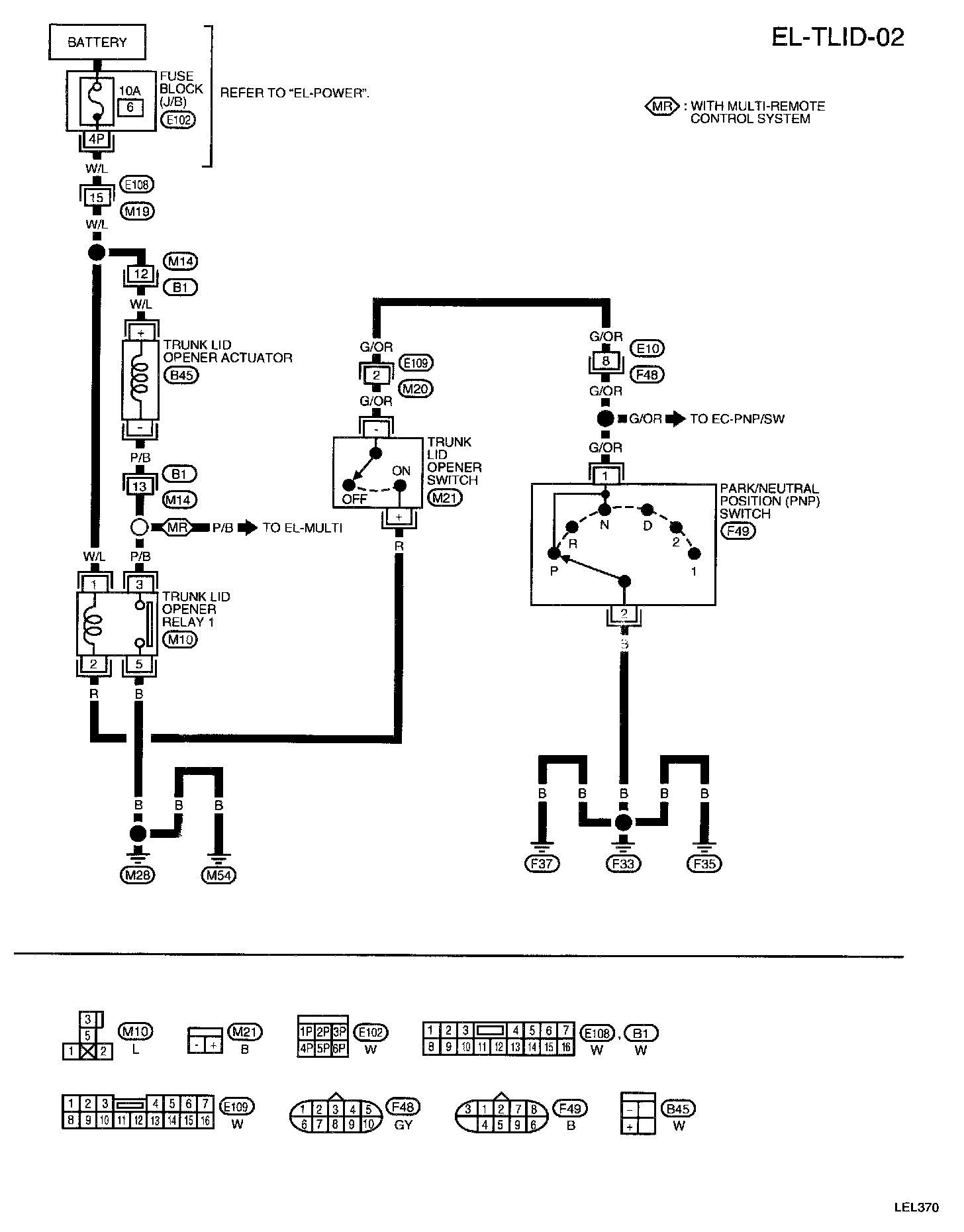

EL-TLID-02 (With A/T):
