Radio/Stereo: Service and Repair

1. Lock the CD changer unit mechanism (if so equipped) prior to removing a malfunctioning CD changer unit. Refer to "LOCKING CD CHANGER UNIT MECHANISM".
2. Remove upper cluster lid C by firmly grasping and carefully pulling rearward from instrument panel.
3. Disconnect hazard switch connector.
4. Remove lower cluster lid C by firmly grasping and carefully pulling rearward from instrument panel.




5. Remove six screws and remove audio unit and storage bin/CD changer as an assembly.
6. Disconnect audio unit connectors.






CAUTION: Do not pry or forcibly remove heater A/C control bezel from audio unit face plate or audio unit damage could result.

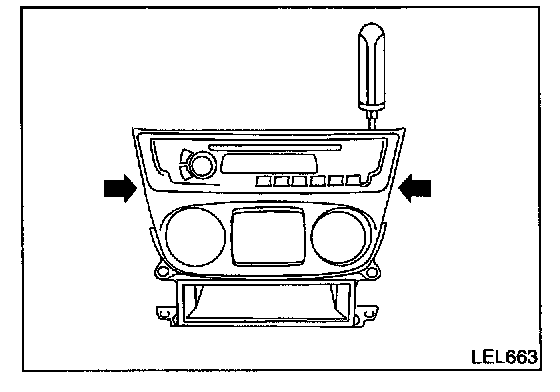

7. Release two tabs using a screwdriver and carefully remove heater A/C control bezel from audio unit face plate.
8. Remove brackets from audio unit and remove audio unit.
9. Install in reverse order of removal.
