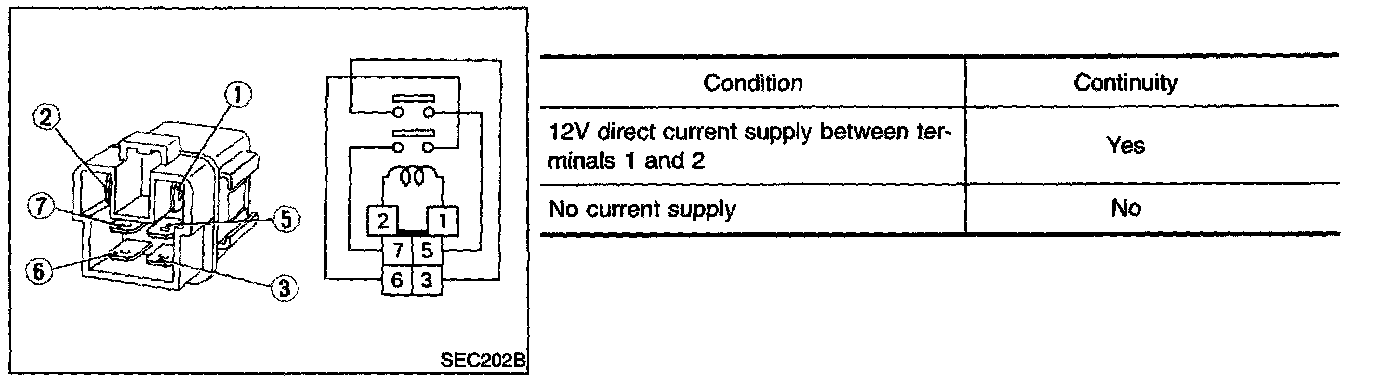

VEHICLE SECURITY HORN RELAY AND VEHICLE SECURITY LAMP RELAY
Check continuity between terminals 3 and 5, 6 and 7.
