Home >> Nissan-Datsun >> 2001 >> Sentra XE L4-1.8L (QG18DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Locations

Keyless Entry: Locations

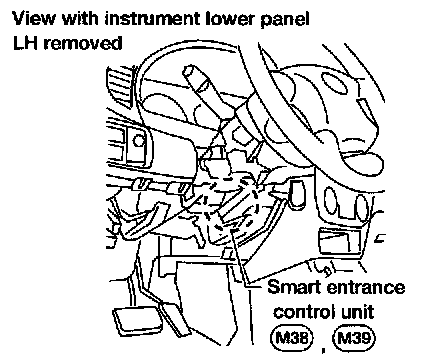

Smart Entrance Control Unit:

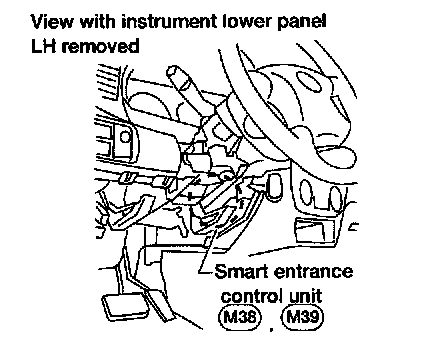

Smart Entrance Control Unit:

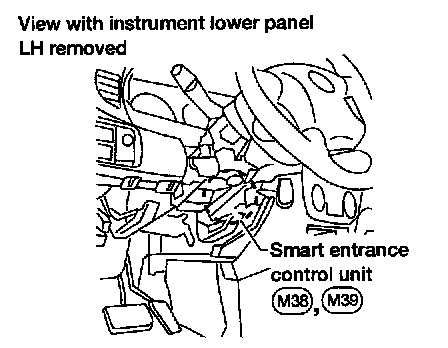

Smart Entrnce Control Unit:

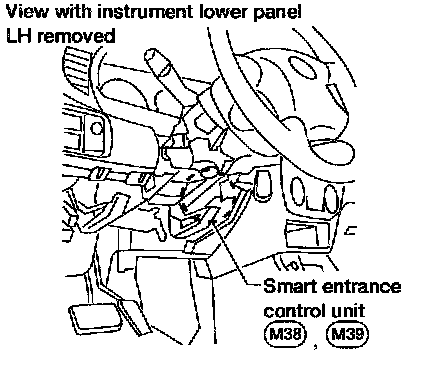

Smart Entrance Control Unit:



Component Locations Overview:

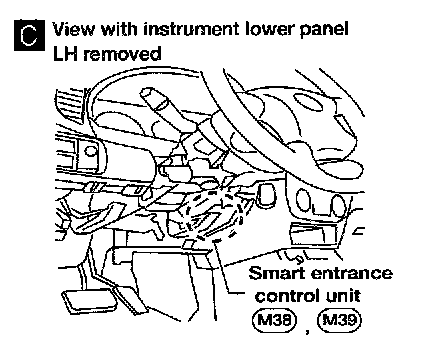

Component View C:



Passenger Compartment Component Locations Overview:



Component View B:
